Good Price industrial Steel Storage Platform shelf goods storage shelf

Product Overview

Description

Good Price industrial Steel Storage Platform shelf goods storage shelf

The goods shelf  is widely used for storage goods both in supermarket or in personal house and warehouse,below is some details of this shelf

1. The material is Q235B steel.
2. The maximum allowable deflection of the column is 1/1000 and the safety factor is 1.95; the maximum allowable deflection of the beam is 1/200 and the safety factor is 1.65.
3. The shelf is a detachable combination, the beam can be adjusted on the column at a minimum spacing of 75MM, and the two ends of the beam are equipped with high strength safety pins to effectively prevent the beam from slipping off.
4. Surface treatment: epoxy resin electrostatic powder treatment, hardness is not scratched by 2H pencil test, the shelf surface is acid and alkali resistant, the coating thickness is about 80 ~ 100 microns

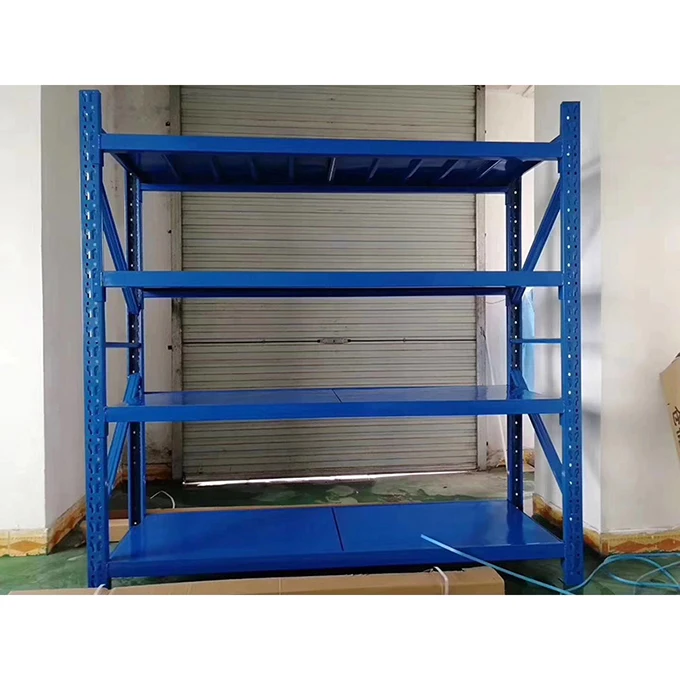

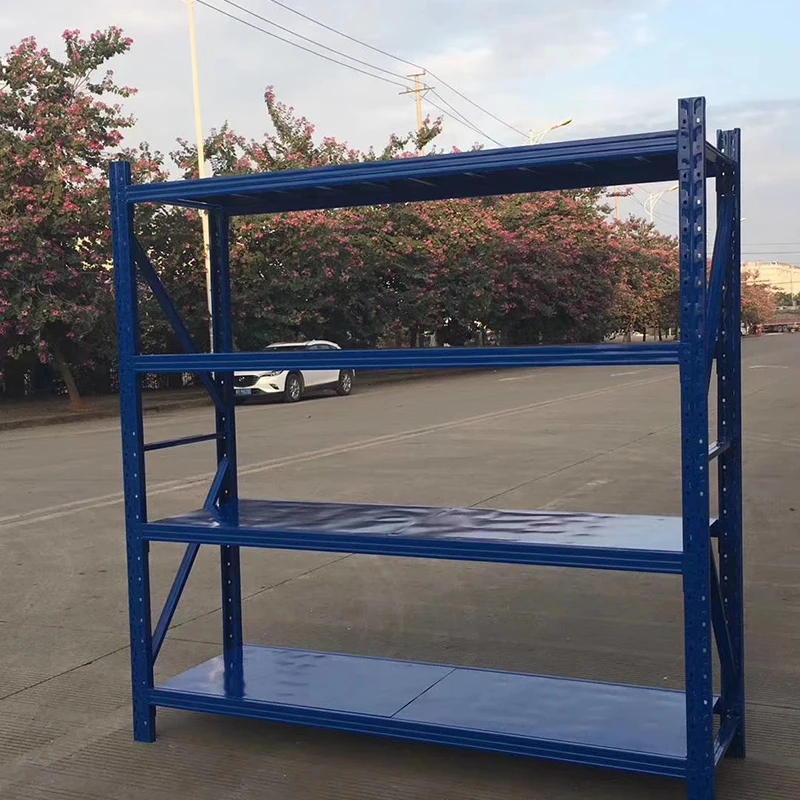

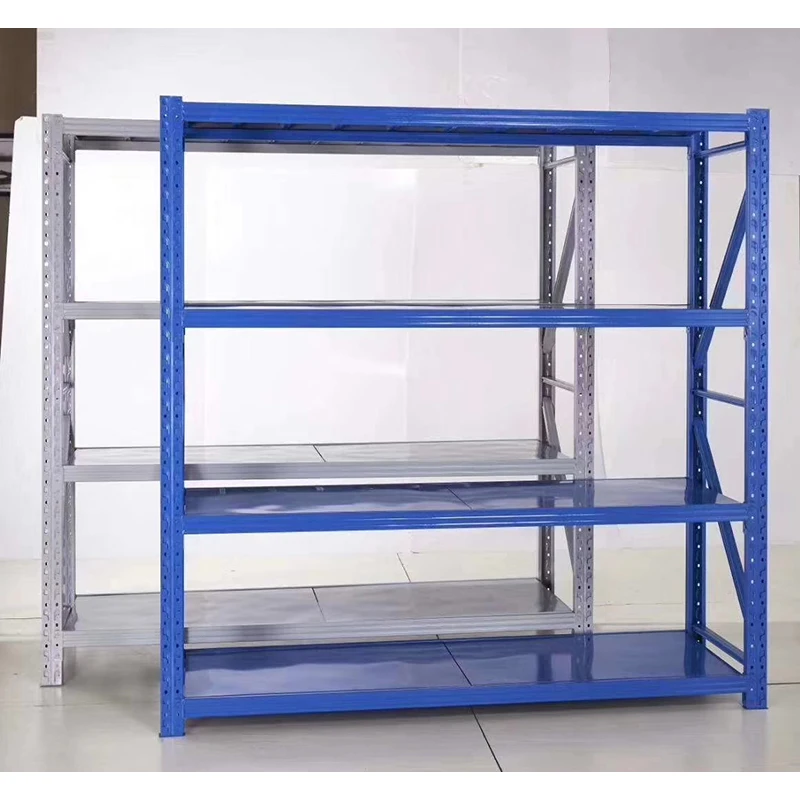

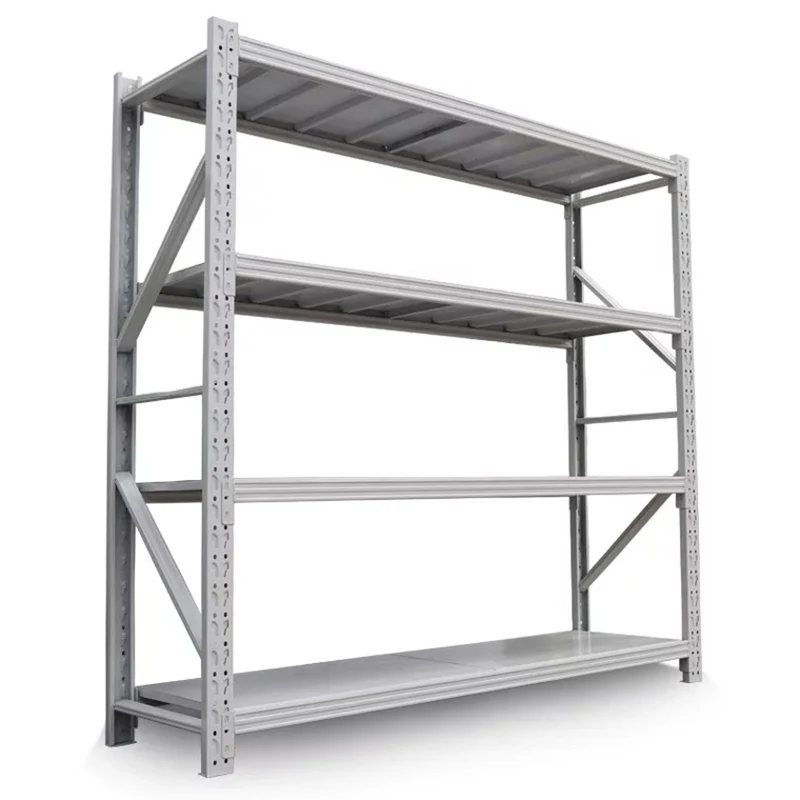

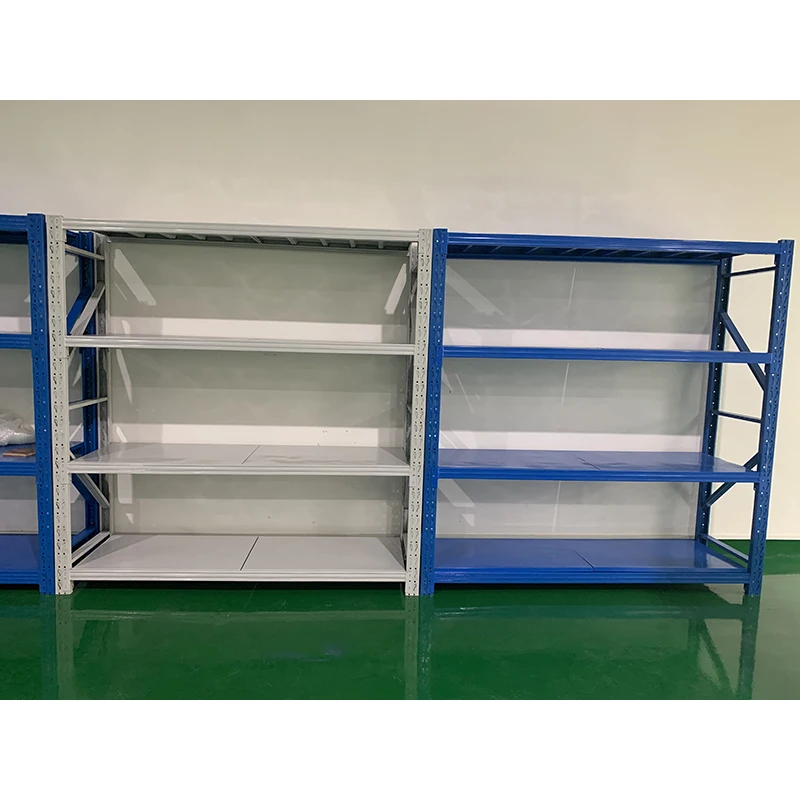

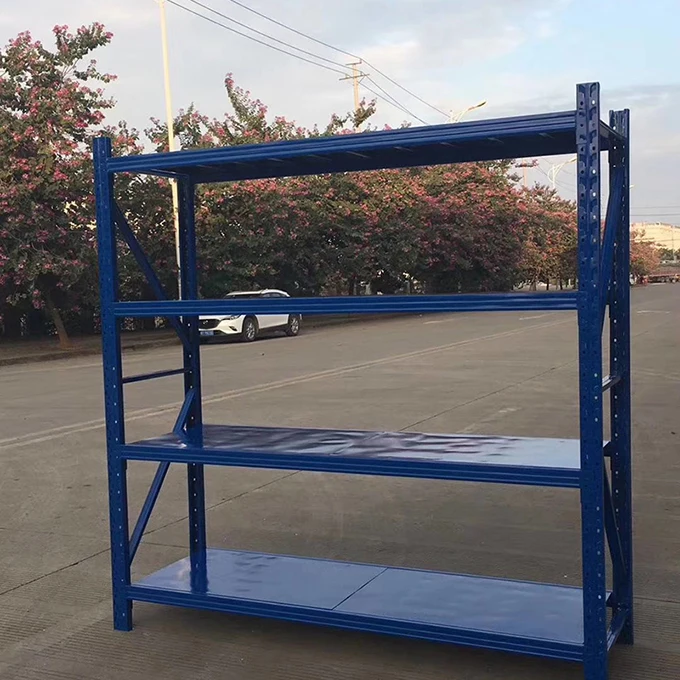

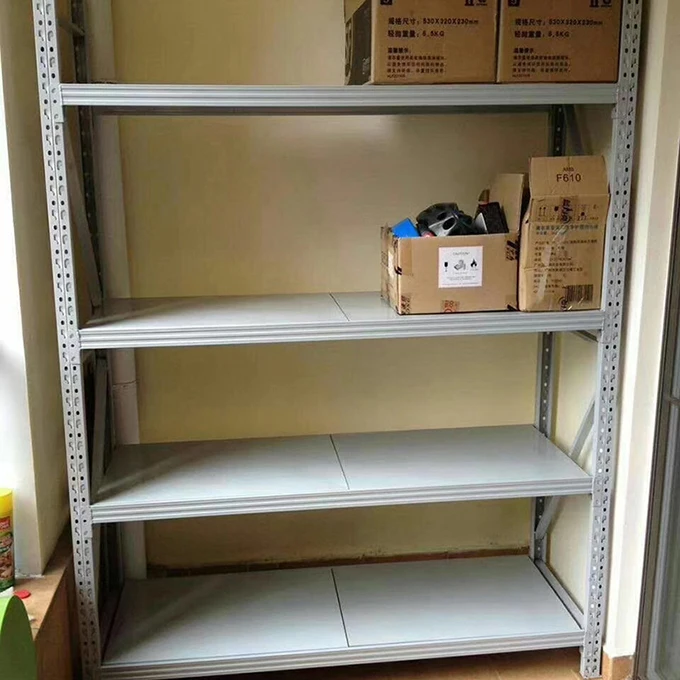

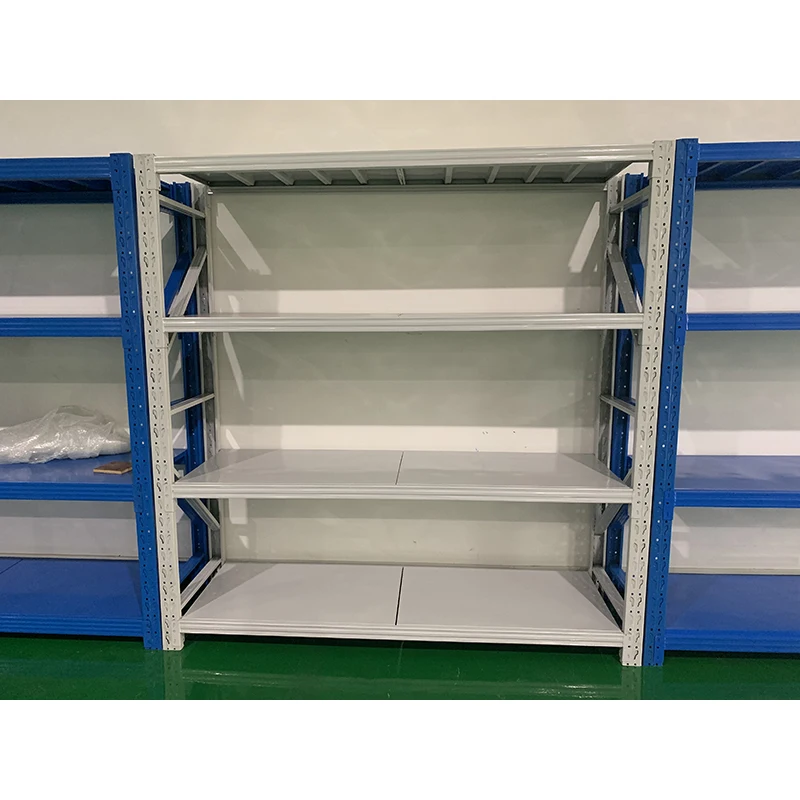

Detailed pictures:







 Goods shelf size details, customized sizes is available once request:



storage rack/goods shelf
Model No.	Size (W x D x H)	Bearing capacity of each floor
RK-GS120520-100	120x50x200cm	100kg
RK-GS120520-100V	120x50x200cm	100kg
RK-GS150420-200	150x40x200cm	200kg
RK-GS150420-200V	150x40x200cm	200kg
RK-GS200420-200	200x40x200cm	200kg
RK-GS200420-200V	200x40x200cm	200kg
RK-GS200620-200	200x60x200cm	200kg
RK-GS200620-200V	200x60x200cm	200kg
RK-GS200620-300	200x60x200cm	300kg
RK-GS200620-300V	200x60x200cm	300kg
RK-GS200620-500	200x60x200cm	500kg
RK-GS200620-500V	200x60x200cm	500kg



RK Team company and factory pictures:





RK OFFICE pictures:

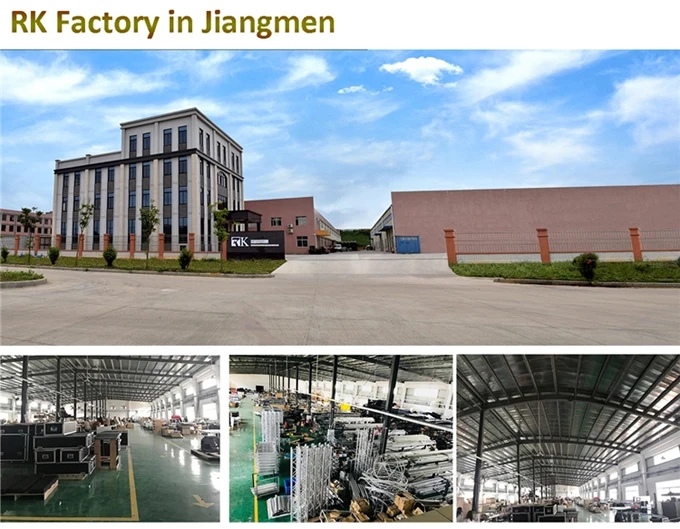

RK factory pictures:
