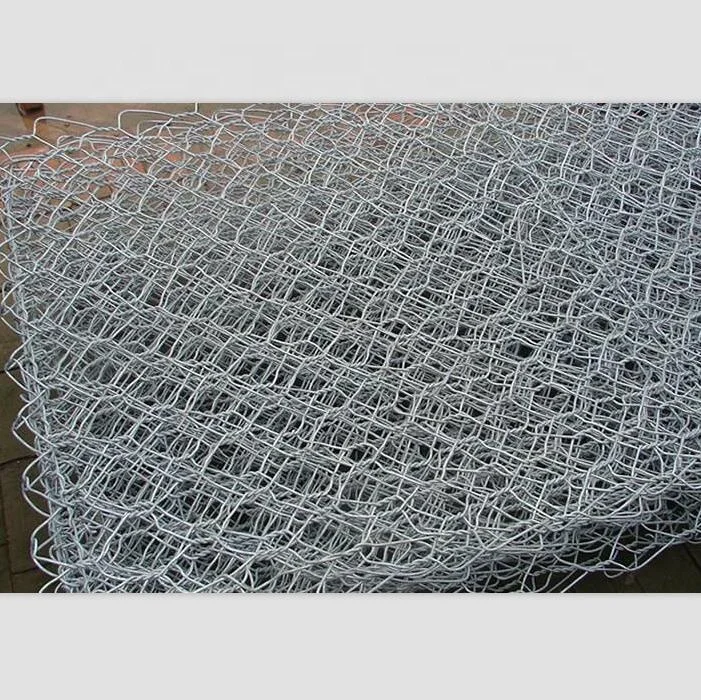

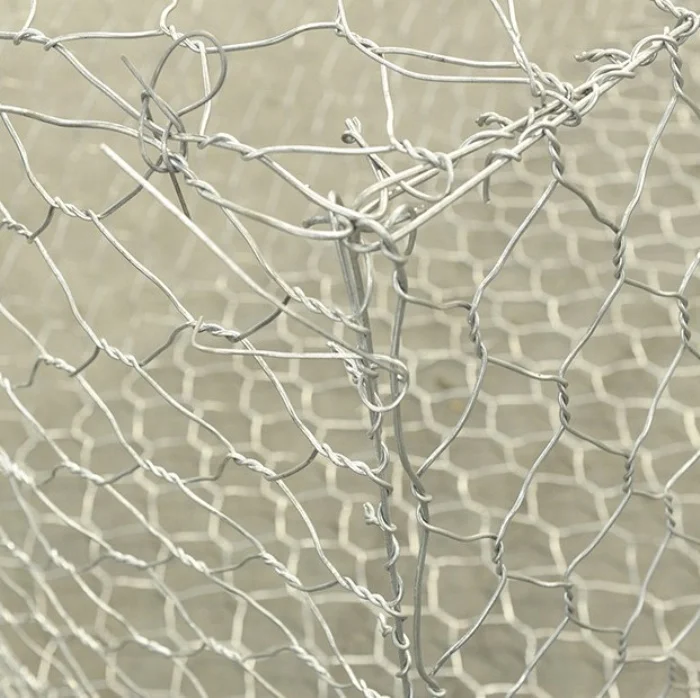

hot dipped galvanized 8x10cm hexagonal gabion/Renault pads for Philippine market
- Category: >>>
- Supplier: Anping County Dechengli Hardware Products Co. Ltd.
Share on (62023543950):
Product Overview
Description
Product Description

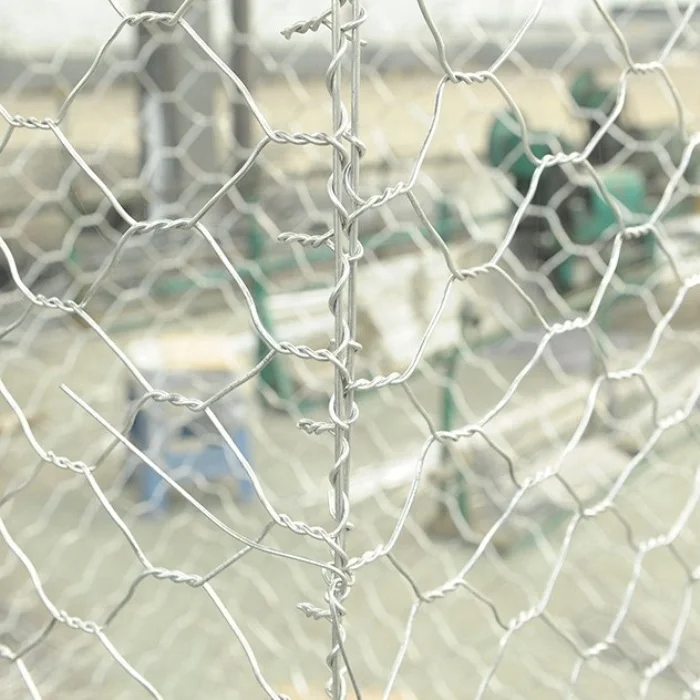

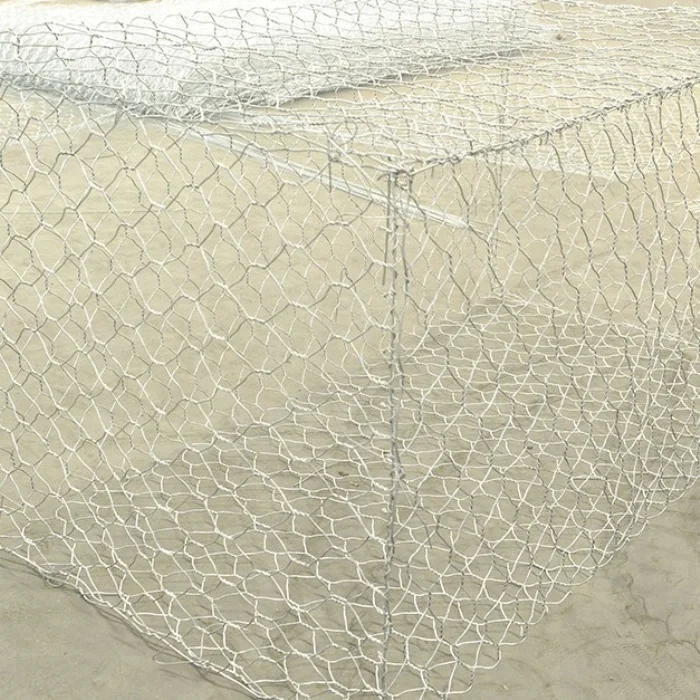

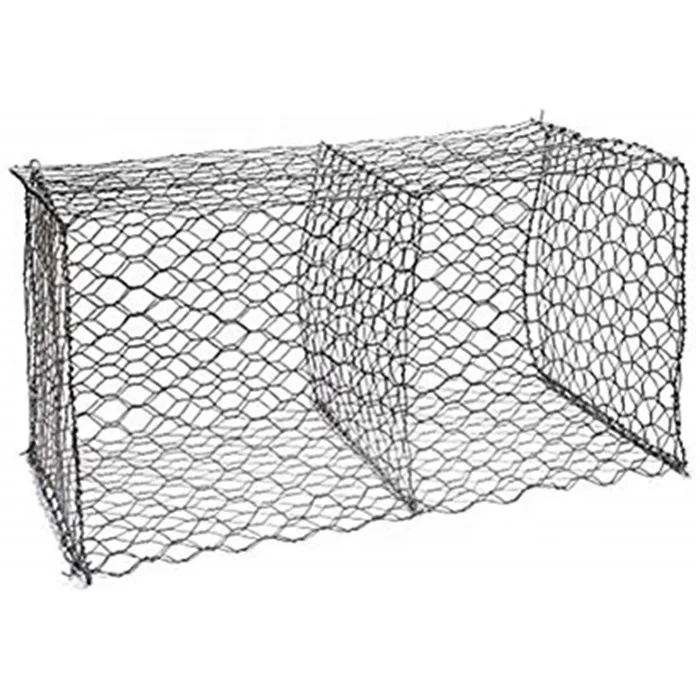

hot dipped galvanized 8x10cm hexagonal gabion/Renault pads for Philippine market
Gabion Baskets are supplied flat packed and then laced together on site to form the required retaining wall. Prefilled gabions are available on special request. It is recommended that gabions be filled insitu whenever possible.
Woven mesh gabion baskets and mattresses are available with a choice of different wire coatings. Standard coatings are HDG (Hot Dip Galvanised), Alu-Zinc (95% Zn + 5% Al) coated or PVC coated. Alu-Zinc coated baskets are often mistaken for galvanised ones as they look similar but can actually last up to 3-4 times longer under similar exposure conditions. PVC coated cages on the other hand can have a design life expectancy of up to 120 years, depending on exposure conditions,PVC coated gabions should be considered for longer service life requirements and for application near the sea, river or locations where exposure to corrosive chemicals, acids and salts is possible,PVC coated baskets are usually supplied with a grey or green PVC coating as standard but other colours are available to special order.
Standard wire diameter is 2.7mm, while 2.0mm and 2.4mm are available for certain mesh size combinations. Minimum thickness of PVC coating for woven gabions is 0.5mm.
Gabion Mesh Sizes
Options are also available with mesh size. The most common mesh size is 80mmx100mm for gabions and 60mmx80mm for mattresses. 100mmx120mm is also available to order.
Gabion Sizes
Baskets are available in range of sizes in half metre steps with the 2x1x1m gabion cage being the most common size. Other common sizes are 1.5x1x1m, 1x1x1m, 2x1x0.5m. Larger sizes such as 3x1x1m and 4x1x1m are also available to special order. Smaller landscaping sizes such as 2x0.5x0.5m are also available.
Woven Mesh gabions are also available as Mattresses. Gabion Mattresses are available 3x2m or 6x2m in plan and 0.17m, 0.23m 0.3m or 0.5m thick. Mattresses are typically used for erosion control and scour protection.
Gabin type list:
Gabions Box | ||||||
Length(m) | Width(m) | Height(m) | Cubage Amount | Cubage(M3) | Tolerance |
|
2.0 | 1.0 | 0.3 | 1 | 0.6 | Length±5% Width±5% Height±5% |
|
3.0 | 1.0 | 0.3 | 2 | 0.9 |
| |
4.0 | 1.0 | 0.3 | 3 | 1.2 |
| |
2.0 | 1.0 | 0.5 | 1 | 1.0 |
| |
3.0 | 1.0 | 0.5 | 2 | 1.5 |
| |
4.0 | 1.0 | 0.5 | 3 | 2.0 |
| |
1.0 | 1.0 | 1.0 | 0 | 1.0 |
| |
1.5 | 1.0 | 1.0 | 0 | 1.5 |
| |
2.0 | 1.0 | 1.0 | 1 | 2.0 |
| |
3.0 | 1.0 | 1.0 | 2 | 3.0 |
| |
4.0 | 1.0 | 1.0 | 3 | 4.0 | ||

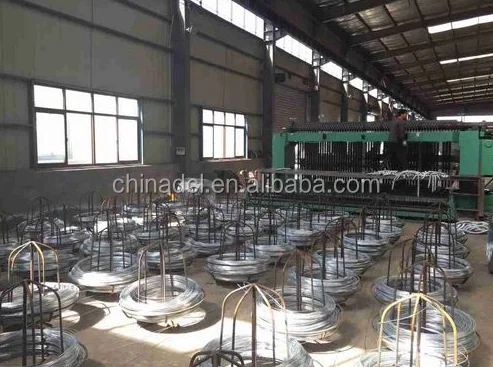

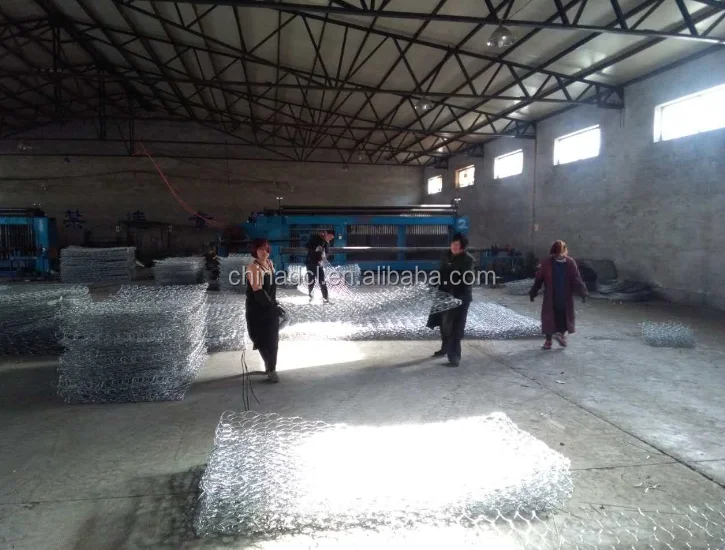

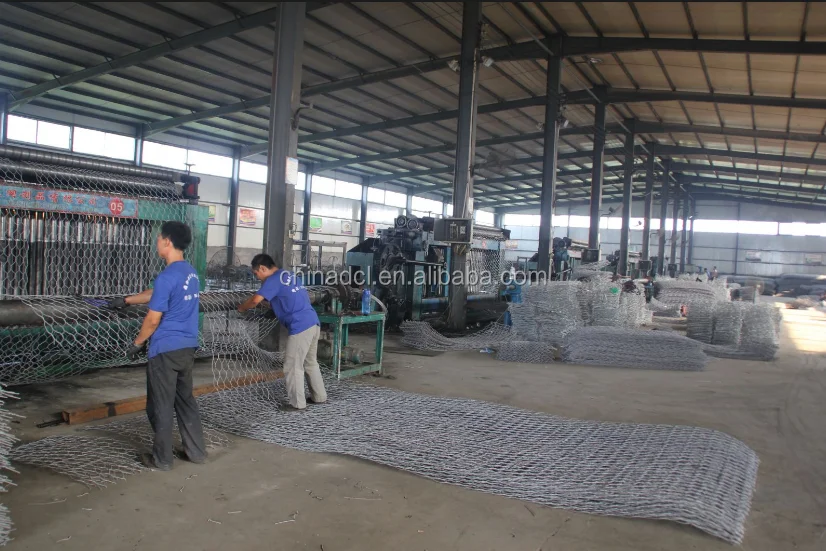

The gabion production process:

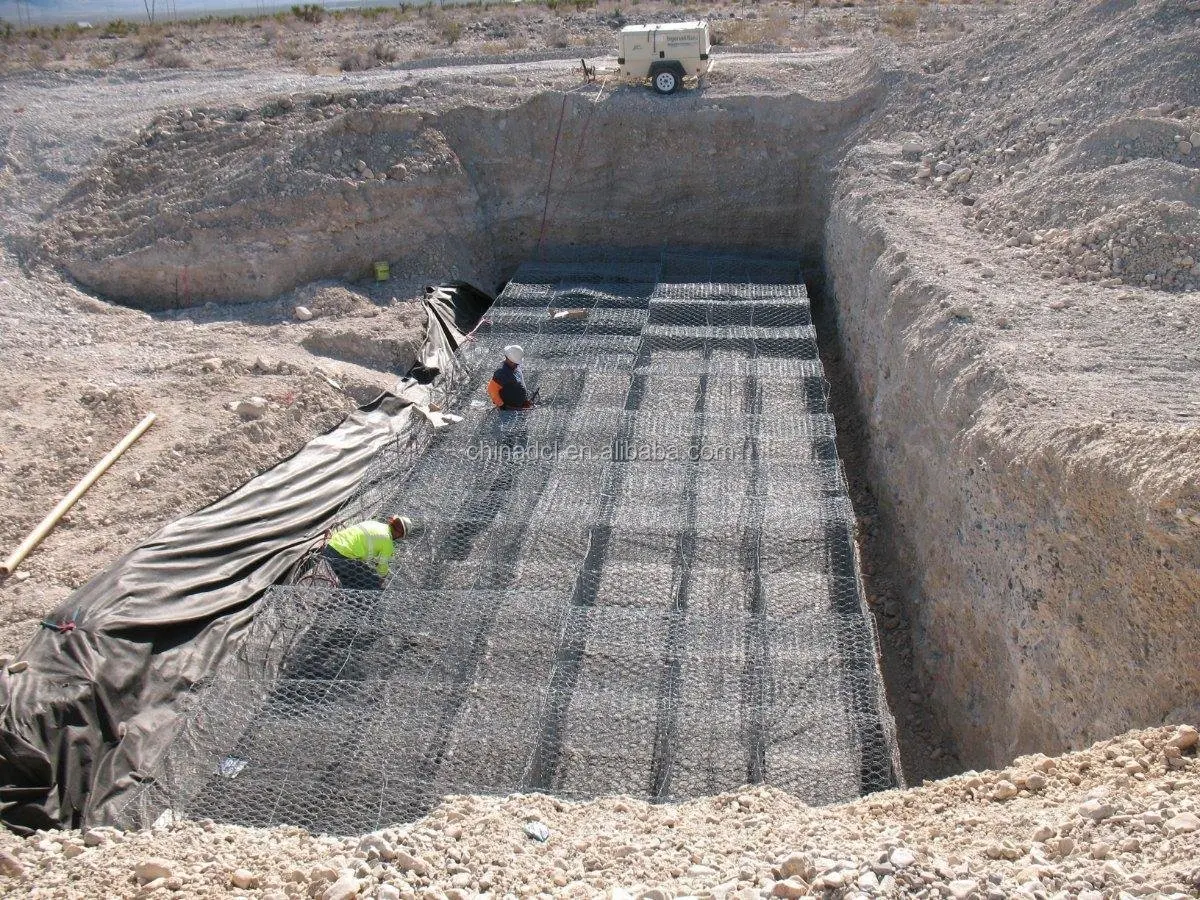

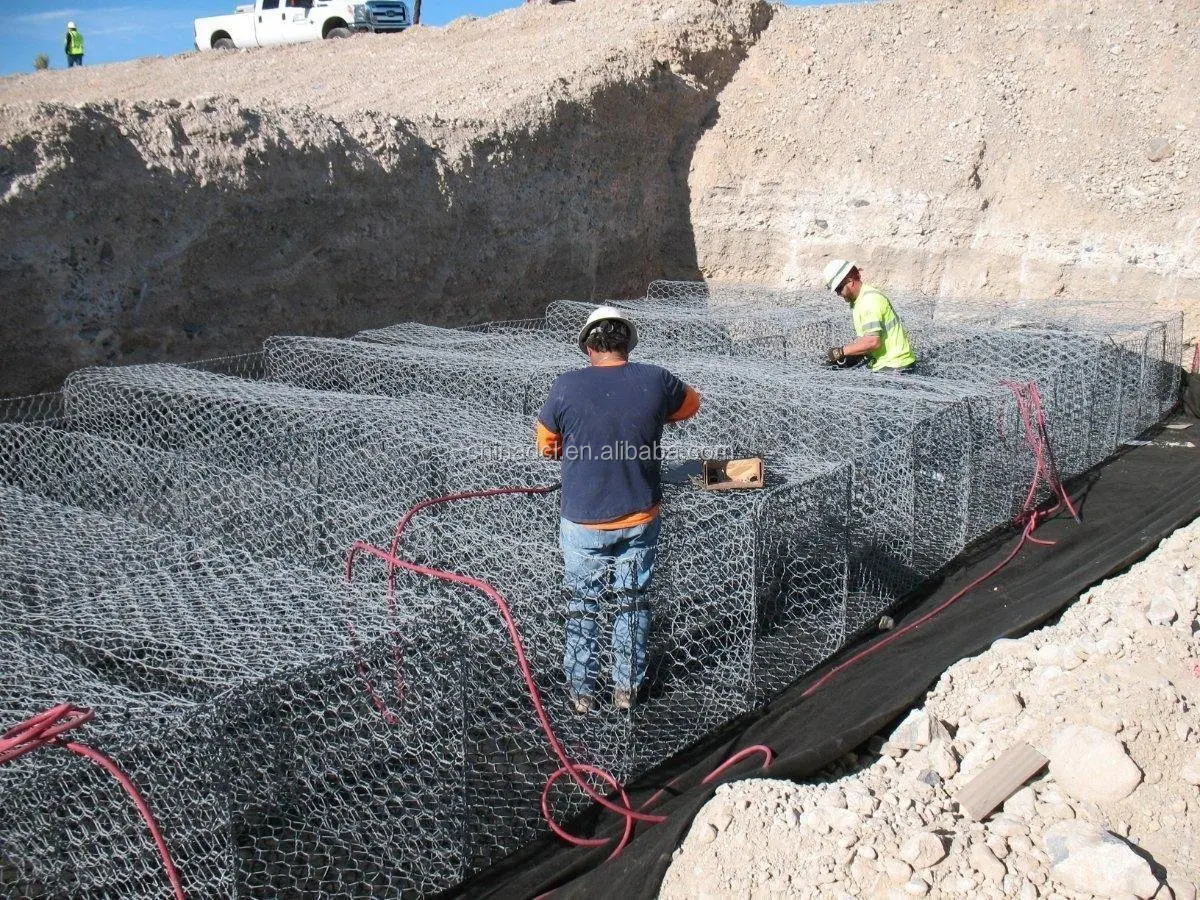

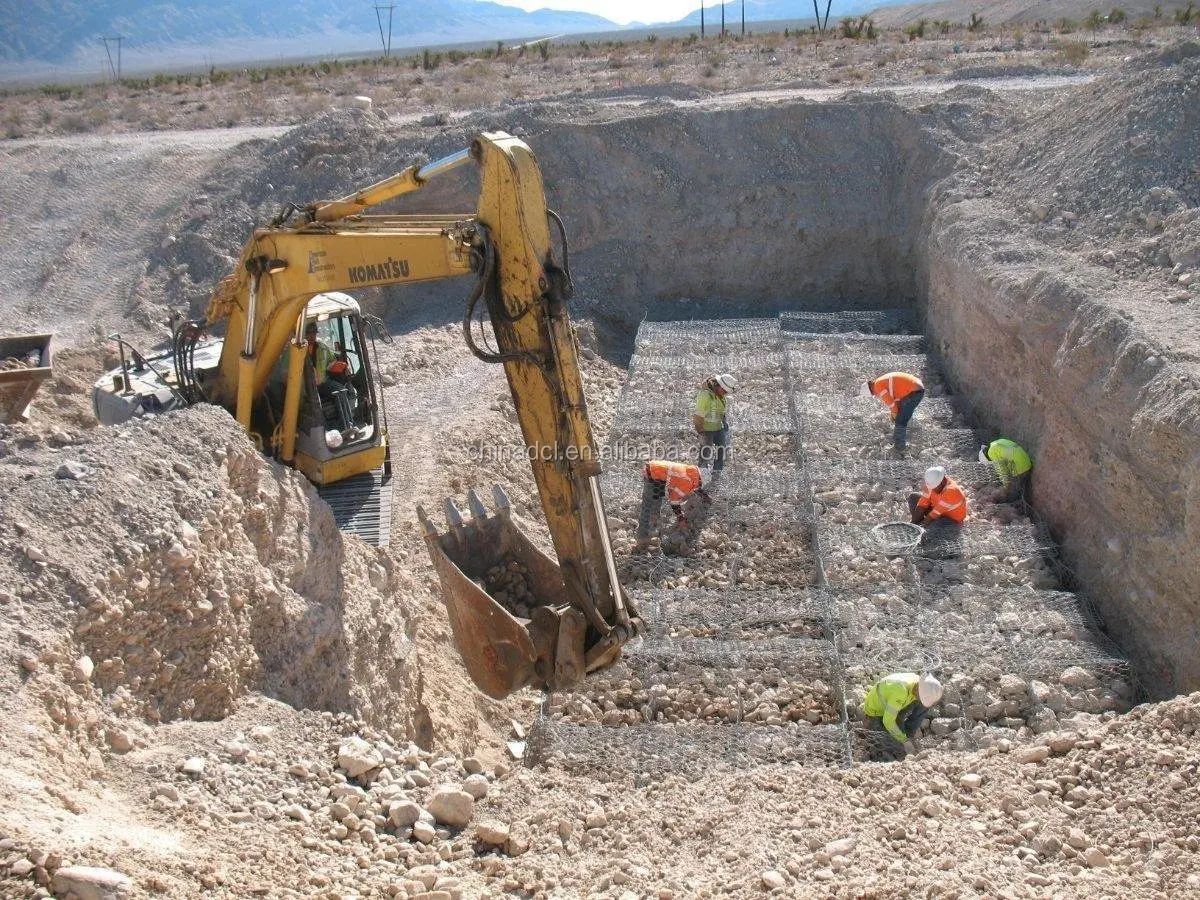

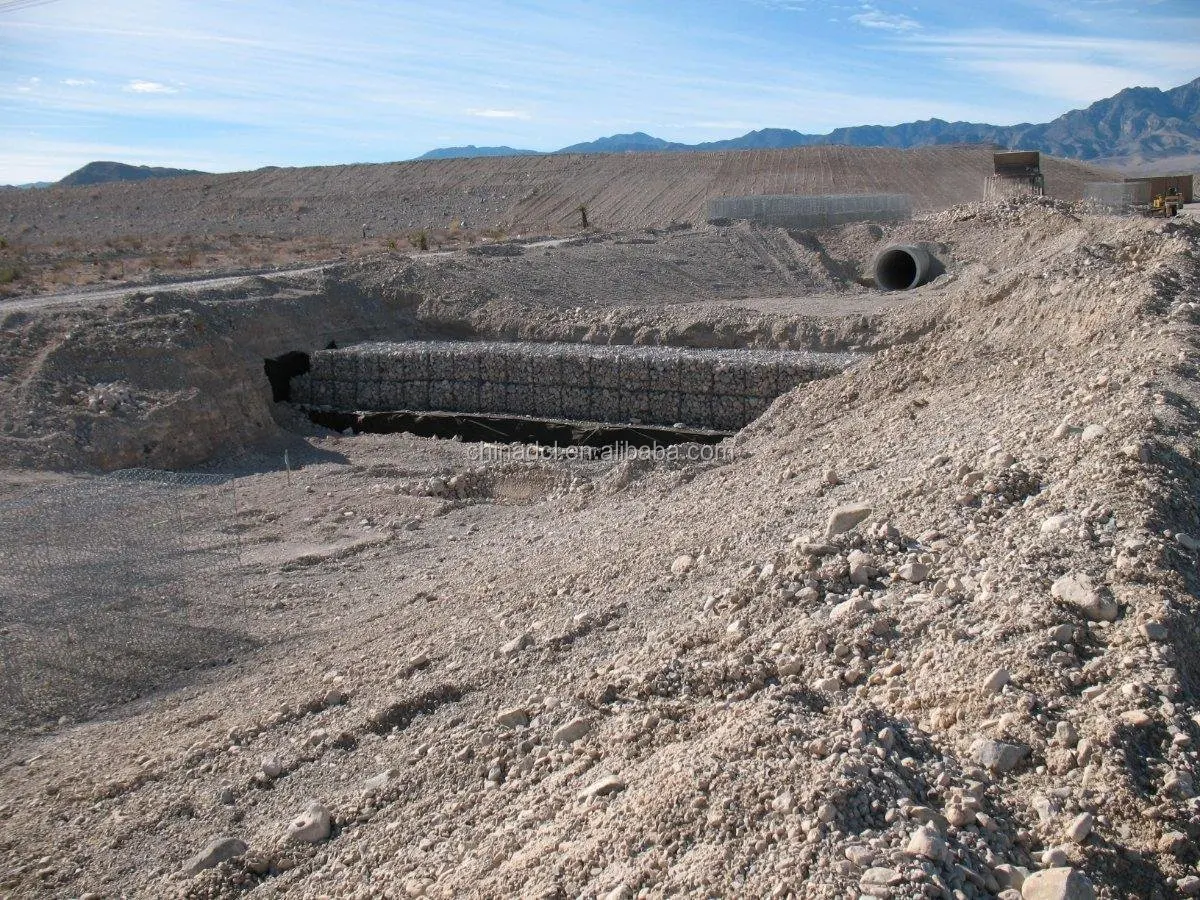

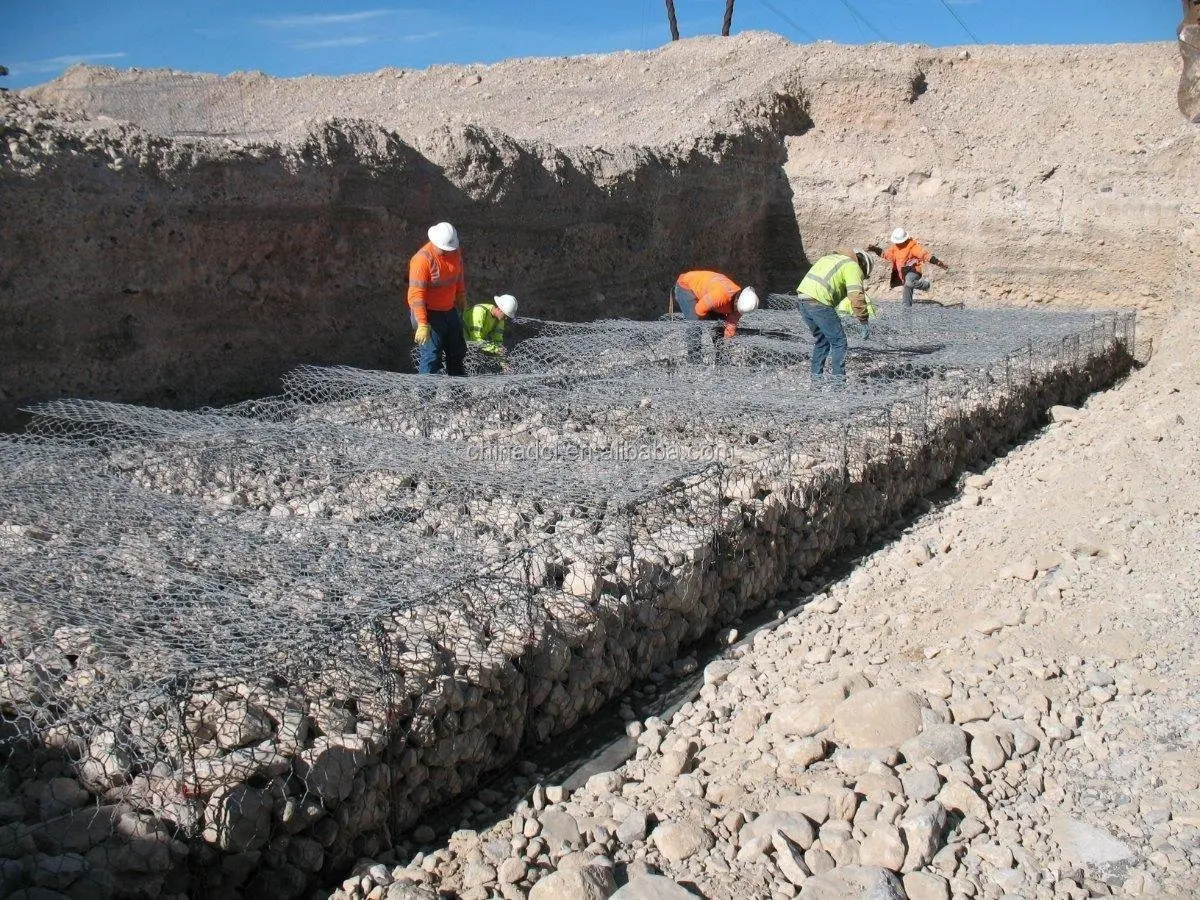

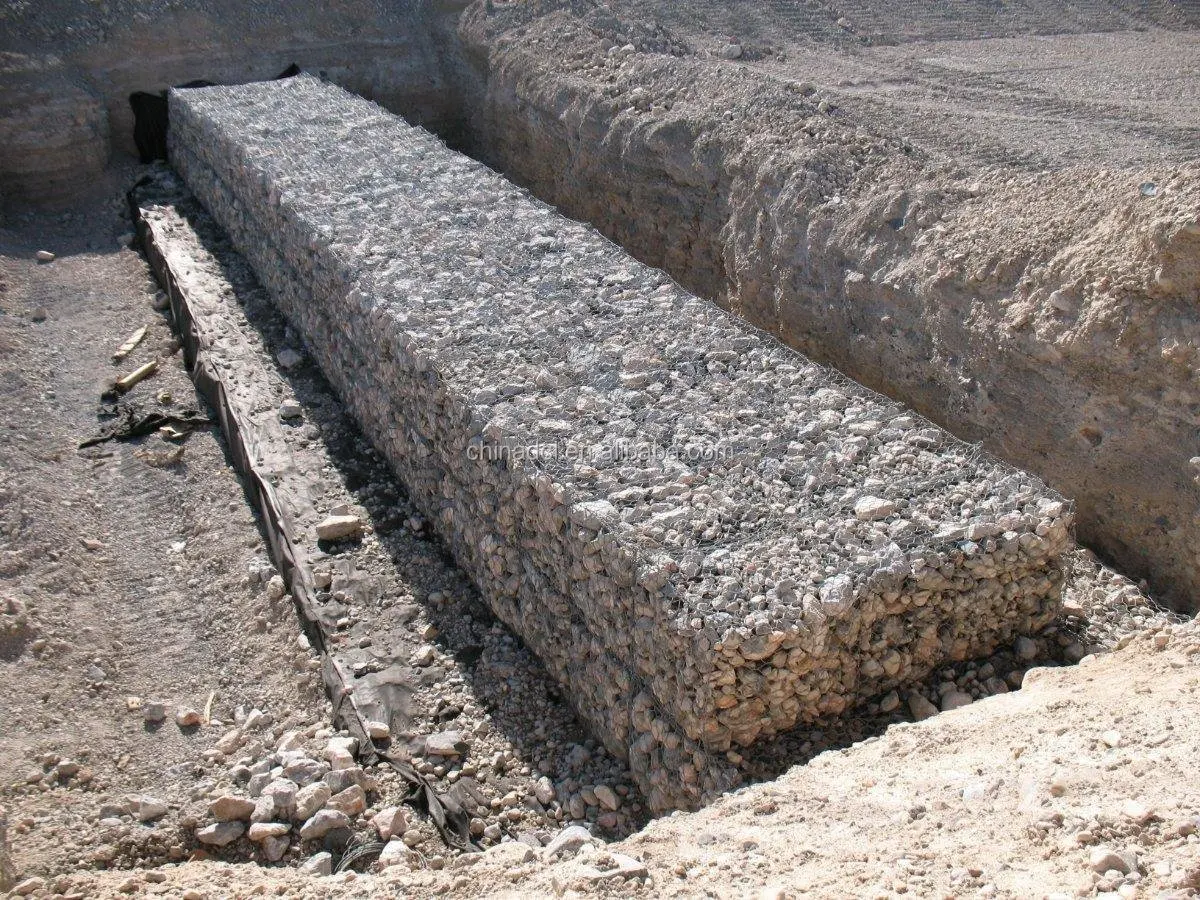

Gabion Applications

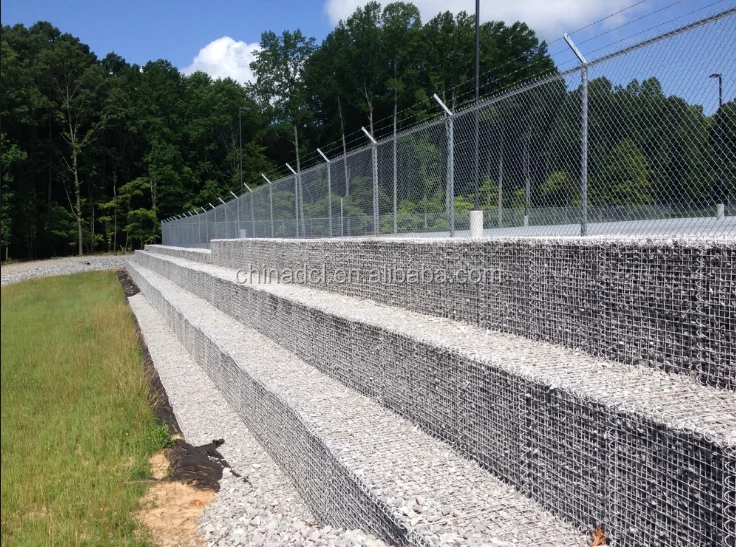

Retaining wall structures
River and canal training works
Erosion and scour protection; roadway protection; bridge protection
Hydraulic structures, dams and culverts
Coastal defence and protection works
Rockfall and soil erosion protection
Retaining wall structures
River and canal training works
Erosion and scour protection; roadway protection; bridge protection
Hydraulic structures, dams and culverts
Coastal defence and protection works
Rockfall and soil erosion protection

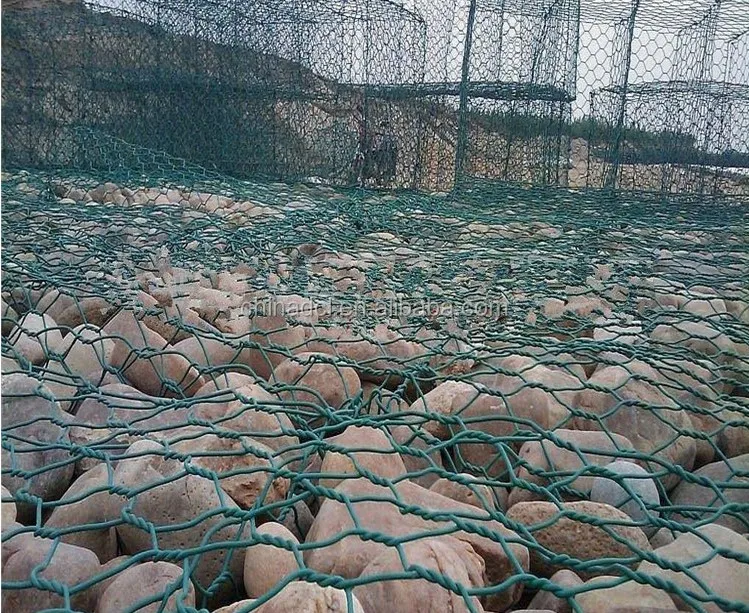

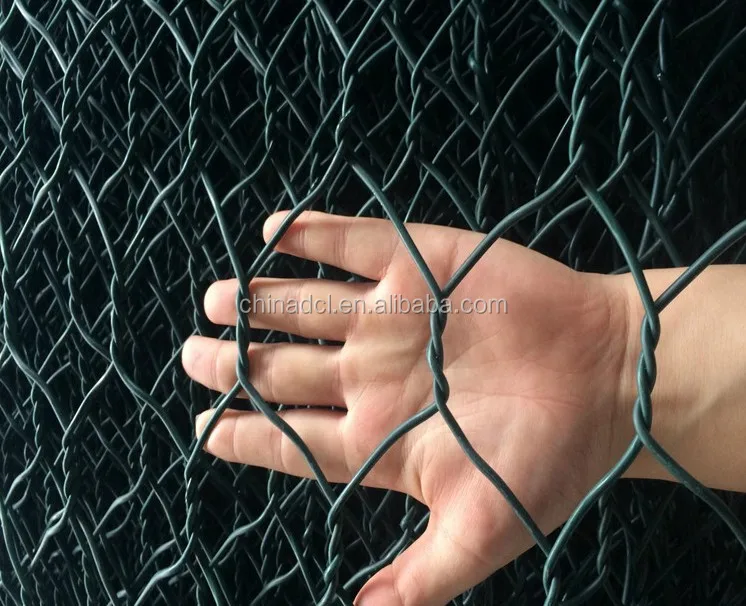

PVC coated gabion images:
Welded wire gabion mesh:
Specifications can be customized.

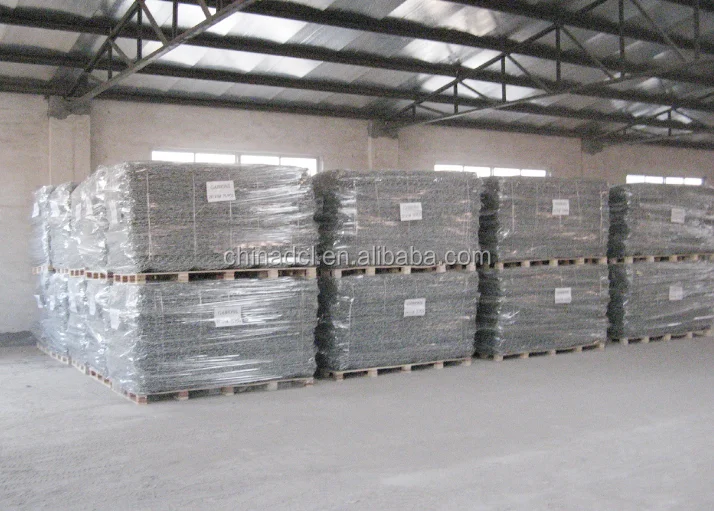

Packaging
Our Services
Payment terms:
payment term:
1).100% irrevocable L/C at sight.
2).30% T/T prepaid and the balance against the copy of B/L.
3).30% T/T prepaid and the balance against L/C
Samples:
samples are available but you need pay for the sample price and freight fee.
the sample fee is returned after you place an order.
Our Services:
1>Reply your enquiry in 24 working hours.
2>Experienced staffs answer all your question in professional and fluent English.
3>Samples are available free.
4>Exclusive and unique solution can be provided to our customer by your own well-trade and professional engineers and staffs.
5>Special discount and protection of sales area provided to your distributor.
FAQ
Q:Are you a manufacturer?
A: Yes,we have been in providing the professional products in this field for 15 years.
Q:What information should I provide,if I want a lowest quotation?
A:The specification wire diameter,mesh size,order quantity,etc
Q:How many days will the samples be finished?And how about the mass production?
A:Generally,5-7 days for samples ,the time of mass production depends on the quantity,18-20 days for 3-5 containers.
