TiMOTION TA2 12V 24V 36V 48V DC Linear Actuator

TiMOTION’s TA2 series linear actuator is compact, robust and capable of performing well in certain outdoor environments. This linear actuator is perfect for use in small spaces where force or capability cannot be sacrificed. Options include feedback sensors, signal sending limit switches, and 90-degree clevis mounting. Industry certifications for the TA2 linear actuator include IEC60601-1, ES60601-1, and EMC.

General Features

• Voltage of motor: 12, 24, 36, 48V DC, or 12, 24, 36, 48V DC (PTC)
• Maximum load: 1,000N in pull and push
• Maximum speed at full load: 51mm/s (with 120N in a push or pull condition)
• Stroke: 20~1000mm
• Minimum installation dimension: Stroke+105mm (without output signals)
• Color: Silver
• Certificate: IEC60601-1, ES60601-1, EMC
• Operational temperature range: +5°C~+45°C (Load < 500N); -25°C~+65°C (Load ≥ 500N)
• Operational temperature range at full performance: +5°C~+45°C
• IP rating: Up to IP66D
• Options: POT, Reed, Hall sensors
• Compact size for limited space

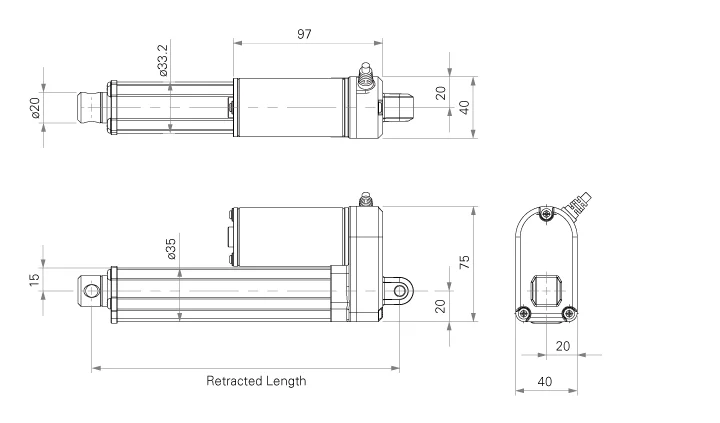

Dimension without Output Signals (mm)

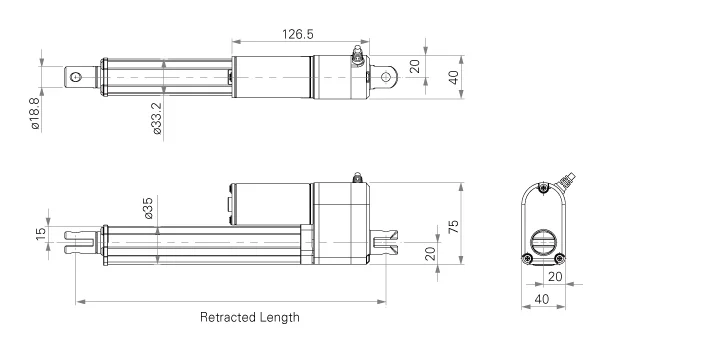

Dimension with Output Signals (mm)
