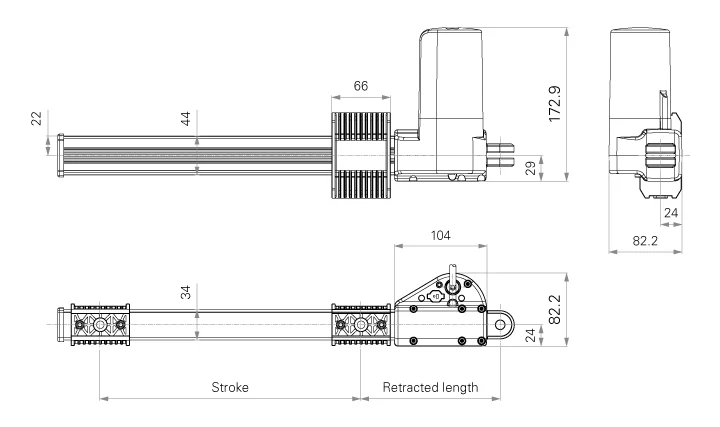

TiMOTION TA5P 12V 24V 36V DC Seat Linear Actuator

TiMOTION’s TA5P is designed using a one-piece aluminum outer cover for increased strength and enhanced protection from contaminants. The TA5P utilizes a linear slide to move the load, instead of a standard extension tube. Industry certifications for the TA5P include EMC and RoHS. It is also available with Hall sensors for position feedback and a special L-shaped mounting bracket.

General Features

• Voltage of motor: 12V DC, 24V DC, or 36V DC


• Maximum load: 6,000N in push


• Maximum load: 3,000N in pull


• Maximum speed at full load: 32.5mm/s (with 750N in a push or pull condition)


• Retracted length: ≥ 157mm


• Color: Black


• Certificate: UL962, EN 61000-6-1, EN 61000-6-3


• Options: Hall sensors, L-shaped bracket


• Specially designed for recliner


• One-piece design, stronger structure, cable-free
