TiMOTION TA9 12V 24V DC Furniture Linear Actuator

TiMOTION’s TA9 is one of the smart furniture actuator options with a compact dimension. This linear actuator is designed with a custom gearbox, molded with a specially formulated plastic material which allows the TA9 to support load ratings up to 2500N. An EMC certification has been attained for this series, which is also available with optional IP54 or IP66 protection.

General Features

• Voltage of motor: 12, 24V DC or 24V DC (PTC)


• Maximum load: 2,500N in push


• Maximum load: 1,000N in pull


• Maximum speed at full load: 30mm/s (with 500N in a push or pull condition)


• Stroke: ≥ 20 ~ 600mm

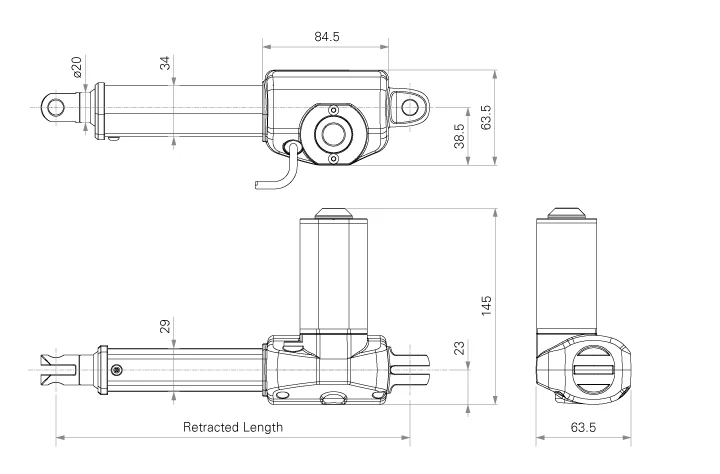

• Minimum installation dimension: ≥ Stroke+140mm


• Color: Black or grey


• IP rating: Up to IP66


• Certificate: IEC60601-1, ES60601-1, IEC60601-1-2, UL962, EMC


• Operational temperature range: +5°C~+45°C


• Option: Hall sensors
