TiMOTION TA15 24V 36V Heavy Duty Linear Actuator
TiMOTION TA15 24V 36V Heavy Duty Linear Actuator
TiMOTION TA15 24V 36V Heavy Duty Linear Actuator

TiMOTION TA15 24V 36V Heavy Duty Linear Actuator

Share on (62023587925):


Price:RUB 11,476.53 - RUB 21,422.86

Quantity:


Product Overview

Description

TiMOTION’s TA15 series linear actuator was specifically designed for bariatric bed applications. These beds require a robust, long life solution that incorporates safety, reliability and effortless operation. A significant feature of the TA15 linear actuator is the quick release function that allows for lowering of the patient in the event of an emergency or electrical power outage.

General Features

  • Voltage of motor: 24V DC or 36V DC
  • Maximum load: 10,000N in push
  • Maximum load: 5,500N in pull
  • Maximum speed at full load: 8.1mm/s (with 5,500N in a push or pull condition)
  • Stroke: 30~800mm
  • Minimum installation dimension: ≥ Stroke+210mm
  • Color: Black or grey
  • IP rating: Up to IP66
  • Operational temperature range: +5°C~+45°C
  • Certificate: IEC60601-1, ES60601-1, IEC60601-1-2
  • Options: POT, Reed or Hall sensors

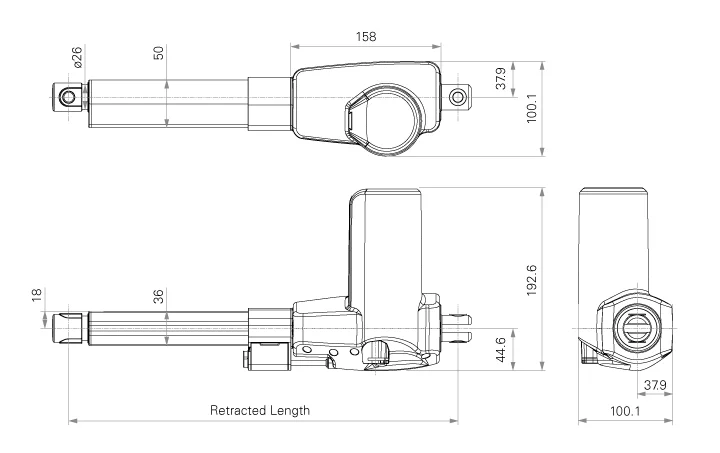

Standard Dimension (mm)
