Product Overview
Description
YH-40L Automatic cable wire harness tape wrapping cable spot winding twisting machine
Description:
For the wire and complex forming, provides automated placement and winding.
For the wire and complex forming, provides automated placement and winding.
It not only can guarantee the high quality of the wiring harness, but also good value.
especially applicable for thick wiring harnesses. Small, quick, reliable, cost-effective and thus absolutely economical, the perfect machine for efficient and cost-effective production.
especially applicable for thick wiring harnesses. Small, quick, reliable, cost-effective and thus absolutely economical, the perfect machine for efficient and cost-effective production.
Feature:
High precision,Economical & user-friendly
Extremely low maintenance
easy operation
High precision,Economical & user-friendly
Extremely low maintenance
easy operation
Product Description
| Product Name | Automatic cable harness wrap tape winding machine |
| Model | YH-40L |
| Applicable to maximum wire diameter | Max Φ40mm |
| Tape outside diameter | Max Φ170mm(Applicable wire diameter: 3-25mm); Max Φ120mm(Applicable wire diameter: 3-40mm) |
| Tape roll inner diameter | Φ76mm or Φ38mm (Please advise other sizesin advance) |
| Tape width | 5-25mm(Other sizes are customizable) |
| Dimension | 400*370*320mm |
| Weight | 48KG |
| Display method | Chinese or English interface display |
| Power supply | AC220/250V/50/60HZ |
| Winding length | Any require length |

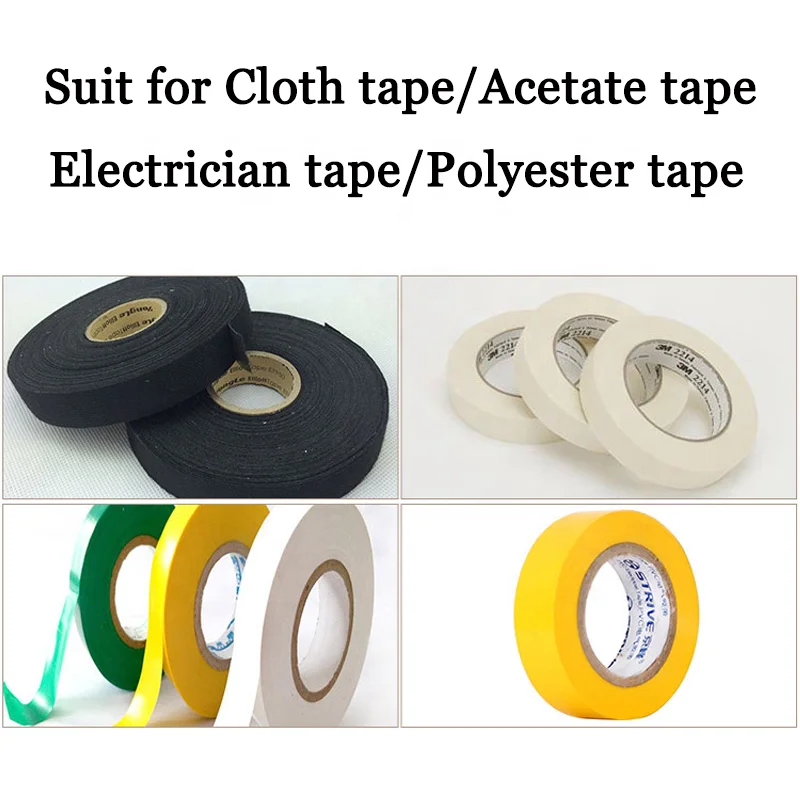

| Suitable for tape | flannelette, acetic acid cloth, electrical tape |
| Winding speed | Max 12R/S |

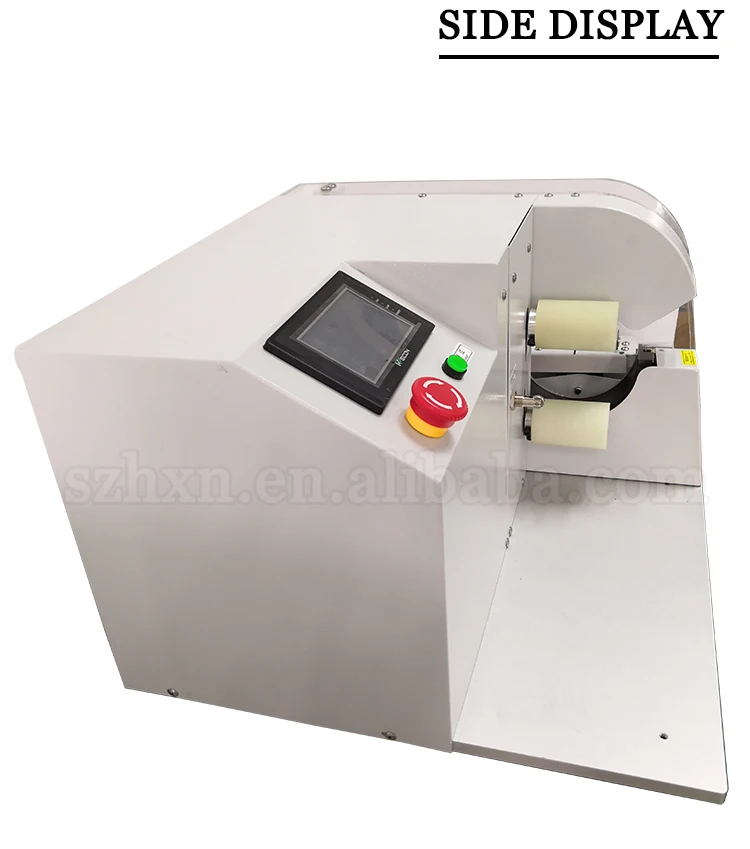

Product show
