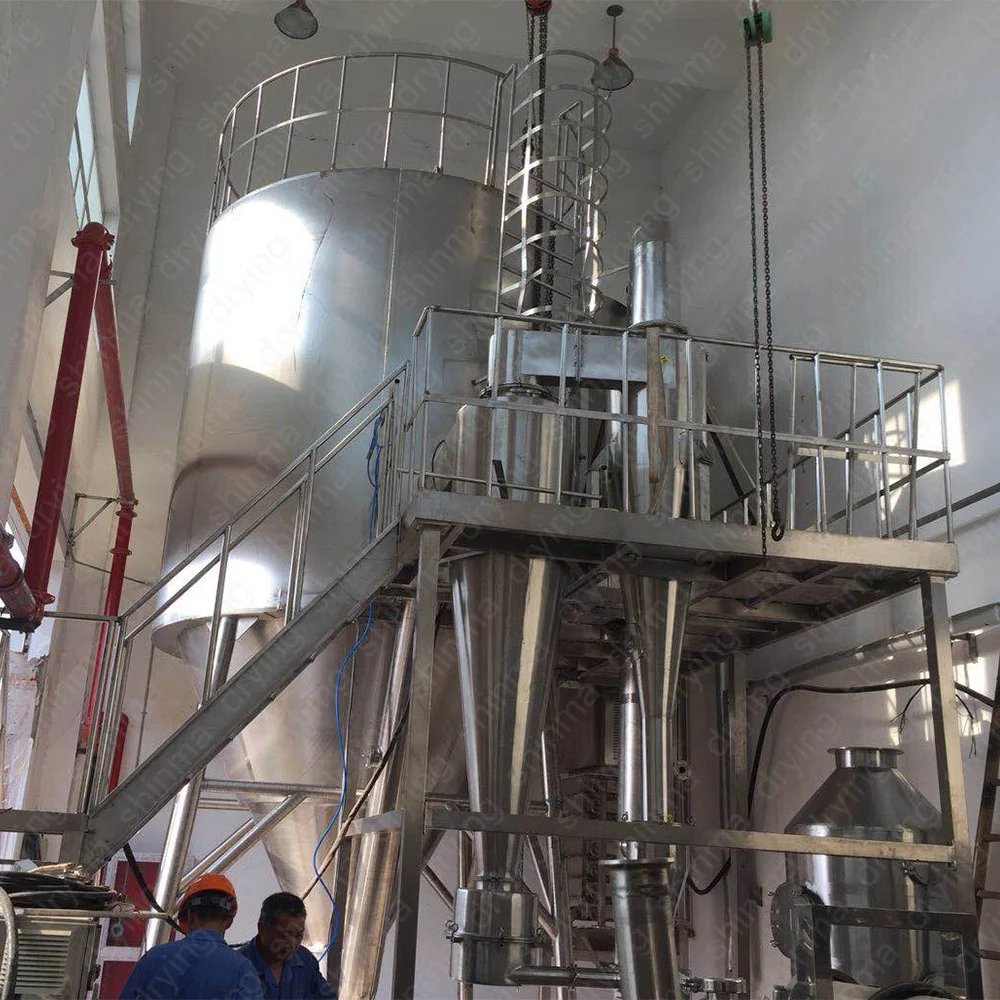

LPG mini spray dryer

Product Overview

Description

 LPG mini spray dryer lab scale

The spray drying is the widest used technology in the liquid shaping technology and in the drying industry. It is most suitable for producing powder, particle, or block solid products from materials of solution, emulsion, soliquoid and pumpable paste states. Therefore, when the particle size and distribution of the final products, their residual water contents, the stocking density and the particle shape meet the precision standards, the spray drying is one of the most desired technologies.

LPG mini spray dryer lab scale

Inlet air Temp.:                        150~220℃ (adjustable)

Outlet air Temp.:                      80~100℃ (adjustable)

Water evaporation:                  about 5kg/h

Atomospheric  pressure:         760mmHg

Ambient Temp.:                       20℃

Relative humidity:                    80%

LPG mini spray dryer lab scale

Model:                                   LPG-5

Heat source:                         Electricity

Material collect system:        One grade cyclone

Circulating system:               Open circulation

Filtering system:                   Primary and middle efficiency air filter

Feeding system:                   Peristaltic pump

LPG mini spray dryer lab scale

Water evaporation	5Kg/h(Ma.)	D/H	1.0M/2.3M
Operate Temp.	Inlet air Temp.: 150~220℃ Outlet air Temp. 80~100℃	Atomizer LPG-5	Rotate speed: 25000r.p.m Atomizing disk diameter: 50mm
Installed power	0.75KW(driving)
Electrical power	12KW
