XLink 30 Long Range Wireless uav drone Data/Video Transmitting System data and video transmission for drone uav
- Category: >>>
- Supplier: Huixinghai Technology (Tianjin) Co. Ltd.
Share on (62023727192):
Product Overview
Description
Product Description

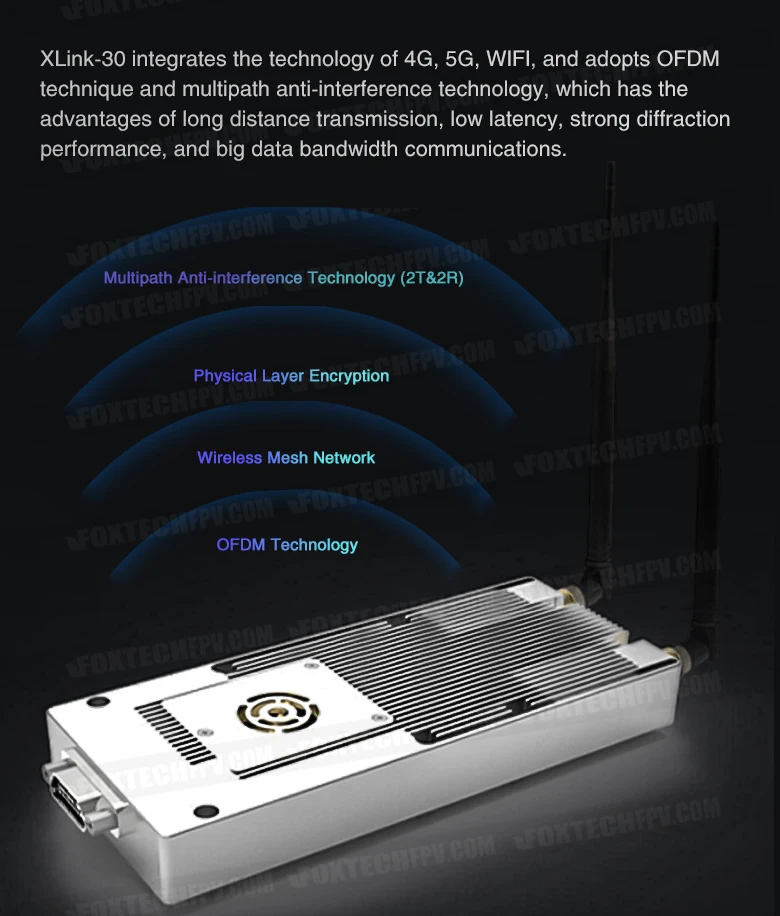

XLink-30 Long Range Wireless Data/Video Transmitting System | |
| Frequency Band | 1410MHz ~ 1470MHz |
| Bandwidth | 4MHz; 8MHz; 10MHz; 14MHz; 20MHz |
| Transmitting Antenna | 2*Tx & 2*Rx |
| Modulation Technique | OFDM |

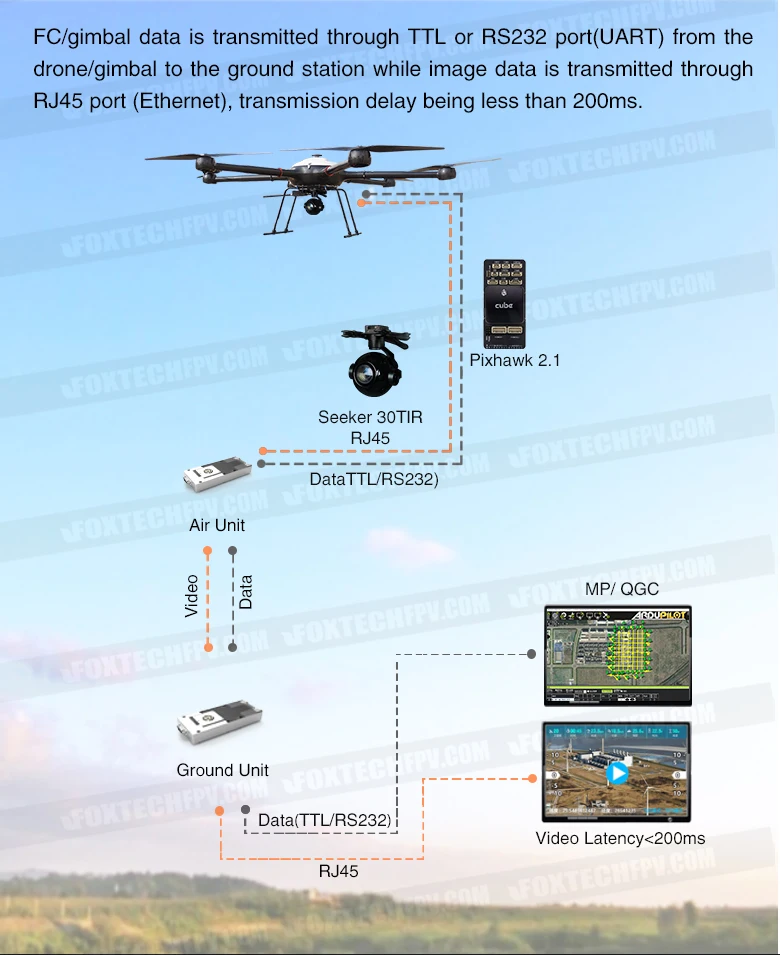

| Video Input | 1*RJ45(Ethernet) |
| Video Output | 1*RJ45(Ethernet) |
| Data Input | 2*TTL/1*RS232(UART) |
| Data Output | 2*TTL/1*RS232(UART) |
| Voltage | DC 9V ~ 36V; Typical Value 12V |
| Transmitting Power | ANT1, 0.5W ANT2, 0.5W |
| Power Consumption | Air Unit:≤12W |
| Ground Unit | ≤6W |
| Bit Rate | Air Unit to Ground Unit 1.2Mbps ~ 12Mbps |

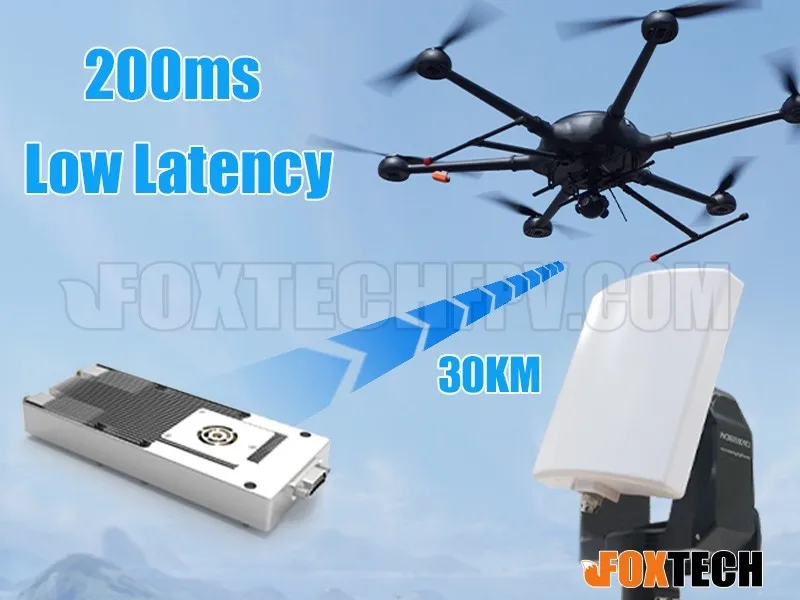

| Transmission Delay | <200ms |
| Encryption Method | AES 128bit, Physical Layer Encryption |

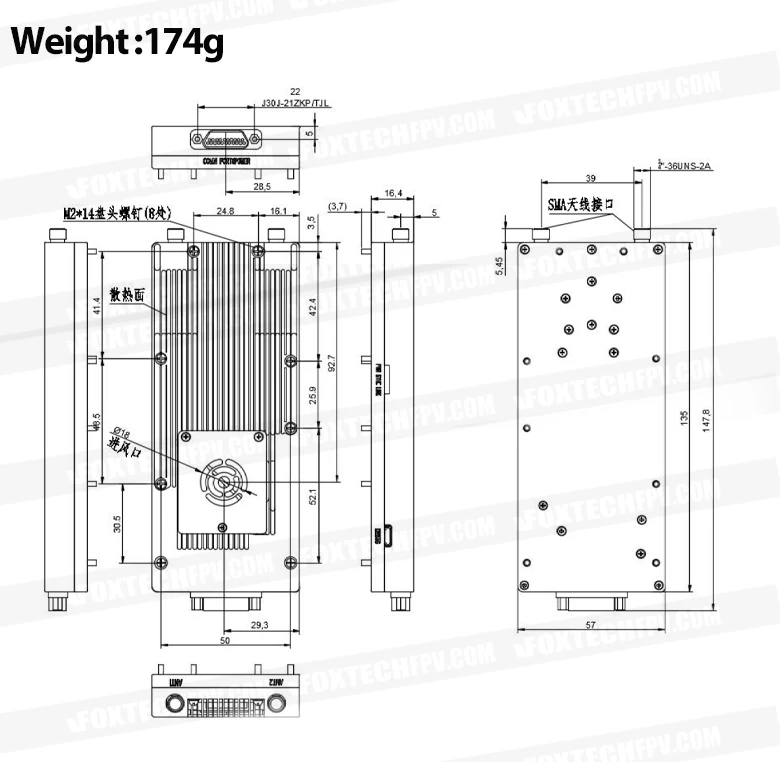

| Size | 135mm*57mm*16.4mm |
| Weight | 174g |

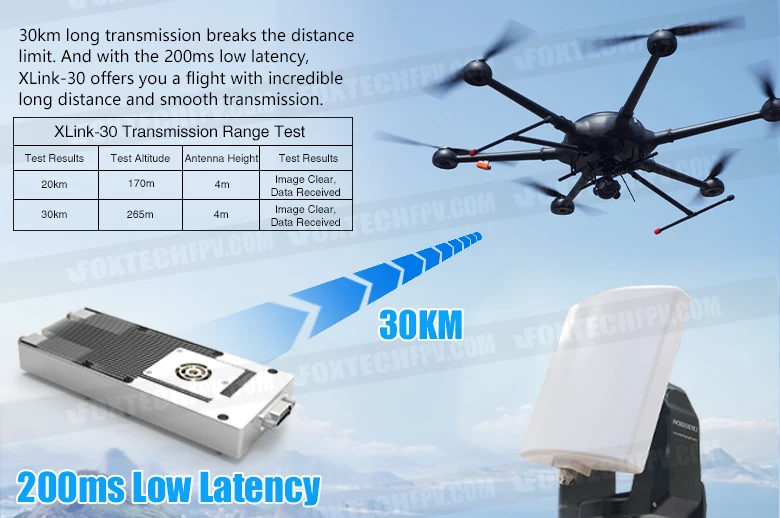

| Transmission Distance | 30km |
Note: Specifications that are not particularly noted apply to both air unit and ground unit.
| Your Purchase Includes: |
| 1x XLink-30 Long Range Datalink/Videolink Air Unit |
| 1x XLink-30 Long Range Datalink/Videolink Ground Unit |
| 2x Transmitter Antenna for Air Unit |
| 1x Antenna Tracking System |
| 2x J30J Wires |
| 2x Antenna Feeder |
