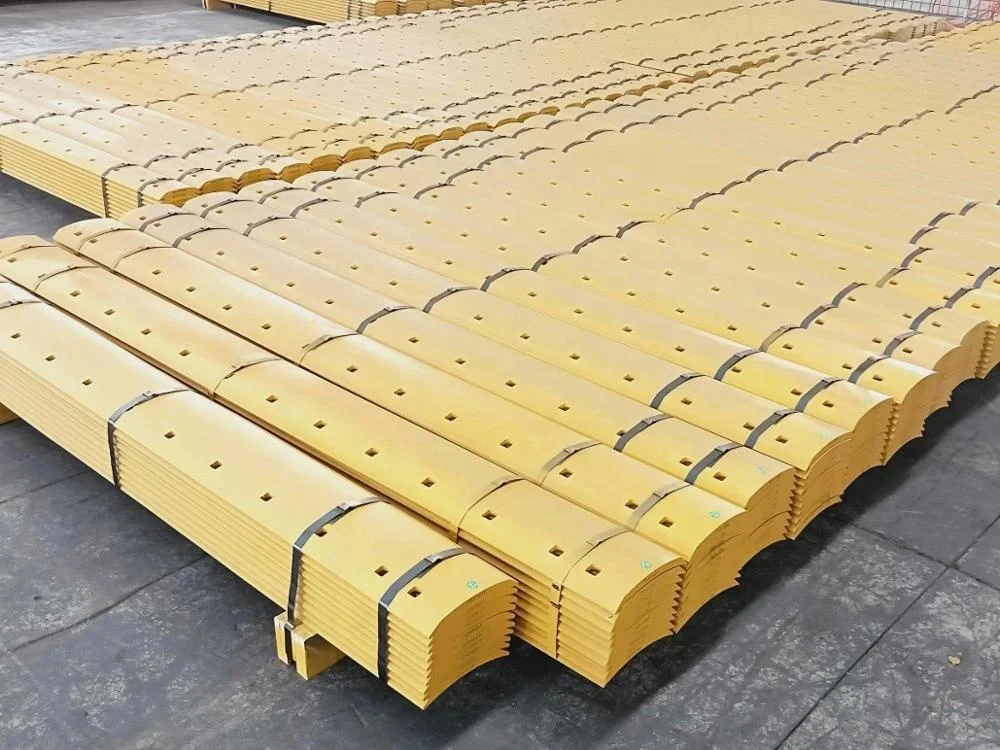

Grader Blade and Overlays VSGB006,customized Grader parts, cutting edge
- Category: >>>
- Supplier: Shanghai Vostosun Industrial Co. Ltd.
Share on (62023742748):
Product Overview
Description

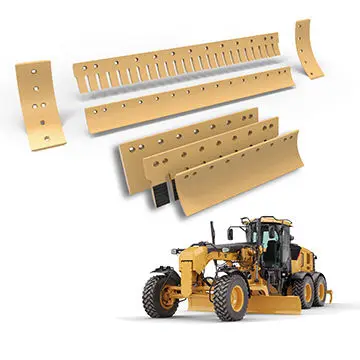

Motor Grader Parts Customized Grader Blades and Overlays
Application
Key Specifications/Special Features:
Full range of grader blades and overlay
Serrated ice blades, grader bit and rotating bit system
Extra heavy duty mining flat and curved grader blades
Aftermarket and customer designed parts
Boron steel VS500, manganese steel VS400, high carbon C80
VS500 Hardness HRC 45-52
VS400 Hardness HRC 35-40
High carbon C80 hardness HRC 25-32
Serrated ice blades, grader bit and rotating bit system
Extra heavy duty mining flat and curved grader blades
Aftermarket and customer designed parts
Boron steel VS500, manganese steel VS400, high carbon C80
VS500 Hardness HRC 45-52
VS400 Hardness HRC 35-40
High carbon C80 hardness HRC 25-32
GodlTI grader blade, cutting ege for brands of motor graders
| Brand | OEM Reference | Dimension(mm) | Holes | Unit Weight(KG) |
| CAT | 7T1643 | 16x203x2134 | 9 | 49 |
| 7T1624 | 16x203x2134 | 9 | 49 | |
| 8J9821 | 16x203x2438 | 17 | 56 | |
| 5D9731 | 16x203x2438 | 17 | 56 | |
| 7T1628 | 16x203x2438 | 10 | 56 | |
| 7T1631 | 16x203x2438 | 10 | 56 | |
| 5D9558 | 19x203x1829 | 13 | 50 | |
| 7D1576 | 19x203x1829 | 13 | 50 | |
| 7T1634 | 19x203x1829 | 8 | 50 | |
| 7T1638 | 19x203x1829 | 8 | 50 | |
| 5D9559 | 19x203x2134 | 15 | 59 | |
| 7T1623 | 19x203x2134 | 9 | 59 | |
| 7T1625 | 19x203x2134 | 9 | 59 | |
| 7D1577 | 19x203x2134 | 15 | 59 | |
| 5D9732 | 19x203x2438 | 17 | 67 | |
| 7D1949 | 19x203x2438 | 17 | 67 | |
| 7T1630 | 19x203x2438 | 10 | 67 | |
| 7T1627 | 19x203x2438 | 10 | 67 | |
| 4T2244 | 25x203x1829 | 13 | 68 | |
| 4T2231 | 25x203x1829 | 13 | 68 | |
| 4T2242 | 25x203x2134 | 15 | 79 | |
| 4T2233 | 25x203x2134 | 15 | 79 | |
| 4T2237 | 25x203x2438 | 17 | 89 | |
| 4T2236 | 25x203x2438 | 17 | 89 |

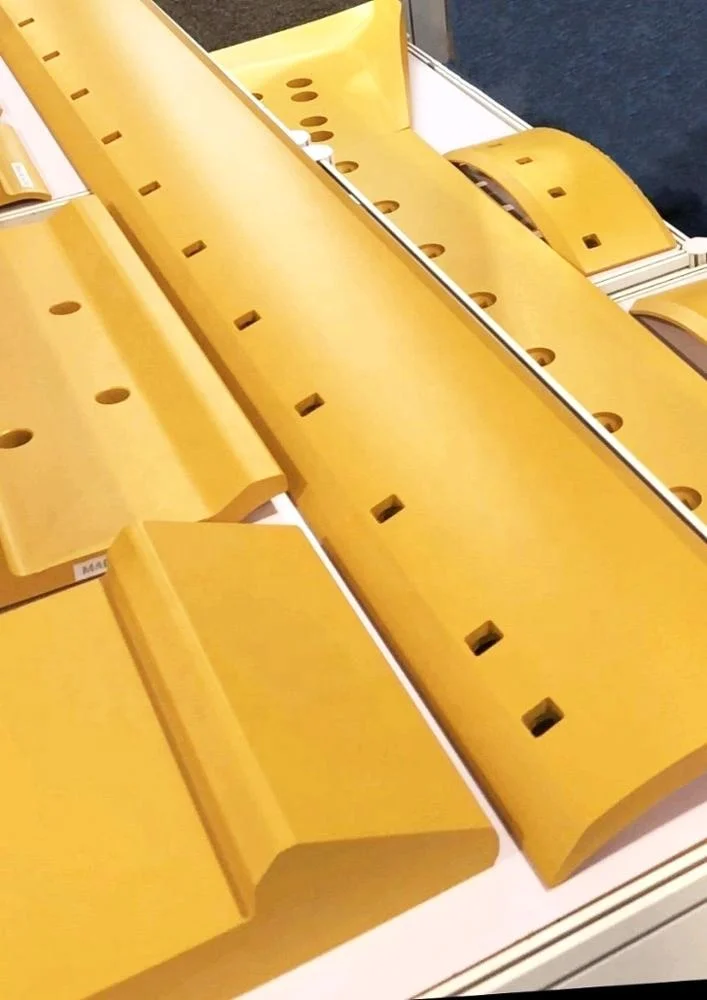

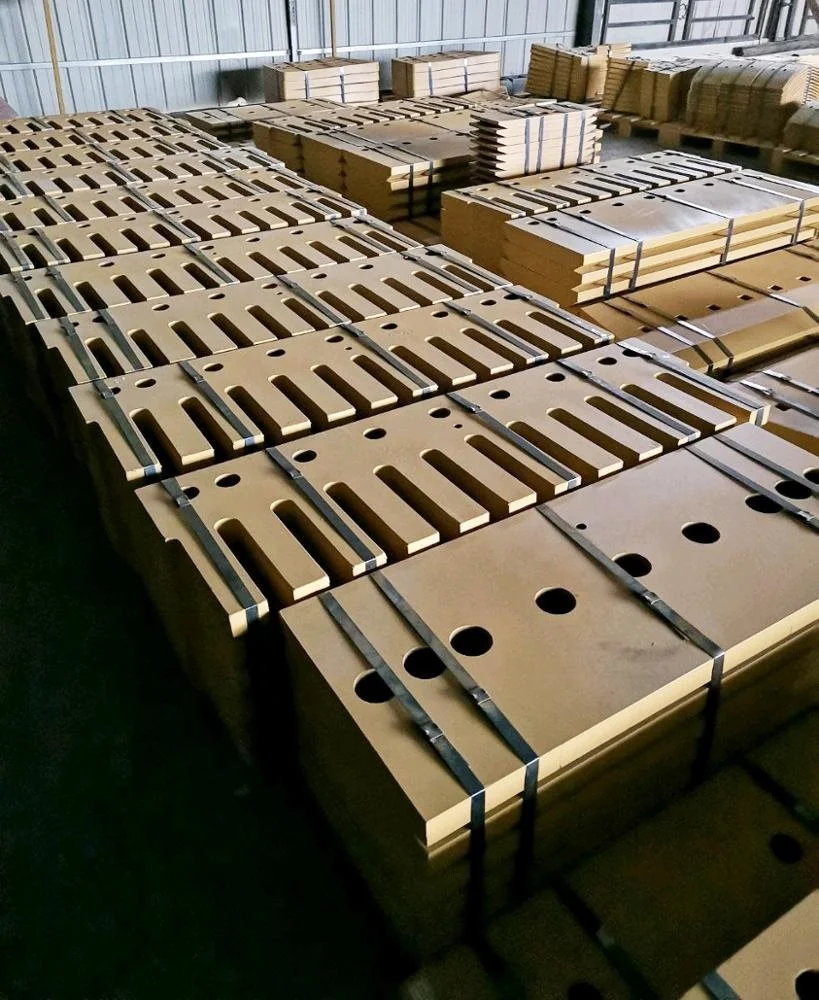

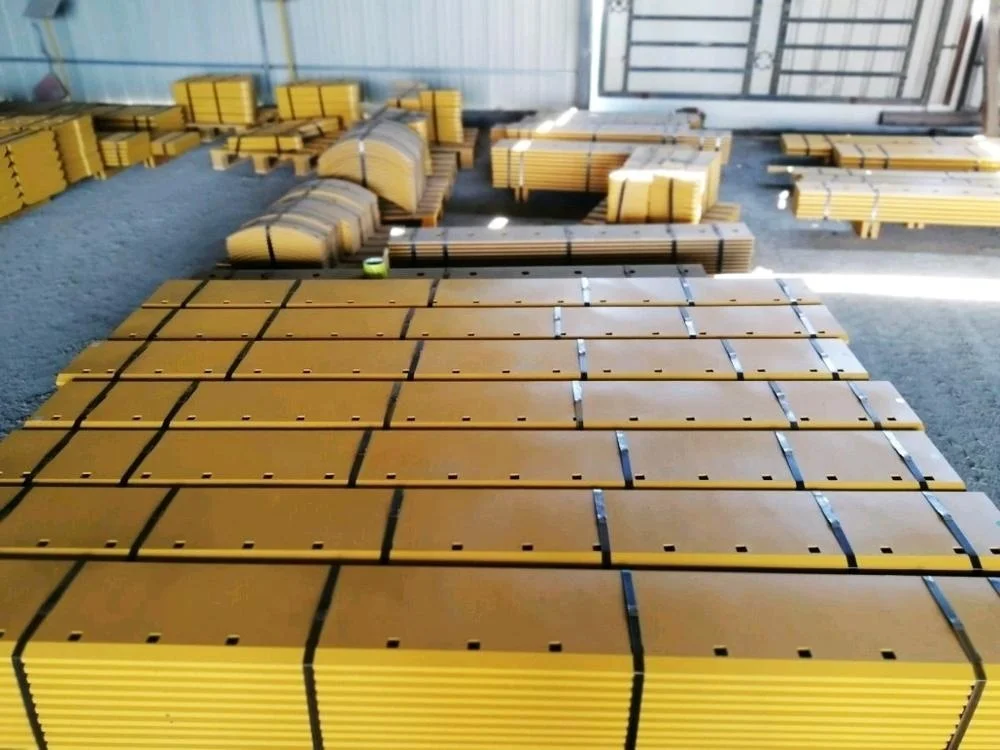

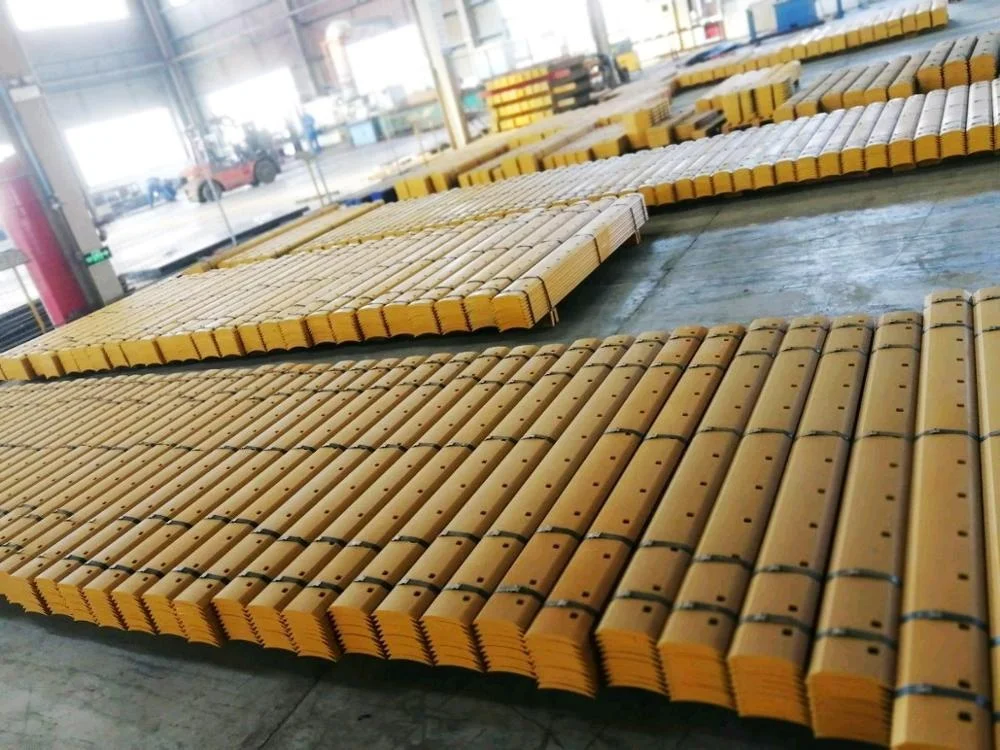

Gallery of GoldTi grader blade, cutting edge
Production Type
