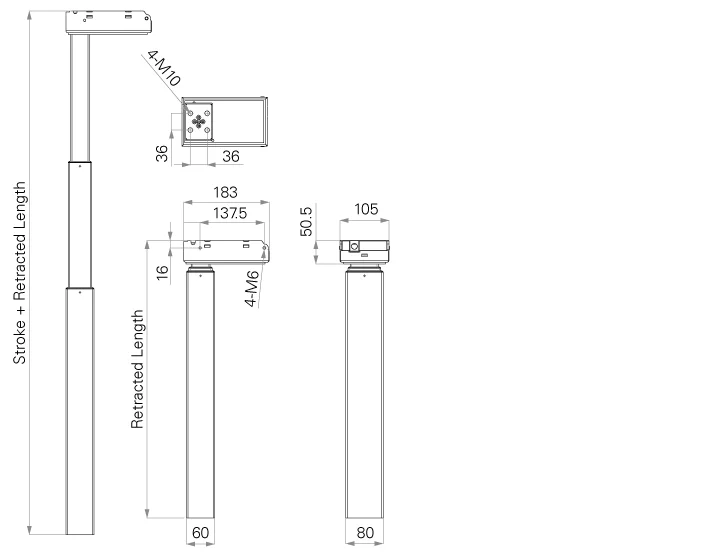

TiMOTION TL10H heavy duty desk lifting column

The TL10H is a heavy duty lifting column for Ergo applications with a large capacity (120kg per column). With the same dimensions and fixation methods as TL10, it’s compatible with the control box for Ergo Motion and TEK series. This lifting column is suitable for consoles, workbenches, heavy table tops, and other heavy loading applications.

General Features

•


  Maximum load: 1200N in push





•


  Maximum speed at full load: 15mm/s (with 1200N in a push condition)





•


  Minimum installation dimension: 590 / 560 (M) / 520 (S) mm





•


  Stroke: 650 / 660 (M/S) mm





•


  Dimension of outer tube (L*W): 80*60mm





•


  Three stage outer tube with rectangular appearance





•


  With narrow top and wide bottom configuration
