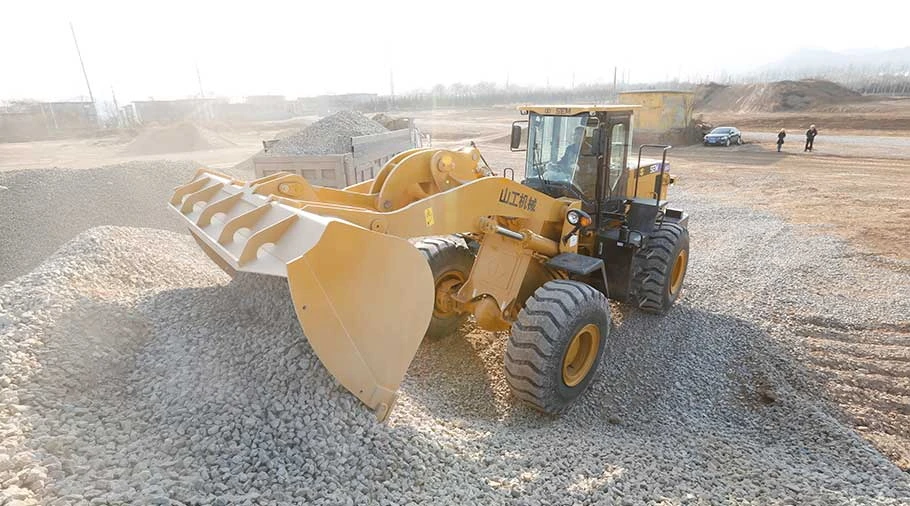

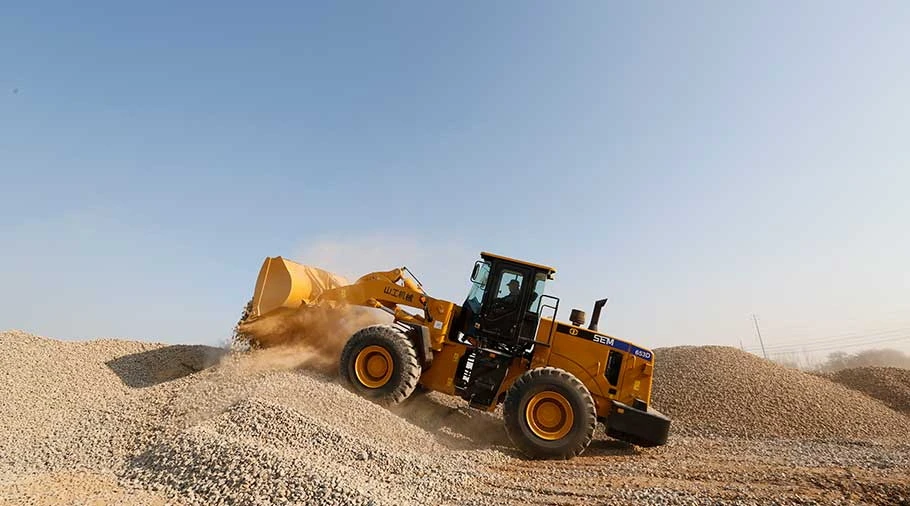

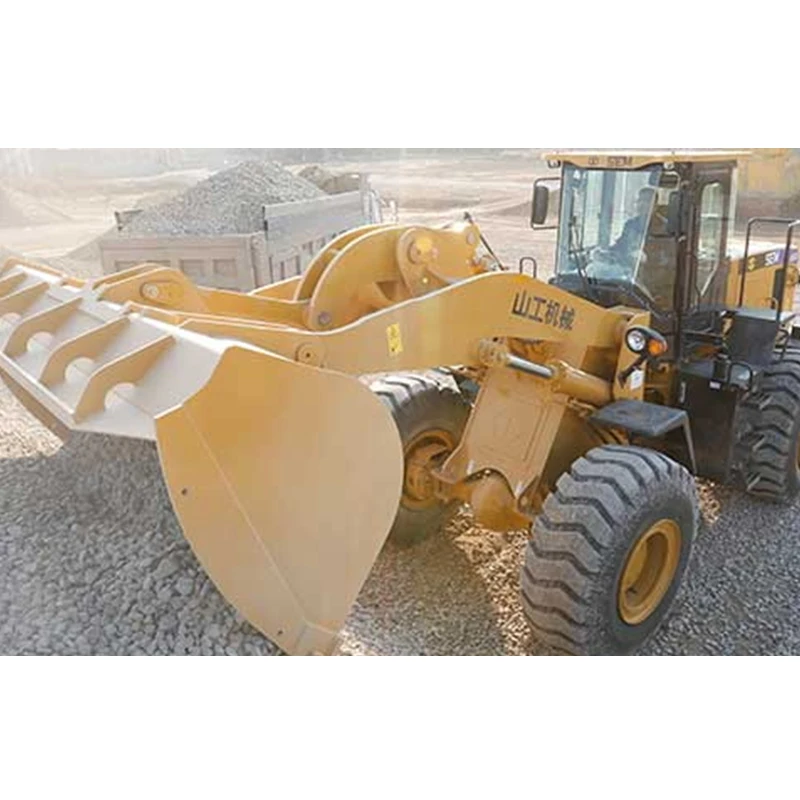

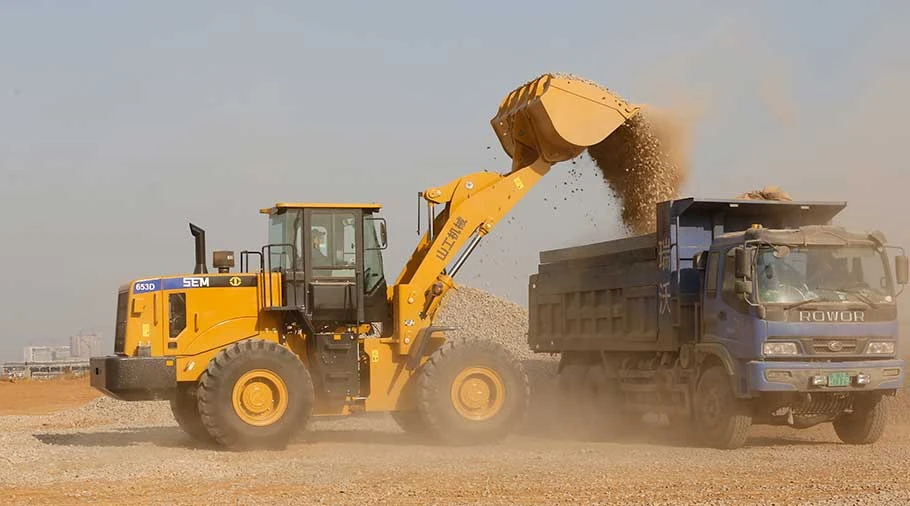

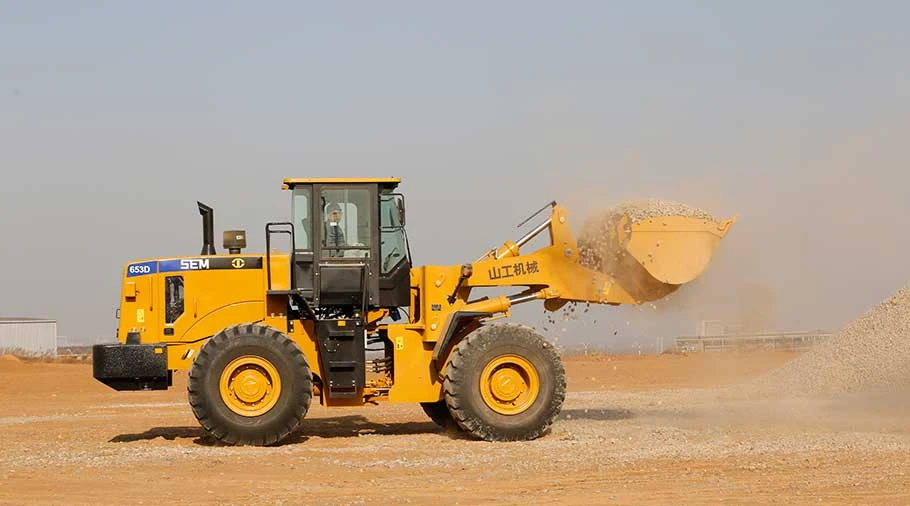

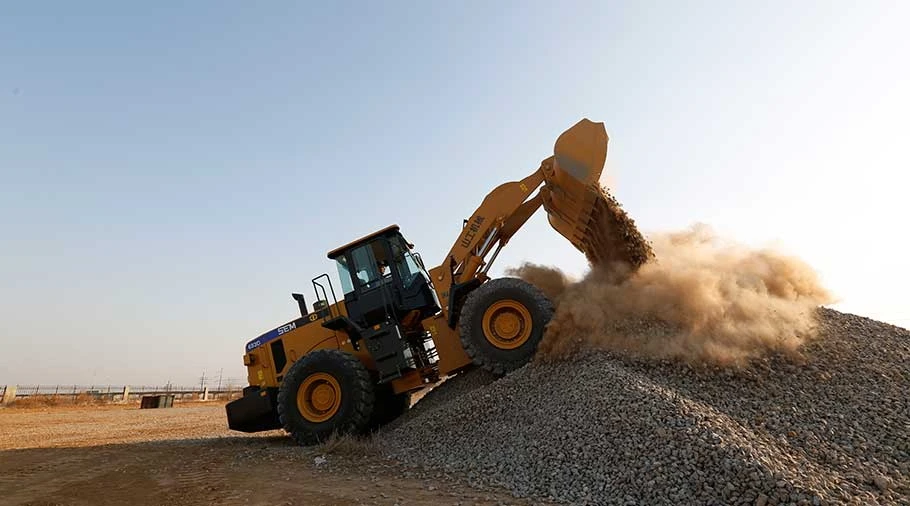

Wheel loader 653D,220hp,5ton, bucket 3m3, cat 950 loader

Product Overview

Description

Product Feature and Advantages:

1. Engine
Low Speed Engine And E-Fan Make Fuel Consumption Better
3 Stage Air Cleaner With 93% Efficiency Pre Cleaner Reduce Earlier Wearing, High Efficiency Fuel Filter Make Engine Work In Good Condition
Cat Technology Damping Mount Reduce Vibration Failure

2. Efficient Hydraulic System
Excellence Modulation Performance Implement Valve With Mechanical Control, Make Operation More Accurately
Full Hydraulic Load Sensing Steering And Flow Shared System Save Fuel And Raise Productivity, Hydraulic Cycle Time Is Only 9.3s
Word Class Pump And Cat Technology Lines Routing Deliver Better Reliability

3. Operator Station
Mould Formed Cab With All Trims Design And More Vents With Hvac Make Operator Feel Better
First Class Premium Seat With Suspension Adjustable, Arm Rest And Safety Belt. Up-Down, Forward And Reverse Adjustable
Cat Technology Damping Mount Reduce Vibration Failure
Slide Window, Fresh Air Inlet System Make Environment Better

4. Drivetrain
Made In House Counter Shaft Transmission Reliable And High Efficiency, Core Components Reliable Improvement
One Stage And 3 Element Torque Converter Deliver Higher Efficiency
1st Gear Higher Draw Bar And 2nd Gear Faster Speed Make Penetration Easier And Move Material Faster

5. Cooling System
High Performance Aluminum Cooling Package Suitable For Most Of Severe Applications
Oil Cooler And Radiator Parallel Design Can Balance Heat Load Inside And Suitable Diversity Applications
Damping Design Reduce Vibration Failure

6. Solid Structure
Validated By Cat Technology Fea( Finite Element Analysis) And Omsa(On Machine Stress Analysis)
Middle Articulation Frame Less Work Space Needed And Reduce Tire Resistance
Large Spread Hitch Design In Acticulation Section Can Stand More Load

7. Serviceability
Quick Pressure Test Ports On Hyd And Brake Lines Make Diagnose Easier
Large Wing Hood Door Make Service Easier, Approach To Air Cleaner, Fuel Filter And Oil Filter
Large Spread Hitch Design In Acticulation Section Make Operator Easier To Approach

8. Safety
Slope Switch Make Machine Approach To Hopper And Pile In Slope Safety And Easier
High Decibel Beacon And Backup Alarm Make Person Around Easy To Attention
3 Stage Alarm System On Panel
3 Touch Points Entering And Exiting Cab Make Operator More Safe

9. Machine Applications
Landscaping, Building, Sewer/Water In, Local Construction
Ready Mix Cement/Concrete Products, Quarry/Stone, Clay, Recycled Aggregate, Sand And Gravel
Highway, Street, Tunnel, Airport, Residential Commercial



 Wheel Loader Technical Specification:



Item	Unit	Params
Main Specifications
Rated Load	Kg	5000
Operating Weight With Standard Bucket	Kg	16640
Bucket Capacity	M3	2.6-5.5
Wheel Base	Mm	3200
Overall Dimension	Mm	8,085*2,963*3,463
Max. Drawbar Force	Kn	171
Breakout Force	Kn	177
Dump Clearance	Mm	3102
Transmission
Transmission Type		Countershaft, Power Shift
Transmission Gears		F4/R4
Torque Converter Type		Single Stage, 3 Elements
Maker & Type		Tr200
Forward L/Reverse I		7.9/7.9
Forward Ll/Reverse II		14/14
Forward Lll/Reverse III		22.9/22.9
Forward Iv/Reverse IV		39.4/39.4
Axle
Main Drive Type		Spiral Bevel Gear, Single Stage
Final Drive Reduction Type		Planetary Type,Single Stage
Rear - Oscillating +/-		±11
Engine
Model		Wd10g220e23
Rated Power	Kw	162
Rated Speed	/Min	2000
Displacement	L	9.7
Implement Hydraulic
Implement System Type		Open Center
Boom Raise Time	S	5.1
Hydraulic Cycle Time	S	9.3
System Pressure Setting	Mpa	18
Brake System
Service Brake		Dry&Caliper,Airto Oil Control
Parking Brake		Drum/Shoe
Steering System
System Type		Shared Flow
Steering Pump Type		Gear Pump
System Pressure Setting	Mpa	16
Steering Angle (l/r)		38±1
Tires
Size		25.5-25
Type		Pr
Layer		16
Textured Type		L-3/E-3
