TiMOTION TA32 24V DC Recliner Linear Actuator
- Category: >>>
- Supplier: TIMOTION TECHNOLOGY CO. LTD.
Share on (62023878344):
Product Overview
Description
TA32 is a head tilt motor for recliner applications. It can help with adjusting the top head position which will make the end users with more pleasant using experience.
General Features
Voltage of motor: 24V DC, 24V DC (PTC)
Maximum load in push: 500N
Maximum speed at full load: 8.8mm/s (with 300N in a push condition)
Stroke: 050/044/040/034/031/025/015mm
Minimum installation dimension: 143mm
Color: Black or grey
Certificate: UL962

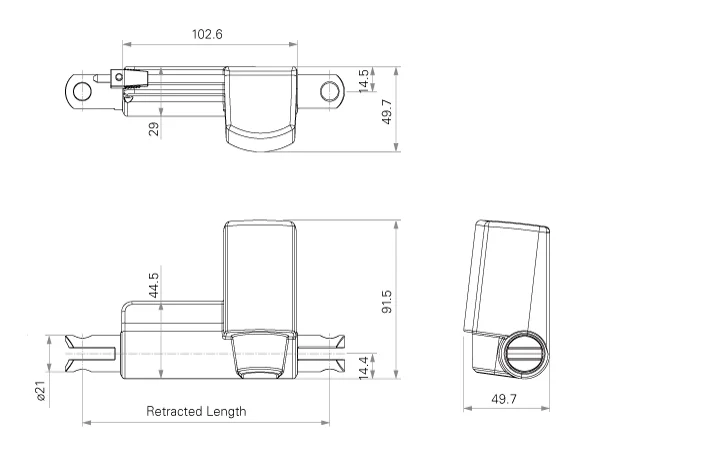

Standard Dimension (mm)
