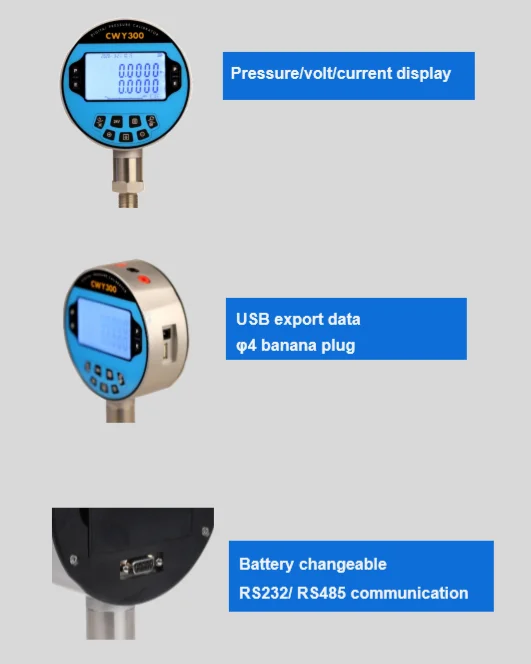

Automatic pressure calibrator

   Specification

• Pressure range: (0-700) bar
• Accuracy: 0.1%FS/ 0.05%FS
• Pressure unit: Pa; kPa; MPa; psi; bar; mbar; inH2O; mmH2o; inHg; mmHg; kgf/cm2
• Display: 7 digits display with backlight (settable e.g. 5 digits; 6 digits)
• Auto temperature compensation
• Storage capacity: 80 files in total, Max : 60 records/per file, settable.

 Electrical measuring data

Environmental conditions

   Features

Power supply : internal battery; USB interface power supply or special adapter power supply;

Battery working time: about 60 hours, 24V with the corresponding reduction; Battery charging time: about 3 hours

  Software function

Instrument parameter setting, real-time data reading, historical data query,

real-time data, historical data export to the computer, data generation EXCEL record table and other morefunctions.

   Size
         External dimension: gauge head:φ108mm×43mm, overall length: 170mm
        Weight: about 0.6kg;
        Pressure connection: M20×1.5 (user defined eg. NPT);
        Φ6mm quick socket(differential pressure model);
        Power connection: φ4 standard banana plug;
  Additional function: temperature test with ±0.1℃
