TiMOTION TA37 24V 36V DC Medical Linear Actuator

TA37 is one of our high quality medical actuators. TA37 is recommended for the demanding force medical applications. It remains stable speed even under heavy loading. The maximum stroke of TA37 is up to 1000mm and its IP rating can support up to IP66W. The suitable medical applications for TA37 are treatment tables or patient hoist systems.

General Features

•


  Voltage of motor: 24, 36V DC (thermal protector)





•


  Maximum load: 12,000N in push





•


  Maximum speed at full load: 13.3mm/s (with 6000N in a push condition)





•


  Stroke: ≥ 25~1000mm





•

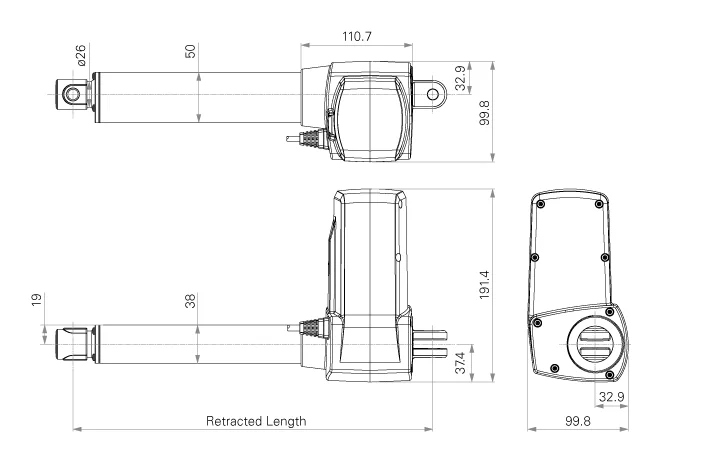

  Minimum installation dimension: ≥ Stroke + 170mm





•


  Color: Black or grey





•


  IP Rating: Up to IP66W





•


  Operational temperature range: +5°C~+45°C





•


  Options: Hall sensor(s), manual release (for patient hoist)





•


  Certificate: IEC60601-1





•


  Suitable for patient hoist application
