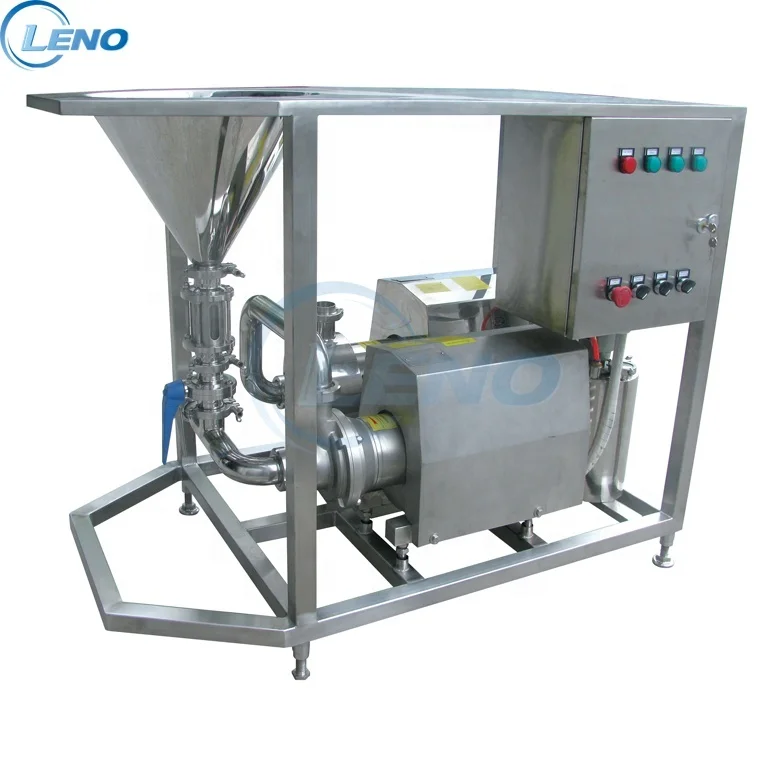

China manufacture Stainless steel powder emulsifying pump

Product Overview

Description







Profile/type	High Efficient online mixer system
material	SS304 or SS316L
Capacity	0-40T (Customized)
Pressure	0-2Bar
Flow Viscosity	1-10000pas
Powder	0-2000kgs
temperature	0-100 celsius degree
Mechanical seal	Double flushed mechanical seal
connection type	Clamp	Union	Flange
motor type	Normal	Ex-Proof	inverter
Speed	2900rpm/3400rpm





Technical Parameters
Model	FLOW(T/H)	Power of inline mixer	Power pf self- Priming Pump	Rotation speed(RPM)
TRL-2-140	0.1-4	4.0KW	2.2KW	2800-1400
TRL-2-165	0.3-6	7.5KW	4.0KW	2800-1400
TRL-2-180	1-10	11KW	5.5KW	2800-1400
TRL-2-200	2-12	18KW	5.5KW	2800-1400
TRL-2-230	2-15	30KW	7.5KW	2800-1400
We can customize the equipment according to customers' requirment.



1. Have mixed, stirring, decentralized, heterogeneous, emulsion, homogenized, and other functions, high universality.
2. Production stability uniform, can be infinitely repeated verification. Particularly in dairy products, beverages, food and pharmaceutical production process more important.
3. No powder Mission, grain-free, no clumps of a lectin.
4. High efficiency: Compared with the traditional process can be shortened by about 80 percent of the time, greatly improving production efficiency, reduce production costs.
5. Extensive application for automated production lines, but also to dlfierent batch Production applications.
6. Particularly applicable to high-viscosity, difficult to dissolve the material(viscosity up to 90,000 mPas).
7. Hassle Free equipment can be fully online CIP/SIP, meet the health requirements and standards.
8. Modular structure:the scene without the direct use of debugging, significantly reducing installation costs.
9. Compact:small space, easy integration with other systems, saving investment.
