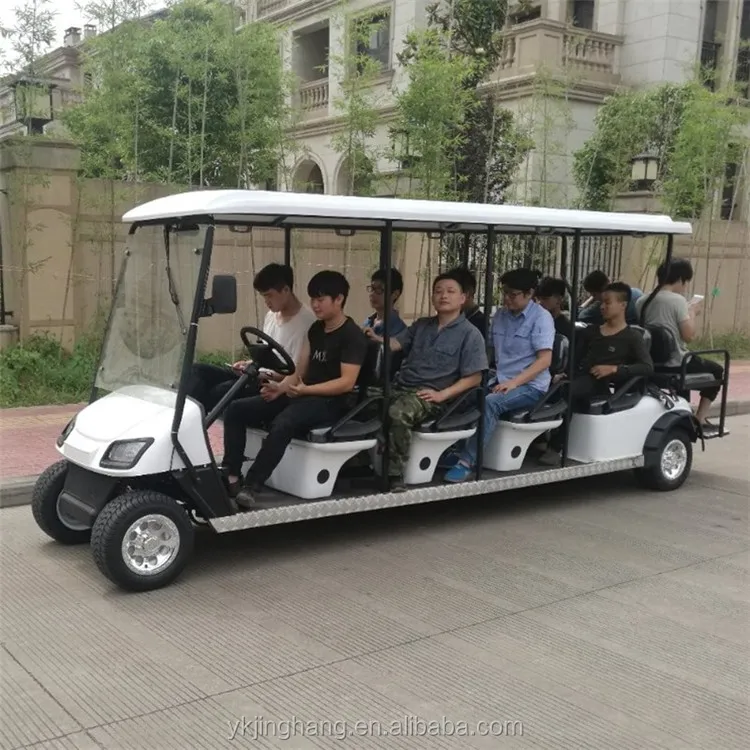

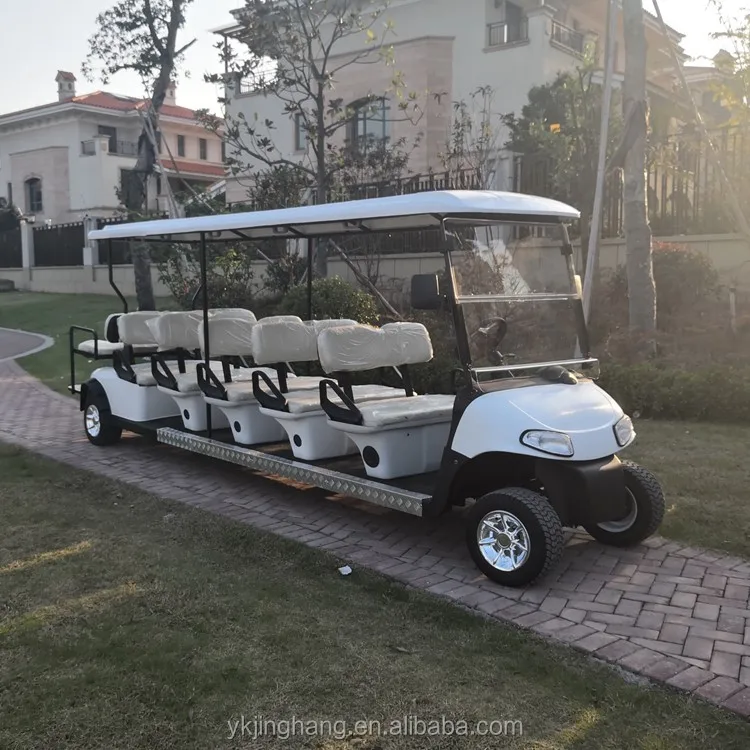

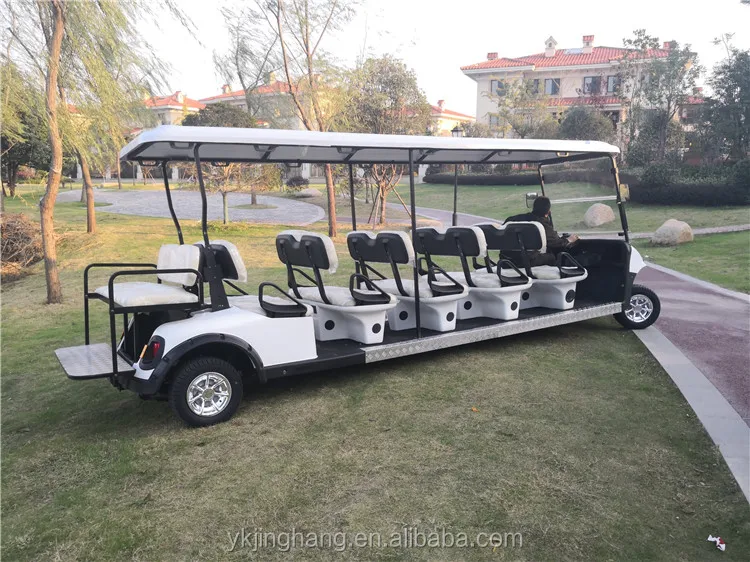

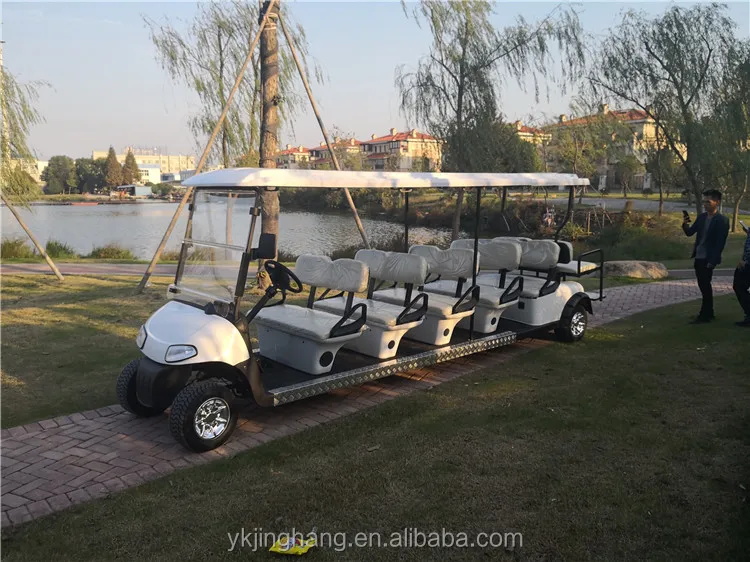

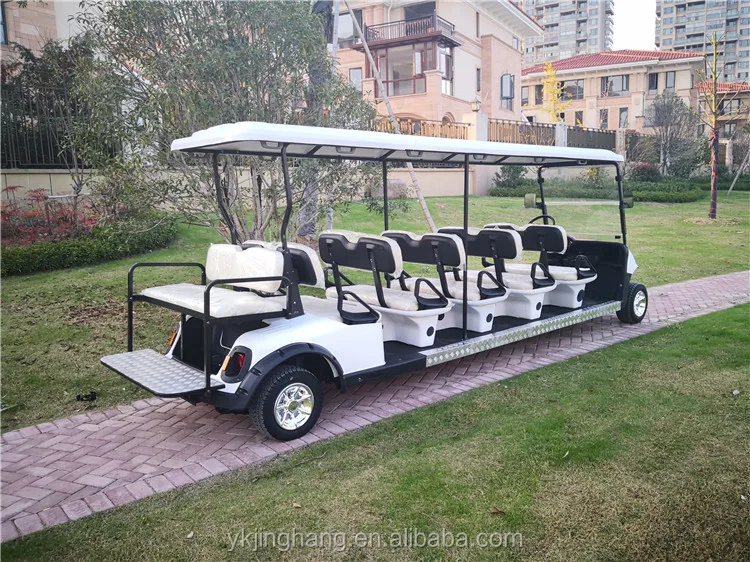

12 seater golf cart for sale/12 seats electric car and bus

BATTERY POWER

GASOLINE POWER

Model no.:

JHGFO-EE10-2S

Model no.:

JHGFO-EG10-2S

                                                                                            KEY COMPONENTS

Motor:

4kw DC or 5kw AC Motor

Engine:

High quality 300CC Single Cylinder, Vetical, 4-Stroke, water cool, Sohc-4 vavle

Controller:

Imported Curtis Controller,  275A-400A

Horse power &Torque:

23.12HP(17KW),  25N.m

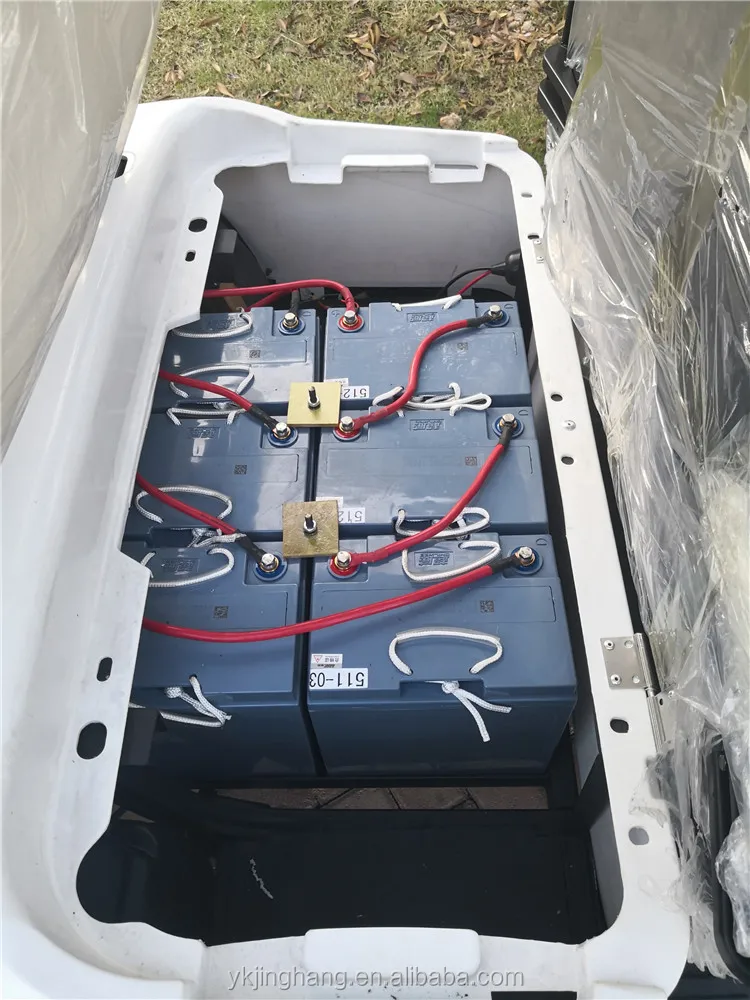

Battery:

48v 150ah  Six cells 8-volt deep cycle(Standard)

Options: Maintanenece free battery

Drive Train:

Automatic, continuously variable transmission (CVT)

Charger:

100-240v intelligent pulse charge

with the function to recover the battery

Fuel

12L

                                                                                                BODY & CHASSIS

Frame:

Welded high intense steel with double coating (galvanized frame is a option)

Body&Roof:

High compact PP plastic front and rear body cover, injected

Windshield:

Tempered glass( unfoldable), Organic glass(Foldable or unfuldable)

Cushion&  Backrest:

Reborn sponge with artificial leather and plastic bottom cover (with different colors)

Floor mat:

Skidproof rubber

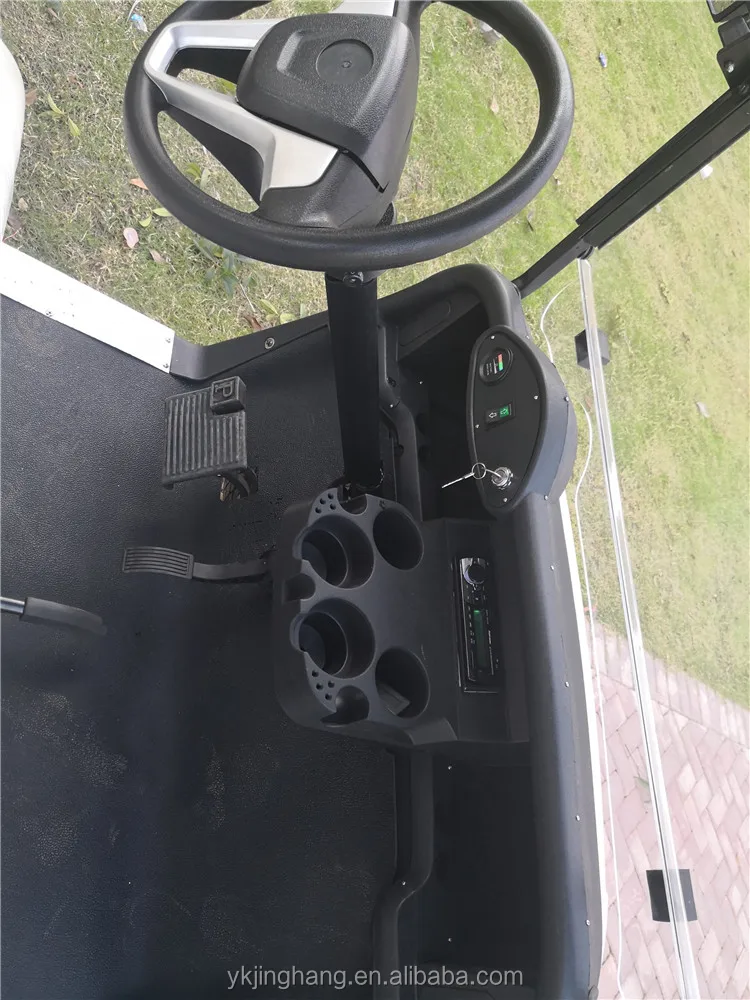

Dashboard:

Black plastic, with F/R switch, battery power indicator, ignition key

Black  plastic,with  Fuel gauge, water temperature sensor,ignition key

Beverage holders:

4 cups holders

Color:

Any color as requirements(we also accept custom colors)

                                                                                             STEERING & SUSPENSION

Steering:

Self-compensating rack and pinion

Suspension:

Lifted heavy duty leaf spring with dumper&spring absorber

Brake System:

Front rear hydraulic  brake plus pedal park brake

Front&rear hydraulic brake with hand park brake

Accelerator:

stepless speed change

Transimission:

Motor Shaft Direct Drive

Shaft drive

Rear Axle:

Differential  model

Gear Selection:

F-N-R

F&R tyre:

205/50-10 inch tubless 6 Play on road tyre with with iron rim

Start way:

Electric start with key

                                                                                                   PERFORMANCE

Passenger

12 Person

Range (loaded):

More than 90kms

More than 300kms for each full tank.

Max.speed:

25km/h

45km/h

Max.climbing ability(loaded):

20%(full loaded)

30%(full loaded)

Brake Distance:

≤5M

≤4M

Curb weight:

750kgs

600kgs

Max.loading :

1200kgs

1200kgs

Charging time:

8-10 hours

Battery lifespan:

More than 700times charge cycles (for standard battery)

                                                                                                 DIMENSIONS

Overall   dimensions:

5500*1200*1710mm

Min ground clearance:

127mm

Wheelbase:

3960mm

F&R Tread:

840mm/985mm

Packing size:

5000*1200*1150mm

Packing:

With irom Rack(Pack with roof ,seats,steering,,dissambled)

Loading:

4units /20ft container, 8units /40GP container, 12units / 40HQ container

                                                                                         ELECTRIC SYSTEMS

Lights:

Head lights, night lights,tail lights,brake nights,turnning lights,  the lights powered for gas power model is one 12v 12 ah dry battery.

Combination   switch:

Combination swith under the steering wheel with the switchs of head light,turnning lights and horn
