Aluminum foil plastic film small label bopp tape mini thermal paper jumbo roll automatic slitting machine for sale price
- Category: >>>
- Supplier: Weifang Sheen-E Economic And Trade Co. Ltd.
Share on (62023932704):
Product Overview
Description
Product Description

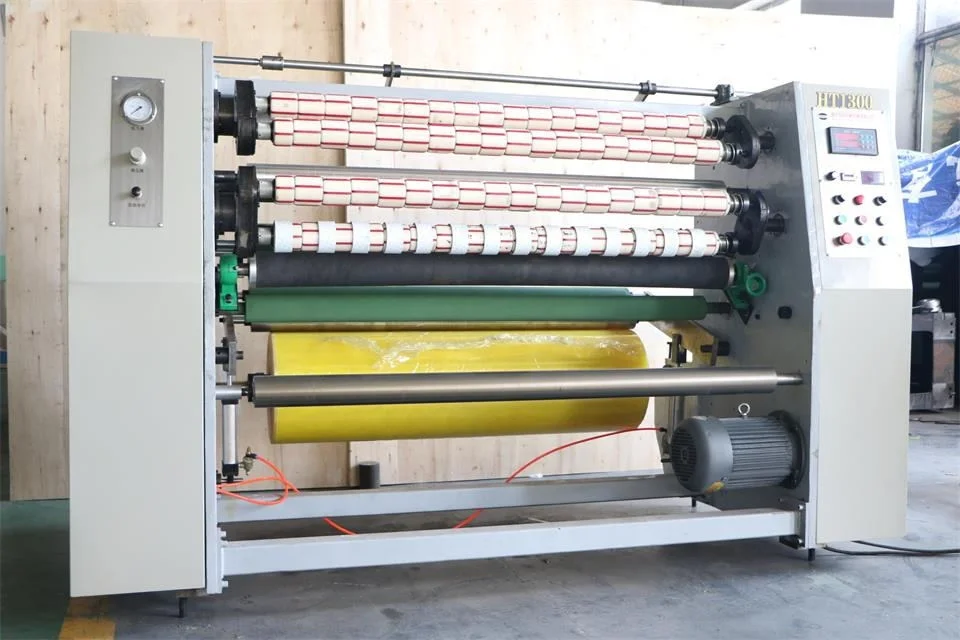

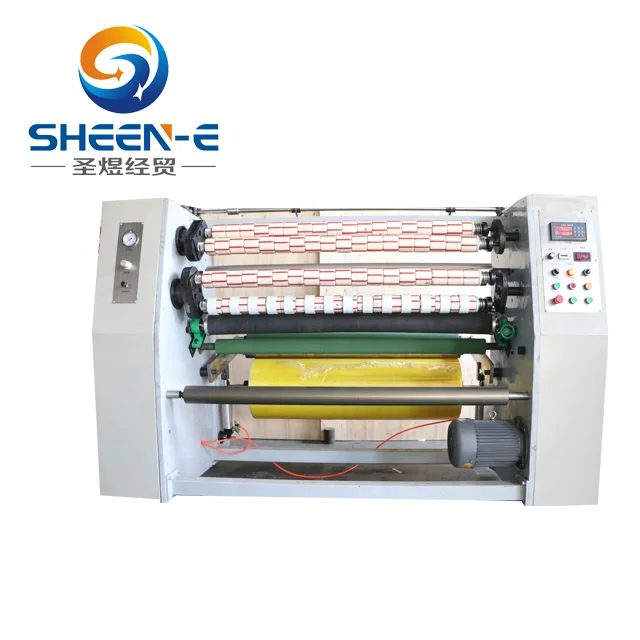

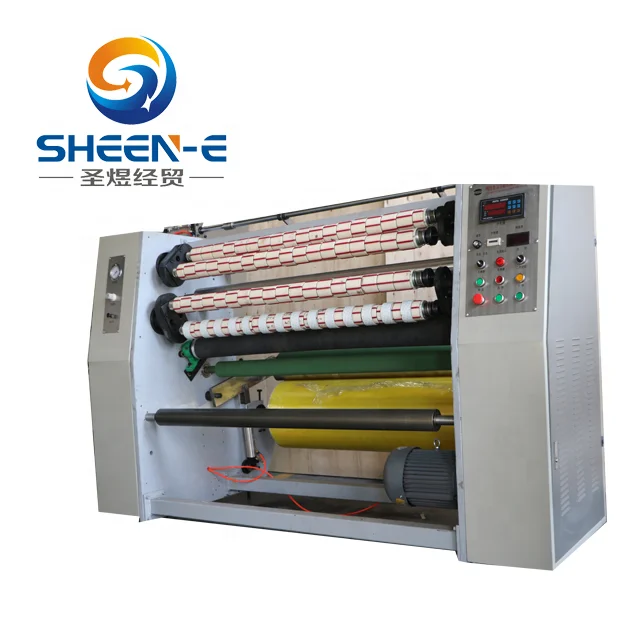

SY-1300 BOPP Tape Slitting Machine
CONFIGURATION LIST
| (1)Functions:Apply to Opp tape,glass paper and other material | ||
| (2) Specification: | ||
| 1.Width of mechanical roller | 1400mm | |
| 2.Max. unwinding diameter | 700mm | |
| 3.Slitting width | According tp customers request | |
| 4.Rewinding tube dia. | 3"(76.2mm) | |
| 5.Rewinding dia. | Four-axis exchange 25.4mm-76.2mm | |
| 6.Tool use | Induatrial straight knife | |
| 7.Mechanical speed | 0-180M/min | |
| 8.Power supply | 380V 50HZ 3PHASE | |
| 9.Air compressor | 5KG(preoared by customer) | |
| 10.Weight | 1100KG | |
| 11.Demension | 1200*2300*1500mm | |
| (3) Machine outfit | ||
| 1.Discharge shaft | Manual | 1 Pcs |
| 2.Discharge brake | Pneumatic brakes 10KG | 1 Group |
| 3.Discharge roller | Hard chrome on steel | 1 Group |
| 4.Main motor | Decelerates motor 5HP | 1 Set |
| 5.Counter | Three-stage clectronic counting control | 1 Group |
| 6.Transmission roller | Aluminum surface anodizing | 1 Set |
| 7.Transmission | Steel surface anodizing | 1 Set |
| 8.Slitting tool | Industrial straight knife 60*22*1 (prepared by customer) | |
| 9.Slitting tool transmission | Pneumatic | 1 Set |
| 10.Edge material rewinging | Roller-type bilateral synchronous coilin | 2 Pcs |
| 11.Automic roll change system | AC mator 1HP | 1 Set |
| 12.Rewinding roller | Aluminum with slip bushing | 4 Pcs |
| 13.Unwingding wheel | Surface covered with rubber,diameter 100 | 1 Set |
| 14.Noise cancellation | ||

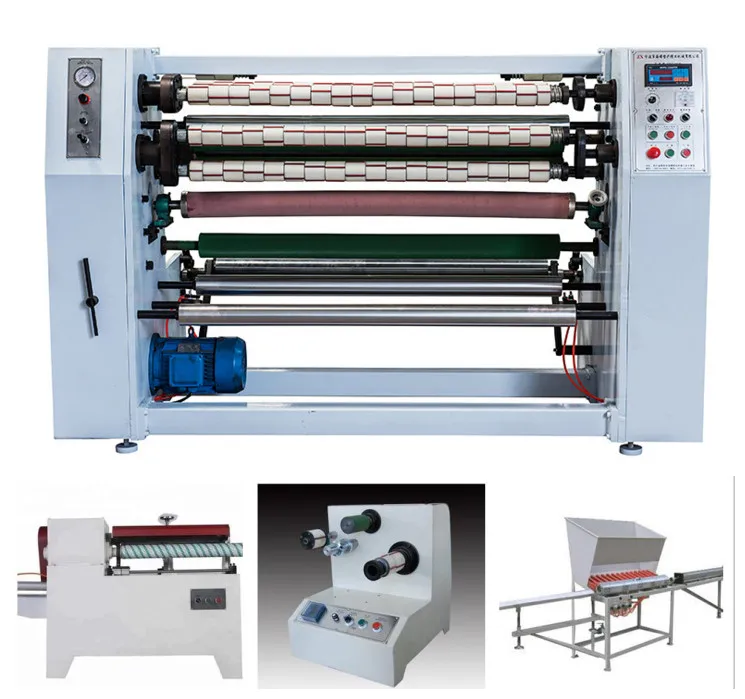

| Matched Machine: | ||
| 15: Paper tub loader | 1 Set | |
| 16.Small rewinding machine | 1 Set | |
| 17.Paper cutting machine | 1 Set | |
Advantage of the tape slitting machine:
The noise reduction funcyion is added to the original equipment.
Detail:

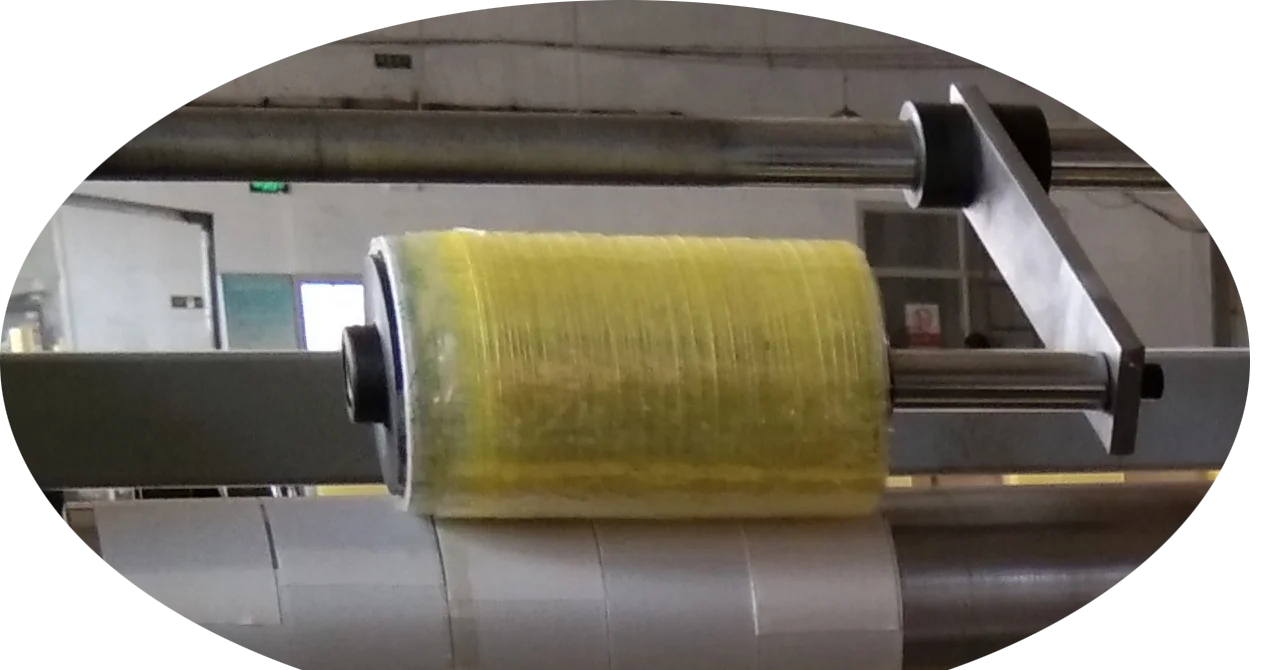

 | Tape slitting machine Indua straight knife. The incision is complete and beautiful ,the cutting edge is neat and smooth, and the shearing effect is excellent for tape slitting machine. |
Tape slitting machine Automic exchange shaft Double plate 4-shaft rotary rewinding,auyomatic changing,consetive working for tape slitting machine. |
|
| Tape slitting macine Rubber roller Rubber roller to elimite tape wrinking and flat rewinding for tape slitting machine.
|
| Tape slitting machine 3-step length counter Preset tape length in advance,it can make accurate rewinding length and auto stop for tape slitting machine. Tape slitting machine contorl panel Centralized contorl panel for bopp tape slitting machine |
Certificate of tape slitting machine
Contact us
Packaging & Shipping
Port: Qingdao/Shanghai
Packing: Wooden case or according customers requirements.
Smple of 1300 tape slitting machine
