Scissor Lift Table \ CE CERTIFICATE

Product Overview

Description

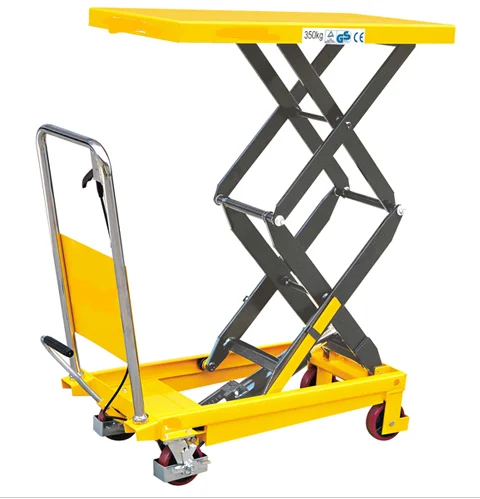

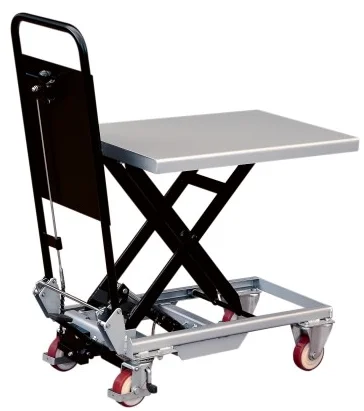

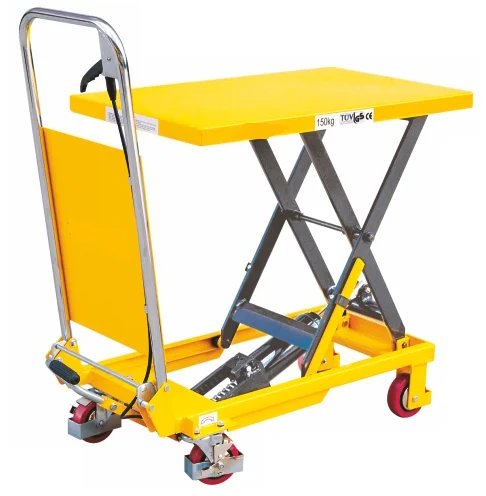

MODEL		SLT150	SLT300	SLT500	SLT800	SLTS350(Double Scissors Lift Table)
Capacity	kg	150	300	500	800	350
Max. lift height	h12(mm)	740	900	900	1000	1300
Min. height of table	h13(mm)	225	340	340	420	350
Lifting height	h3(mm)	515	560	560	580	950
Table size	l×b5×s(mm)	740×450×35	855×500×50	855×500×50	1000×510×55	910×500×50
Total height	h14(mm)	935	970	970	996	970
Overall length	l1(mm)	830	925	925	1150	980
Foot pedal cycles to max height		≤25	≤32/≤45	≤32/≤45	≤70	≤60
Wheel diameter	d(mm)	100	127	127	150	127
Qty./20’ Container	PCS	192	120	120	52	110
Service weight	kg	44	82	87	115	105
Carton size	mm	880×480×265	950×530×390	950×530×390	1190×630×460	1010×530×390
