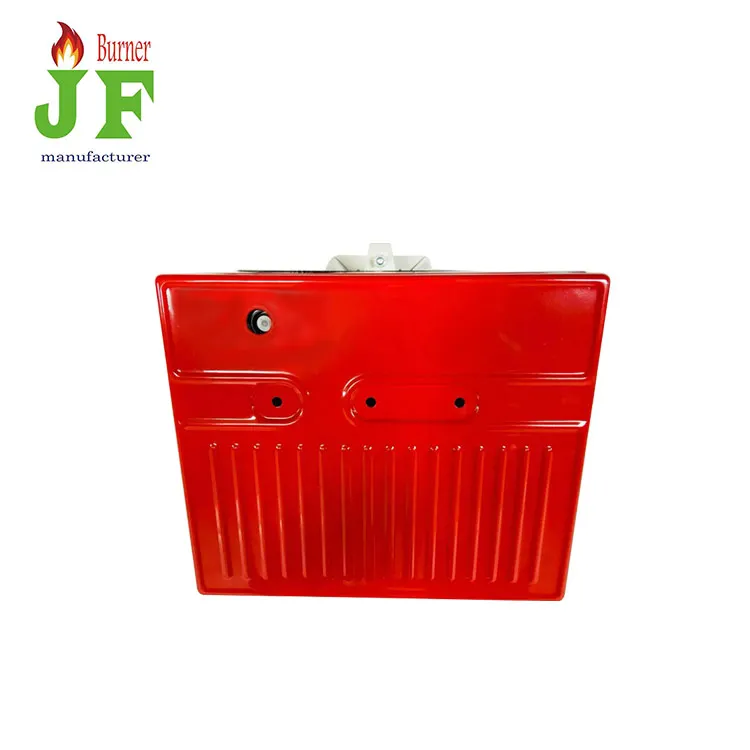

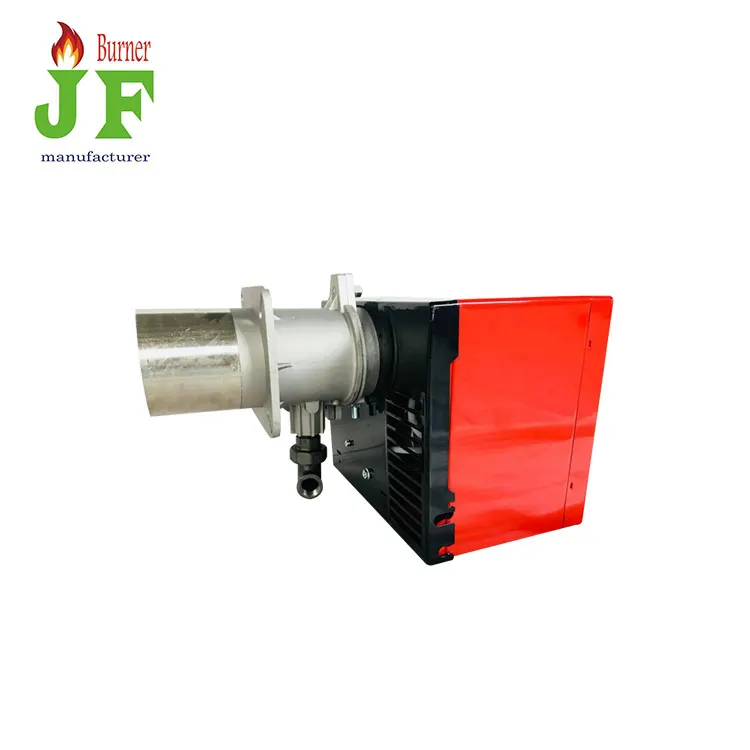

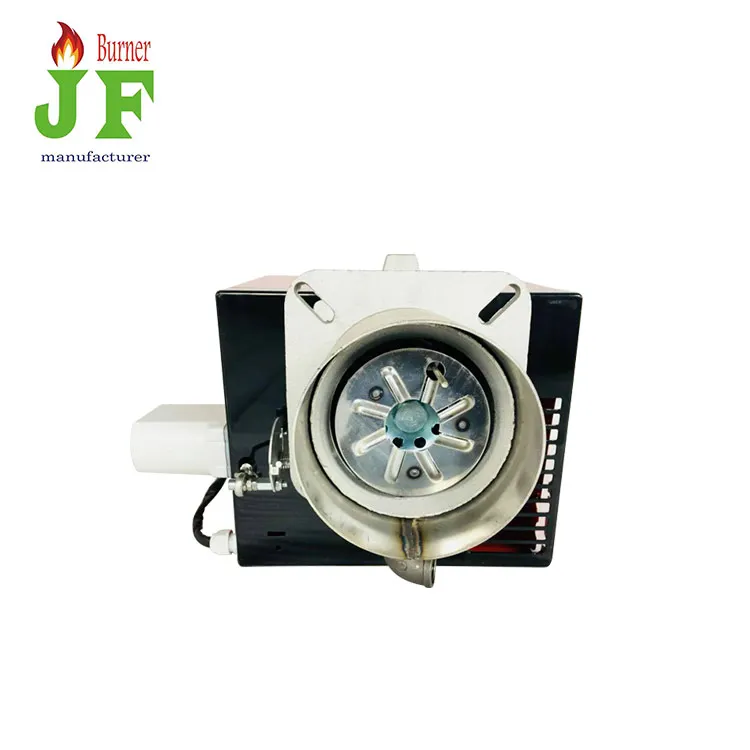

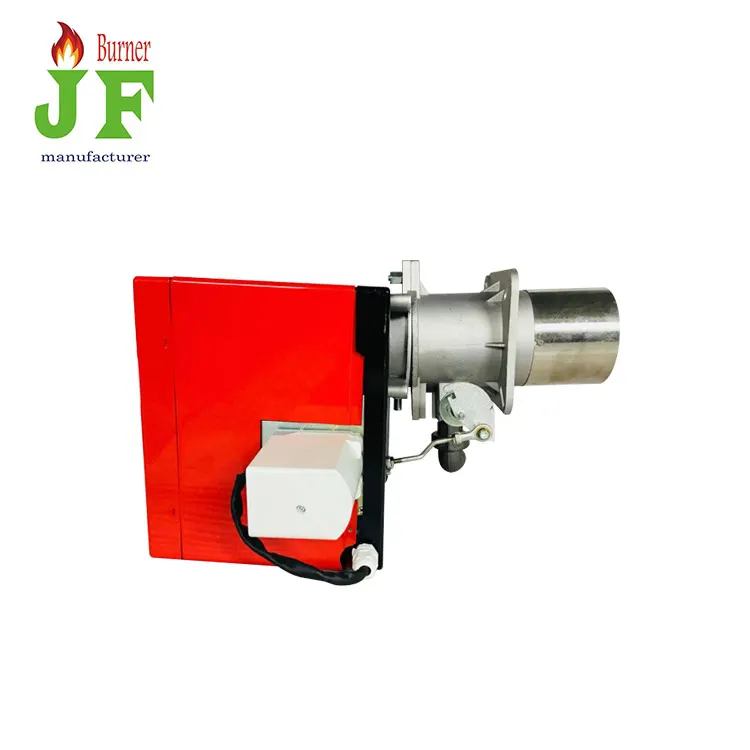

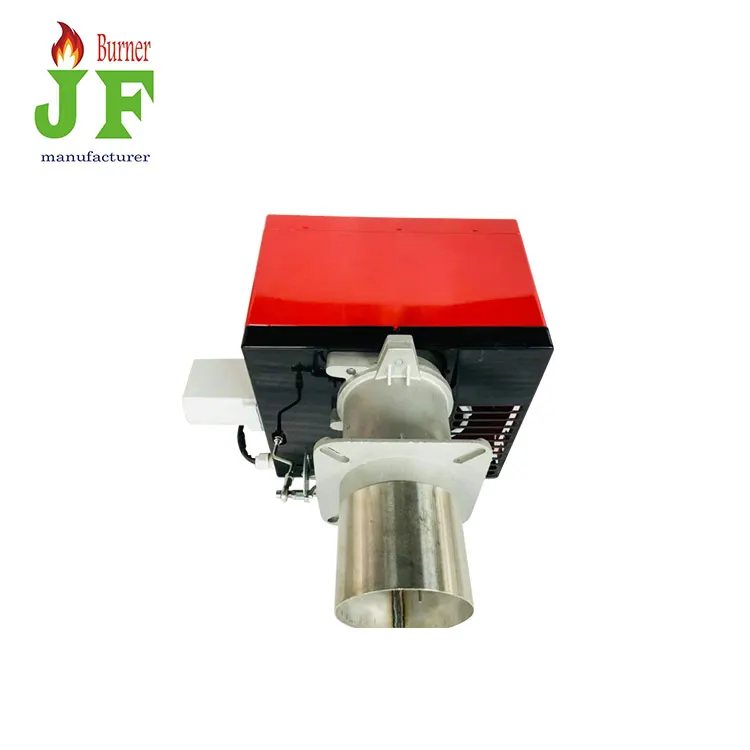

JF GS20/M two stage natural gas fired burner similar to riello burner
JF GS20/M two stage natural gas fired burner similar to riello burner
JF GS20/M two stage natural gas fired burner similar to riello burner
JF GS20/M two stage natural gas fired burner similar to riello burner
JF GS20/M two stage natural gas fired burner similar to riello burner
JF GS20/M two stage natural gas fired burner similar to riello burner
JF GS20/M two stage natural gas fired burner similar to riello burner

JF GS20/M two stage natural gas fired burner similar to riello burner

Share on (62023949429):


Price:

Quantity:


Product Overview

Description











Product Description

Model: GS20/M

Thermal output: 194KW

Electrical supply: 1ph, 220V/50Hz

control method: dual-stage fire control

Absorbed electrical power: 0.25KW

Fuel: natural gas, coal gas, liquefied petroleum gas, etc.

FS series is mainly used for light industry, while RS series are mostly suitable for low temperature and medium temperature hot boiler, hot wind generator or steam boiler, oil guiding heating boiler, etc.

Power table
Series
Model
Heating value(KW)
Control Means
GAS
Power source
Power
(W)
Min
Max
GS
20/M
43
192
Sec fire
liquefied gas/ natural gas
1ph*220v*50hz
250



Main features

1,Easy operation;
2,Convenient assembly for all parts;
3,Efficient maintenance, cleaning and inspection;
4,Critical spare parts adopt renowned brand;

Control process:

Our gas burners can be divided into two types which are single-stage and dual-stage according to regulating control method.


After single stage gas burner is ignited, only one stage heating power works, which cannot be adjusted. The heating power of four models ranges from 42kw to 550KW.

The dualstage gas burners have two stages heating power. When ignited, the 1st stage starts working; as the load keeps increasing, the 2nd stage starts working, too, whose heating power ranges from 70kw to 500kw.


Performance
Performance

1 Unibody design with aluminum shell

2 Sliding flange can locate the nozzle according the status in boiler furnace

3 Superior design of the nozzle make sure the best consumption when the burner working

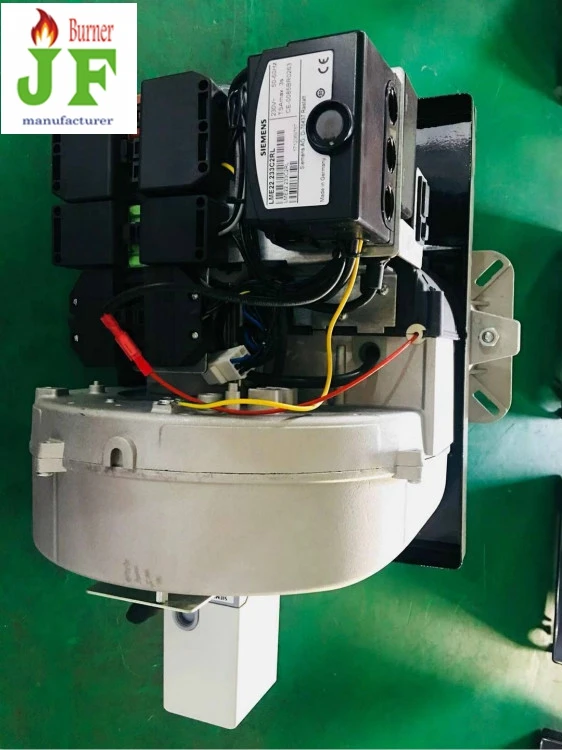

4 Electrical devices to control the procedure and the safe protection

5 Delivering in assemble, out of the box
