TiMOTION TA41 12V 24V 36V DC Linear Actuator

TiMOTION’s TA41 is the ideal linear actuator for medical applications, particularly for dentist chairs and electric wheelchairs. Its physical design is similar to the TA7, yet without the IP rating. The TA41 provides multiple options of cable exits and it supports a maximum of 600Kg force in push.

General Features

•


  Voltage of motor: 12, 24 or 36V DC





•


  Maximum load: 6,000N in push





•


  Maximum load: 4,000N in pull





•


  Maximum speed at full load: 23.4mm/s (with 1000N in a push condition)





•


  Stroke: ≥ 25~1000mm





•

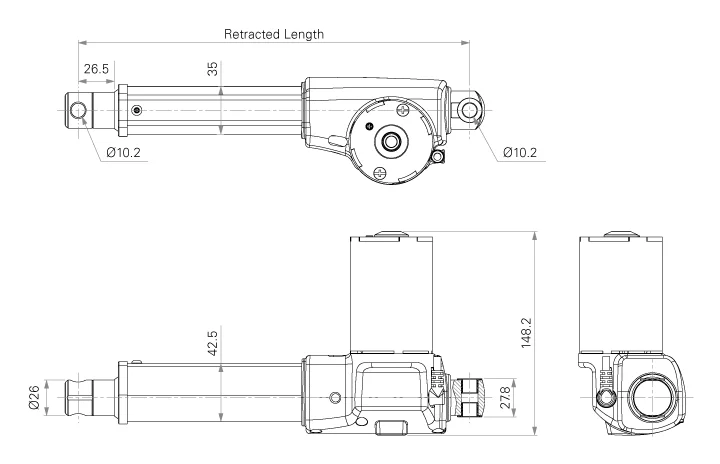

  Minimum installation dimension: ≥ Stroke+163mm





•


  Color: Black or grey





•


  Operational temperature range: +5°C~+45°C





•


  Options: Hall sensors, Reed sensor
