EDUP High Quality Drone signal booster 4W 2.4Ghz Wireless Drone Extender
- Category: >>>
- Supplier: Shenzhen EDUP Electronics Technology Co. Ltd.
Share on (62024005120):
Product Overview
Description

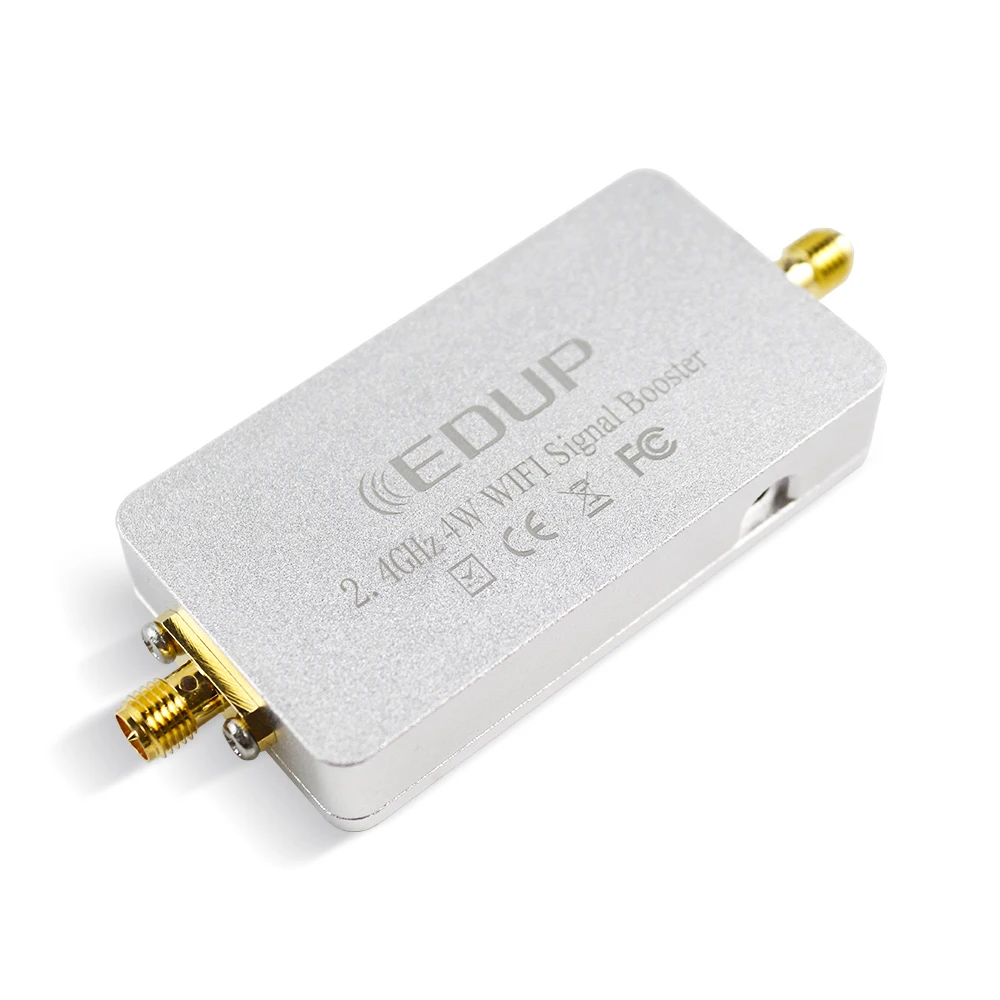

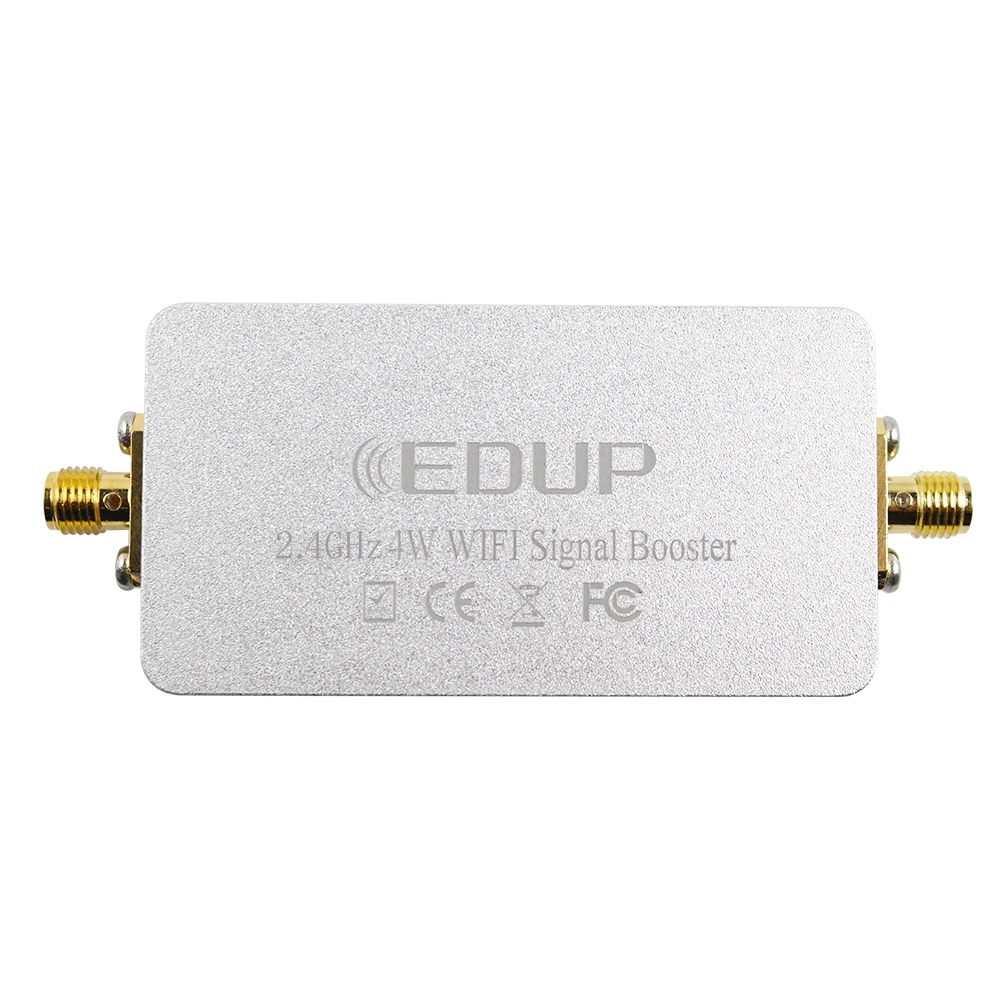

EDUP High Quality Drone signal booster 4W 2.4Ghz Wireless Drone Extender
Model No EP-AB012
Similar Products
Product Description
2.5dB ultra-low noise
5V to 16V operating input range
Working with certified IEEE 802.11b/g/n Wireless LAN devices
Simply plug and play, no software is required
50X the power, improving the link quality and coverage of certified WLAN devices
Waht is the Specification of powerful wifi booster ?
1 12V /1A power supply.
2 Heat dissipation is recommended, such as adding heat sink or radiator fan.
3 Antenna should be screwed first, then plug the power adapter, finally connect the device.
4 The output could reach 36dBm, when input power is 19dBm or 20dBm (default gain is 17dB).
Number | Items | Specifications |
1 | Frequency Range | 2400-2500MHz |
2 | Operating Voltage | 5-16V |
3 | Receiving Gain | 19dB±1 |
4 | Transmission Gain: | 17dB±1 |
5 | Max Output Power(P1dB) |
|
6 | Input Trigger Power | Min:3dBm Max:23dBm |
7 | EVM | 3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
8 | Noise Figure | <2.5dB |
9 | Current Supply | 580mA@Pout 28dBm 12V |
10 | TX/RX Switch Time Delay | <1 us |
11 | LED Indicator | Transmitter: Green; Receiver: red |
12 | Operating Temperature | -30℃~+70℃ |
13 | Storage Temperature | -40℃~+150℃ |
14 | Operating Humidity | Up to 95% rel. humidity |

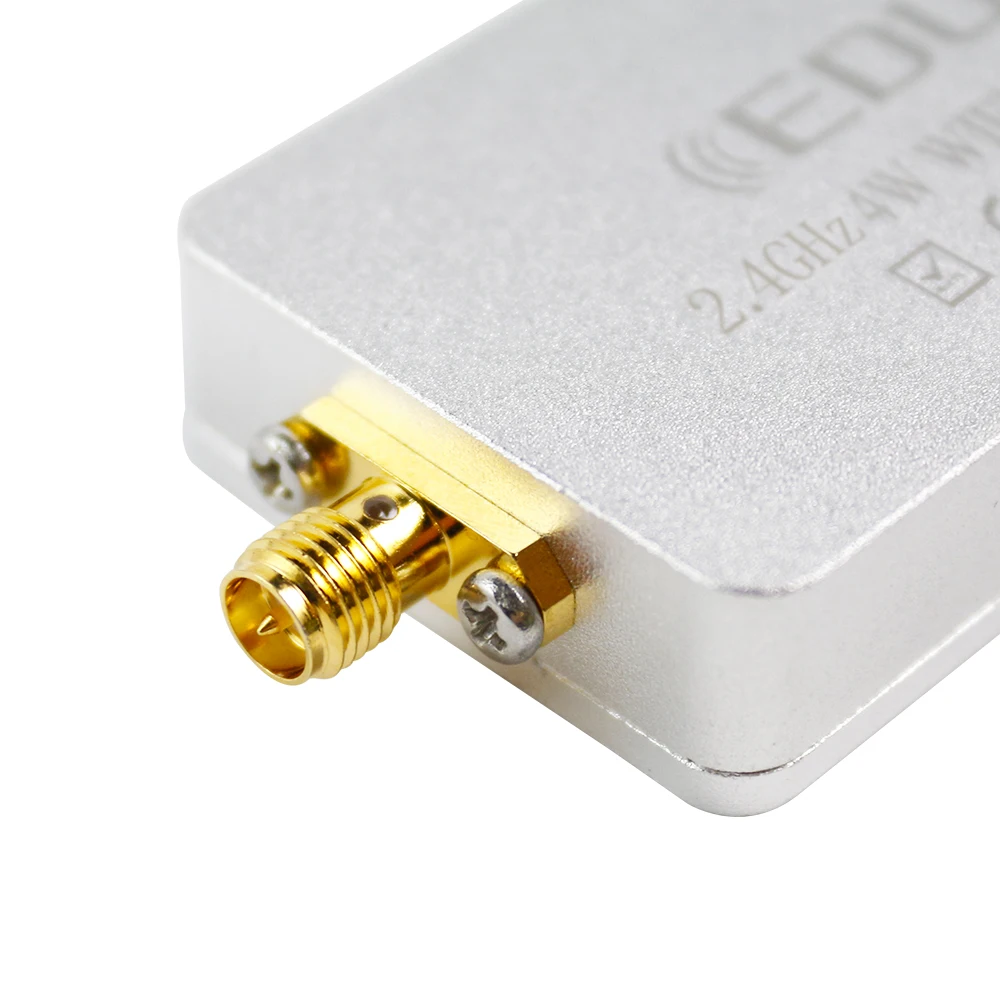

15 | RF Connector | Input: SMA-K; Output: RP-SMA-K |
16 | Power Socket | 2.5*0.7mm DC |
17 | Shell Size | 65*35*13(mm) |
18 | Shell Material | Aluminum |
19 | Net Weight | 0.06Kg |
