TiMOTION TA19 12V 24V DC Quiet Linear Actuator

TiMOTION’s TA19 series is a quiet and telescopic style linear actuator suited for height-adjustable work tables. The telescopic tube design of the TA19 linear actuator allows for a longer stroke with a shorter retracted length and reduced installation dimensions. This linear actuator can also be equipped with Hall sensors for position feedback.

General Features

•


  Voltage of motor: 12V DC, 24V DC or 24V DC (PTC)





•


  Maximum load: 1,000N in push





•


  Maximum speed at full load: 30mm/s (with 800N in a push condition)





•


  Stroke: 180~800mm





•

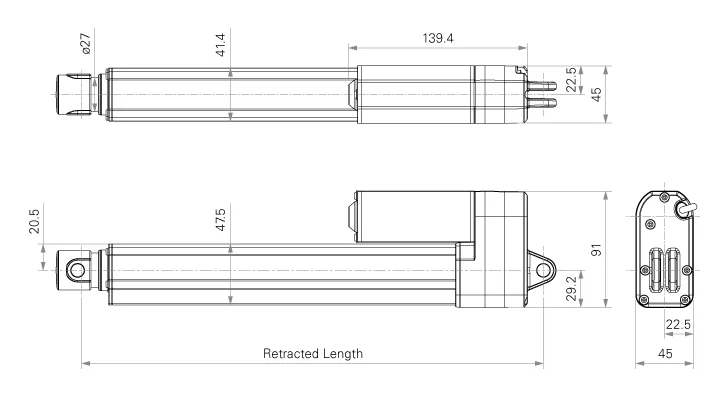

  Minimum installation dimension: ≥ Stroke/2 + 165mm





•


  Certificate: IEC60601-1, ES60601-1, EMC





•


  Operational temperature range: +5°C~+45°C





•


  Option: Hall sensors
