TiMOTION TVL3 Steel TV Lifting Column

The TiMOTION TVL3 series columns are primarily designed as TV lifts, but can be used in other applications that require vertical movement using a remote control. Our steel constructed TVL3 is available in three sizes depending on the requirements of the application. An extended height position can be programmed using our remote control.

General Features

•


  Maximum load: 600N





•


  Maximum speed at full load: 22mm/s (with 600N in a push or pull condition)





•

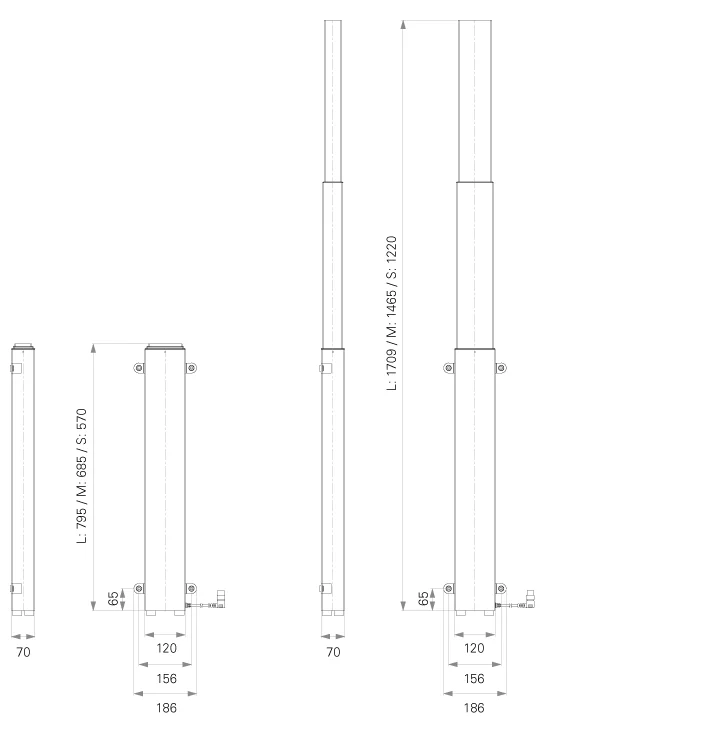

  Minimum installation dimension: 570mm





•


  Dimension of outer tube (L*W): 120*70 mm





•


  Certificate: RoHS





•


  Adjustable stroke (preset in factory)





•


  Adjustable mounting bracket
