TiMOTION TGM1 24V DC Ergonomic Gear Motor
- Category: >>>
- Supplier: TIMOTION TECHNOLOGY CO. LTD.
Share on (62024040910):
Product Overview
Description
TiMOTION’s TGM1 series gear motor was designed primarily for ergonomic applications like height adjustable workstations and tables, but can be used in many other applications. This economical product allows for fast, smooth and quiet adjustment of built-in spindles through the use of external limit switches. Shafting allows for the mechanical synchronization of dual spindles.
General Features
-
Voltage of motor: 24V DC or 24V DC (PTC)
-
Maximum speed at full load: 144RPM (±5%) after gear reduction
-
Maximum rated torque: 7.4Nm
-
Certificate: UL962 Operational temperature range at full performance: +5°C~+45°C
-
Option: Hall sensors
-
Hexagon hole for the shaft by 6 or 9.1mm diameter
-
Low noise

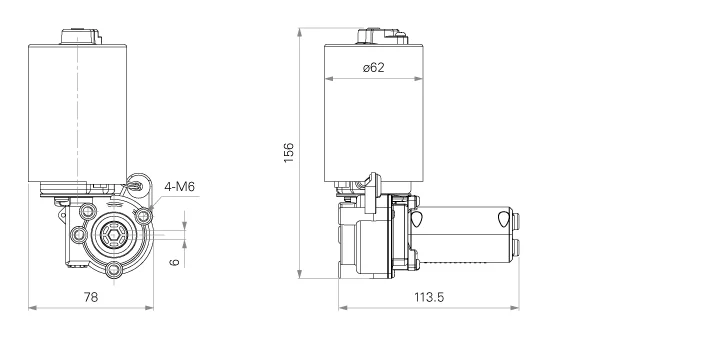

Standard Dimension (mm)
Without TES2
With TES2
