TiMOTION TL28 2 Stage Square Lifting Column
TiMOTION TL28 2-Stage Square Lifting Column

TiMOTION TL28 2 Stage Square Lifting Column

Share on (62024060063):


Price:

Quantity:


Product Overview

Description



TiMOTION’s TL28 series lifting columns are specifically designed for use in ergonomic desks and work tables. Using multiple TL series lifting columns with compatible TC series control boxes and TH/TDH series controls, work surfaces can be controlled quietly and smoothly with synchronous movement. All Ergo Motion TC series control boxes have a less than 0.1W standby power option that reduces power consumption. Our wide range of columns offers customers the solutions they require to satisfy their project requirements. The TL28 has a two stage telescopic outer tube that is designed for a wide-top, narrow-bottom square appearance. One single TL28 can lift maximum 80KG. Various powder coating is available.




General Features




  • Maximum load: 800N in push




  • Maximum speed at full load: 28mm/s (with 800N in a push condition)




  • Minimum installation dimension: 645mm




  • Stroke: 500mm




  • Dimension of outer tube (L*W): 70*70mm




  • Two stage outer tube with square appearance




  • Wide top and narrow bottom configuration

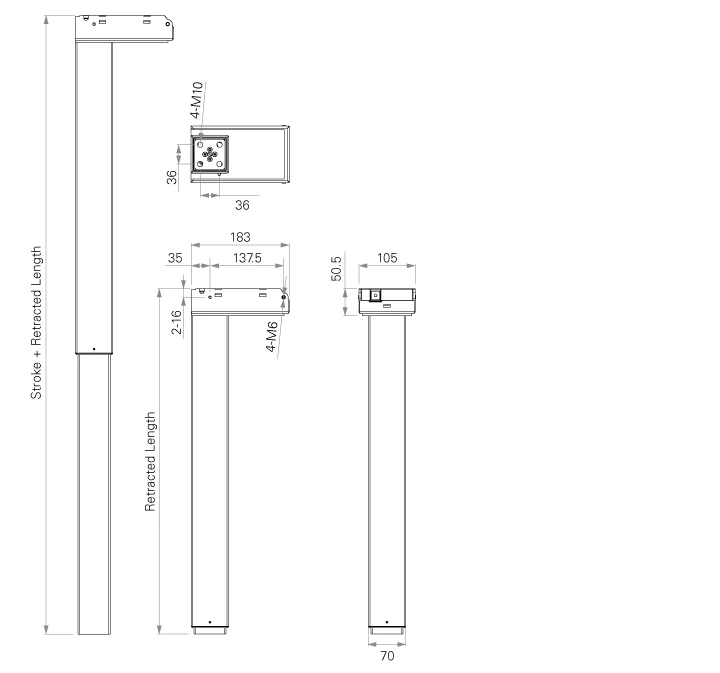

Standard Dimension (mm)
