TiMOTION TA31 24V DC Medical Linear Actuator
- Category: >>>
- Supplier: TIMOTION TECHNOLOGY CO. LTD.
Share on (62024106250):
Product Overview
Description
The TA31 is one of our great medical grade linear actuators. It can lift up to 8000N and its IP rating is up to IP66W. The TA31 is a high quality solution for medical applications such as medical beds, medical chairs, or home care options.
General Features
Voltage of motor: 24V DC, 24V DC (PTC)
Maximum load: 8,000N in push
Maximum load: 3,000N in pull
Maximum speed at full load: 16.2mm/s (with 2,000N in a push / pull condition)
Stroke: ≥ 25~450mm
Minimum installation dimension: ≥ Stroke+157mm
Color: Black or grey
IP Rating: Up to IP66W
Certificate: IEC60601-1, ES60601-1, IEC60601-1-2
Operational temperature range at full performance: +5°C~+45°C
Options: Safety nut, Hall sensors
An economic solution with compact installation dimension

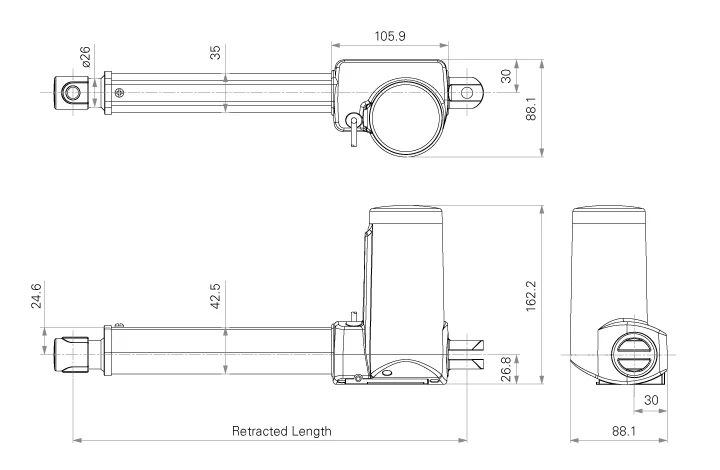

Standard Dimension (mm)
