NY 817 Labeling Machine For Phone Case Pencil Notebook Mail Corrugated Box Oval Cup Package Horizontal Vertical Packing Machine
- Category: >>>
- Supplier: Fujian Nan Yun Packing Machinery Co. Ltd.
Share on (62024107212):
Product Overview
Description
Product Description

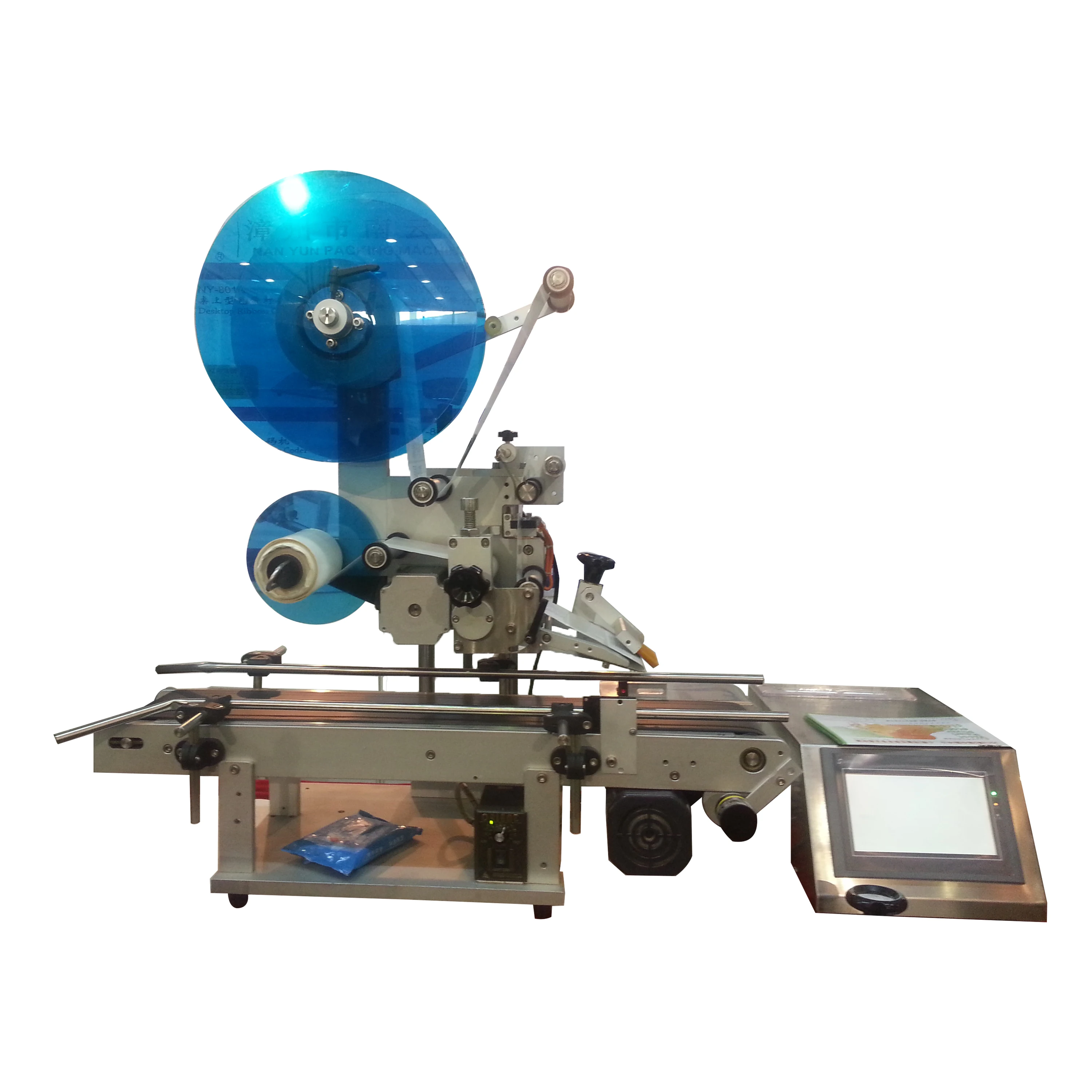

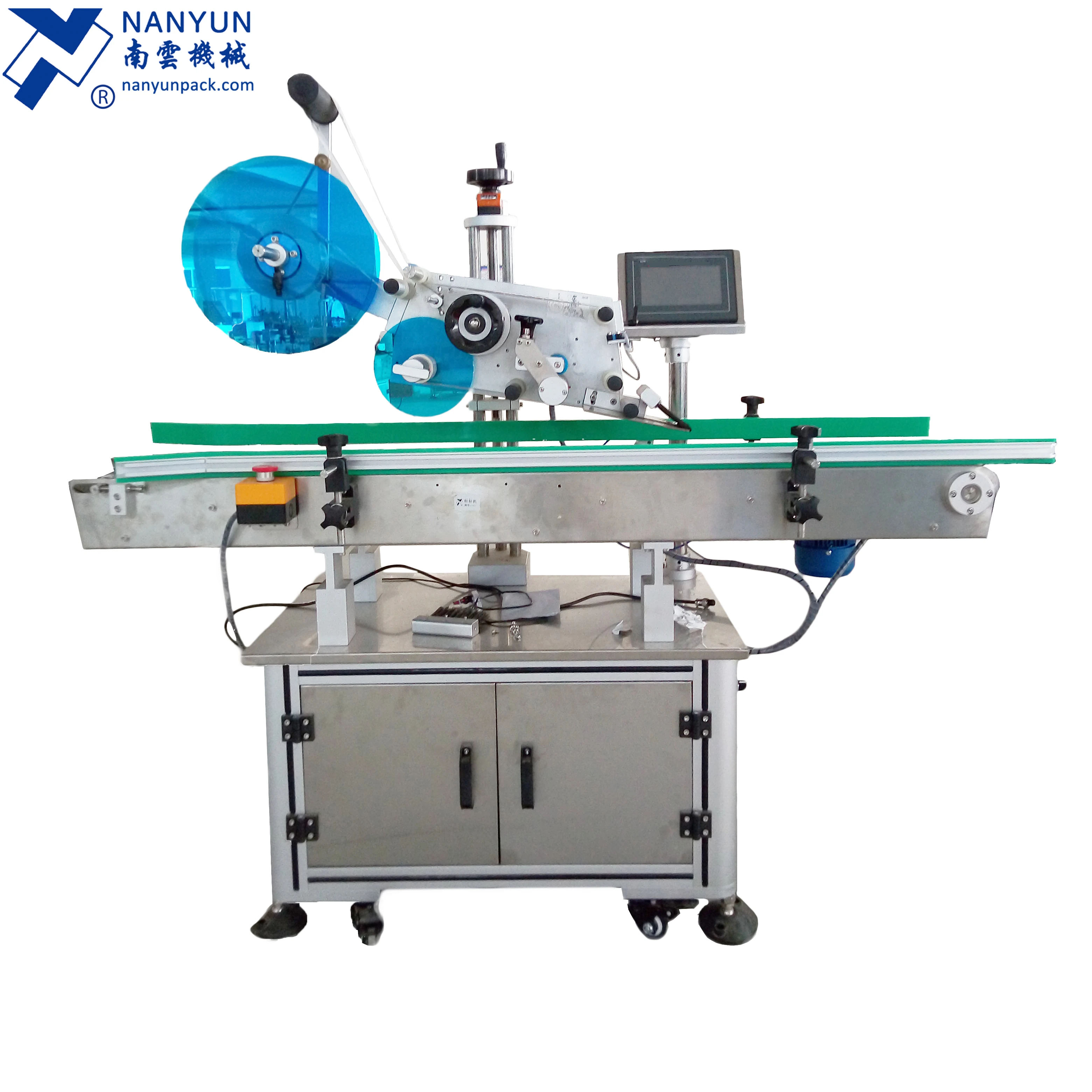

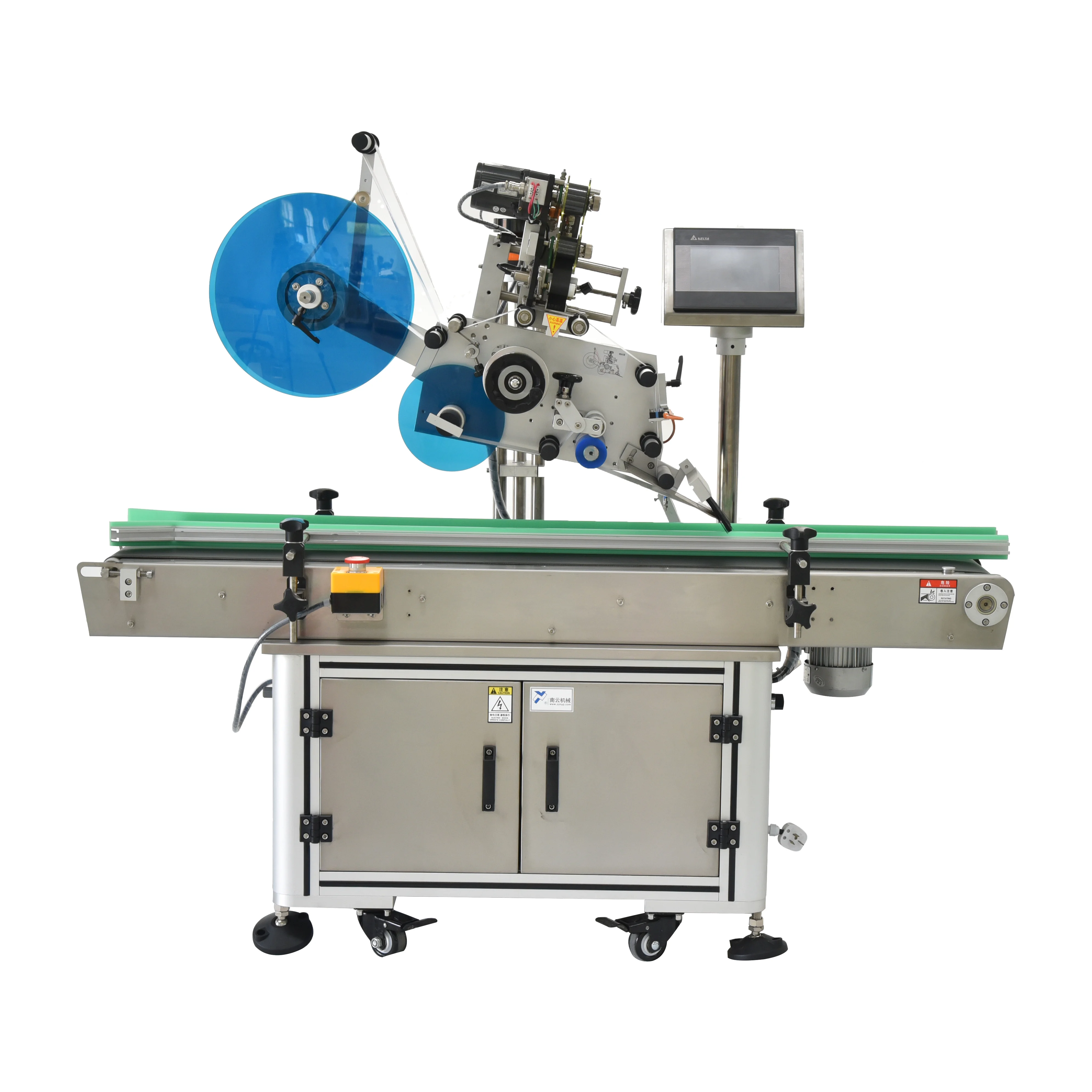

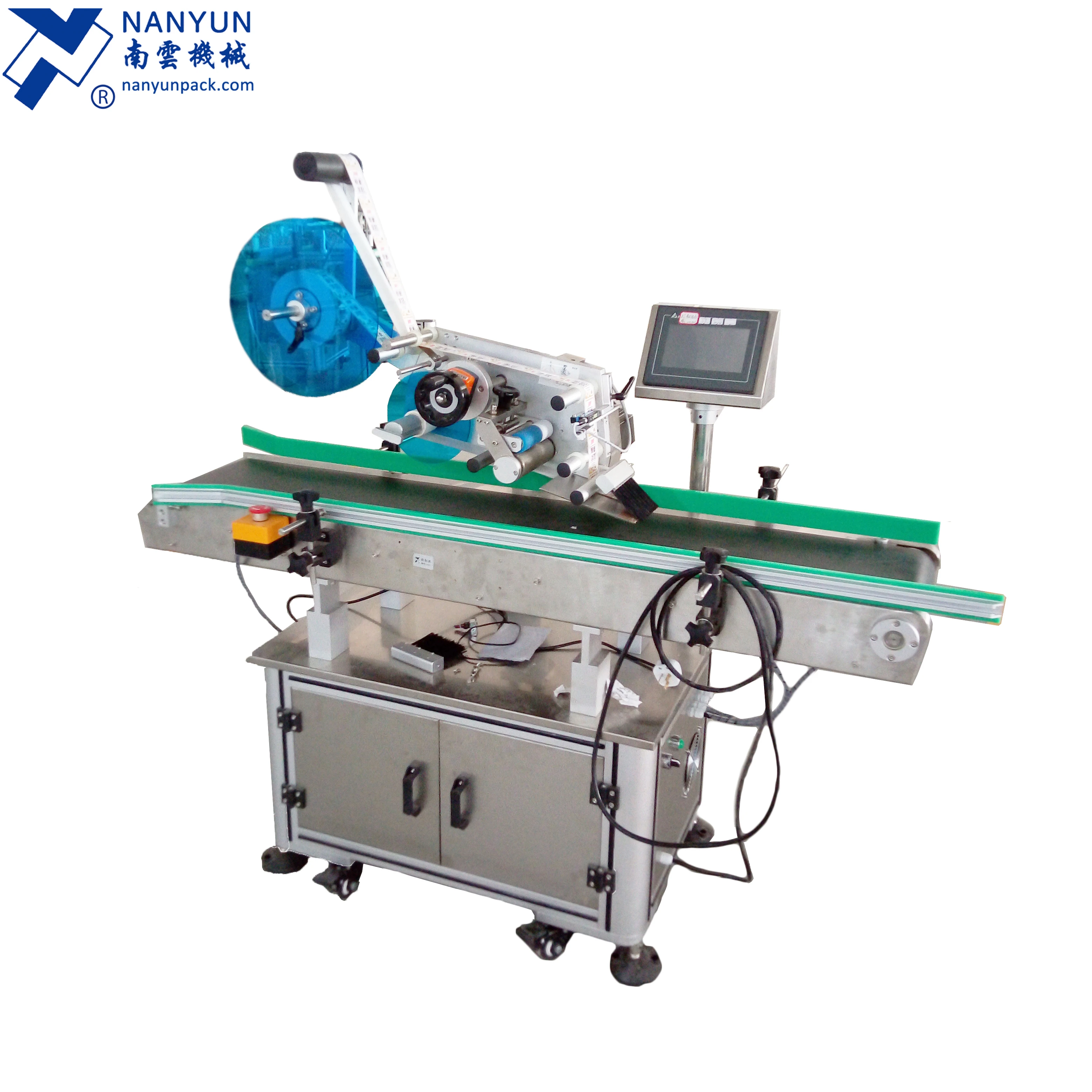

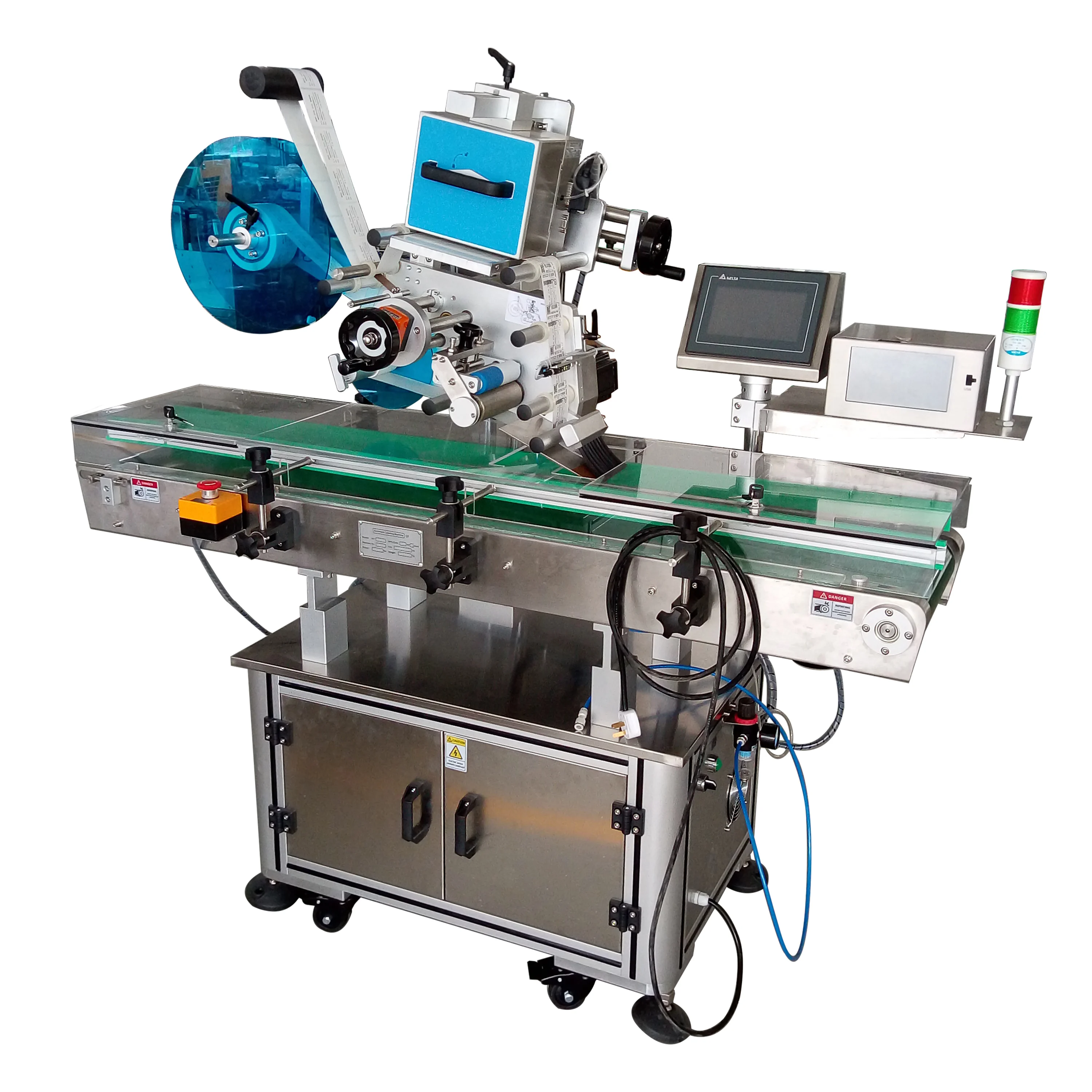

NY-817 Top Flat Surface Labeling Machine For Box/Carton/Paper Sheet, Bag/Pouch, Bottle/Jar/Can/Tin etc.
Ⅰ. Application:
NY-817 Flat surface plane labeling machine can work for all kinds of objects with plane, flat surface, side surface or large curvature surface such as bags, paper, pouch, card, books, boxes, jar, cans, tray etc.Widely used in food, health care, daily chemical, electronic, metal, plastics and other industries. It has optional date coding device, realize date coding on stickers.
Ⅱ. Features You Can Not Ignor:
1. It can label for any products with flat surface. More flexible arrangement for manufacturing schedule.
2. The labeling head convenient to adjust, the labeling speed is automatically synchronous with the conveyor belt speed to ensure precise labeling.
3. The speed of conveyor line, the speed of pressure belt and the speed of label output can be set and changed by the PLC human interface.
NY-817 Flat surface plane labeling machine can work for all kinds of objects with plane, flat surface, side surface or large curvature surface such as bags, paper, pouch, card, books, boxes, jar, cans, tray etc.Widely used in food, health care, daily chemical, electronic, metal, plastics and other industries. It has optional date coding device, realize date coding on stickers.
Ⅱ. Features You Can Not Ignor:
1. It can label for any products with flat surface. More flexible arrangement for manufacturing schedule.
2. The labeling head convenient to adjust, the labeling speed is automatically synchronous with the conveyor belt speed to ensure precise labeling.
3. The speed of conveyor line, the speed of pressure belt and the speed of label output can be set and changed by the PLC human interface.
4. Use famous brand PLC, stepping or servo motor, driver, sensor, etc, good quality components' configuration.
Ⅲ. Other Corollary Equipment Introduction:
1. Different labeling solutions for flat surface, round labeling, taper wrap labeling can be supplied. One product can accomplish one sticker, two stickers or more stickers labeling, also can one sticker to finish one side, two sides, three sides or more sides labeling.
1. Different labeling solutions for flat surface, round labeling, taper wrap labeling can be supplied. One product can accomplish one sticker, two stickers or more stickers labeling, also can one sticker to finish one side, two sides, three sides or more sides labeling.
2. We can supply you the optional rotary table bottle unscrambler machine, which can be connected directly before the labeling machine, the operators can put the bottles on the rotary table, then the rotary table will send the bottles to the labeling machine to the labeling machine automatically.
3. It also can match with weight checker, metal detector, bottle filling machine, capping machine, can seaming machine, cover impressing machine, inkjet /laser / TTO printer etc.

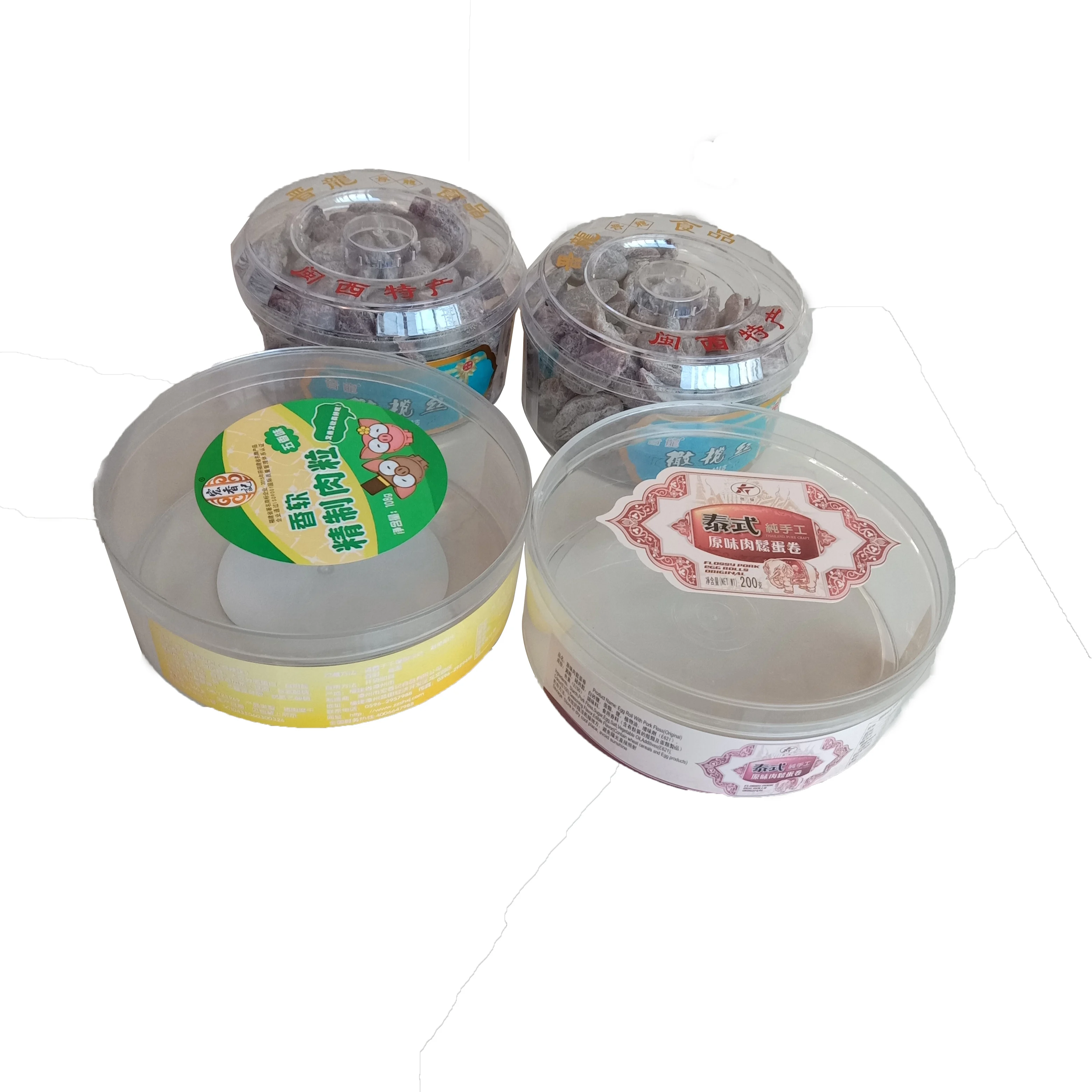

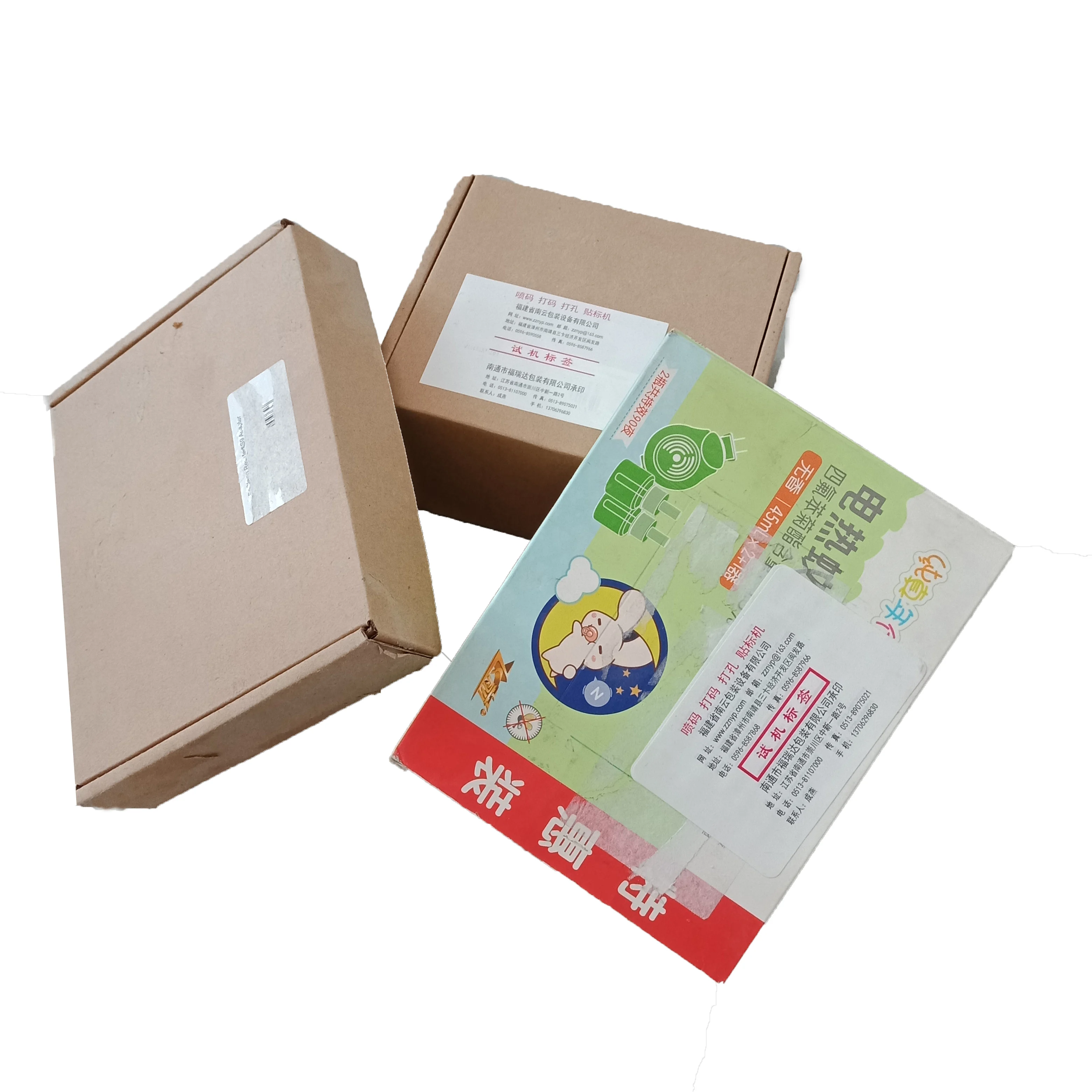

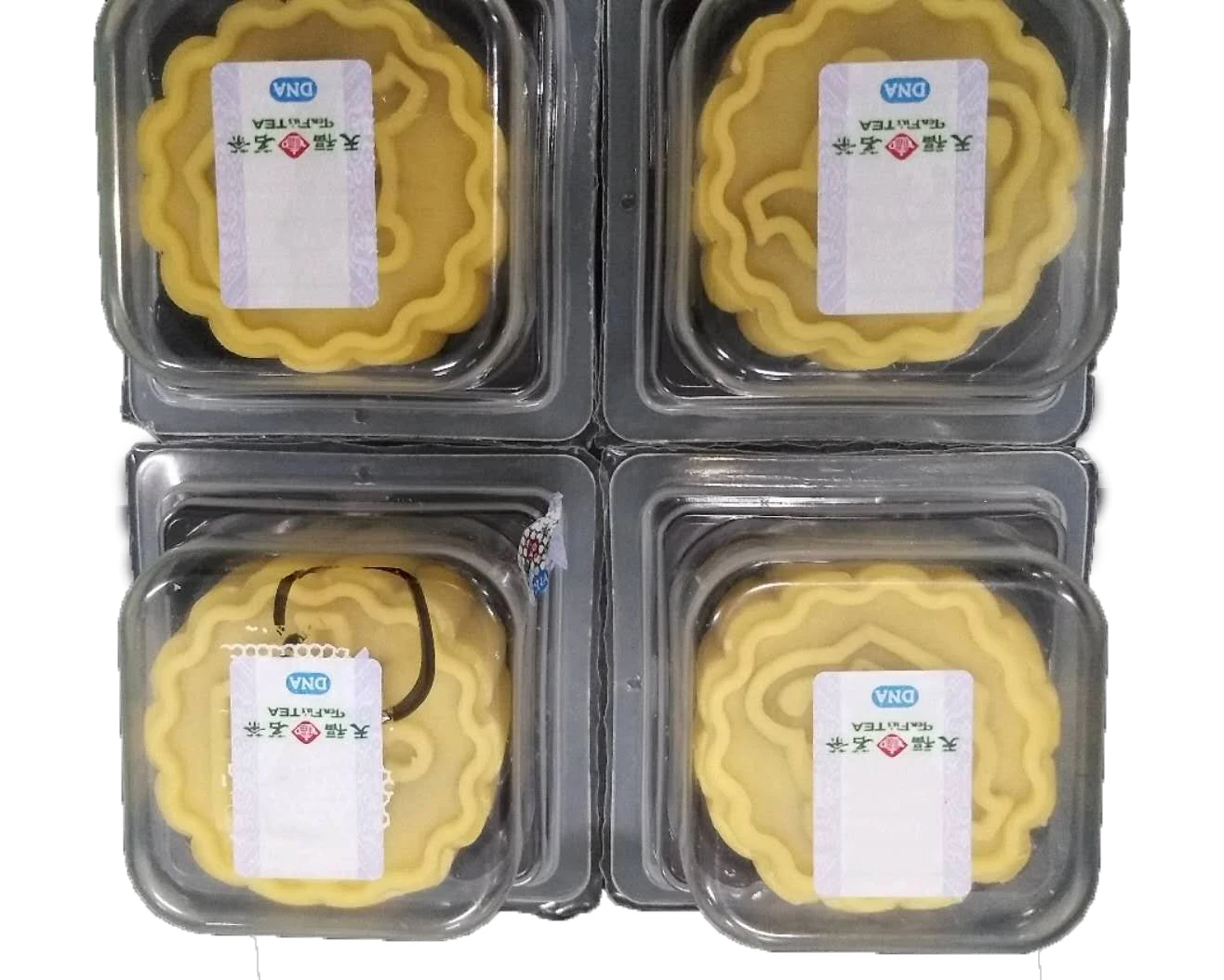

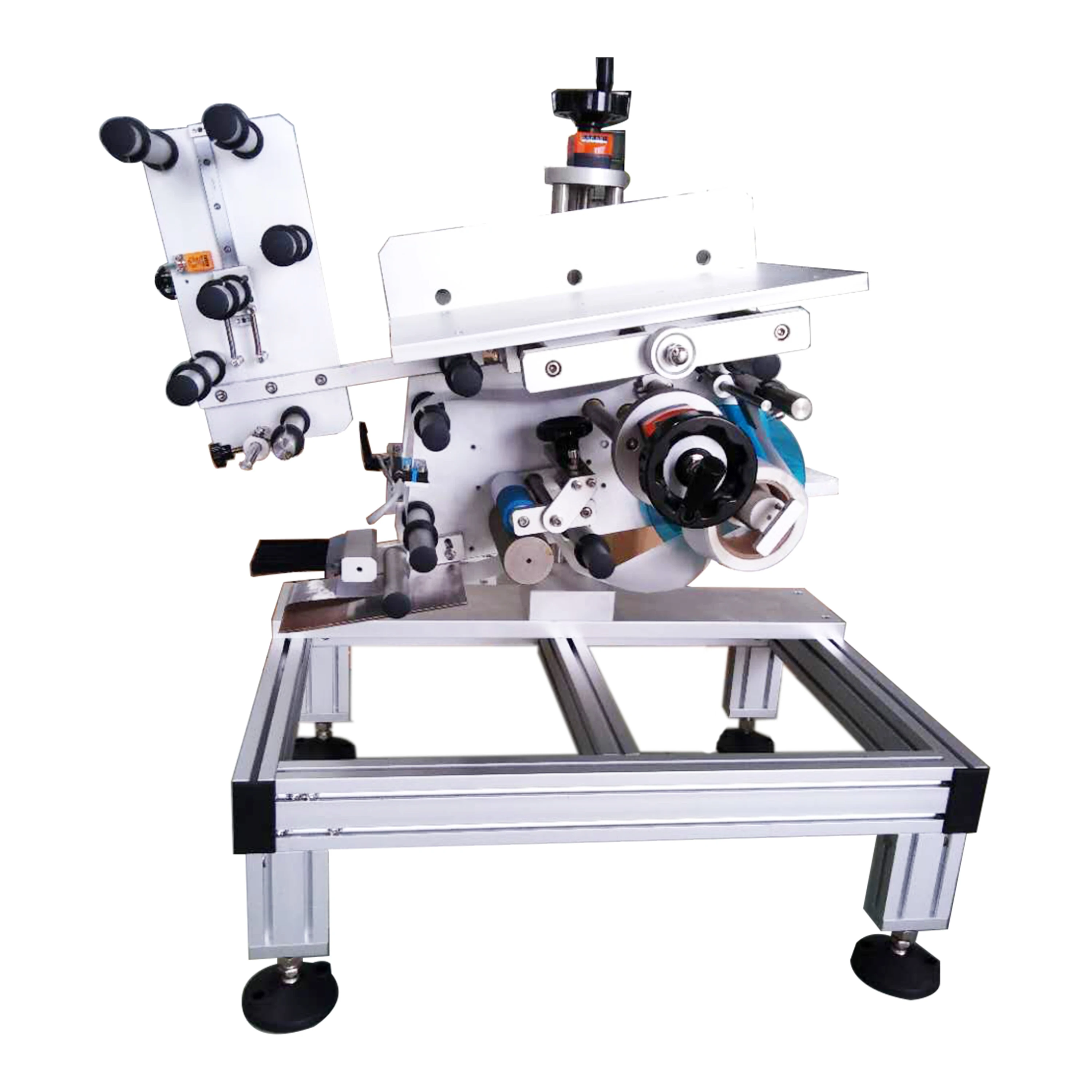

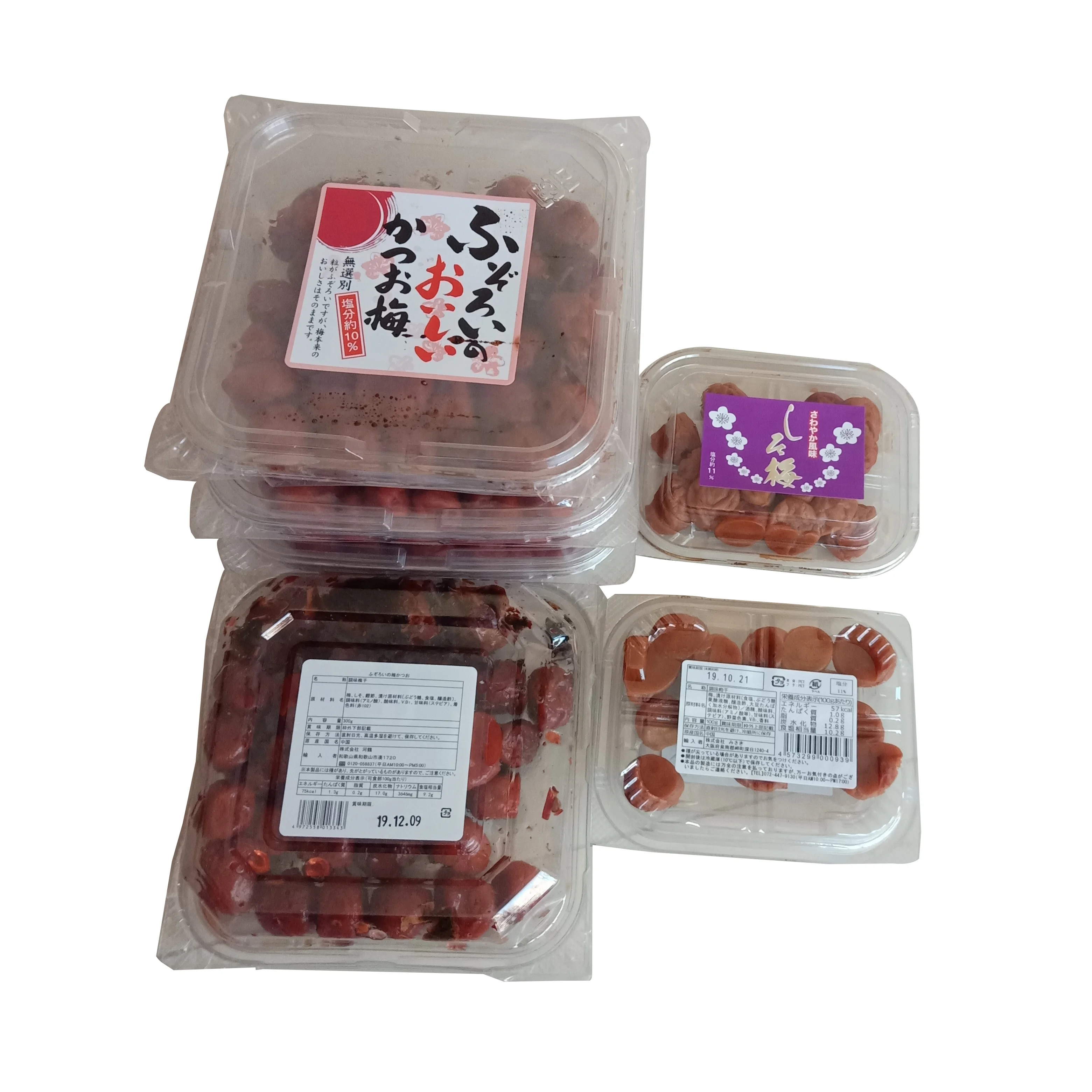

Remark: The flat top labeling machine also can match with NY-826 or NY-817F paging system, then work for all kinds of objects with plane, flat surface such as card, bags, books, unshaped boxes, cartons, paper,pouch and other packaging bag etc. Adopts automatically separate stacks of packaging bags and convey single piece onto the conveyor belt so as to facilitate labeling machine to stick each sticker onto objects and thus reduce the trifles of manual paging to improve labeling efficiency. Labeling samples as below:
Ⅳ. Technology Data:
Model | NY-817 |
Labeling Precision | ±1mm (excluding product and label error); |
Power Supply | AC220V 50/60Hz 750W |
Conveyor Speed | 5~25 meters/minute; |
Labeling Speed | 0~150 pcs/min(Related to product, label size); |
Sticker Out-Come Speed | Stepping Motor: 5~19 meters/minute |
Servo Motor: 5~25 meters/minute | |
Application Bottle Size | Length: 40mm~400mm; |
Width: 40mm~200mm; | |
Height: 50mm~300mm; | |
Applicable label size | Label Length: 20mm~400mm; |
Label Width(body paper width): 20mm~120mm; 180mm (option) | |
Inner dia. of paper roll | Φ76mm |
External dia. of paper roll | Max. Φ300mm |
Size (LXWXH) | 1550mm×650mm×1350mm |
Weight | 150kgs |
Attention: Non-standard Labeling System
The price shown on Alibaba system has no reference value. All final quotation based on your exact products details and requirements.

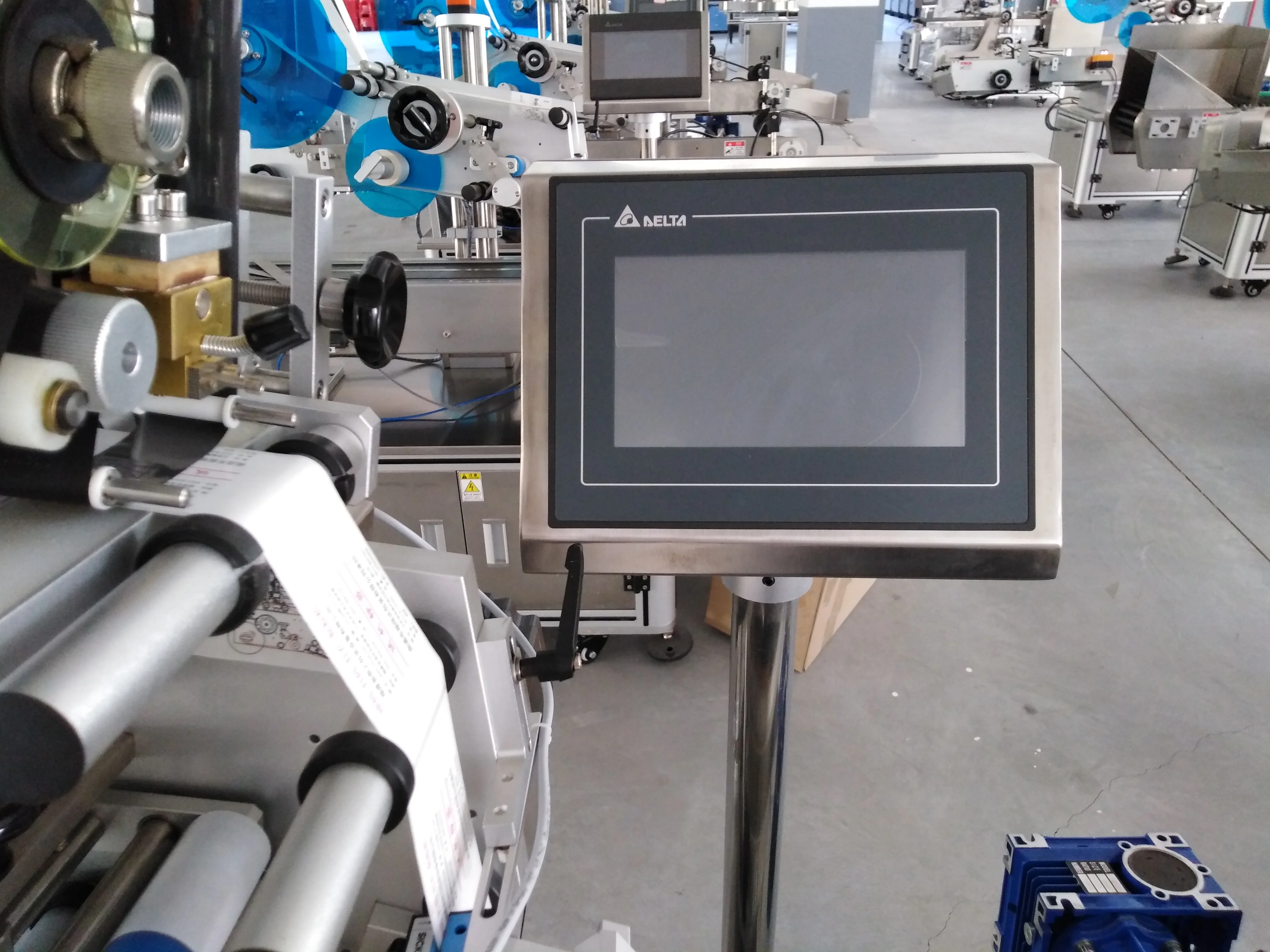

PLC Touch Sreen Operation
Famous Brand Delta
Human-computer interaction interface with operation teaching function, parameter modification intuitionistic clear, various
functions switching simple
functions switching simple

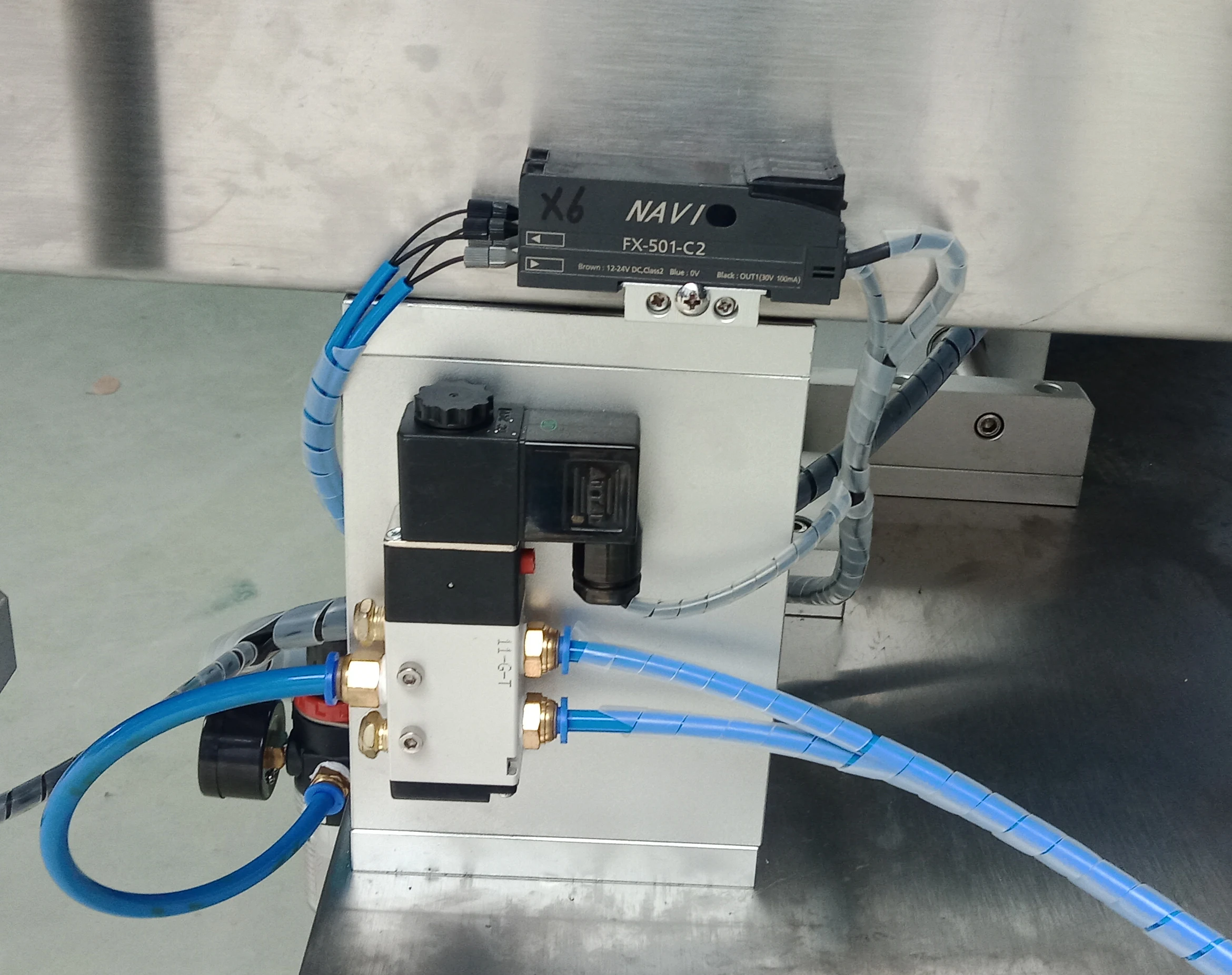

Famous Brand Sensor
Label detection electric eye, product detection electric eye and optical fiber amplified adopts famous brands such as Germany SICK, Japan PANASONIC, Germany LEUZE (For transparent sticker) etc.

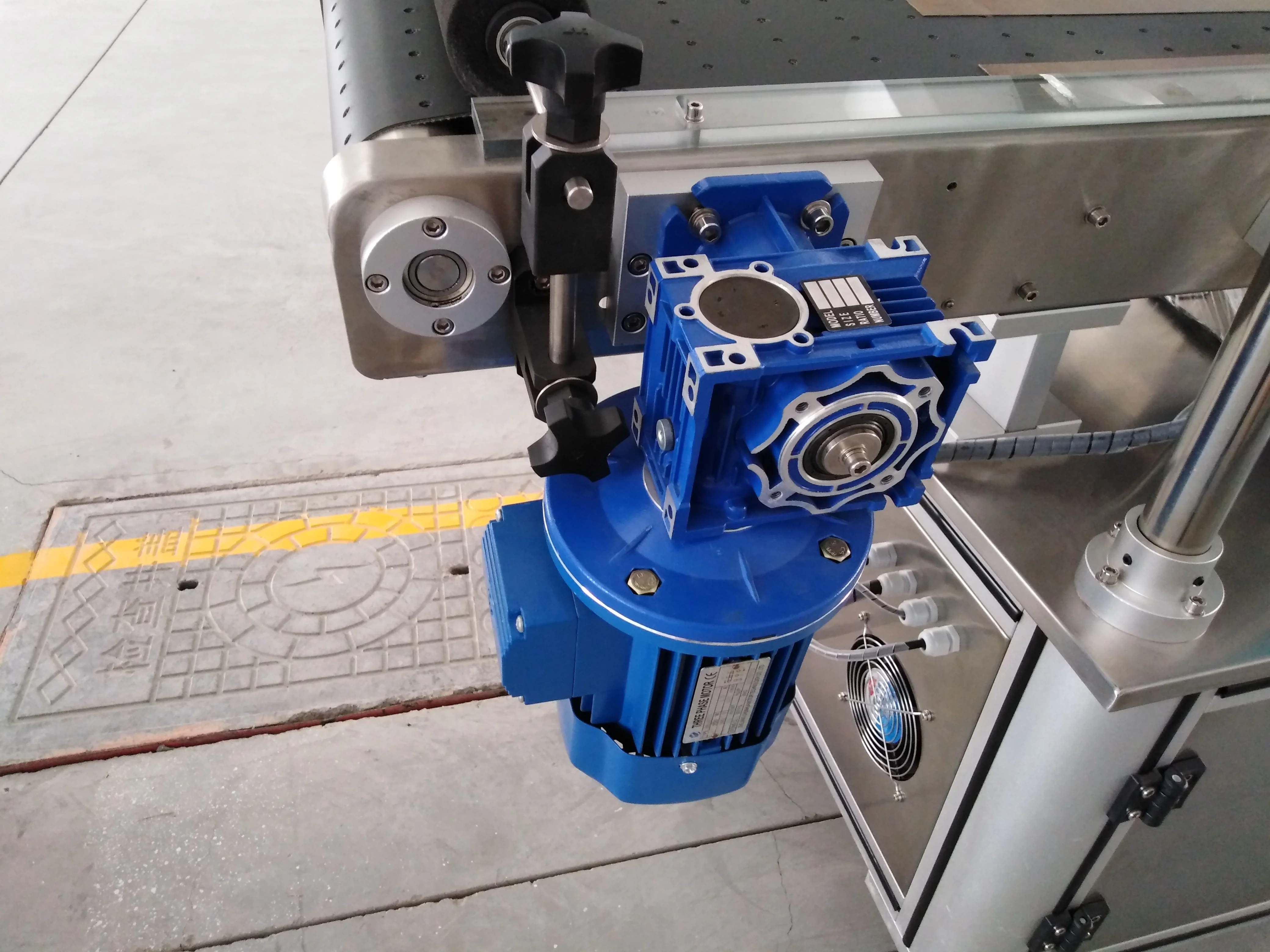

High Quality Motor and Driver
One labeling machine often includes many motors such as conveyor motor, labeling head motor, label covering motor, bottle separating motor, bottle top pressing system motor, bottle positioning rolling motor etc. No matter stepping motor or servo motor, we all adopt China top 10 famous motor brands.

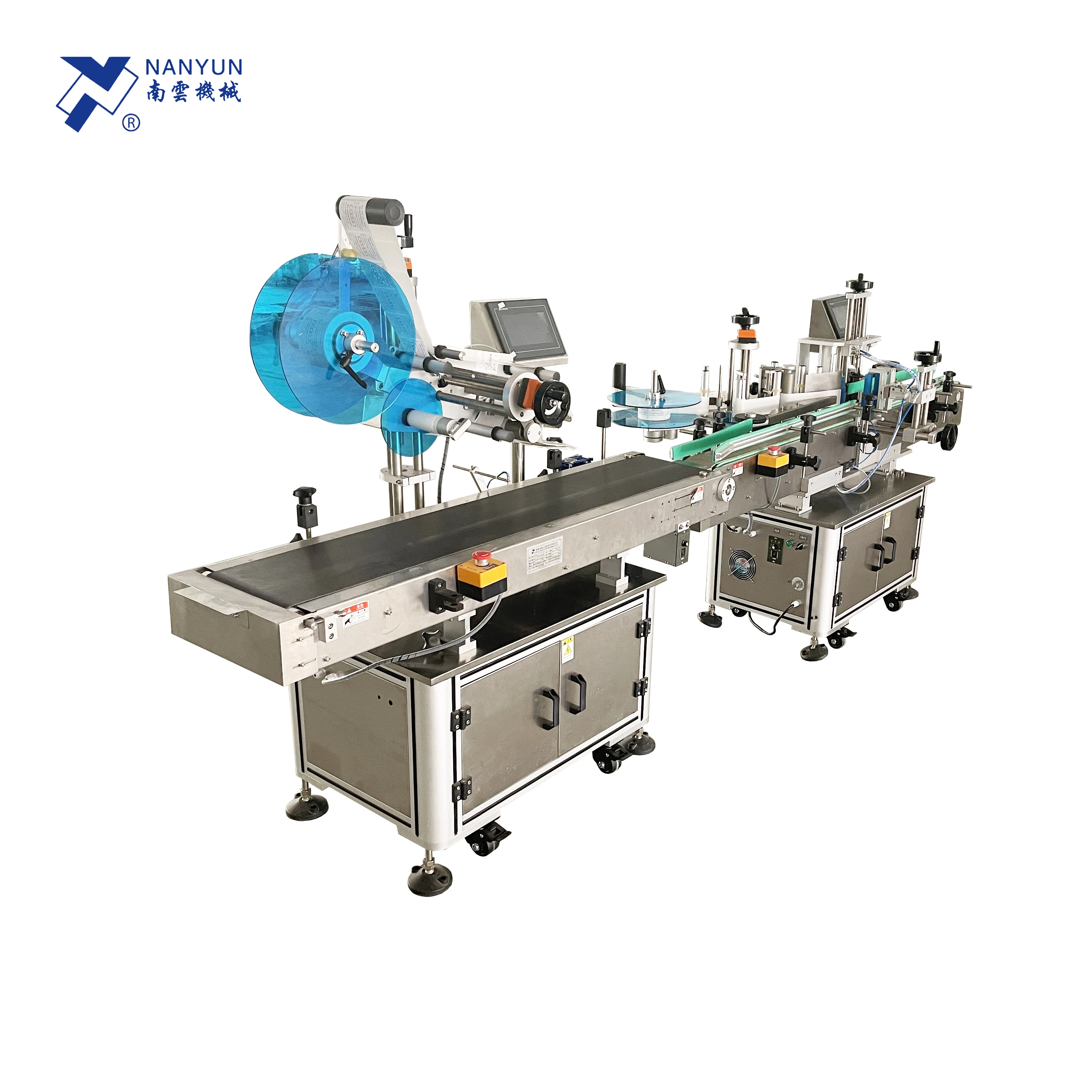

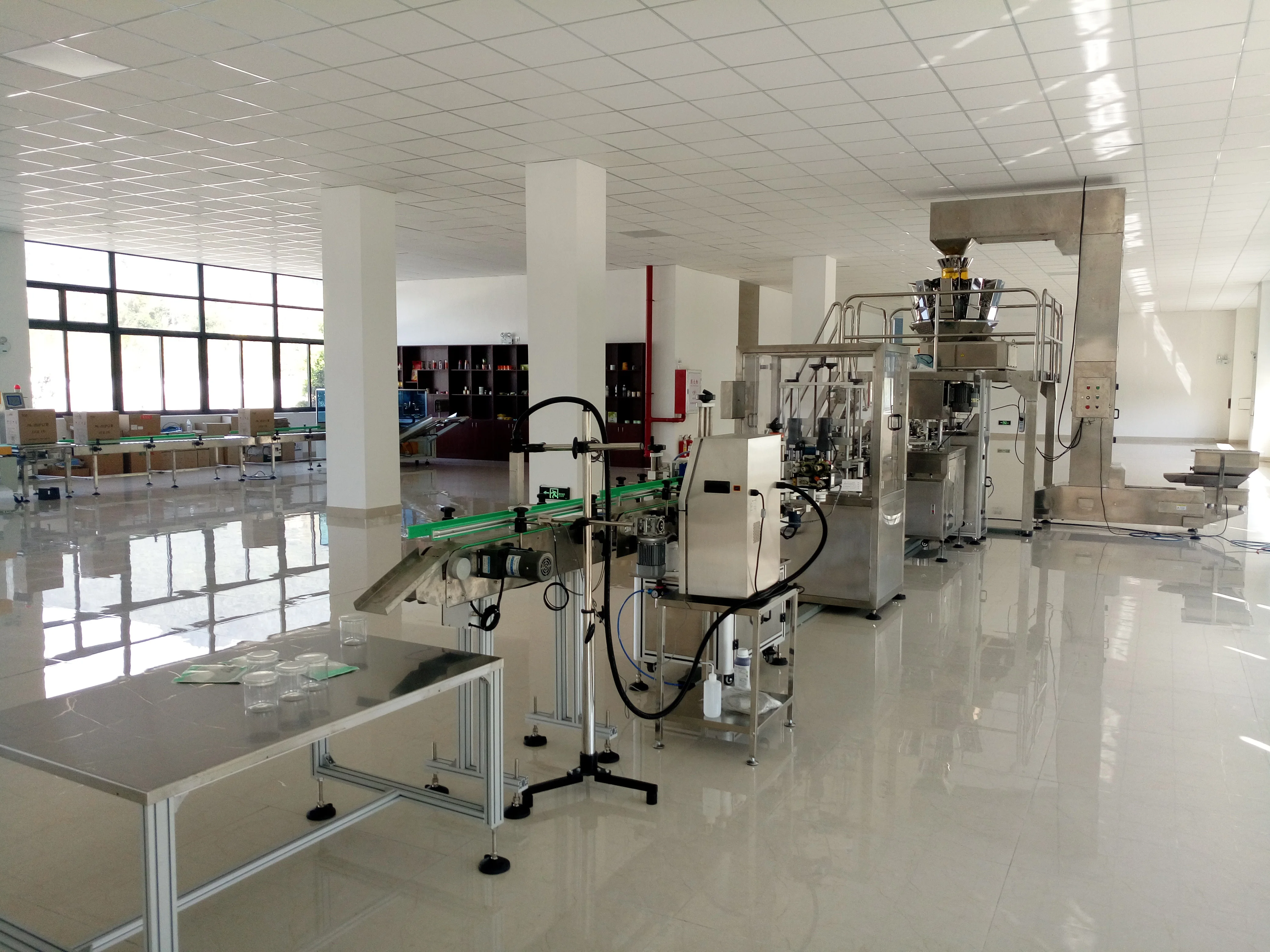

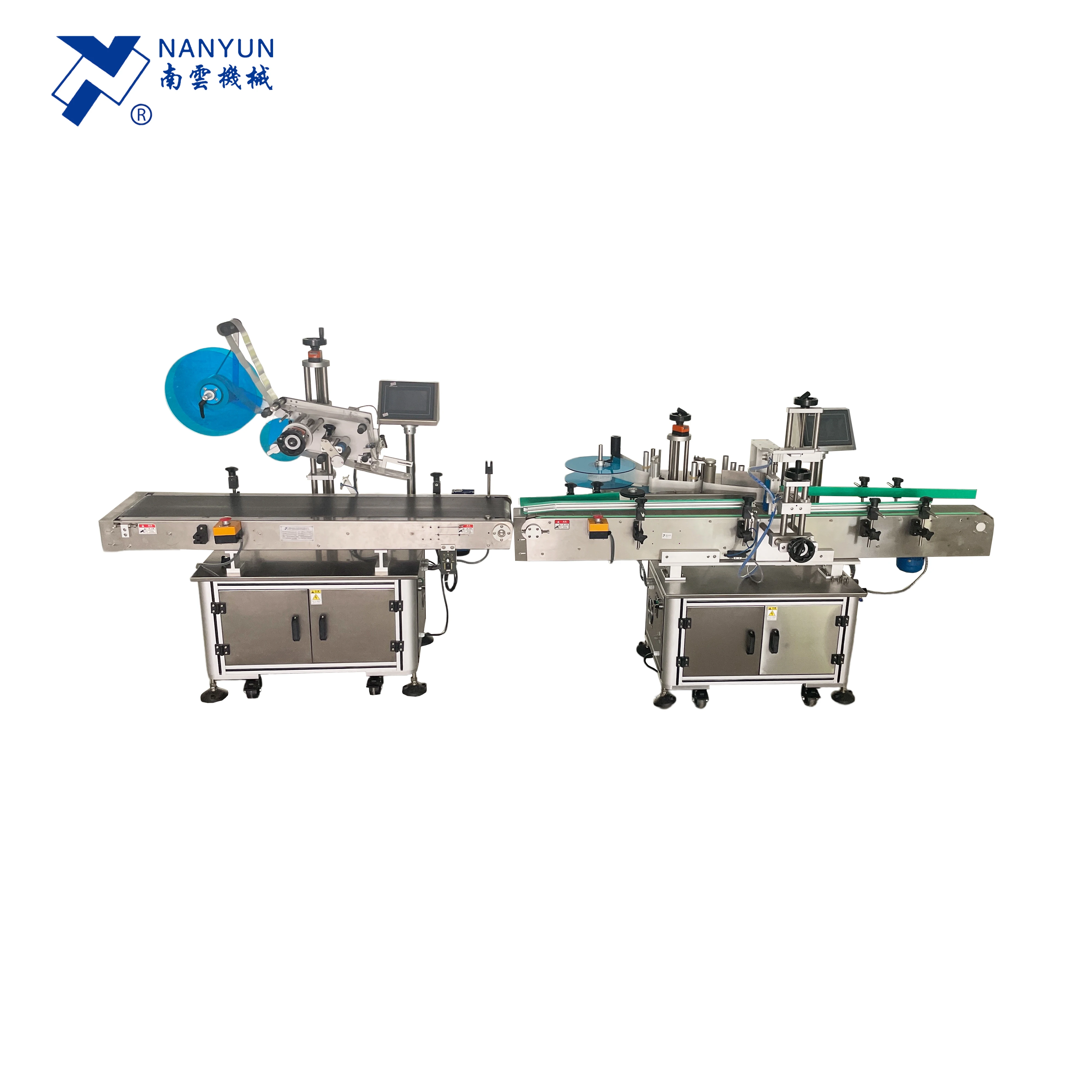

High Efficiency Production Line
High efficiency with good labeling effect, can save consumable and labor cost, so now self-adhesive labeling machine has been more and more popular in market;
Labeling machine often match with other machines auch as weight packing machine, cap sorter and capping machine, can seaming machine, cover impressing machine, weight checker, foil sealing machine, metal detector, inkjet printer, box packing machine and other machines to combine all kinds of production lines according to requirements.

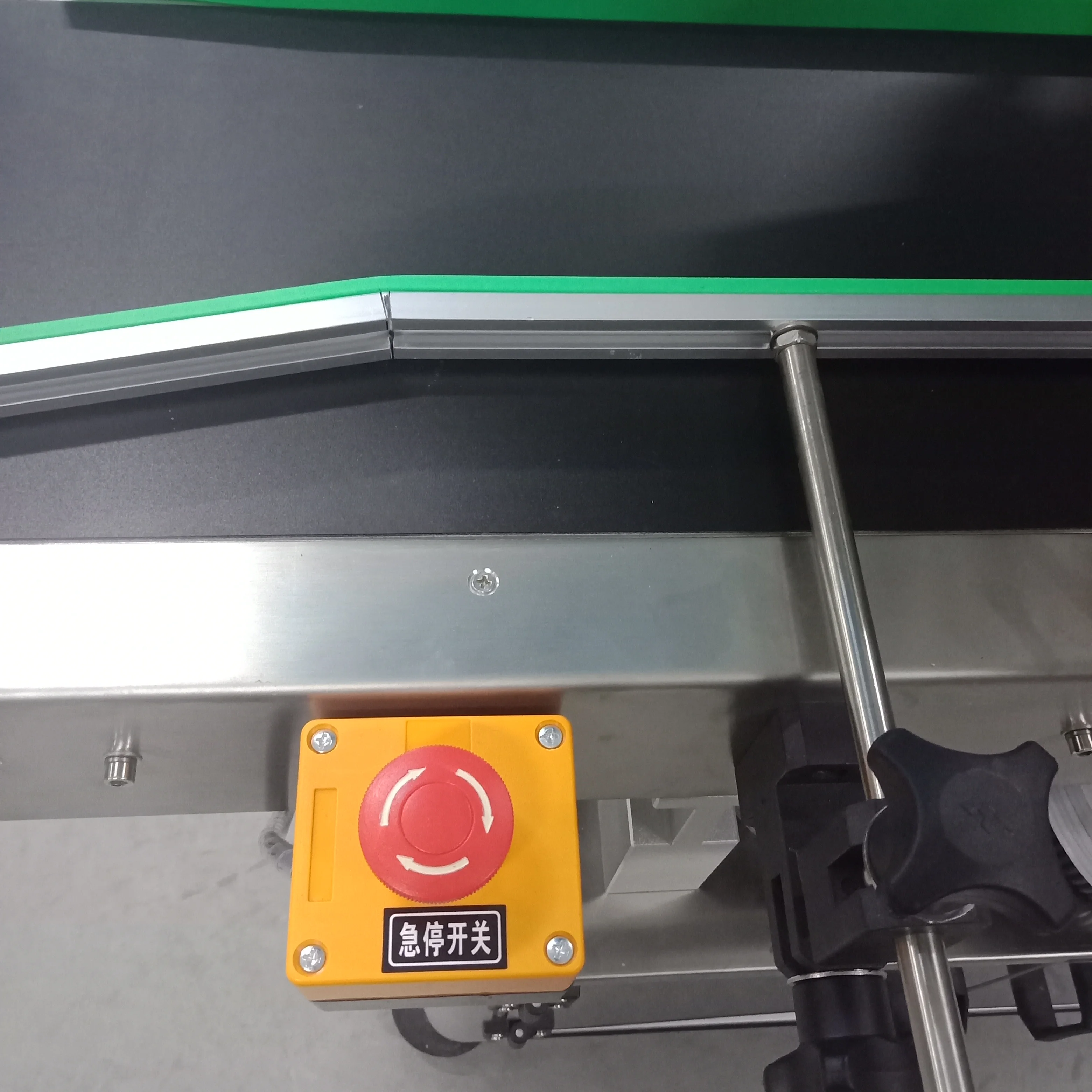

Urgency Switch & Sticker Running Out Alarm Function
If have problems during labeling, can press the urgency switch to turn off the labeling system quickly.
When the sticker roll runs out, the labeling machine will give alarm and stop working.

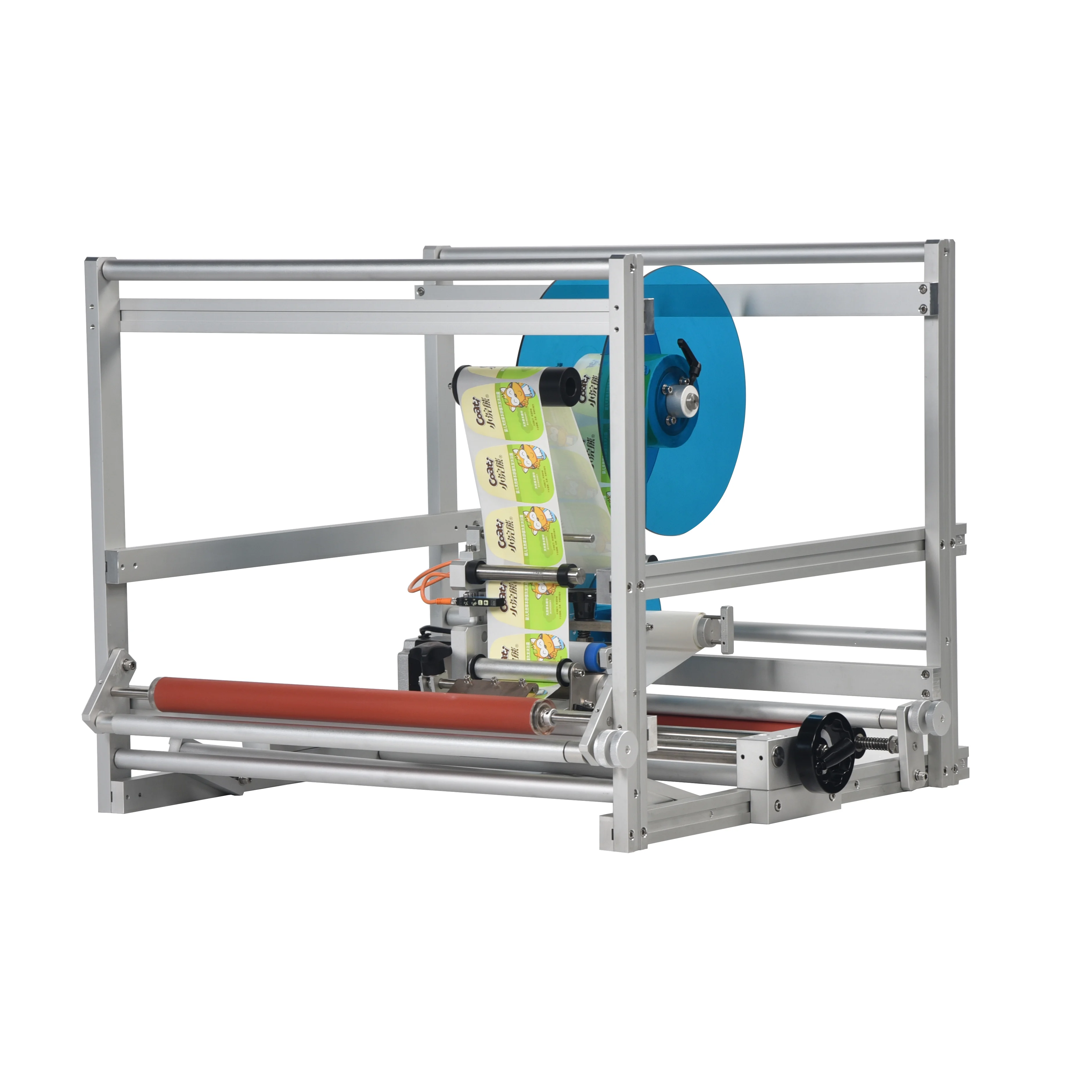

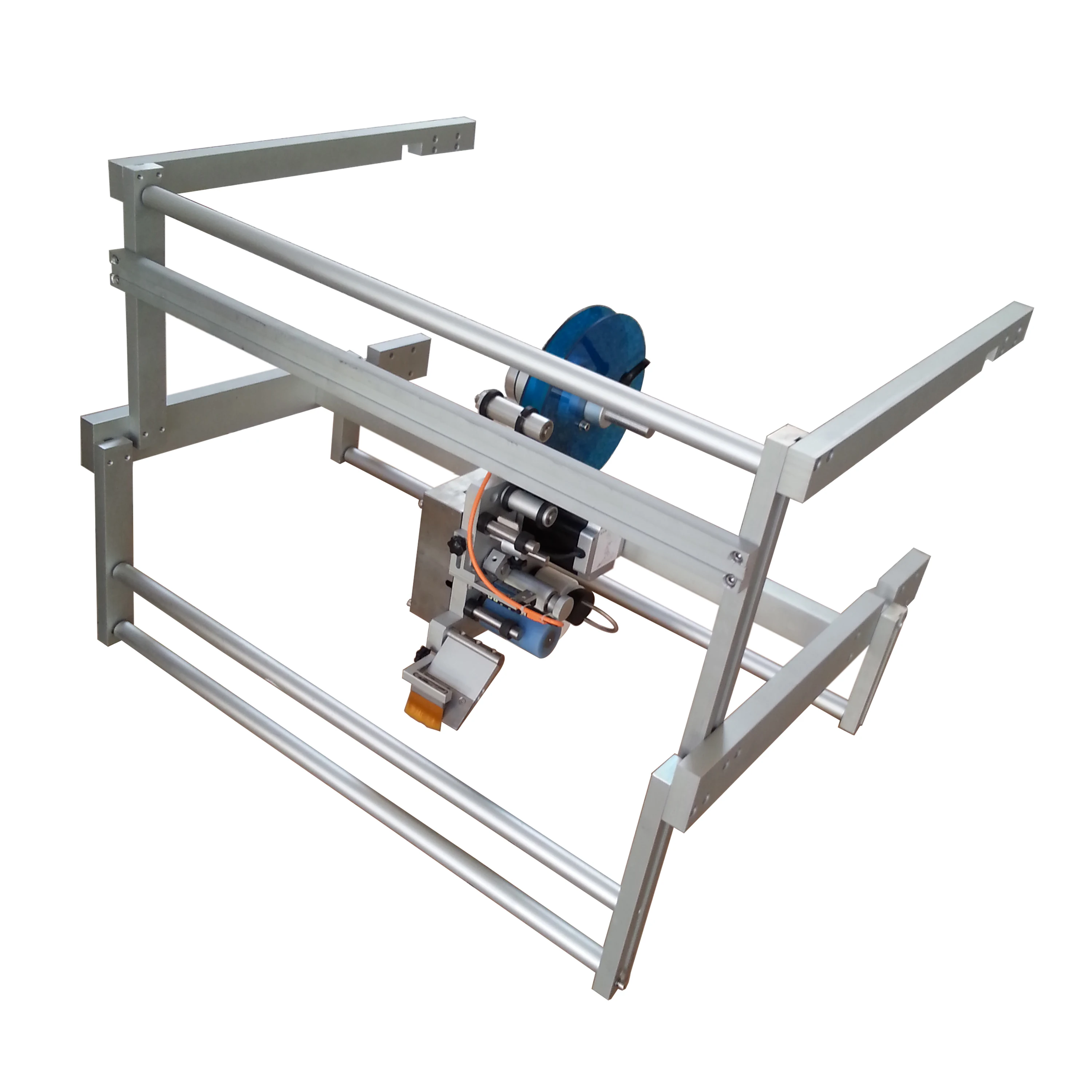

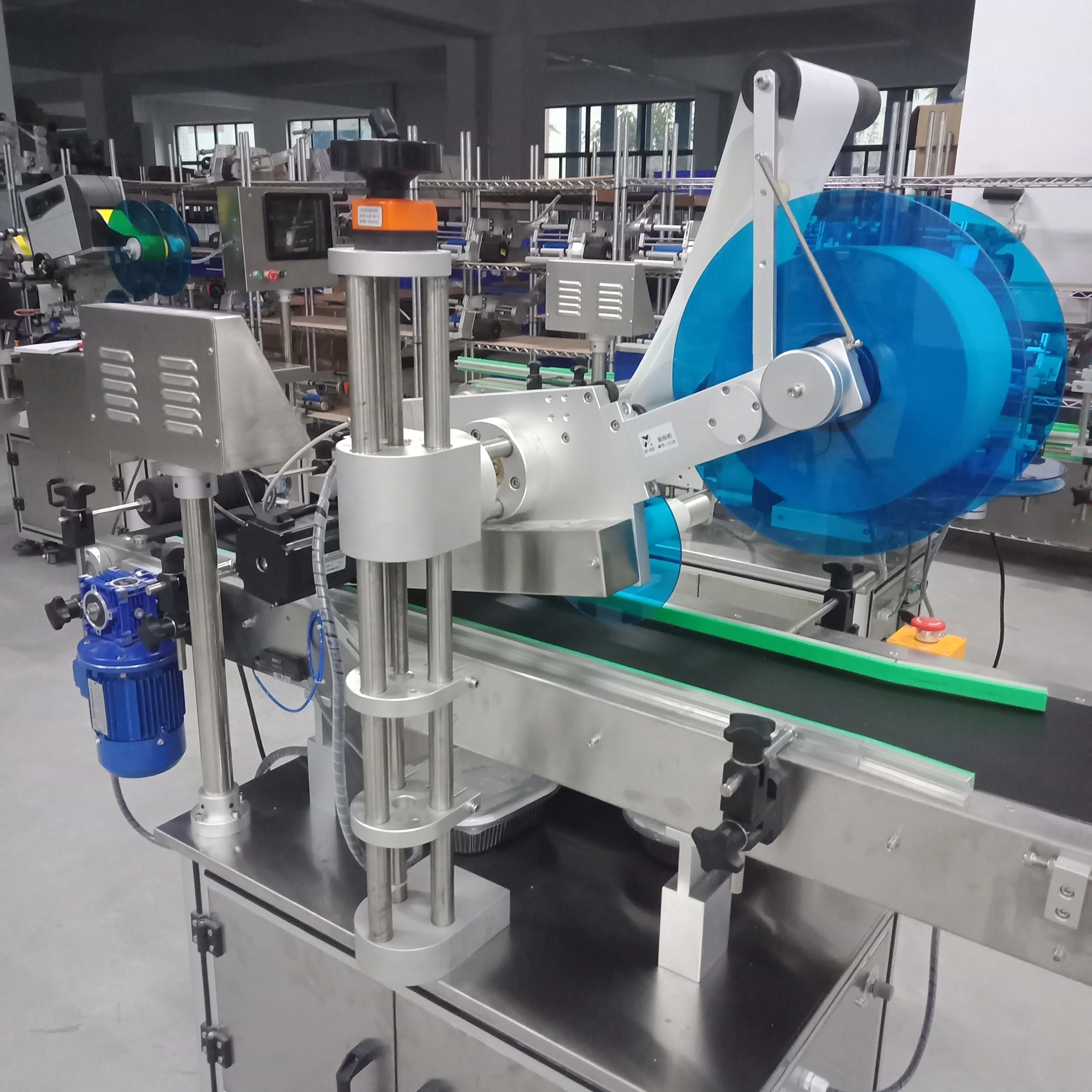

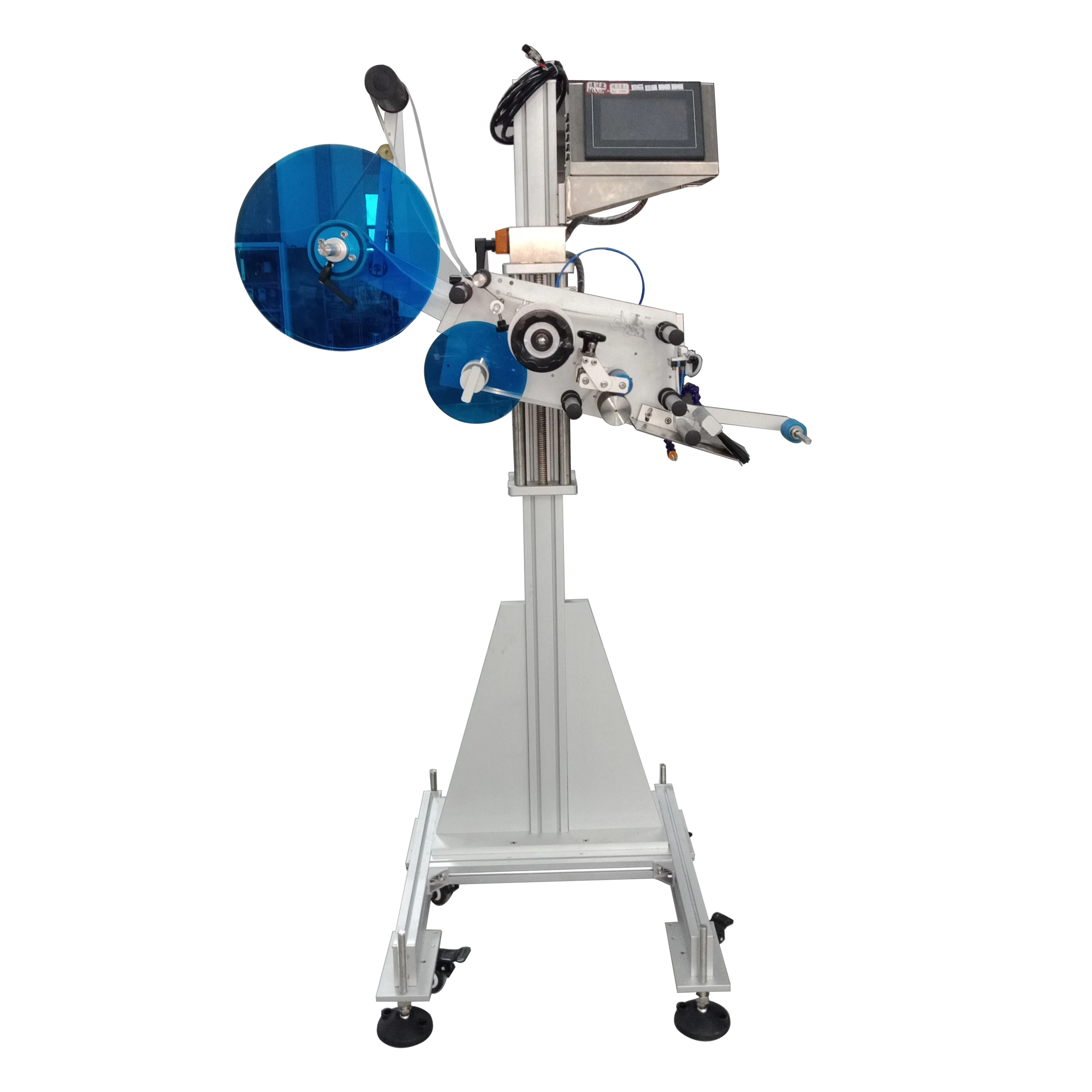

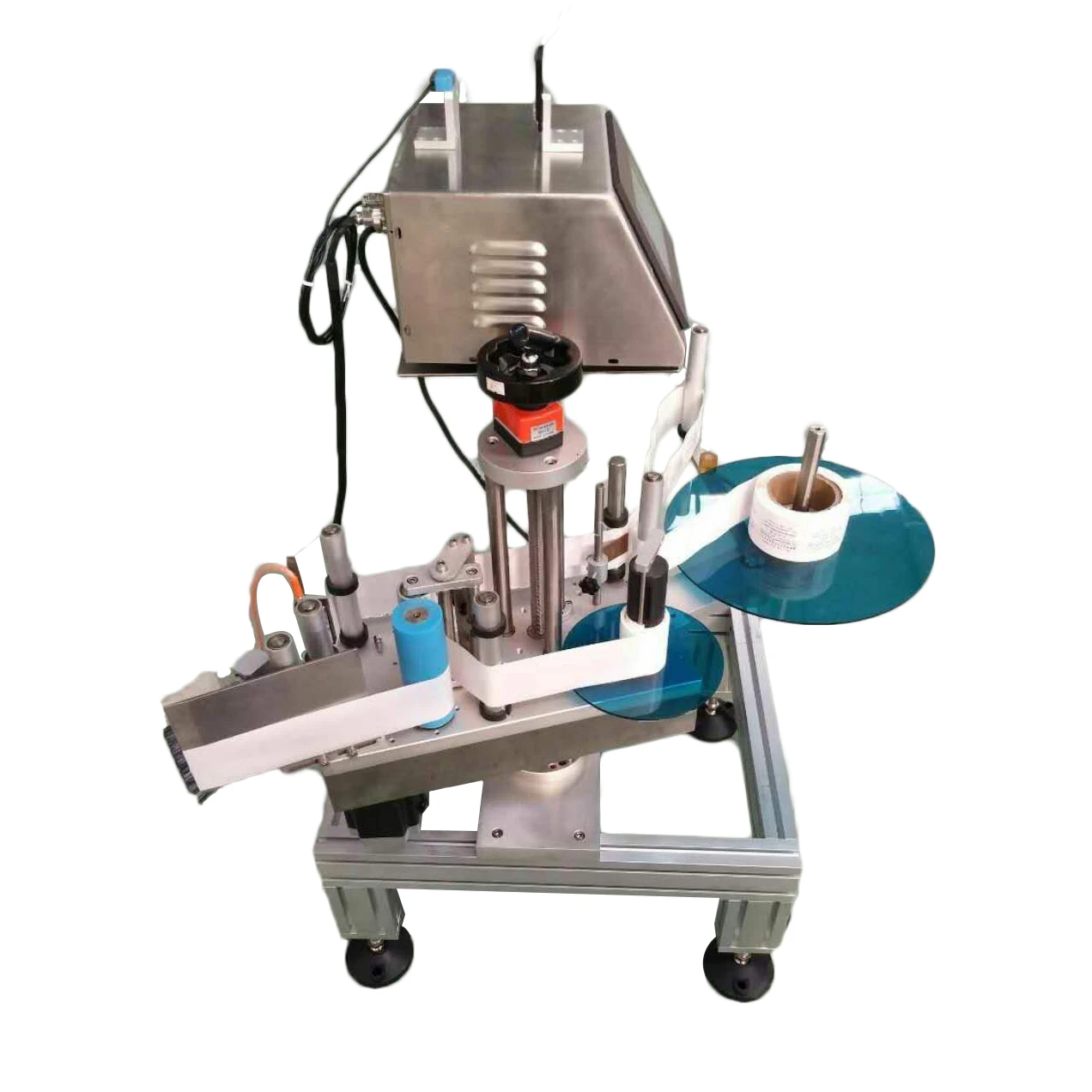

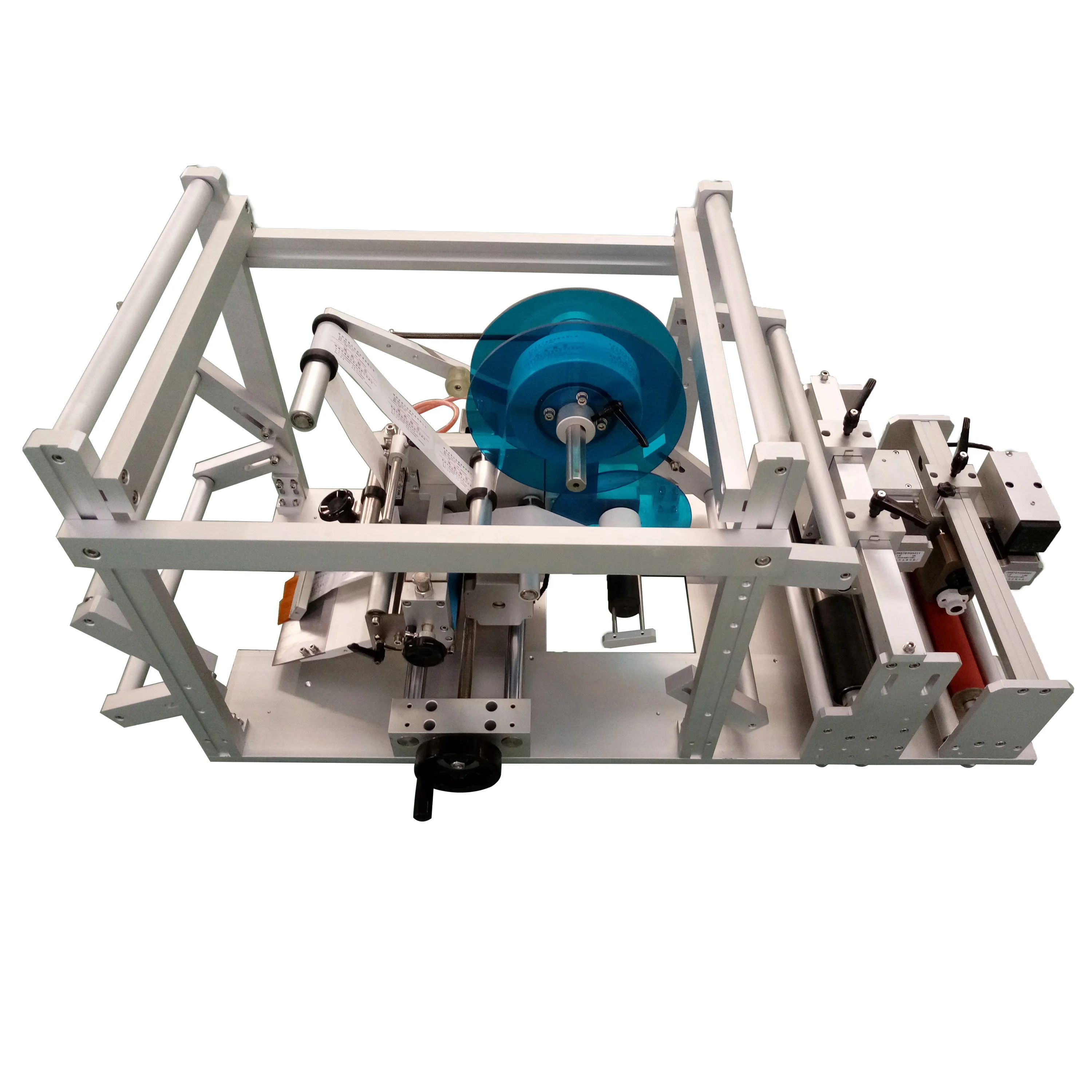

Adjustment Mechanism
The labeling head can be adjusted up and down, front and back.

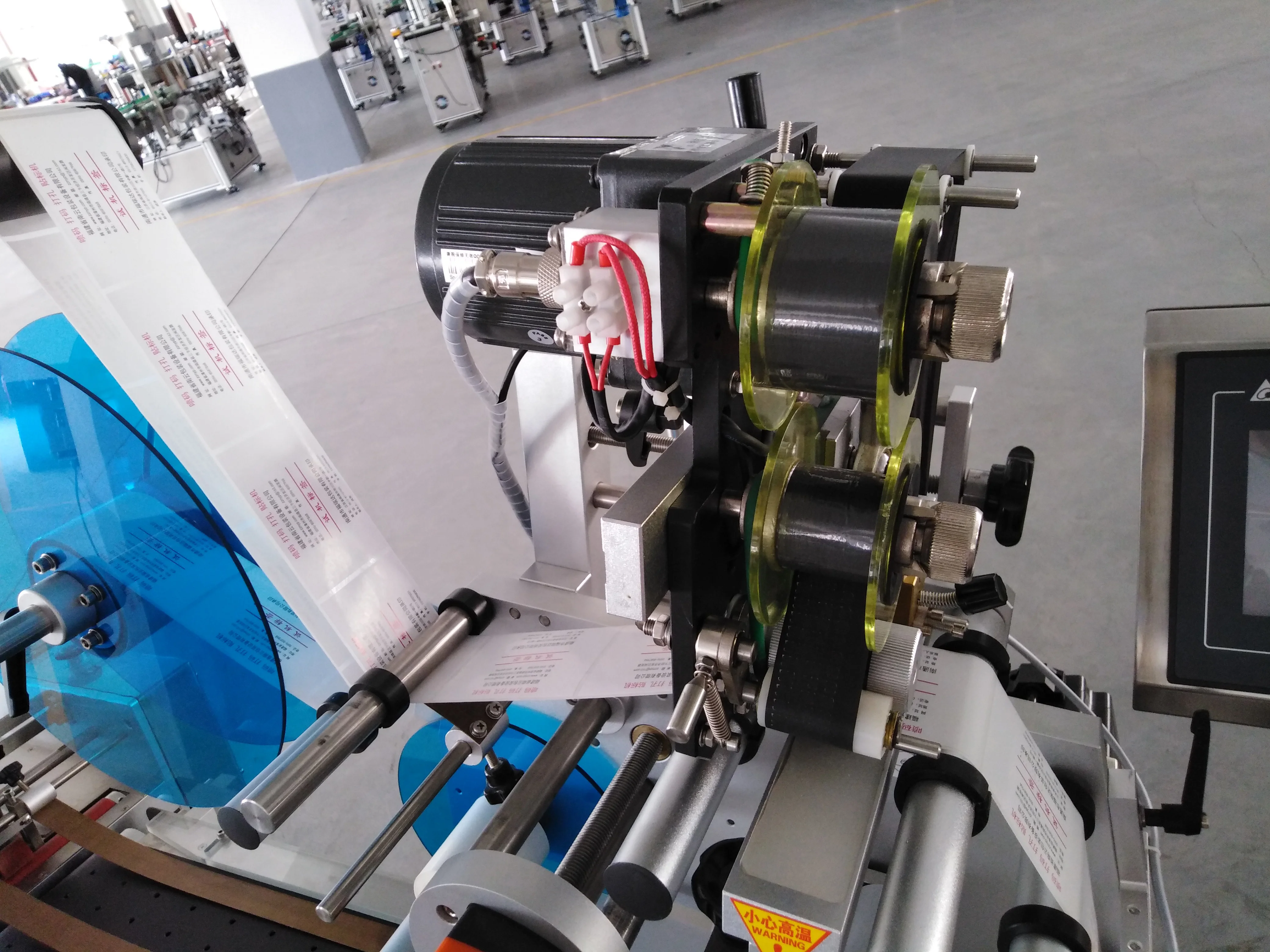

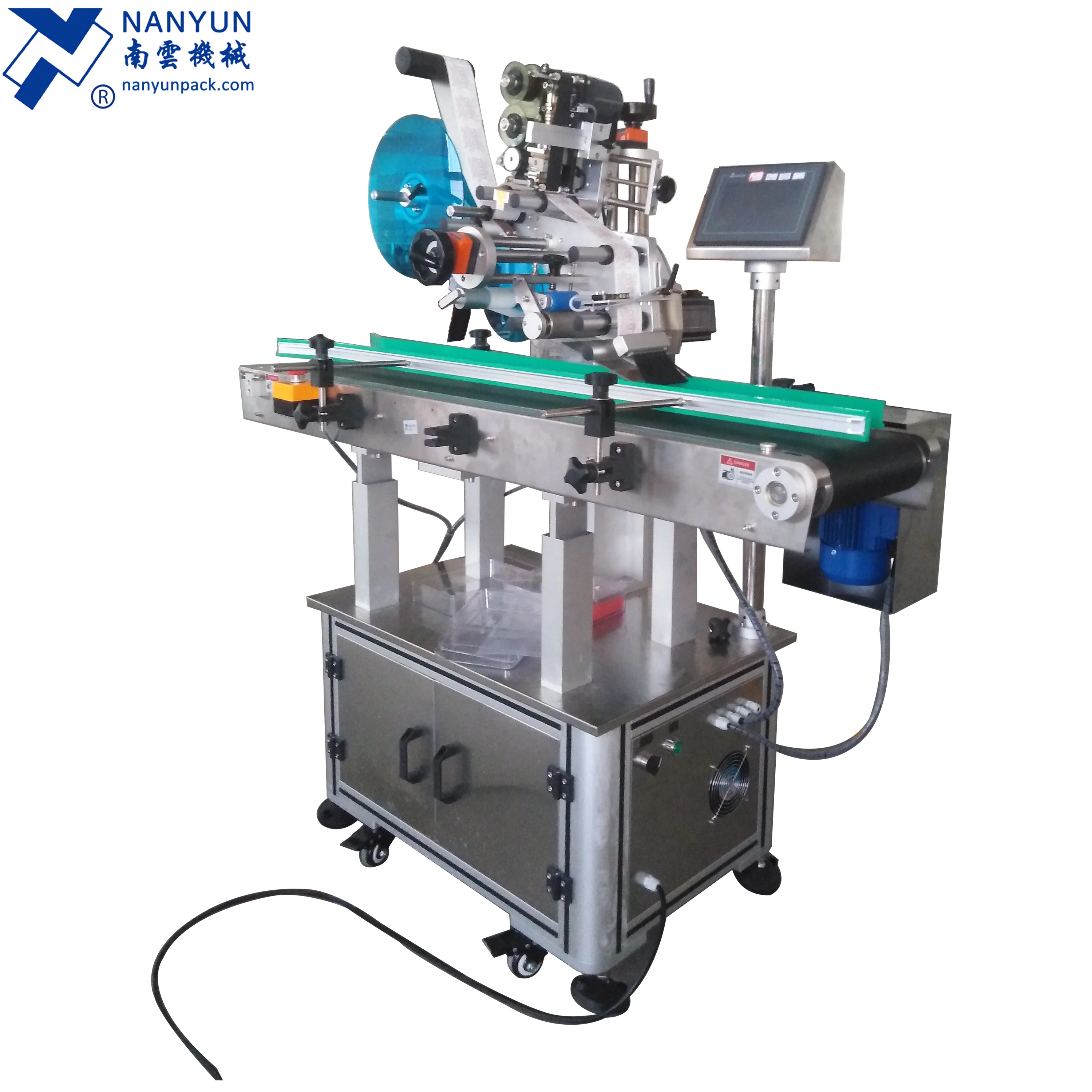

Date Coding Device Can Be Added
Adding date coding device such as date coder, inkjet printer, laser machine, TTO printer? At your options.
What products you can find at NanYun Factory?
We are professional manufacturer of labeling machine, date coding machine, laser marking machine and related products since 2004 in China. Now have over 150 employees, covering an area of 46,609 square meters, annual production capability is 16,500 sets of machines.
NanYun company elected as National High & New Technology Enterprise, honored as province famous brand, gained more than 20 domestic patents and passed the CE, ISO 9001 certification, verified factory assessed by Intertek, NY brand machine sell well across the country and also exported to America, Spain, Australia, Italy, India and 30 other countries and regions.
NY products include date coding machine, thermal transfer printer, laser marking machine, ink jet printer, labeling machine, hole punching machine, bottle unscrambler, cover impressing machine, bottle seaming machine, capping machine, carton sealing machine, metal detector, weight checker, automation line, hot ink roll, hot stamp foil, brass characters, widely used in many fields of foodstuffs, beauty daily, beverages, cosmetics, household paper and so on.
NanYun company elected as National High & New Technology Enterprise, honored as province famous brand, gained more than 20 domestic patents and passed the CE, ISO 9001 certification, verified factory assessed by Intertek, NY brand machine sell well across the country and also exported to America, Spain, Australia, Italy, India and 30 other countries and regions.
NY products include date coding machine, thermal transfer printer, laser marking machine, ink jet printer, labeling machine, hole punching machine, bottle unscrambler, cover impressing machine, bottle seaming machine, capping machine, carton sealing machine, metal detector, weight checker, automation line, hot ink roll, hot stamp foil, brass characters, widely used in many fields of foodstuffs, beauty daily, beverages, cosmetics, household paper and so on.
