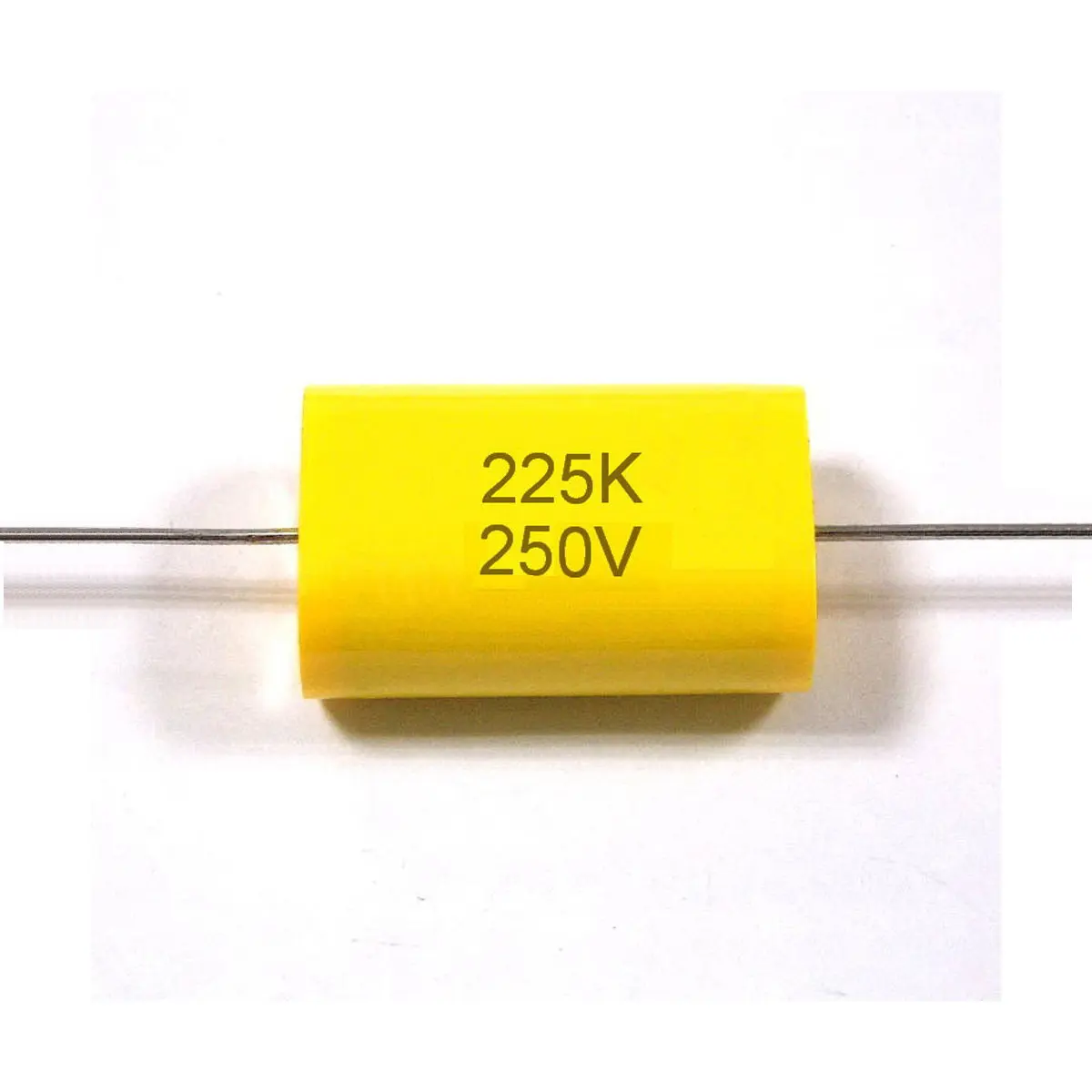

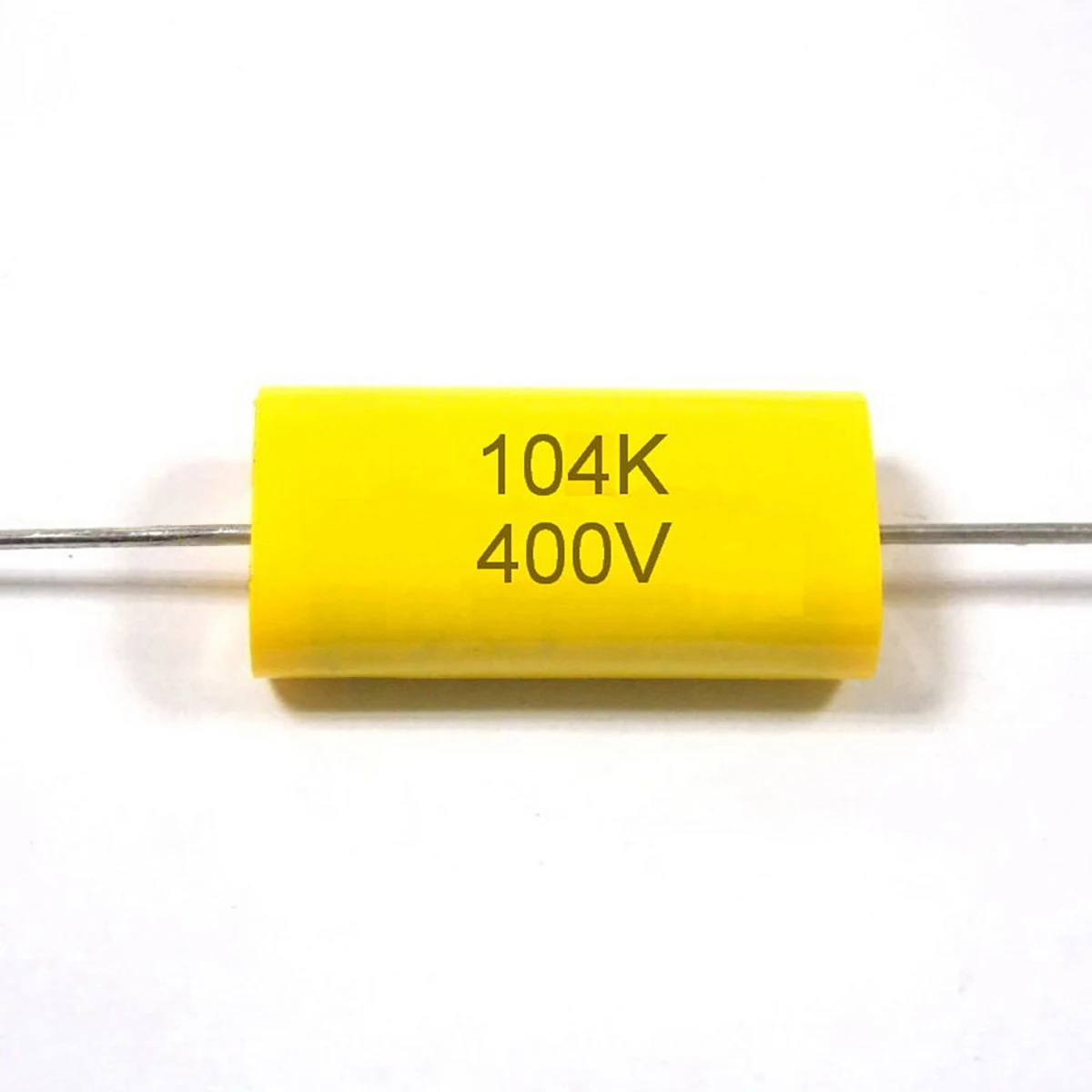

Axial Metallized polyester film capacitor 630V for Audio application

Product Overview

Description

High Quality PPN POLYPROPYLENE FILM CAPACITOR 630V for Audio application



1. No defect, no failure, but high reliability.

2. No short circuits, can self - Healing

3. These types capacitor are completely protected against moisture by the coating of epoxy resin or plastic Case and     Mylar Tape. but also in industrial electronics.



SPECIFICATIOM:

1. Operating Temp. Range : -40℃ ~ +105℃

2. Capacitor Range : 0.001 ~ 10MFD

3. Working Voltage: 50V ~ 630WVDC

4. Testing Voltage : WVDC×175% For 1min

5. CAP Tolerance(%) : ±5, ±10, ±20

6. D.F.(10KHZ): 1.2% MAX at 10KHZ 25℃

7. I.R.(+20℃) : >9,000MΩ (C<=0.33uF)

                         >3,000MΩ / μF (C>0.33uF) AT 25℃

8. Life Test : After 3000 hours at 105℃

9. Solderability : 260±5℃ For 3±0.5 3Sec
