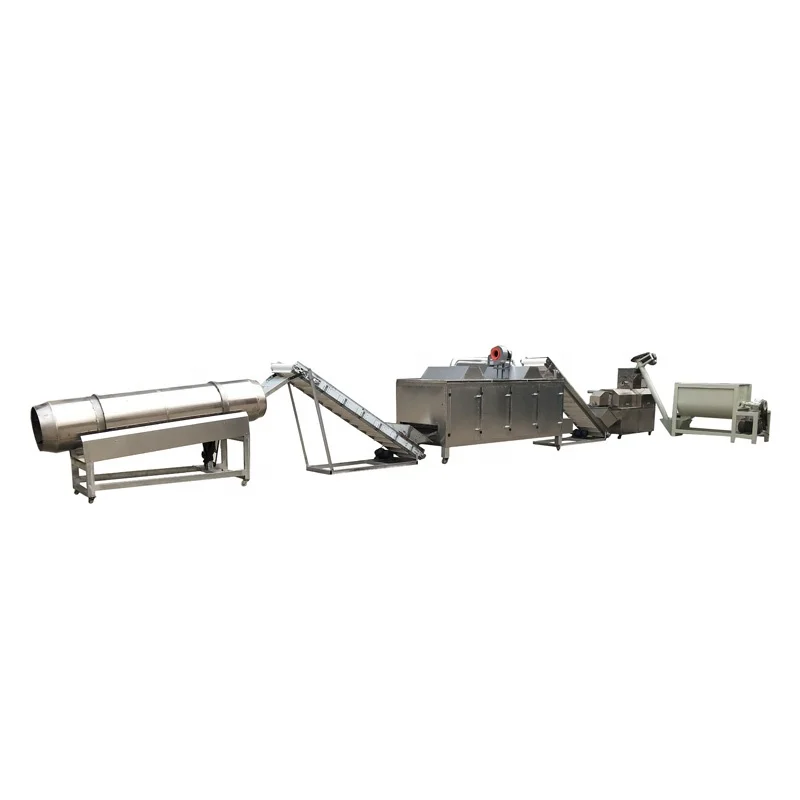

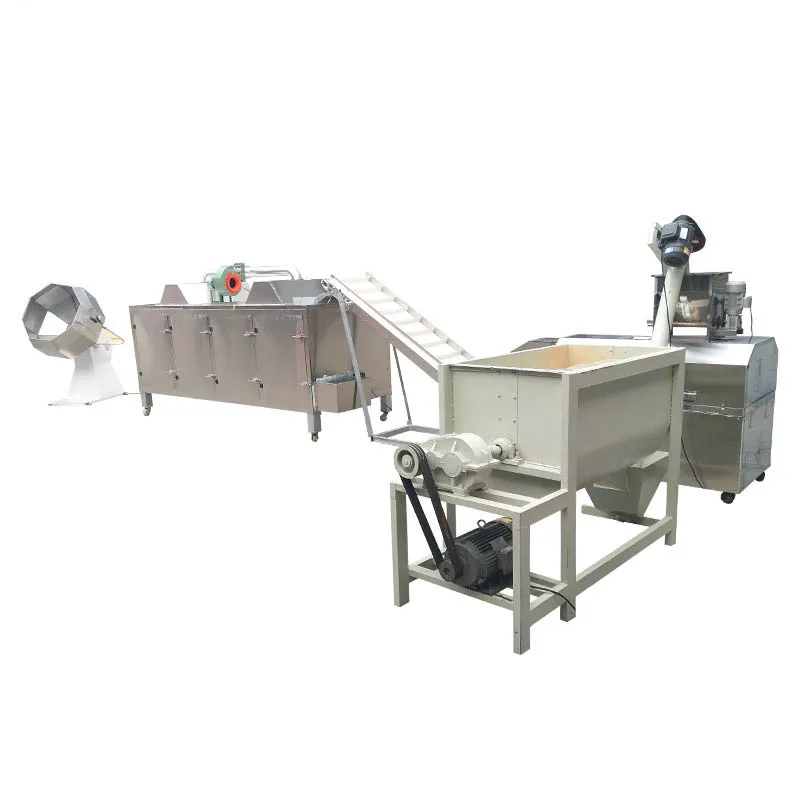

Puffed food machine puff corn snack processing line

Product Overview

Description

Puffed food machine puff corn snack processing line

Snack food production line adopt corn, rice, wheat, oat, barley etc as ingredients to make puffed snack. Through frication of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.All the snack food produced by the equipment are crispy, easy to be digested and popular with moder people home and abroad.

Raw materials:
Corn, rice, millets, wheat, oat, barley etc as ingredients.Please note that all the materials should be in powder(flour) or grits form. Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder.

Advantages:

1).All the machines are made by stainless steel at food grade.
2).The pet fish dog cat food processing machine line plant is fully continuous and automatic.

3).Our engineer provide basic pet food formula.

4).This line adopts frequency speed controlling with high automation and stable per-formation.

5).The extruder screws are made of the alloy steel and special craft, durable usage, high pressure, the screw life is longer.

6).This plant is multi-function,different fish,dog,cat food shapes can be made by adjusting the dies from extruder.

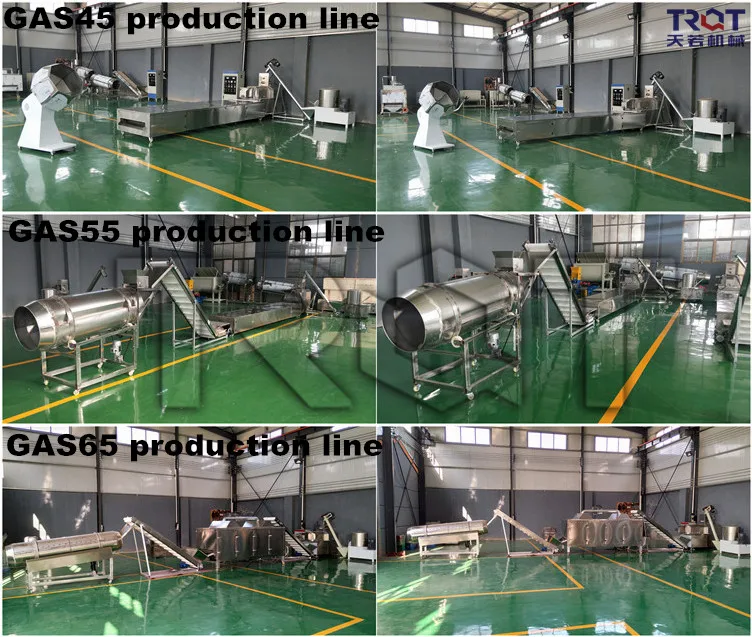

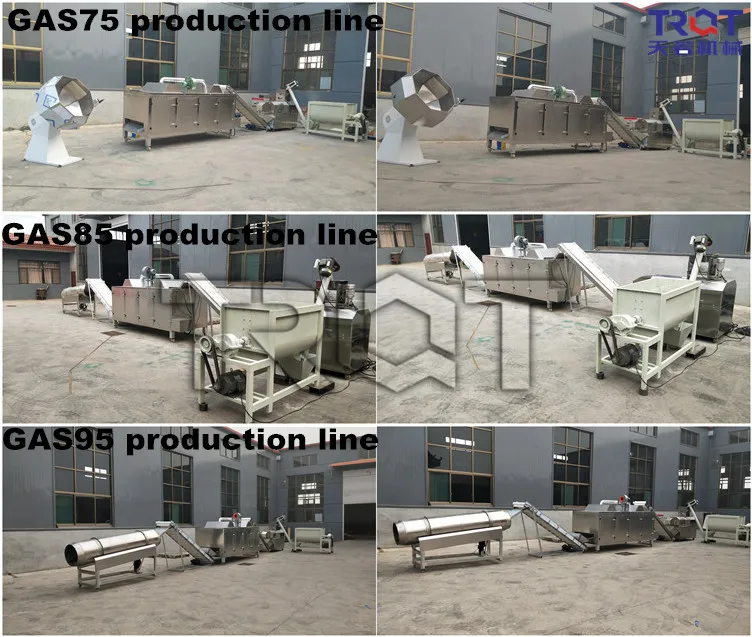

Model	Capacity(kg/h)	Main power(kw)	Feed power(kw)	Screw dia(mm)	Cutting power(kw)
GAS45	30	4.0	0.4	Φ40	0.4
GAS45-A	50	5.5	0.4	Φ40	0.4
GAS55-A	80	7.5	0.4	Φ50	0.4
GAS65-A	120-150	15	0.55	Φ60	0.55
GAS75-A	200-250	18.5	0.55	Φ70	0.55
GAS85-A	250-300	22	0.75	Φ80	0.75
GAS95-A	400-450	37	1.5	Φ90	1.5
GAS100-A	500-550	55	1.5	Φ100	2.2

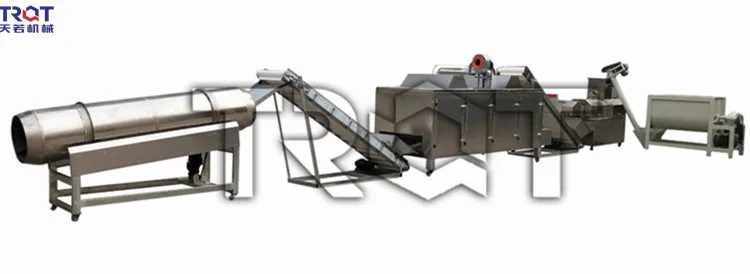

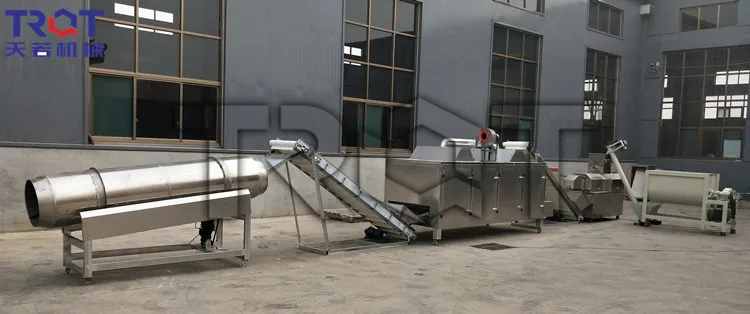

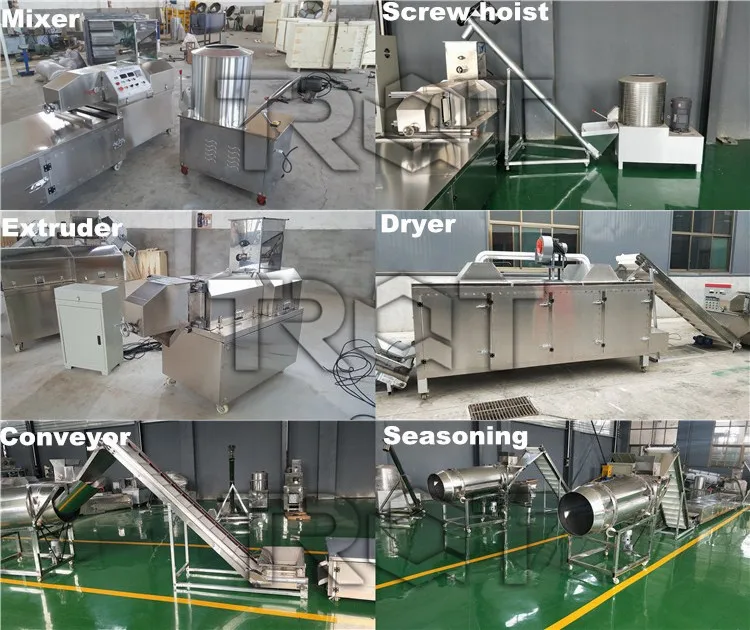

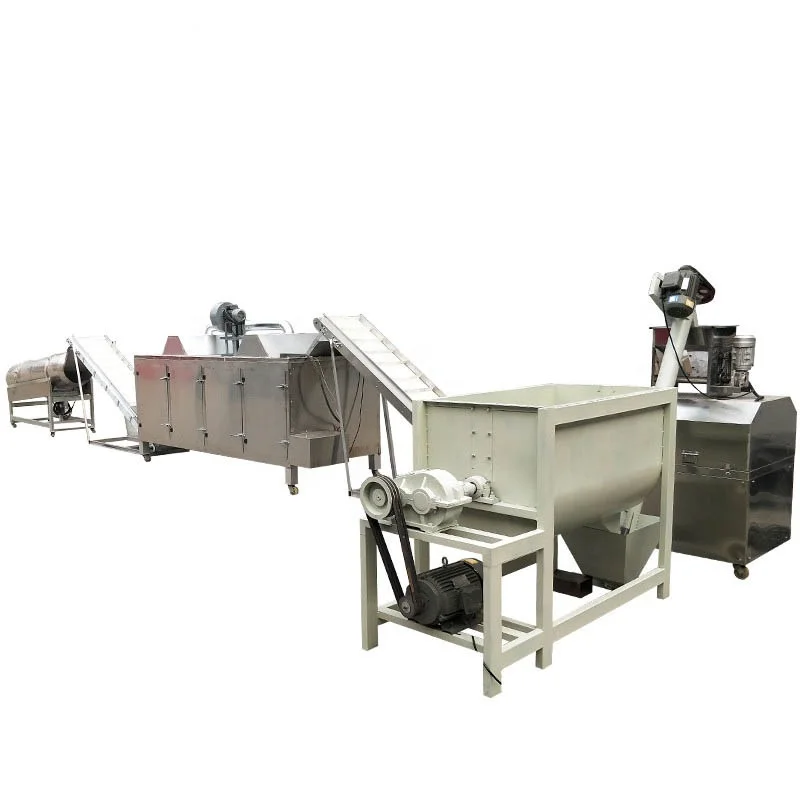

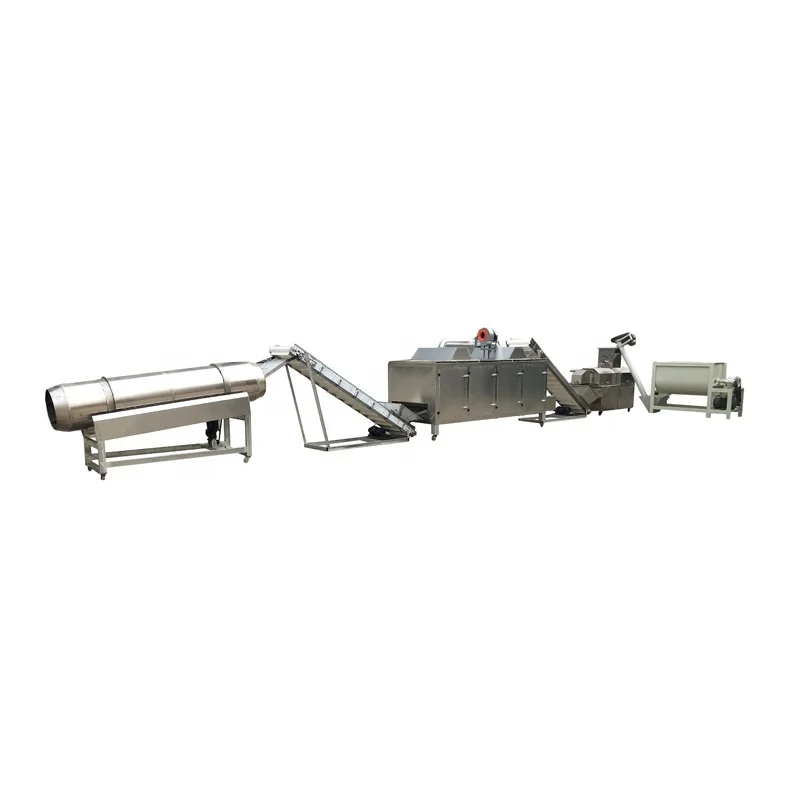

Mixer → Screw conveyor→Extruder →Air conveyor→Dryer→Flavoring line→Cooling machine

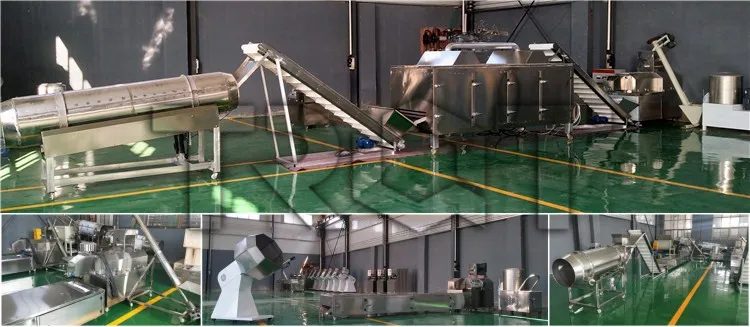

Snack food production line for customers
