X6330 Universal Metal Taiwan Turret Milling Machine
- Category: >>>
- Supplier: Tengzhou Sosen Co. Ltd.
Share on (62024457913):
Product Overview
Description

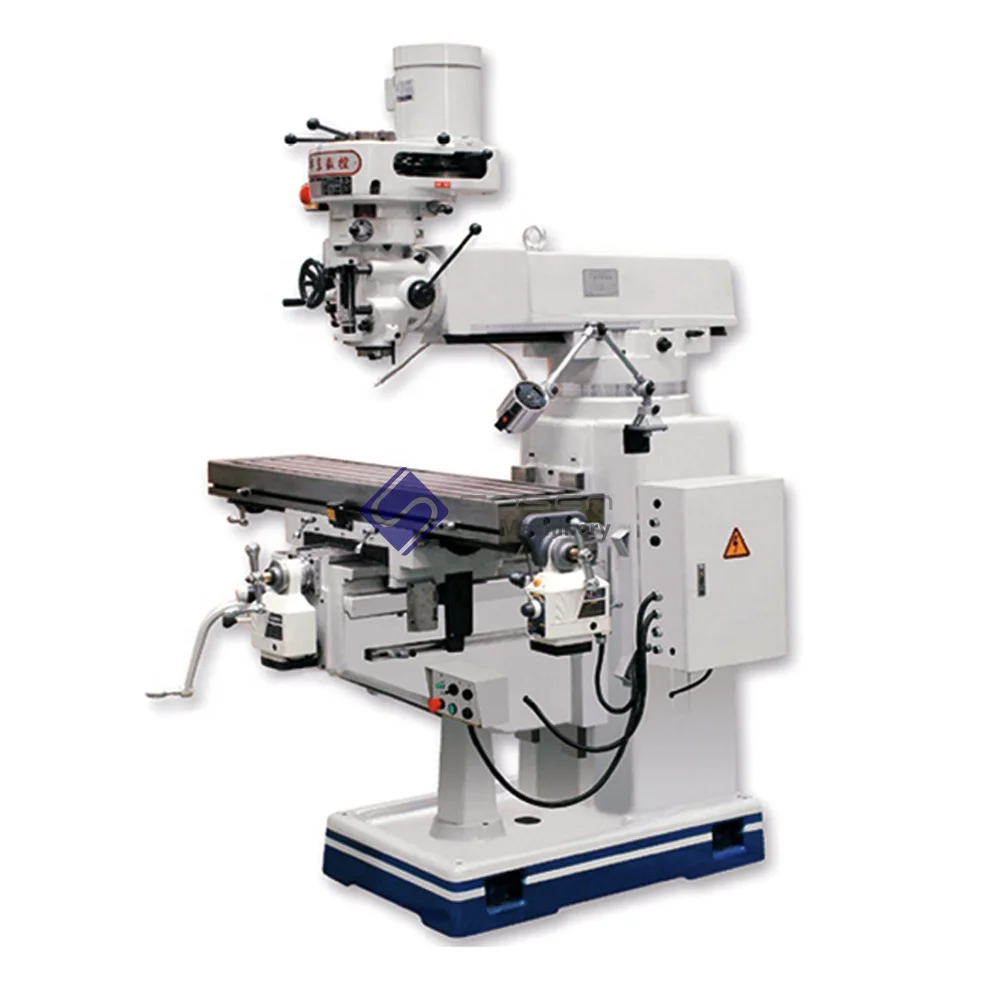

X6330 Universal Metal Taiwan Turret Milling Machine
Product Description
Main features:
1.High rigidityand quality casting iron, and saddle guide-way is coated by TF-material.

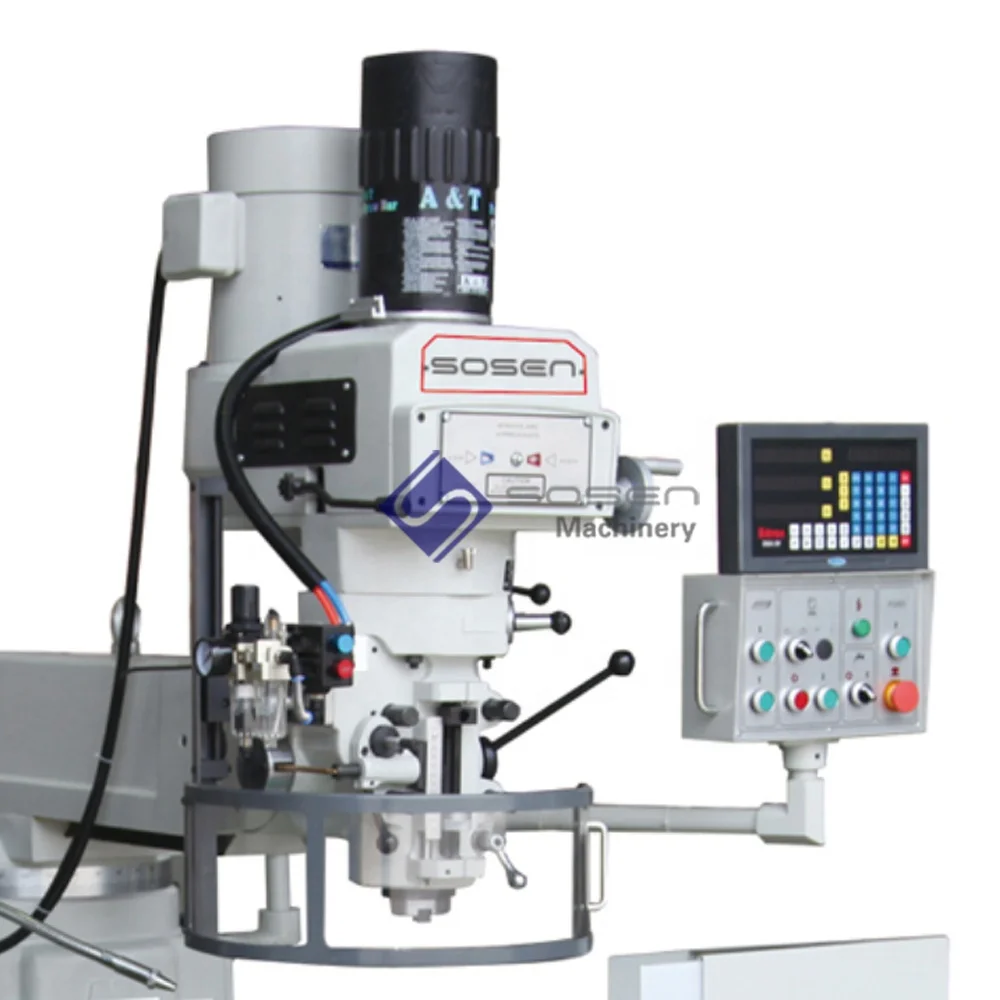

2.16 speedmilling head made in Taiwan, variable speed milling head and inverter millinghead can be equipped as optional accessories.
3.X/Y/Z-axisscrew are made in Taiwan with good smooth and reliable features.
4.Table surfaceis treated specially to harden HRC45-55.
5.X/Y/Z-axisguide way surface are treated specially to harden HRC45-55.
6.Standardelectrical box with domestic brand electronics components, we also can selectoptional SIEMENS and SCHNEIDER brand.
X6330A
1. Fixed structure is used to connect the mill head without ram, which makes the cut intensity well.
2. Rectangular guideway on Z-axis is featured a good rigidity and stability.
3. The guideway on saddle is lined with TF wearable material.
Specifications:
| Model | Unit | X6330 | X6330A |
| Table size | mm | 305×1370(12"×54") 305×1500(12"×58") | |
| T slot No.and size | 3 × 16 | ||
| Long travel | mm | 870 1000 | |
| Cross travel | mm | 360 | |
| Vertical travel | mm | 380 | |
| Distance from horizontal spindle to table | mm | 0-350 | |
| Ram travel | mm | 500 | |
| Spindle taper | (standard):ISO40 | ||
| Spindle travel | mm | 127 | |
| Spindle speed | rpm | (standard):(shiftgrade) 50HZ65-4500 60HZ:80-5440 | |
| (optional):(variable)65-3750 | |||
| Auto.quill feed | (threesteps):0.04(0.0015")/0.08(0.003")/0.15(0.006")mm/revolution | ||
| Spindle motor power | kw | 3.7 kw/5HP | |
| Head swivel | ° | 90° | |
| Head tilting | ° | 45° | FIX |
| Dimension of package | mm | One miller per case 1566×1650×2080 | |
| Two miller per case 1720×1800×2175 | |||
| G.W/set | kg | 1630 | 1650 |
Standard Accessories:
worklight, Tooland tool box, English Operation Manual,
Painting oil, lifting motor, wooden palletpackage.

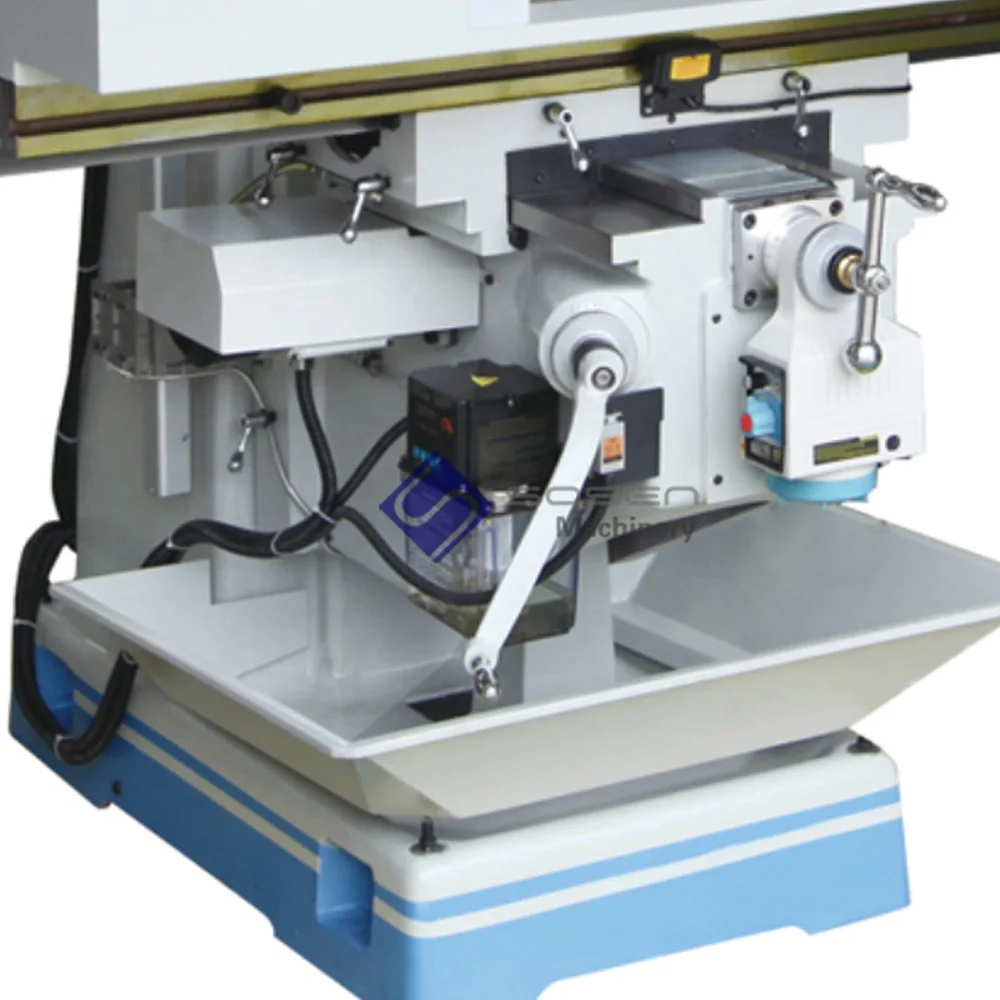

Coolant, Chiptray, Guideway protection .
Optional Accessories:
Electric Power feed X,Y axis
DRO on X/Y/Z-axis
Slotting head
Machine Vice
Variable/Frequency speed milling head
Milling chuck collets
58pcs set clamping kits
Packaging & Shipping
Standard is wooden pallet package, packing size as following:
One unit X6325 per pallet: 1566*1650*2080mm
Two units X6325 per pallet: 1720*1800*2175mm
Full closed plywood case package for your choice as optional, it is suitable for shipment by LCL.
Company Information
FAQ
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.Can I trust you?
Sure, we’re Alibaba Gold Suppliers, Alibaba Assessed Supplier, Alibaba Trade Assurance Supplier.
Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing. Please contact our SOSEN sales representative for details.
Q8.How about your after-sale service?
Our after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 3 days.
Q9.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
