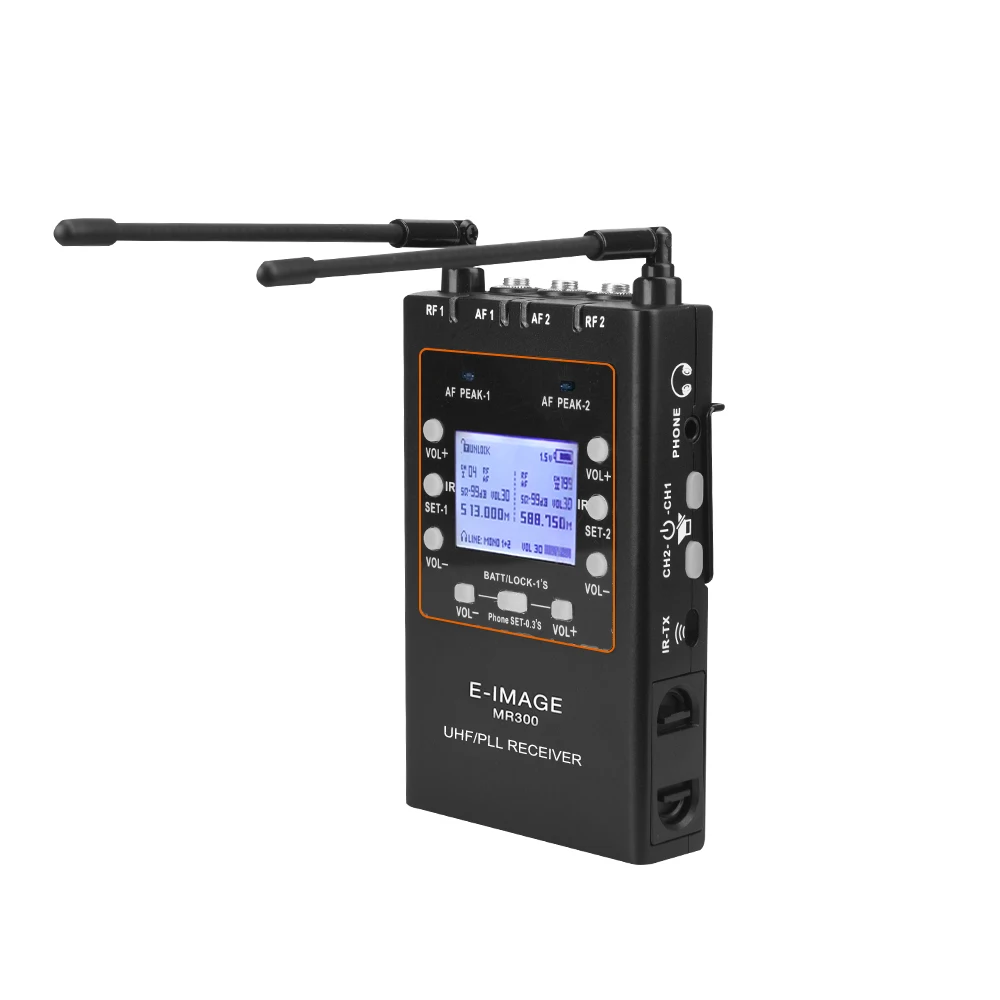

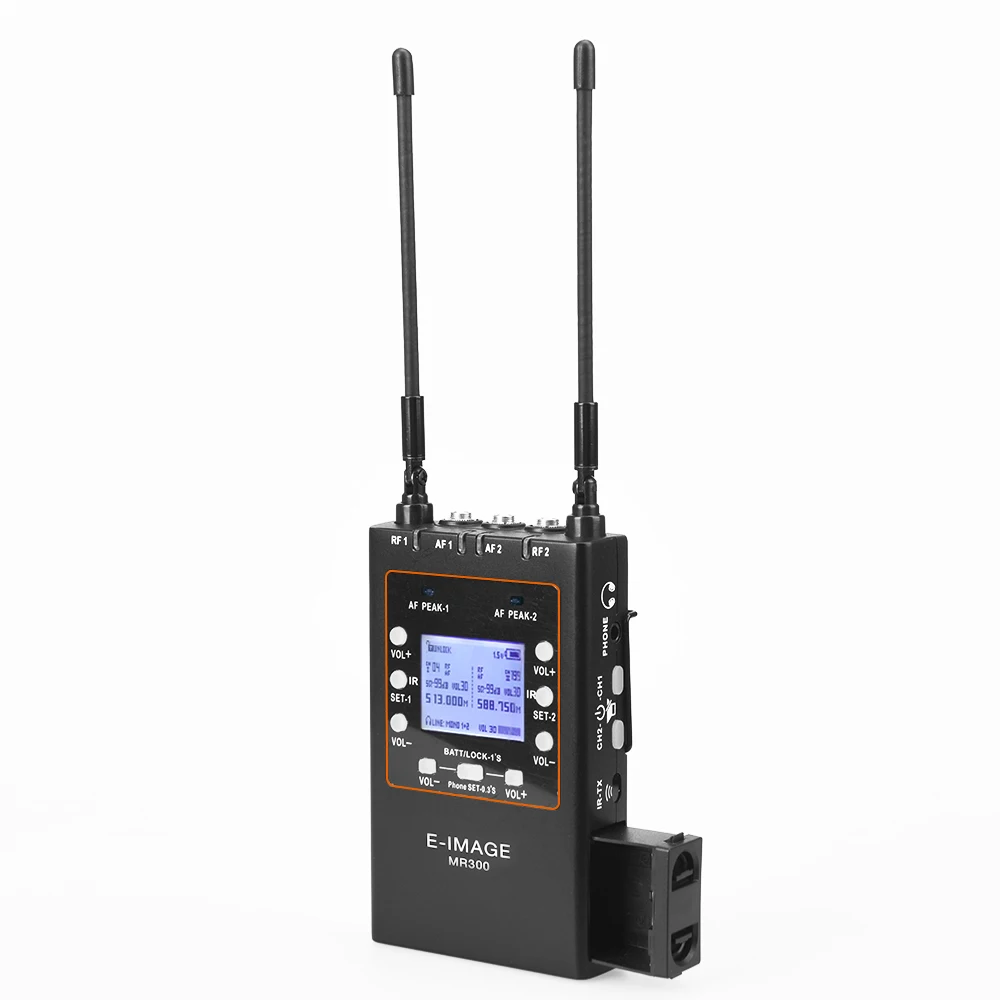

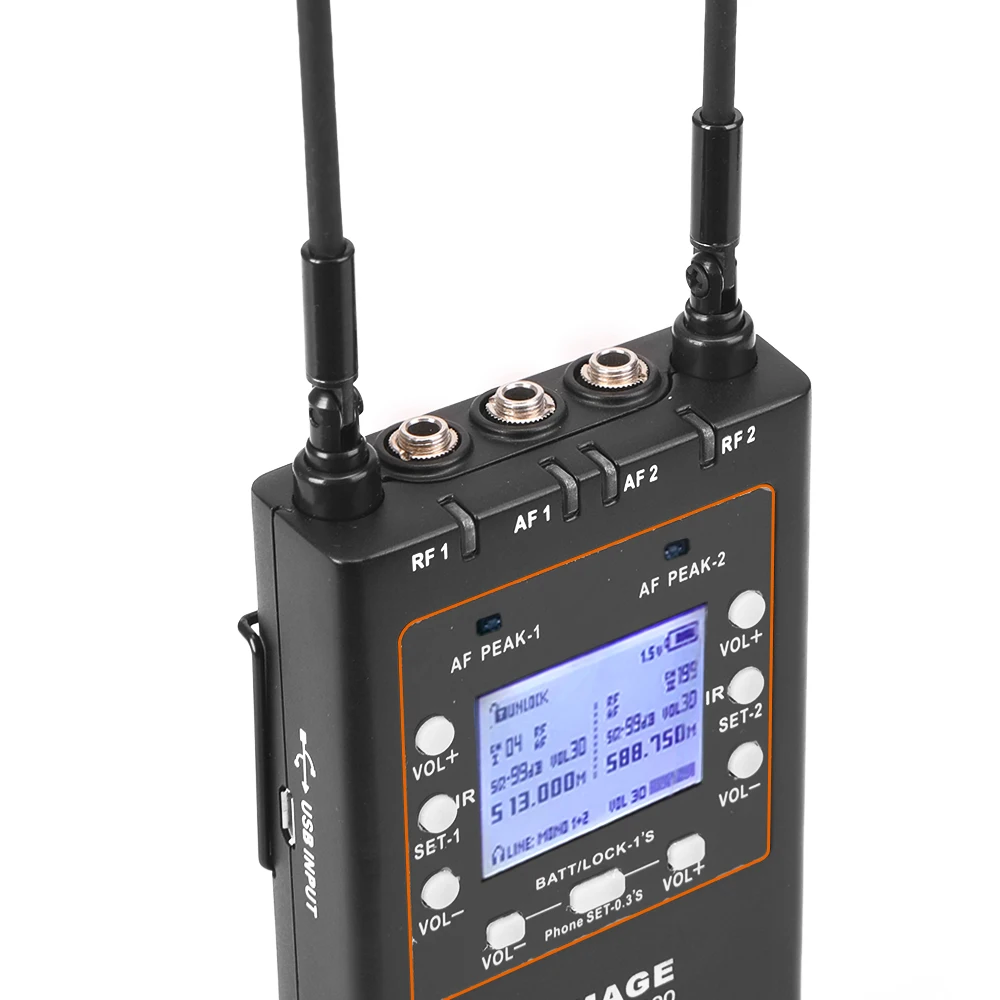

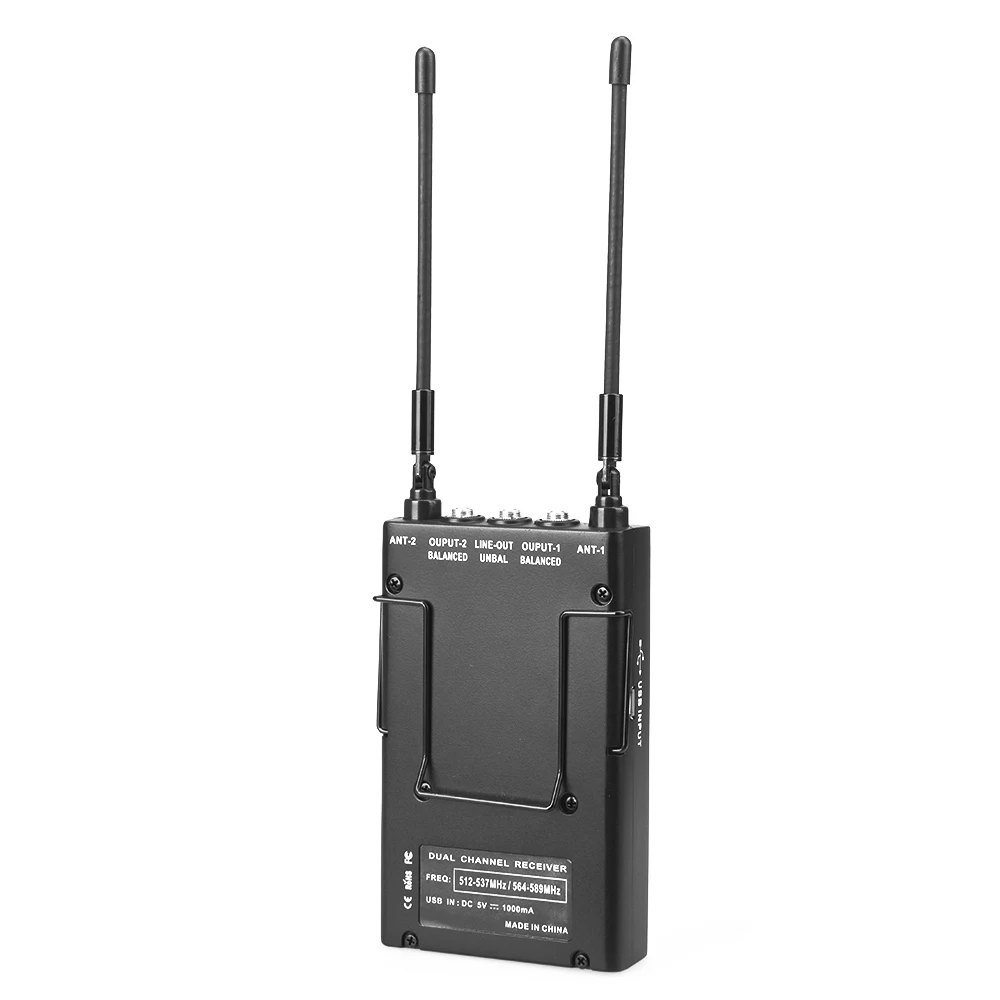

E IMAGE MR 300 UHF Two channel Metal body UHF/PLL Portable wireless Receiver for wireless microphone
- Category: Microphones >>>
- Supplier: Ningbo Eimage Studio Equipment Co. Ltd.
Share on (62024484482):
Product Overview
Description
Product Description
Features:
2-channel portable receiver could offer the sound quality of digital audio processing combined with the reliabitily of analogue FM modulation.It also offers wide frequency coverage across a wide range of channels.with a choice of models to choose from.Easy-to-use features include a large display and small size to fit neatly on any size camcorder or DSLR camera,automatic channel setting function,headphone output,USB connection for power supply and line input availability.The receiver also has single Line out interface for easily connecting of devices needs high level current.This system provides superb transient resonse performance,and is suitable for all professional performance,in-ear monitor,interview,andio-visual programming,etc.l as an exellent choice for recording voice and live music.

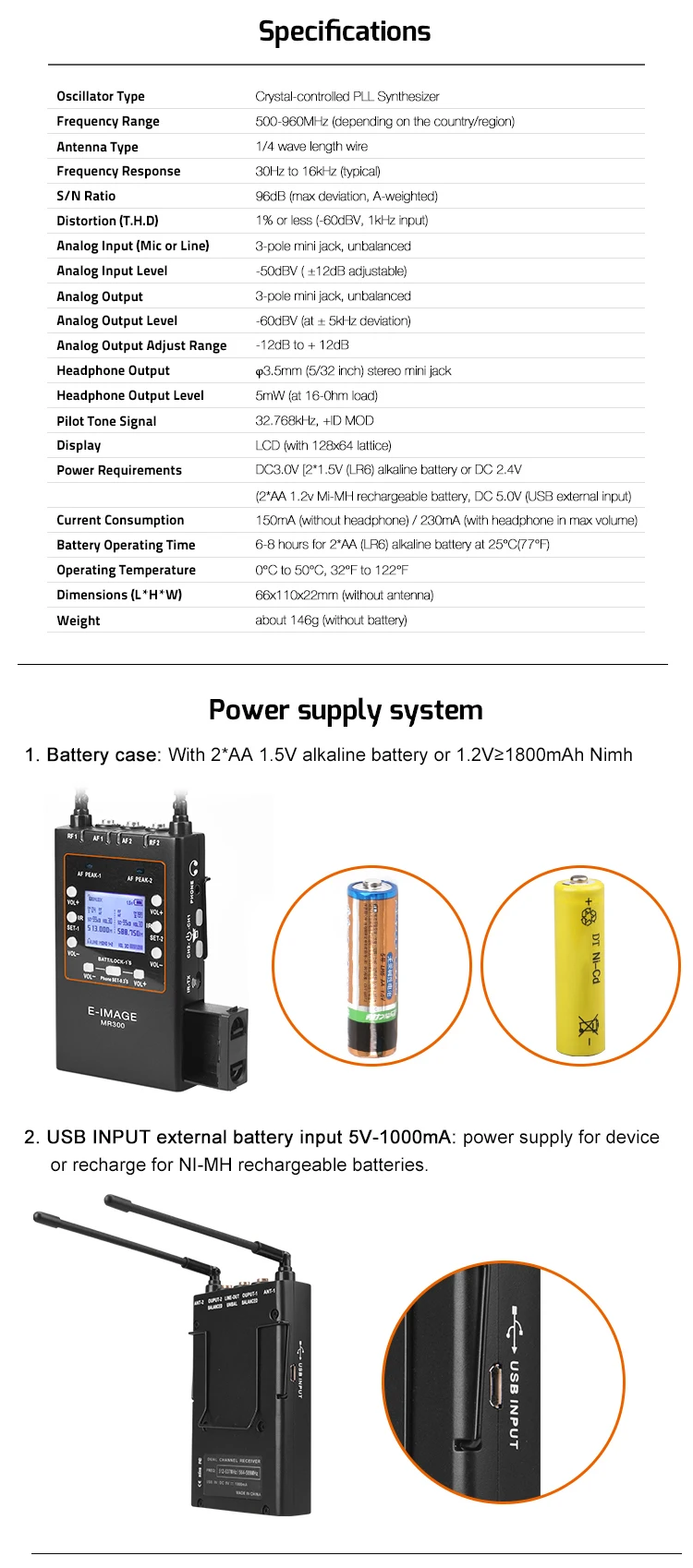

Specification:
| Oscillator Type | Crystal-controlled PLL Synthesizer |
| Frequency Range | 500-960MHz (depending on the country/region) |
| Antenna Type | 1/4 wave length wire |
| Frequency Response | 30Hz to 16kHz (typical) |
| S/N Ratio | 96dB (max deviation, A-weighted) |
| Distortion (T.H.D) | 1% or less (-60dBV, 1kHz input) |
| Analog Input (Mic or Line) | 3-pole mini jack, unbalanced |
| Analog Input Level | -50dBV ( ±12dB adjustable) |
| Analog Output | 3-pole mini jack, unbalanced |
| Analog Output Level | -60dBV (at ± 5kHz deviation) |
| Analog Output Adjust Range | -12dB to + 12dB |
| Headphone Output | φ3.5mm (5/32 inch) stereo mini jack |
| Headphone Output Level | 5mW (at 16-0hm load) |
| Pilot Tone Signal | 32.768kHz, +ID MOD |
| Display | LCD (with 128x64 lattice) |
| Power Requirements | DC3.0V [2*1.5V (LR6) alkaline battery or DC 2.4V (2*AA 1.2v Mi-MH rechargeable battery, DC 5.OV (USB external input) |
| Current Consumption | 150mA (without headphone) / 230mA (with headphone in max volume) |
| Battery Operating Time | 6-8 hours for 2*AA (LR6) alkaline battery at 25°C(77°F) |
| Operating Temperature | 0°C to 50°C, 32°F to 122°F |

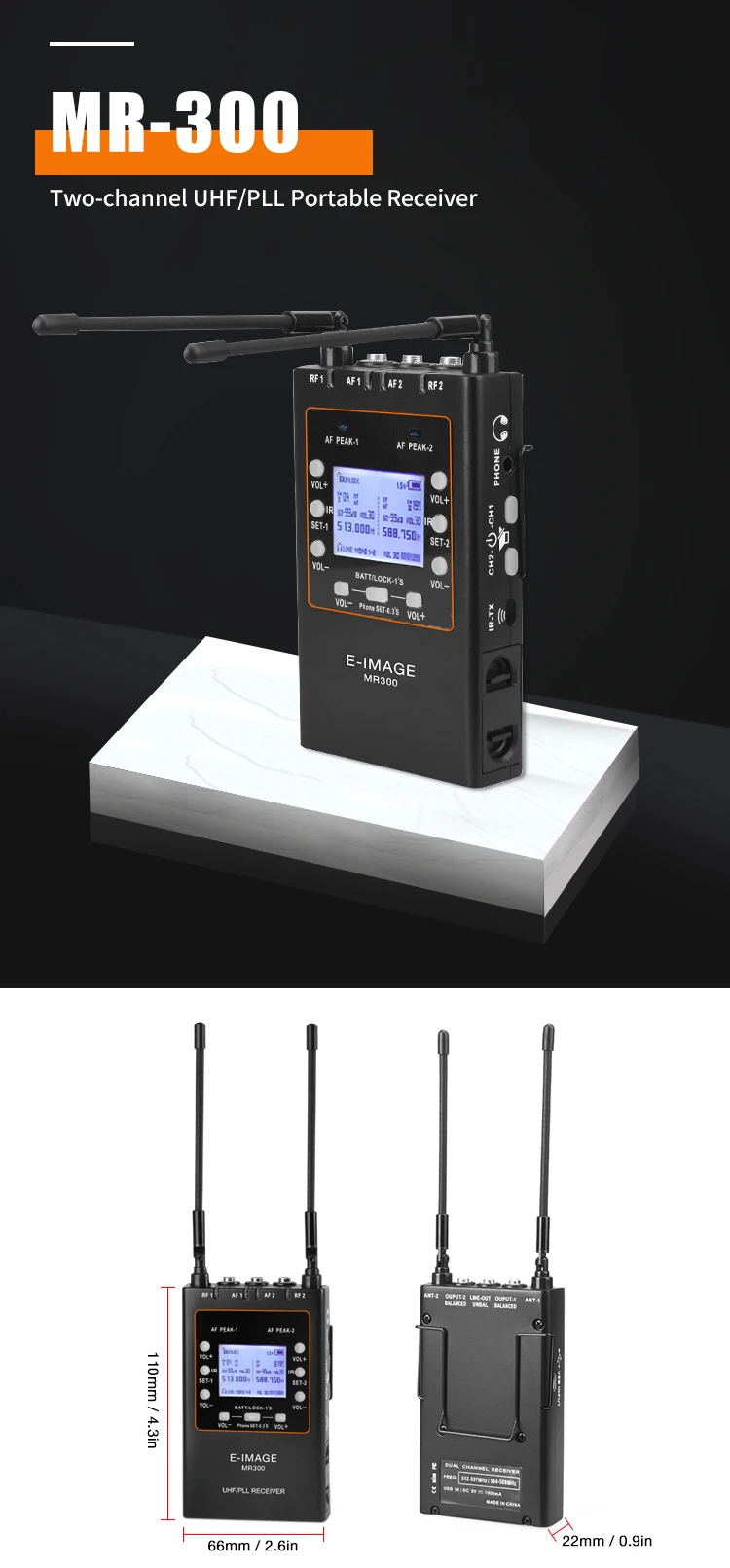

| Dimensions (L*H*W) | 66x110x22mm (without antenna) |
| Weight | About 146g (without battery) |
