HGH 25CA CNC Machine Linear Guide Linear Rail From Taiwan
- Category: Linear Bearings >>>
- Supplier: Tianjin Semri Bearing Technology Co. Ltd.
Share on (62024486729):
Product Overview
Description
Product Description

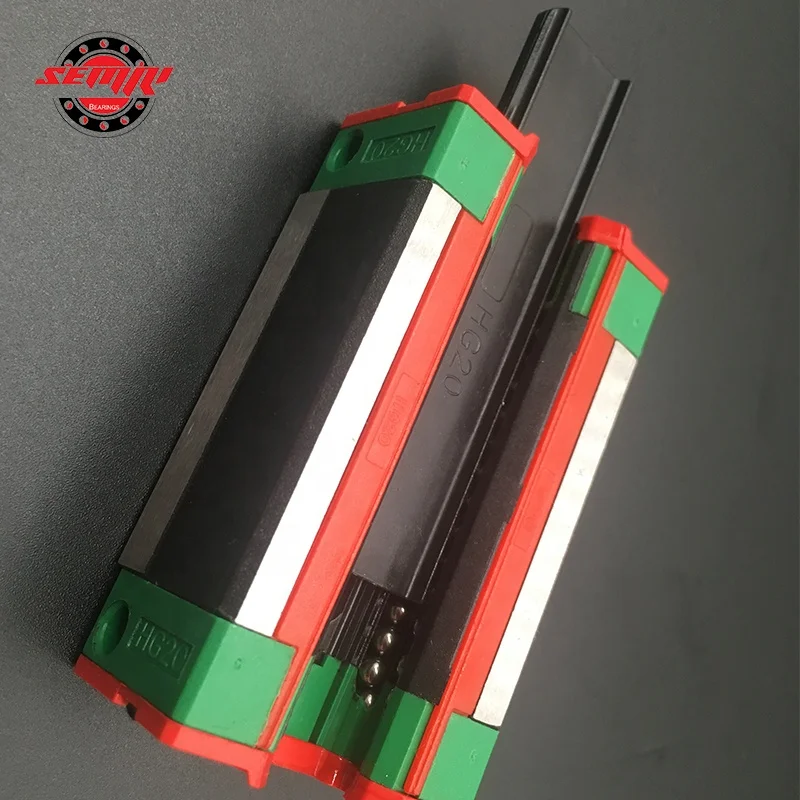

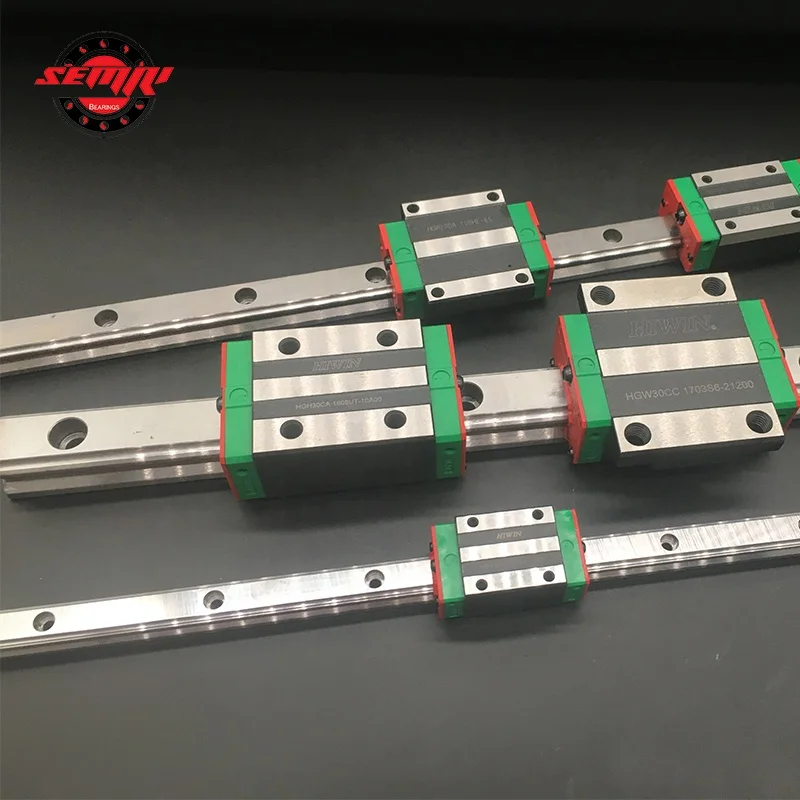

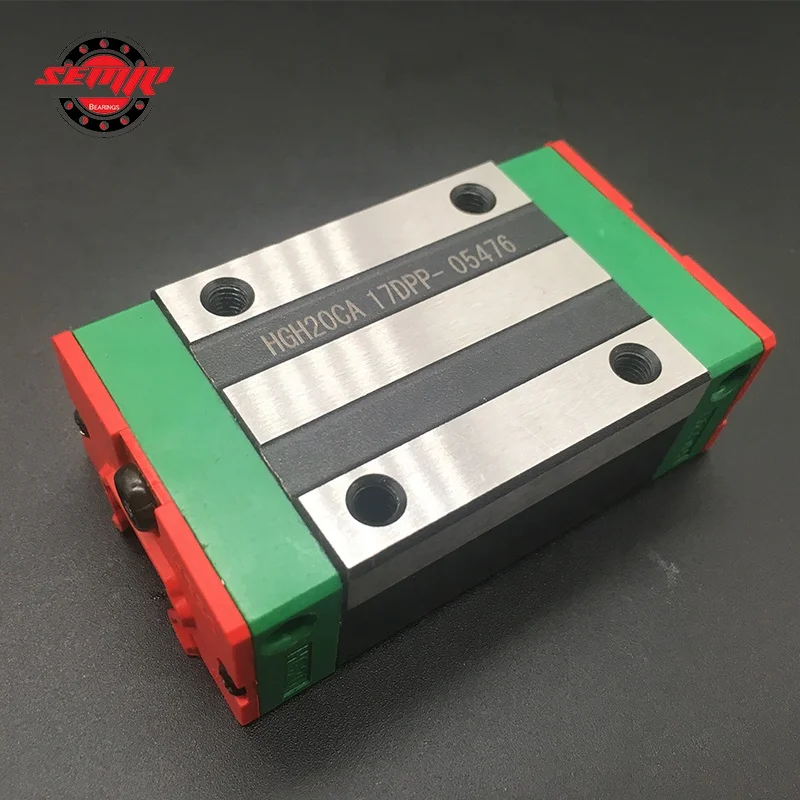

HGH 25CA CNC Machine Linear Guide Linear Rail From Taiwan
More Model No., pls contact whatsapp: +86 15122795177

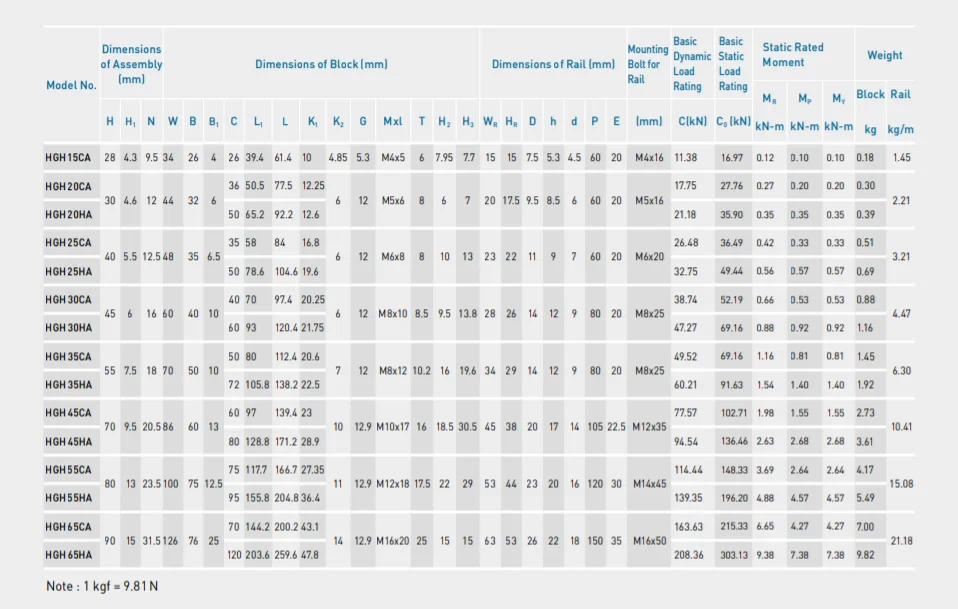

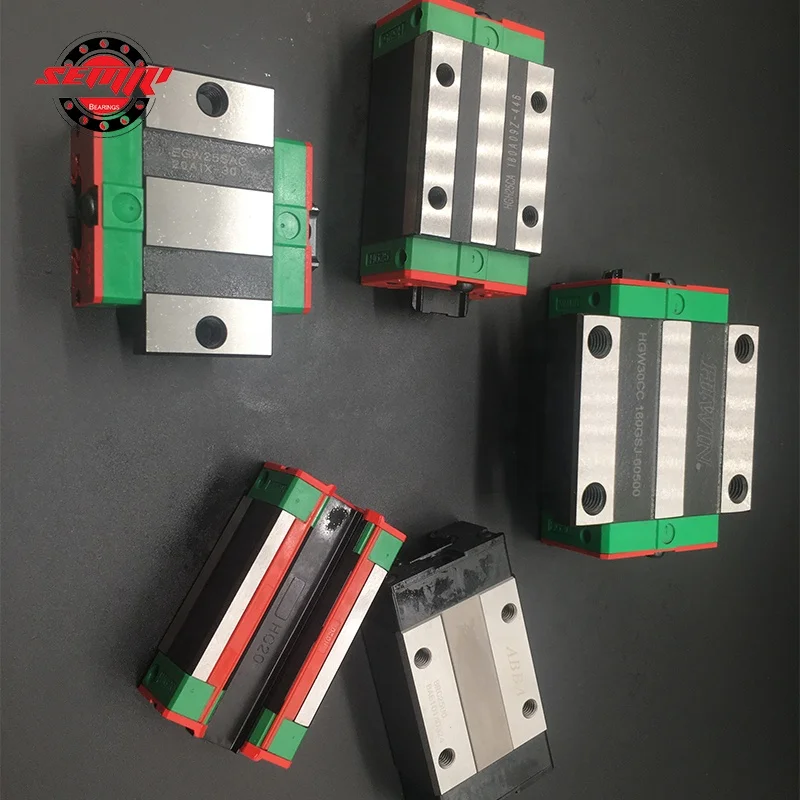

| Series/ | Installation | Dimensions of the block [mm] | Dynamic load | Static load | |||||
| size | dimensions [mm] | rating Cdyn [N]* | rating C0 [N] | ||||||
| H | W | B | C | L1 | L | M | |||
| HGW15CC | 24 | 47 | 38,0 | 30 | 39,4 | 61,4 | M5 | 11380 | 16970 |
| HGW20SC | 30 | 63 | 53,0 | — | 29,5 | 54,3 | M6 | 12190 | 16110 |
| HGW20CC | 30 | 63 | 53,0 | 40 | 50,5 | 77,5 | M6 | 17750 | 27760 |
| HGW20HC | 30 | 63 | 53,0 | 40 | 65,2 | 92,2 | M6 | 21180 | 35900 |
| HGW25SC | 36 | 70 | 57,0 | — | 38,2 | 64,2 | M8 | 18650 | 24290 |
| HGW25CC | 36 | 70 | 57,0 | 45 | 58,0 | 84,0 | M8 | 26480 | 36490 |
| HGW25HC | 36 | 70 | 57,0 | 45 | 78,6 | 104,6 | M8 | 32750 | 49440 |
| HGW30CC | 42 | 90 | 72,0 | 52 | 70,0 | 97,4 | M10 | 38740 | 52190 |
| HGW30HC | 42 | 90 | 72,0 | 52 | 93,0 | 120,4 | M10 | 47270 | 69160 |
| HGW35CC | 48 | 100 | 82,0 | 62 | 80,0 | 112,4 | M10 | 49520 | 69160 |
| HGW35HC | 48 | 100 | 82,0 | 62 | 105,8 | 138,2 | M10 | 60210 | 91630 |
| HGW45CC | 60 | 120 | 100,0 | 80 | 97,0 | 139,4 | M12 | 77570 | 102710 |
| HGW45HC | 60 | 120 | 100,0 | 80 | 128,8 | 171,2 | M12 | 94540 | 136460 |
| HGW55CC | 70 | 140 | 116,0 | 95 | 117,7 | 166,7 | M14 | 114440 | 148330 |
| HGW55HC | 70 | 140 | 116,0 | 95 | 155,8 | 204,8 | M14 | 139350 | 196200 |
| HGW65CC | 90 | 170 | 142,0 | 110 | 144,2 | 200,2 | M16 | 163630 | 215330 |
| HGW65HC | 90 | 170 | 142,0 | 110 | 203,6 | 259,6 | M16 | 208360 | 303130 |
| Rail Series/ | Assembly screw | Dimensions of rail [mm] | Max. length | Max. length | E1/2 min | E1/2 max | Weight | |||||
| size | for rail [mm] | WR | HR | D | h | d | P | [mm] | E1 = E2 | [mm] | [mm] | [kg/m] |
| HGR15R | M4 × 16 | 15 | 15,0 | 7,5 | 5,3 | 4,5 | 60,0 | 4000 | 3900 | 6 | 54 | 1,45 |
| HGR20R | M5 × 16 | 20 | 17,5 | 9,5 | 8,5 | 6,0 | 60,0 | 4000 | 3900 | 7 | 53 | 2,21 |
| HGR25R | M6 × 20 | 23 | 22,0 | 11,0 | 9,0 | 7,0 | 60,0 | 4000 | 3900 | 8 | 52 | 3,21 |
| HGR30R | M8 × 25 | 28 | 26,0 | 14,0 | 12,0 | 9,0 | 80,0 | 4000 | 3920 | 9 | 71 | 4,47 |
| HGR35R | M8 × 25 | 34 | 29,0 | 14,0 | 12,0 | 9,0 | 80,0 | 4000 | 3920 | 9 | 71 | 6,30 |
| HGR45R | M12 × 35 | 45 | 38,0 | 20,0 | 17,0 | 14,0 | 105,0 | 4000 | 3885 | 12 | 93 | 10,41 |
| HGR55R | M14 × 45 | 53 | 44,0 | 23,0 | 20,0 | 16,0 | 120,0 | 4000 | 3840 | 14 | 106 | 15,08 |
| HGR65R | M16 × 50 | 63 | 53,0 | 26,0 | 22,0 | 18,0 | 150,0 | 4000 | 3750 | 15 | 135 | 21,18 |
HGW15CC | HGW15CB | HGW15CA |
HGW20CC | HGW20CB | HGW20CA |
HGW20HC | HGW20HB | HGW20HA |
HGW25CC | HGW25CB | HGW25CA |
HGW25HC | HGW25HB | HGW25HA |
HGW30CC | HGW30CB | HGW30CA |
HGW30HC | HGW30HB | HGW30HA |
HGW35CC | HGW35CB | HGW35CA |
HGW35HC | HGW35HB | HGW35HA |
HGW45CC | HGW45CB | HGW45CA |
HGW45HC | HGW45HB | HGW45HA |
HGW55CC | HGW55CB | HGW55CA |
HGW55HC | HGW55HB | HGW55HA |
HGW65CC | HGW65CB | HGW65CA |
HGW65HC | HGW65HB | HGW65HA |
Model | Size(MM) | Weight | |||||
WR | HR | S | h | P | E | (kg/m) | |
HGR15T | 15 | 15 | M5*0.8P | 8 | 60 | 20 | 1.48 |
HGR20T | 20 | 17.5 | M6*1P | 10 | 60 | 20 | 2.29 |
HGR25T | 23 | 22 | M6*1P | 12 | 60 | 20 | 3.35 |
HGR30T | 28 | 26 | M8*1.25P | 15 | 80 | 20 | 4.67 |
HGR35T | 34 | 29 | M8*1.25P | 17 | 80 | 20 | 6.51 |
HGR45T | 45 | 38 | M12*1.75P | 24 | 105 | 22.5 | 10.87 |
HGR55T | 53 | 44 | M14*2P | 24 | 120 | 30 | 15.67 |
HGR65T | 63 | 53 | M20*2.5P | 30 | 150 | 35 | 21.73 |
