TiMOTION TA25 12V 24V DC Quiet Linear Actuator
TiMOTION TA25 12V 24V DC Quiet Linear Actuator

TiMOTION TA25 12V 24V DC Quiet Linear Actuator

Share on (62024504392):


Price:

Quantity:


Product Overview

Description



TiMOTION’s TA25 series electric linear actuator uses a linear slide to move a load, instead of an extension tube. This linear slide mechanism allows for a significantly shorter retracted length and makes the TA25 a great solution for various furniture applications. The TA25 is designed to function as a direct cut system, eliminating the need for a control box, offering a simple and economical solution. Available options are Hall sensors and a special L-shaped mounting bracket.


General Features




  • Voltage of motor: 12V DC or 24V DC




  • Maximum load: 1,000N in push/pull




  • Maximum speed at full load: 29mm/s (with 1,000N in a push/pull condition)




  • Minimum installation dimension: ≥ 99mm




  • Certificate: UL962




  • Operational temperature range: +5°C~+45°C




  • Options: Hall sensor(s)

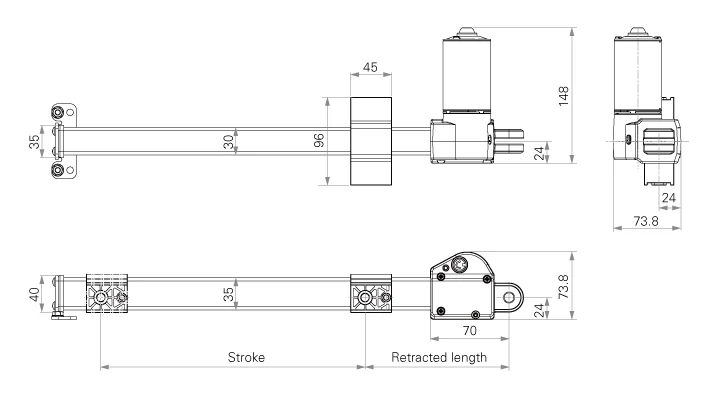

Standard Dimension (mm)
