TiMOTION TA26 12V 24V Furniture Linear Actuator
TiMOTION TA26 12V 24V Furniture Linear Actuator

TiMOTION TA26 12V 24V Furniture Linear Actuator

Share on (62024513992):


Price:RUB 4,831.27 - RUB 9,662.53

Quantity:


Product Overview

Description

TiMOTION’s TA26 series electric linear actuator is designed for furniture applications such as recliners or lift chairs . This linear actuator is designed to function as a direct cut system, eliminating the need for a control box, offering a straightforward and cost effective alternative to complex electric actuation systems.

General Features

  • Voltage of motor: 12V DC or 24V DC

  • Maximum load: 4,000N in push

  • Maximum load: 2,000N in pull

  • Maximum speed at full load: 12.8mm/s (with 2,000N in a push condition)

  • Minimum installation dimension: ≥ Stroke+120mm

  • Color: Black

  • Certificate: UL962

  • Operational temperature range: +5°C~+45°C

  • Option: Hall sensor(s)

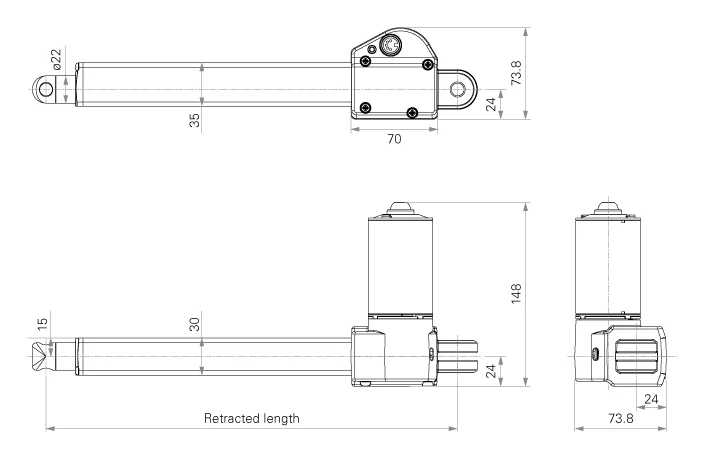

Standard Dimension (mm)
