Manufacturer Weld Inverter Tig Welding Machine Long Working Life China ELEPHANT GOLDEN Arc Welding Machine Price List DC TIG 380

Product Overview

Description

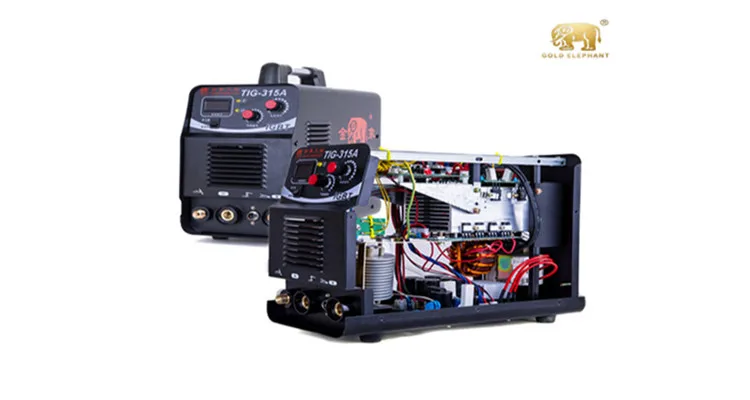

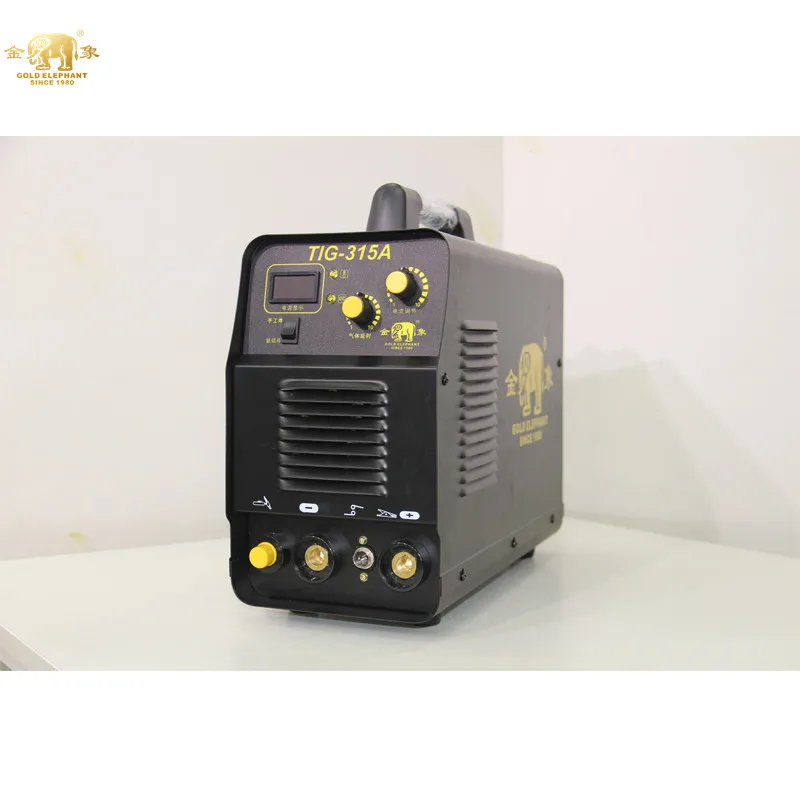

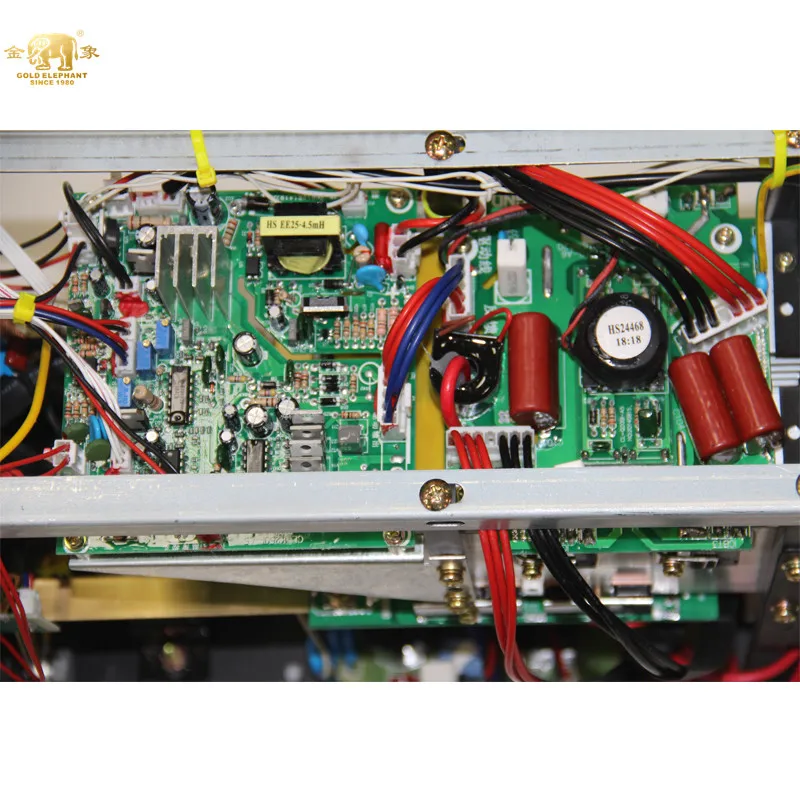

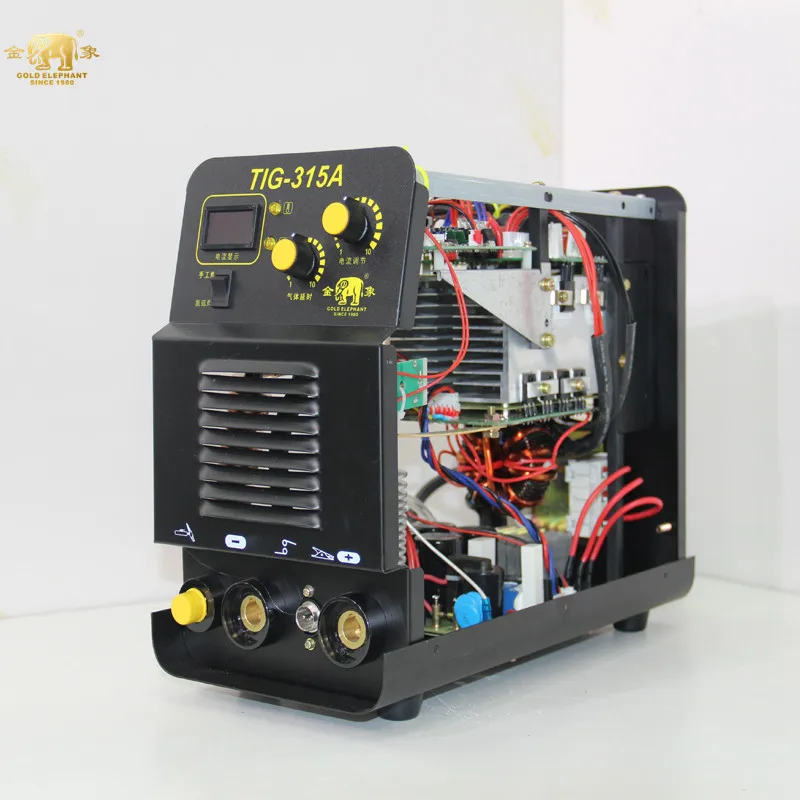

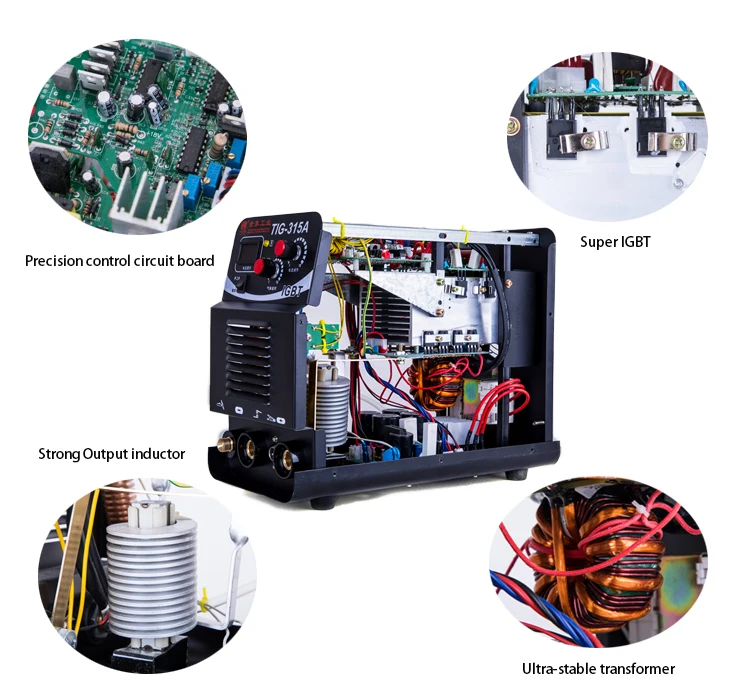

Golden elephant TIG series welding machines is a new generation of inverter carbon dioxide gas shielded welding machine. Its control circuit has the following characteristics : Anti-interference ,drive circuit design ,high-quality components ,unique design  of wire feeding control circuit ,super adaptability ,overall power conversion efficiency is more than 85% under normal use.

It can be used in stainless steel ,alloy steel ,carbon steel and other metals welding ,and is widely used in petroleum ,petrochemical ,coal ,electricity and other industries of the national key projects , being a high –quality welding partner .



GOLDEN ELEPHANT long working life china manufacturer weld inverter tig welding machine tig digital welding tig ac dc

Item	TIG-315P AC/DC
Input voltage (v)	380v
Frequency (HZ )	50/60
Rated input current(A)	14.4
Output current adjustment(A)	10-315
Output voltage	45
Duty cycle (%)	60%
Power factor	0.93
Efficiency	85
Insulation level	F
Background current	10-90
Enclosure protection level	IP21S
Output cable	25
Dimension L W H (MM )	400*180*300
Weight (KG)	13
Blowing time in front (S)	0-2
duty cycle(%)	20-80
Pulse fall time(S)	0-10
Blowing time in back	1--10
Thickness of electrode plate(MM)	0.8-15
Impulse frequency(Hz)	0.5-300		0.5-300



Guangzhou Golden-elephant Industry Production Company, founded in 1980, is a high-tech enterprise expertized in the research, development, design and manufacture of welding equipment. Headquartered in Jinxiang Industrial Park, Baiyun District, Guangzhou, it has a modern workshop, advanced production lines and testing equipment. Located in Liwan District, Guangzhou Sales Department specializes in sales and foreign trade and other external affairs.
