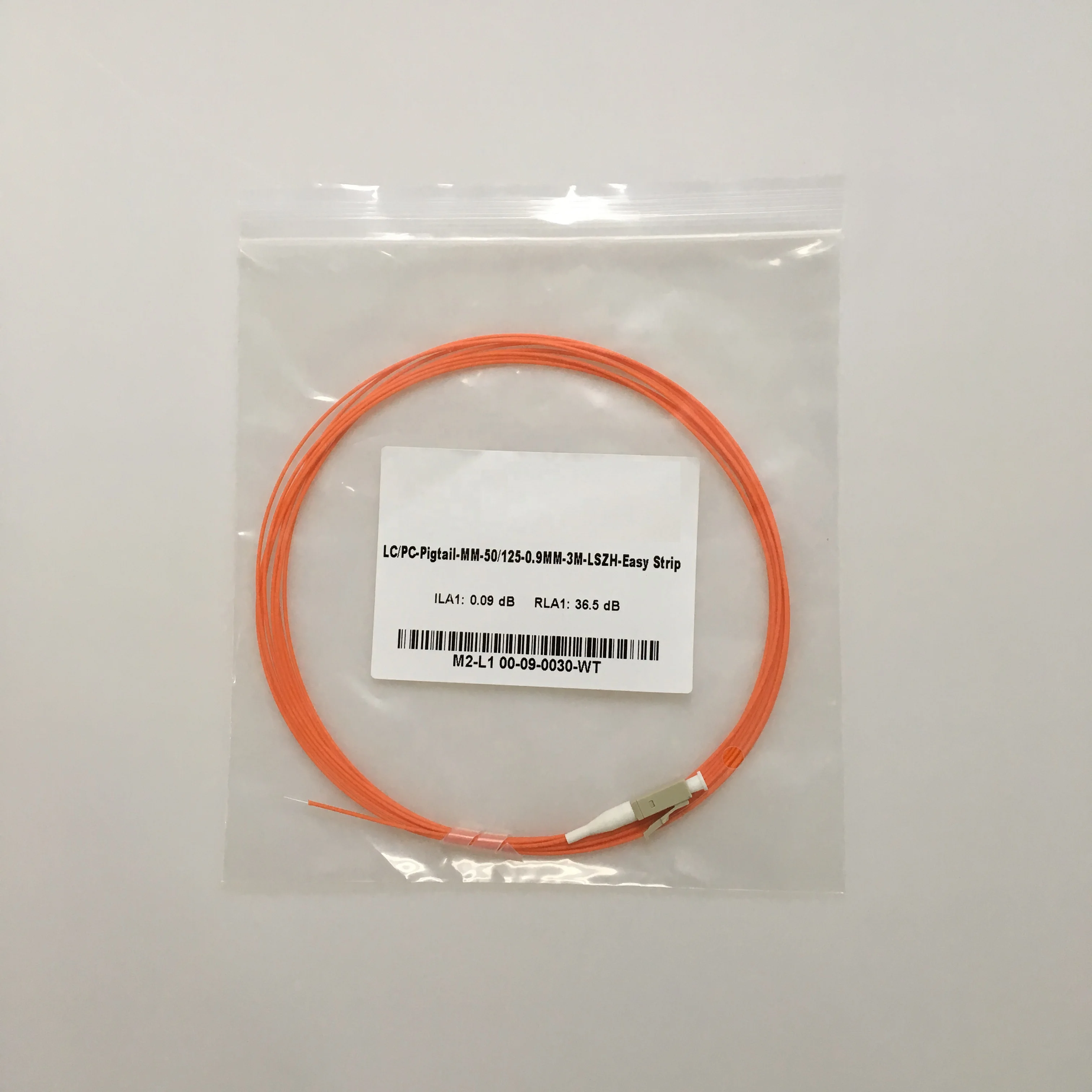

0.9mm LC UPC OM2 MM Multimode LSZH Fiber Optic Pigtail
- Category: >>>
- Supplier: Shenzhen Wirenet Telecom Technology Co. Ltd.
Share on (62024582793):
Product Overview
Description

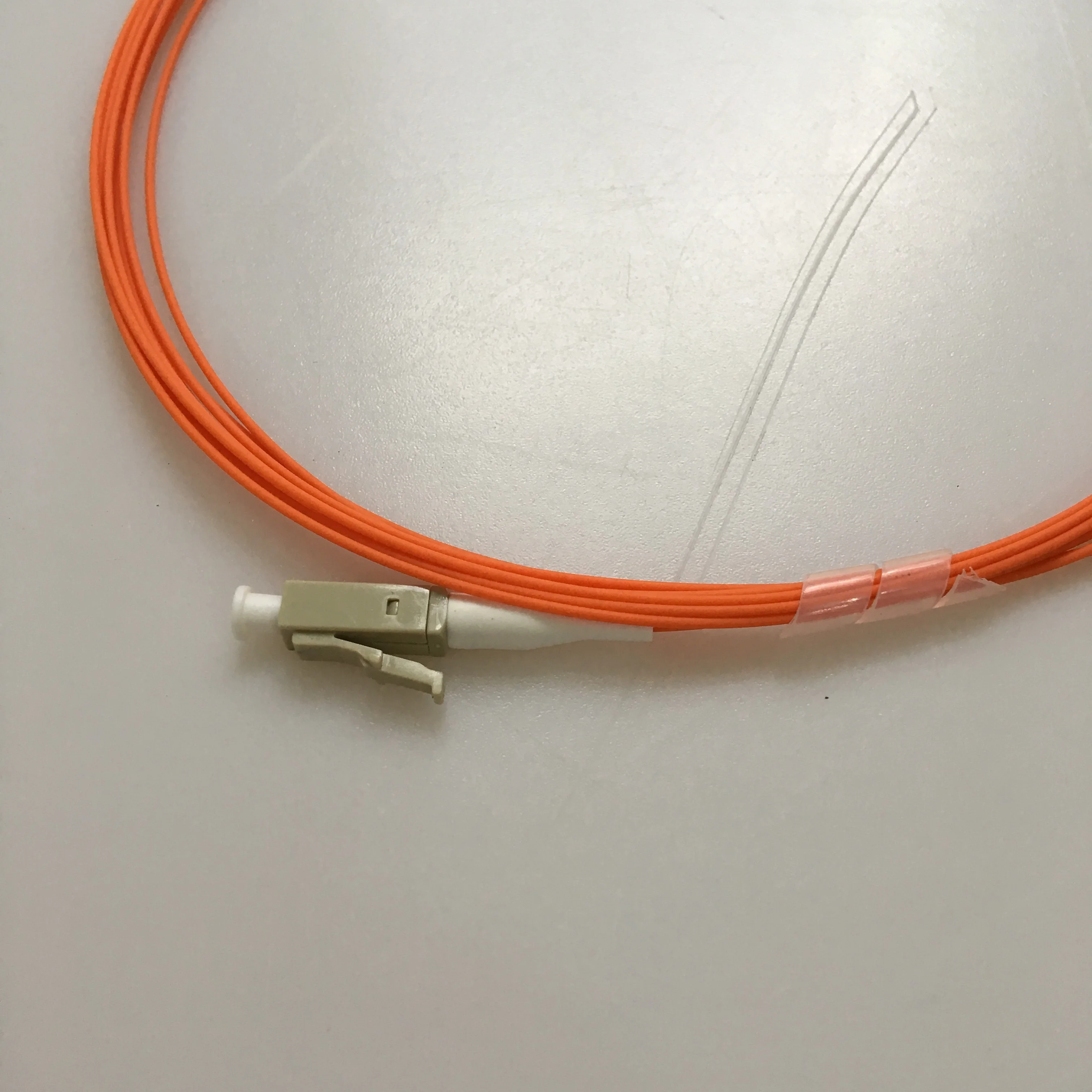

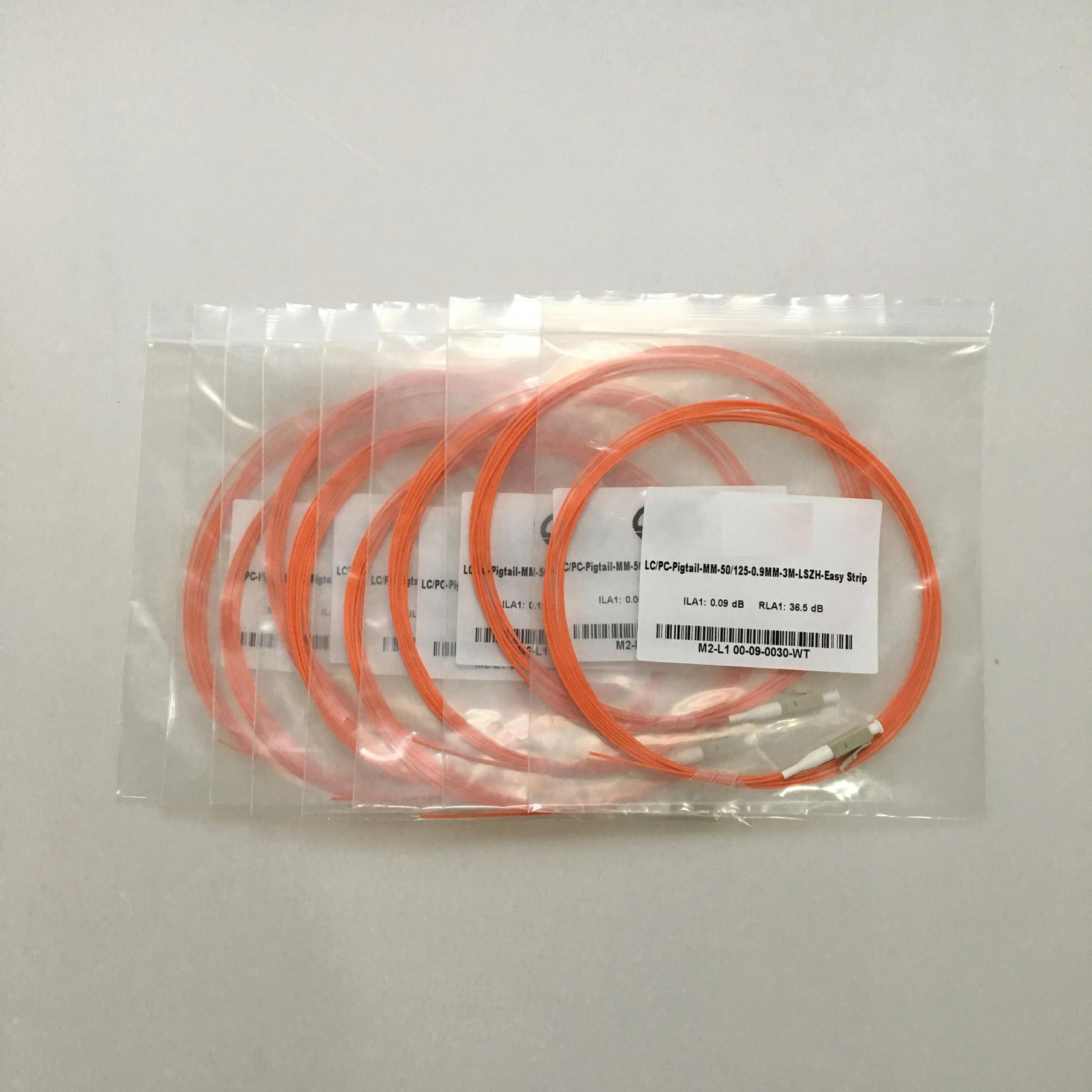

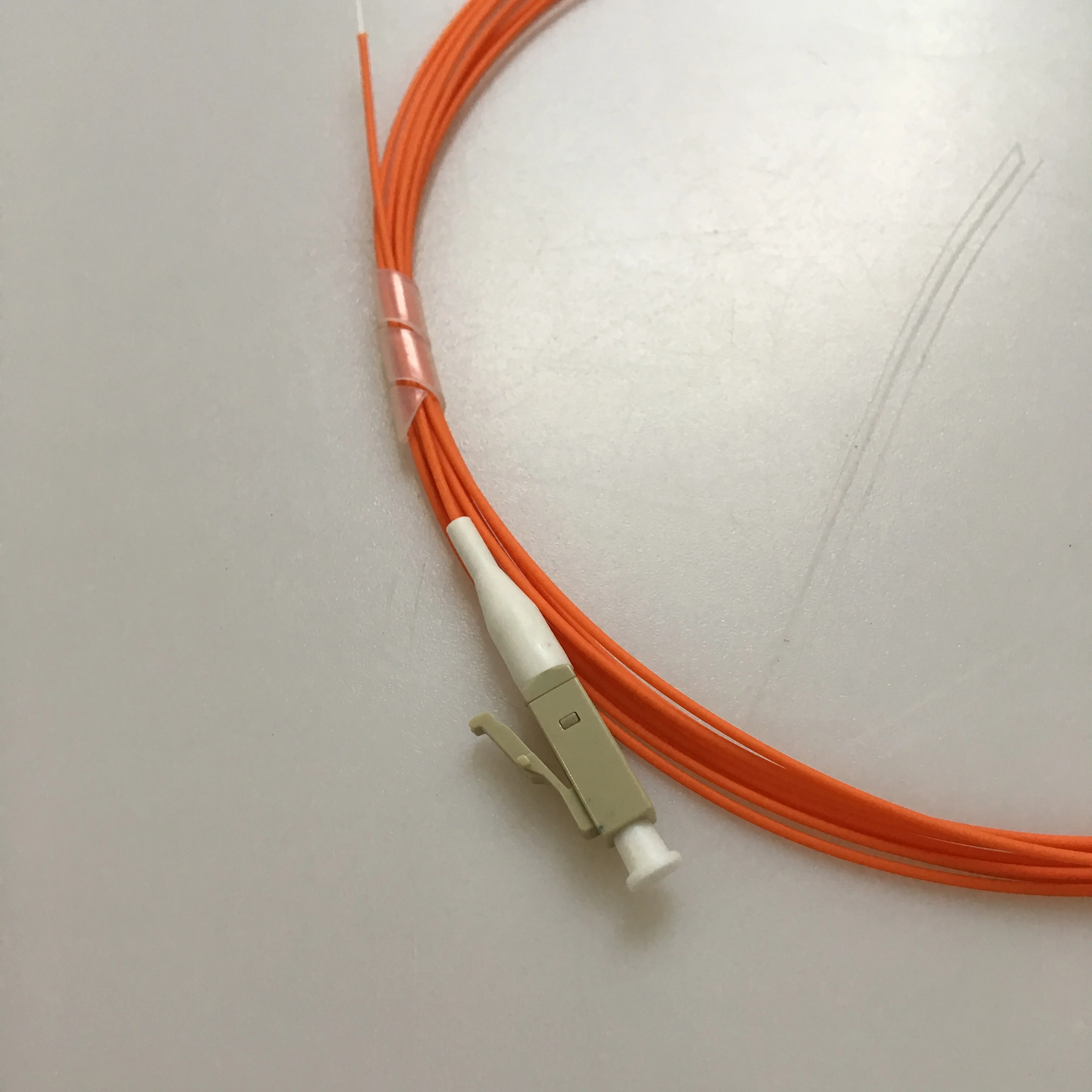

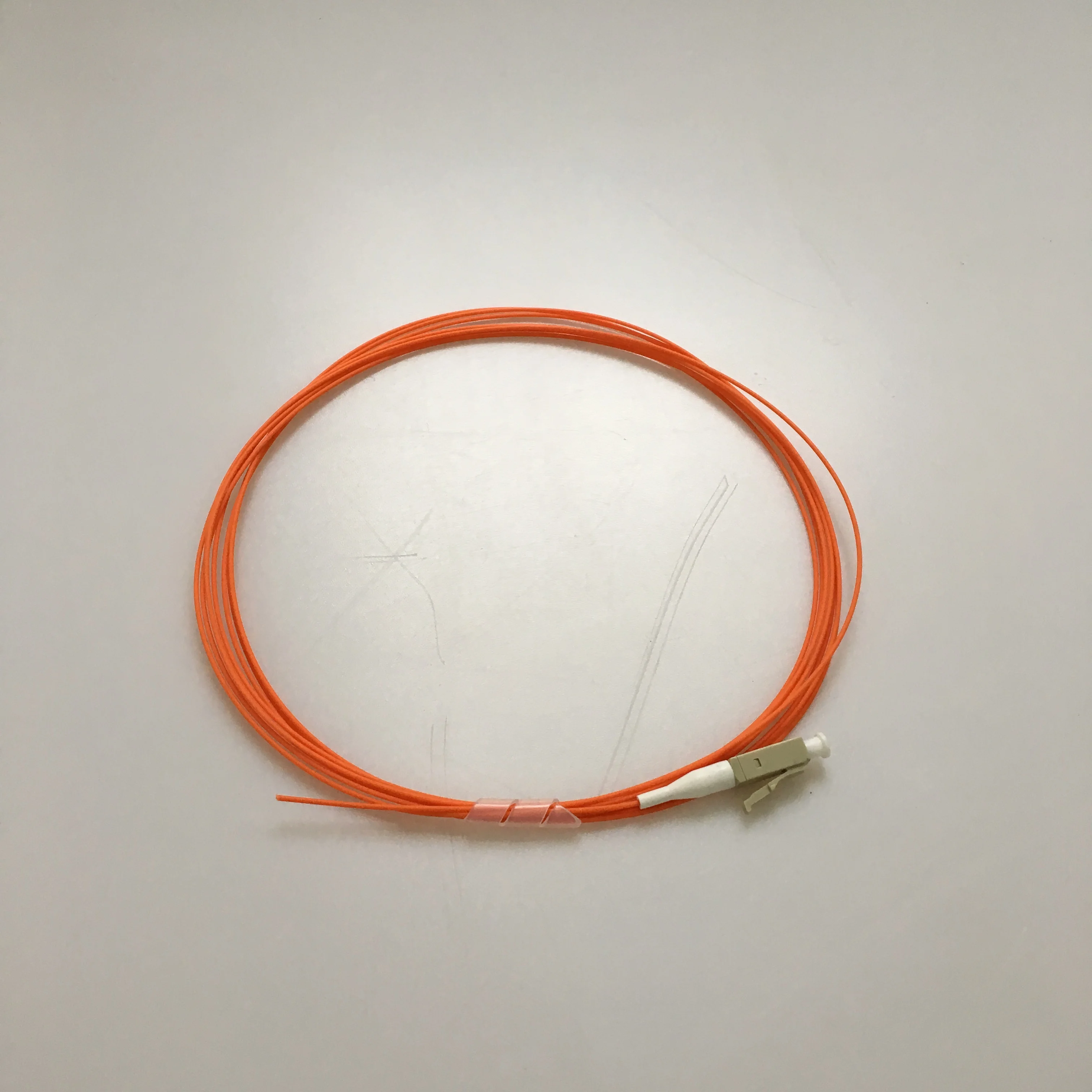

0.9mm LC UPC OM2 MM Multimode LSZH Fiber Optic Pigtail

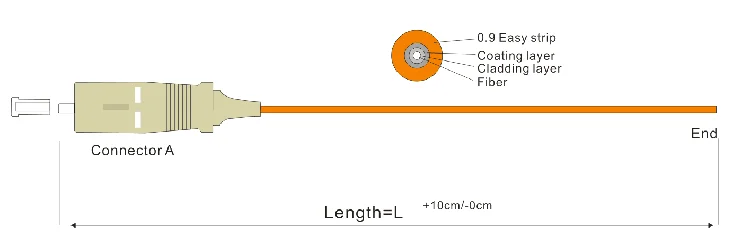

Connector : LC/UPC MM simplex 0.9mm connector ,Beige housing,Beige boot,Transparent dust cap.
Cable: 0.9mm, simplex,easy strip, LSZH Cable, orange color ; (OD:0.9mm) (Fiber MM OM2 50/125 G652D )
**Length= 1M +10/-0cm
Cable: 0.9mm, simplex,easy strip, LSZH Cable, orange color ; (OD:0.9mm) (Fiber MM OM2 50/125 G652D )
**Length= 1M +10/-0cm
fiber type | 50/125 OM2 |
Test wavelength | 1310/1550nm |
Insertion Loss (Max) | -0.3dB |
Return Loss (RL) | UPC>50dB |
Durability | <0.1dB typical change,1000 repeatability |
Cable specification:
Fiber Count | Cable Dimensions | Weight (kg/km) | Tension | Crush | Min. Bend Radius | Range of Temperature | ||||||
Long Term | Short Term | Long Term | Short Term | Dynamic | Static | |||||||
1 | 0.9 | 0.9 | 50 | 100 | 80 | 100 | 20D | 10D | -20 to +60 | |||

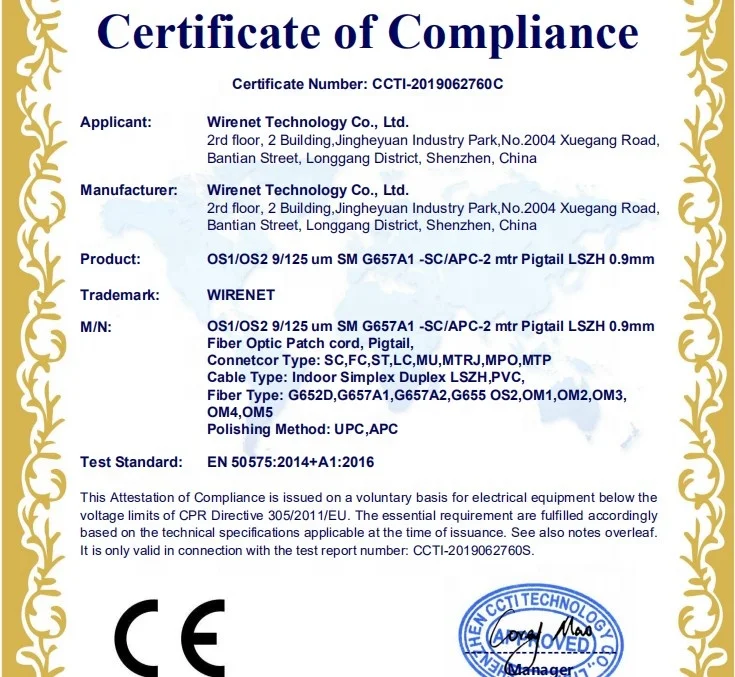

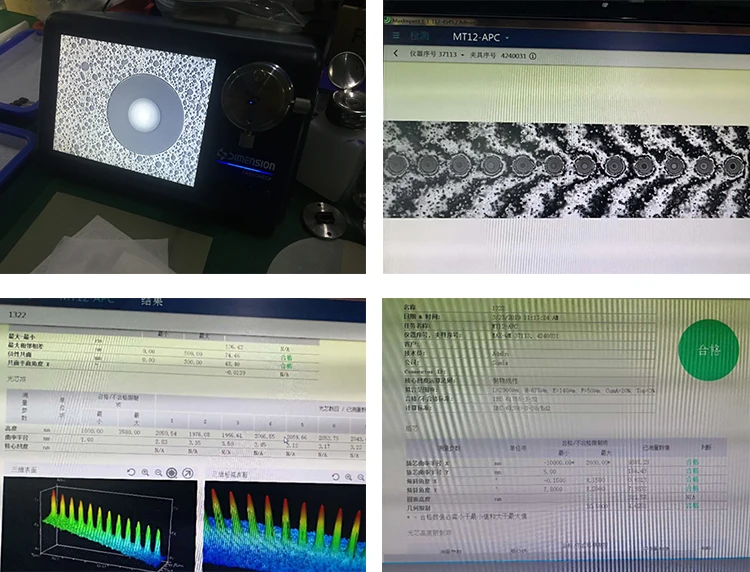

Test Report:

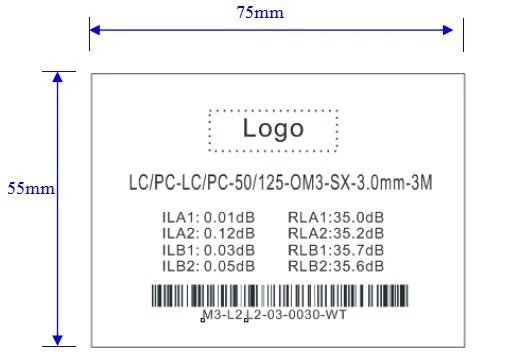

Logo can be customized
Logo can be customized
About Us

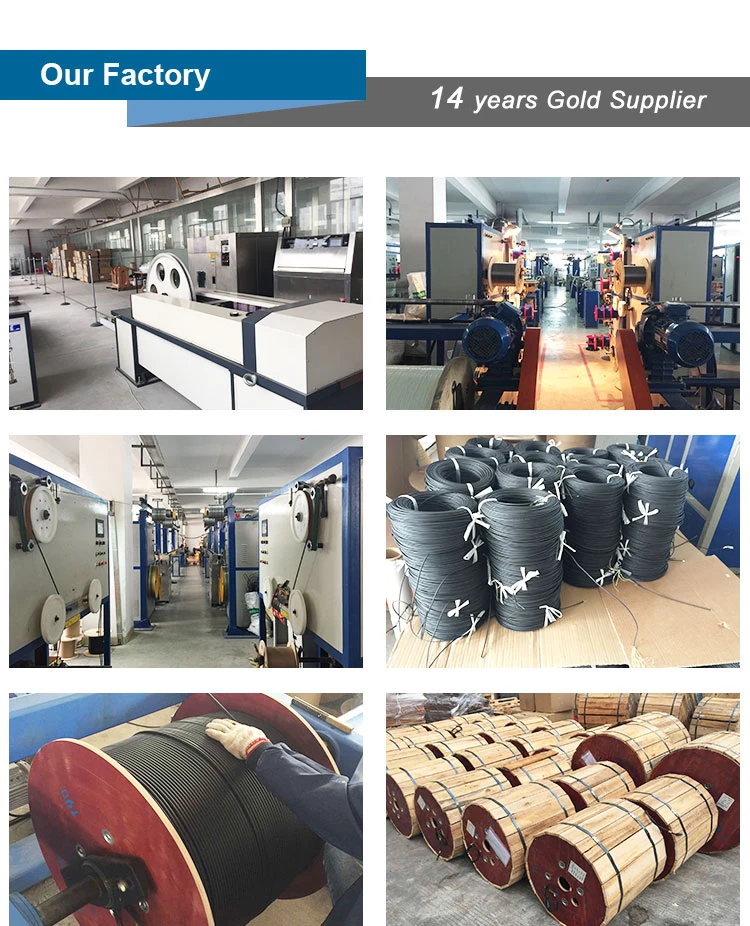

Wirenet Technology Co., Ltd was established in 2009 in Hong Kong, and in 2011 registered in Shenzhen, China. Through nearly 14 years developing,currently have fiber optical cable factory& patch cord factory.Wirenet's main products are fiber optic telecommunication cable system, including indoor&outdoor fiber cable& patch cord and fiber distribution system.
We have our own sales team, R&D team and quality control team. ,For Guarantee, the Cable has 30 years of life time, and the fiber is ensured 70 years life time. For quality inquiry, our after-sales team will respond in the first time, and QA team will solve the problem at fast speed. So,OEM and ODM are always welcome.
We have our own sales team, R&D team and quality control team. ,For Guarantee, the Cable has 30 years of life time, and the fiber is ensured 70 years life time. For quality inquiry, our after-sales team will respond in the first time, and QA team will solve the problem at fast speed. So,OEM and ODM are always welcome.
