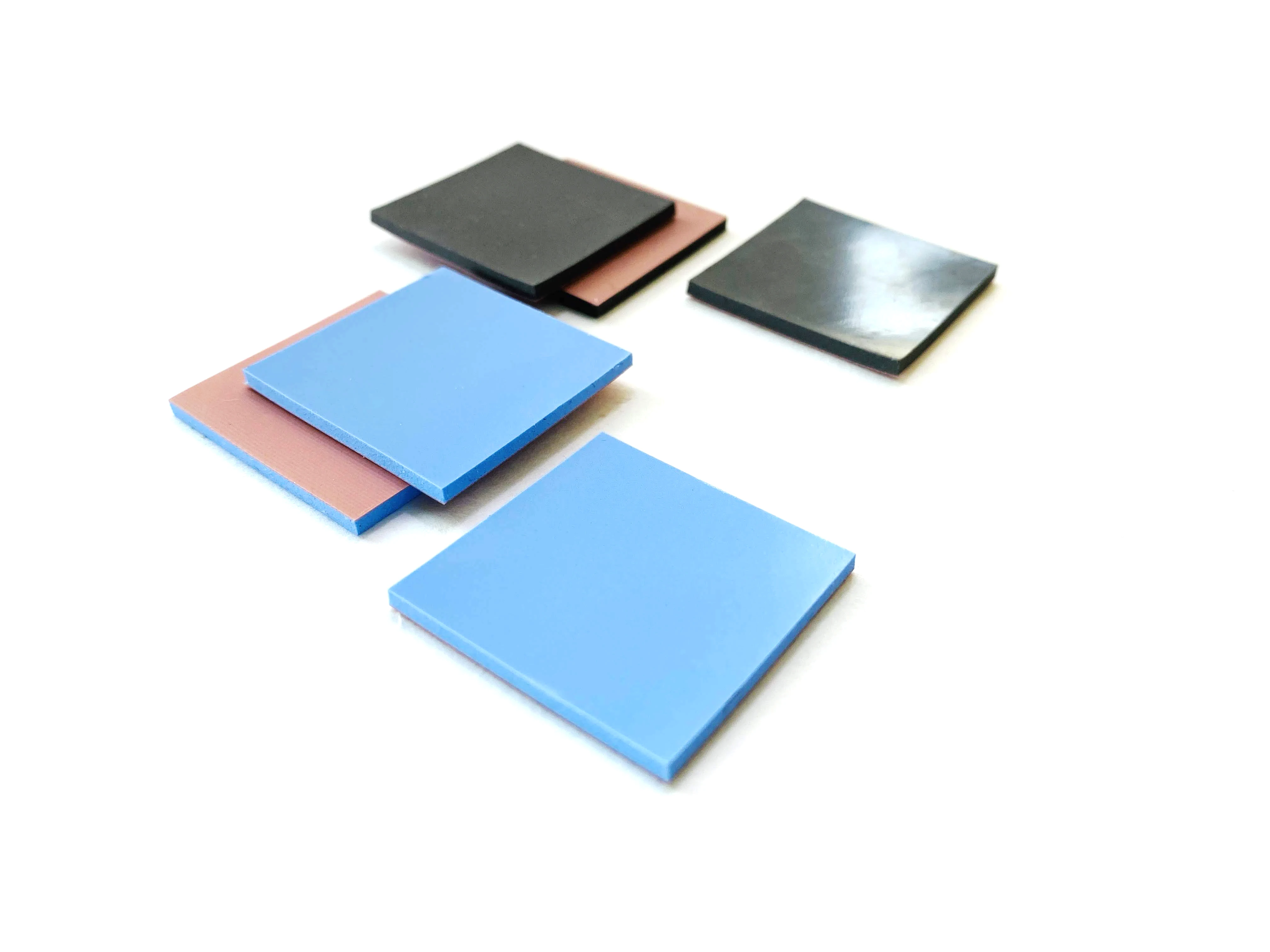

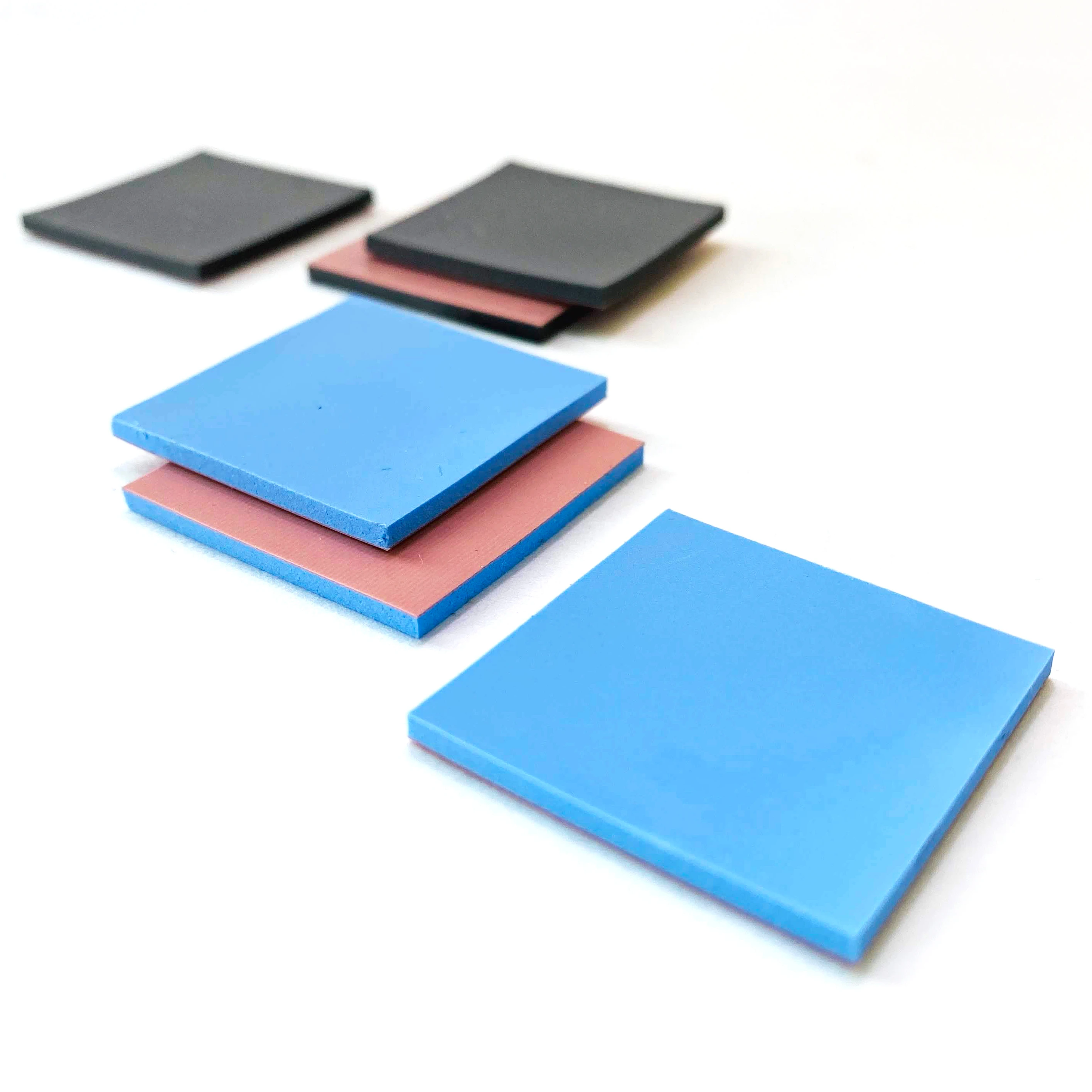

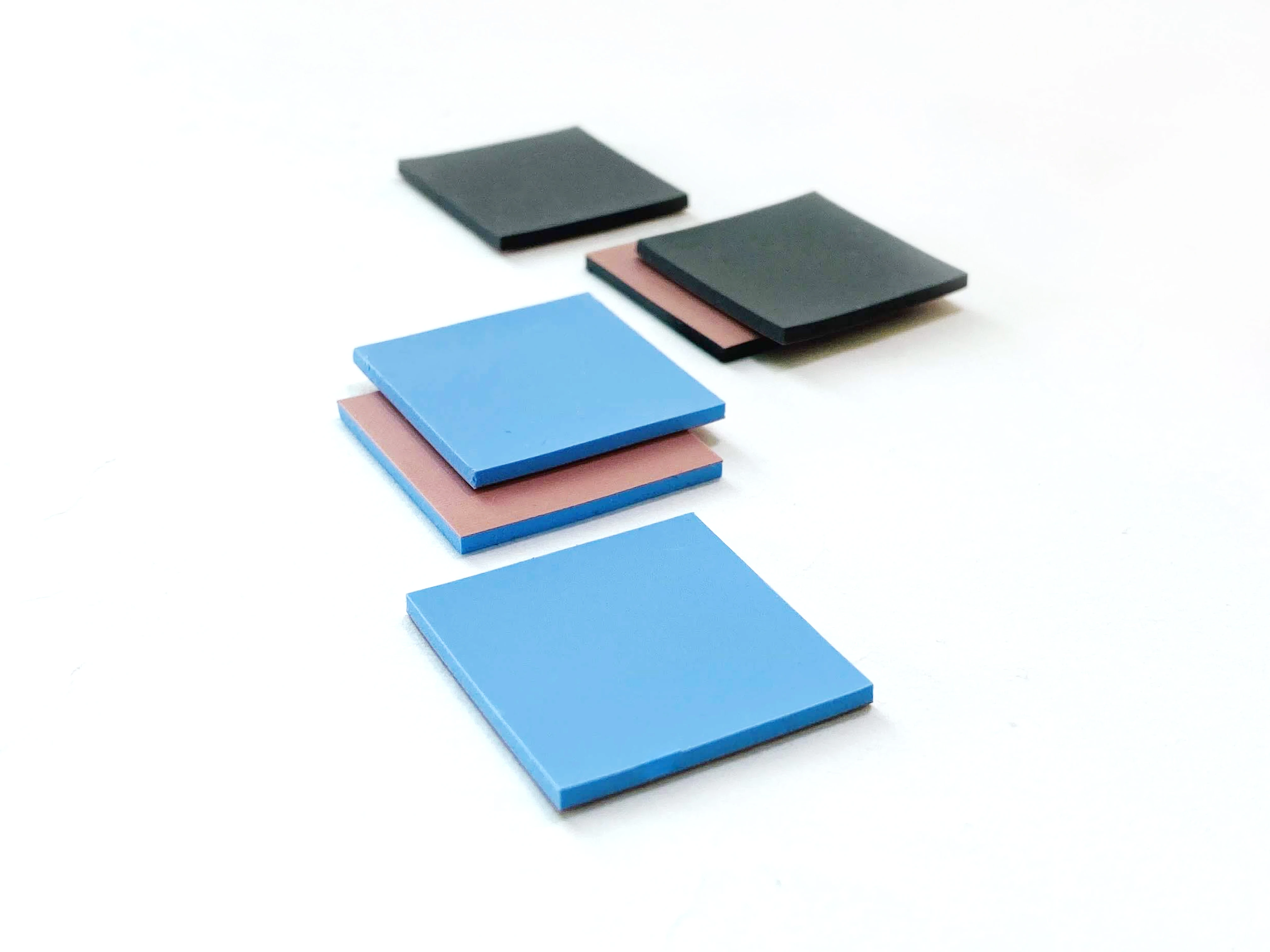

2 w thermal conductive heatsink silicone gap interface pad
- Category: >>>
- Supplier: T-GLOBAL TECHNOLOGY CO. LTD.
Share on (62024600191):
Product Overview
Description
You Deserve the Best
Recommend Products
Which product is more suitable to apply with my design?
Follow the tutorials step by step so layman can choose suitable products easily by yourself!
Finished our brief introduction, you must be itching to choose it!
It's your turn!
TG-A series - Ultra Soft Thermal Pad | ||||||||||
Nature tack. High thermal conductivity. High compressibility and compliancy. | ||||||||||
Model No. | Thermal conductivity | Thickness | Dielectric Breakdown Voltage | Hardness | Color | |||||
2.2 W/mk | 0.5~2.0 mm | 5 KV / mm | 15 Shore 00 | Gray | ||||||
3.5 W/mk | 0.5~8.0 mm | 6 KV / mm | 30 Shore 00 | Yellow | ||||||
4.5 W/mk | 0.5~8.0 mm | 6 KV / mm | 50 Shore 00 | Purple | ||||||
6.2 W/mk | 0.5~8.0 mm | 6 KV / mm | 50 Shore 00 | Blue | ||||||
12.5 W/mk | 0.5~8.0 mm | 6.5 KV / mm | 50 Shore 00 | Green | ||||||
14.5 W/mk | 0.5~2.0 mm | 4 KV / mm | 60 Shore 00 | Red | ||||||
16.6 W/mk | 0.5~2.0 mm | 5 KV / mm | 65 Shore 00 | Dark Gray | ||||||
17.8 W/mk | 0.5~2.0 mm | 4 KV / mm | 65 Shore 00 | Light Gray | ||||||
TG-A series - Fiberglass Mesh Thermal Pad | ||||||||||
Very good thermal conductivity. Fiberglassmesh on one side. Non deforming. Electrical insulation. | ||||||||||
Model No. | Thermal conductivity | Thickness | Dielectric Breakdown Voltage | Hardness | Color | |||||
TG-A3500F | 3.0 W/mk | 0.5~8.0 mm | > 6 KV / mm | 30 Shore 00 | Yellow | |||||
TG-A4500F | 4.0 W/mk | 0.5~8.0 mm | > 6 KV / mm | 50 Shore 00 | Purple | |||||
TG-A6200F | 5.0 W/mk | 0.5~8.0 mm | > 6 KV / mm | 50 Shore 00 | Blue | |||||
TG-AK series - High Performance Thermal Pad | ||||||||||
Great thermal conductivity. Difficult to be deformed. Easy to assemble. | ||||||||||
Model No. | Thermal conductivity | Thickness | Dielectric Breakdown Voltage | Hardness | Color | |||||

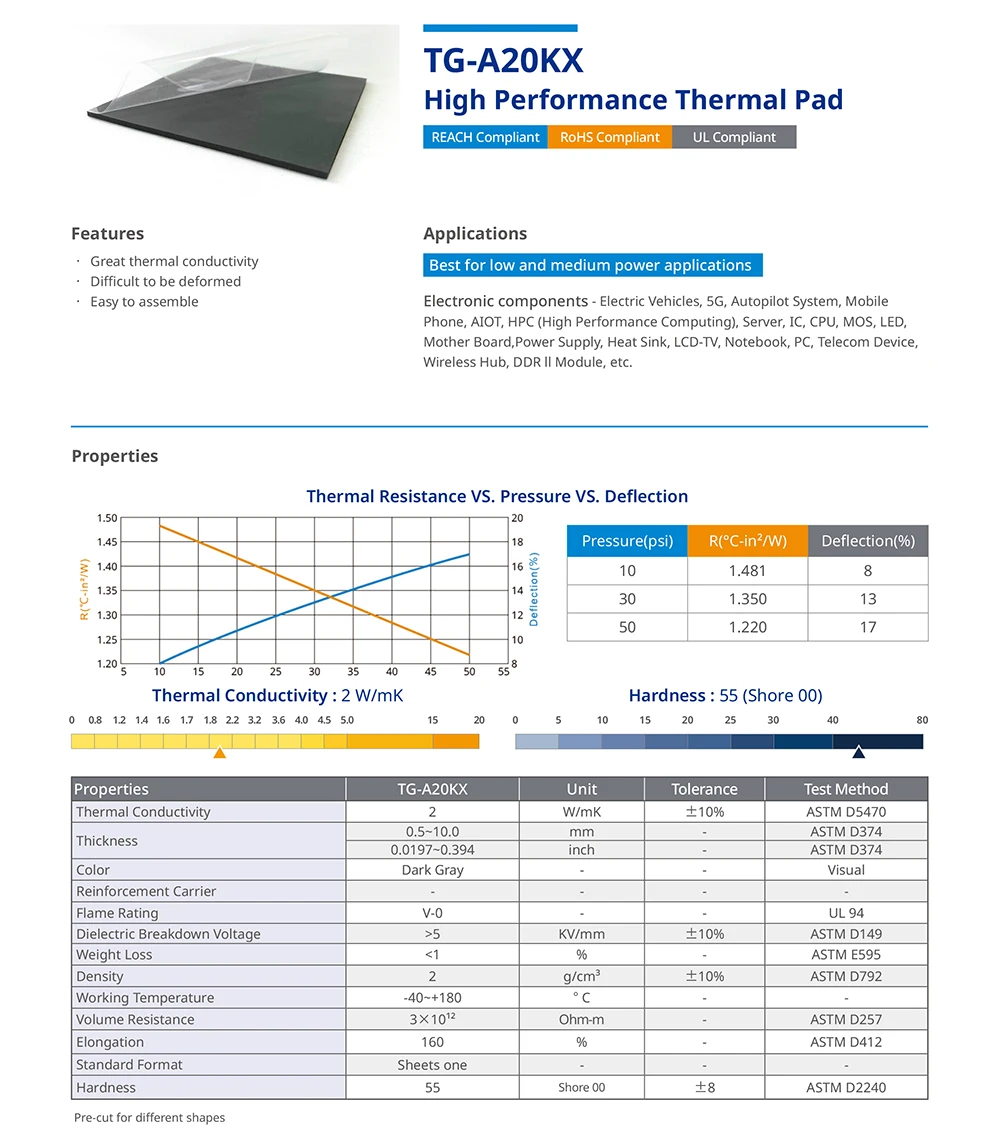

TG-A20KX | 2.0 W/mk | 0.5~2.0 mm | 5 KV / mm | 15 Shore 00 | Dark Gray | |||||
TG-A38KX | 3.8 W/mk | 0.5~8.0 mm | 6 KV / mm | 30 Shore 00 | Blue | |||||
TG-A20KF | 1.8 W/mk | 0.5~8.0 mm | 6 KV / mm | 50 Shore 00 | Dark Gray | |||||
TG-A38KF | 3.3 W/mk | 0.5~8.0 mm | 6 KV / mm | 50 Shore 00 | Blue | |||||
GT series - Thermal Pad | ||||||||||||
Great Smooth surface. Usable over a wide temperature range. Electrical insulation. High breakdown voltage. | ||||||||||||
Model No. | Thermal conductivity | Thickness | Dielectric Breakdown Voltage | Hardness | Color | |||||||
Vac | Vdc | |||||||||||
GT10D | 1.5 W/mk | 0.25 mm | 4 KV / mm | - | 75 Shore A | Pink | ||||||
GT15 | 1.6 W/mk | 0.23 mm | 4.1 KV / mm | 6.1 KV / mm | 75 Shore A | Yellow | ||||||
GT20 | 2.1 W/mk | 0.30 mm | 4.1 KV / mm | 6.1 KV / mm | 70 Shore A | Green | ||||||
GT30 | 3.2 W/mk | 0.35 mm | 3.1 KV / mm | 5.1 KV / mm | 70 Shore A | Pink | ||||||
Thermal Grease | ||||||||||
Good leveling agent. No overflow. Effectively fill gap of the interface. | ||||||||||
Model No. | Thermal conductivity | Color | Working temperature | Standard shape | Volume Resistance | |||||
8 W/mk | Gray | -40 ~ +200 | 1KG | >1013 | ||||||
9 W/mk | Gray | -40 ~ +200 | 1KG | >1013 | ||||||
S606B | 1.9 W/mk | White | -40 ~ +180 | 1KG | >1011 | |||||
5.3 W/mk | Gray | -40 ~ +180 | 1KG | >1012 | ||||||
