Good Quality Semi Automatic Stretching Blow Plastic Bottle Blowing Machine 20 Liter Bottle Blow Molding Machine Pet Blower
- Category: >>>
- Supplier: Taizhou Baoge Machinery Co. Ltd.
Share on (62024607899):
Product Overview
Description
Product Description

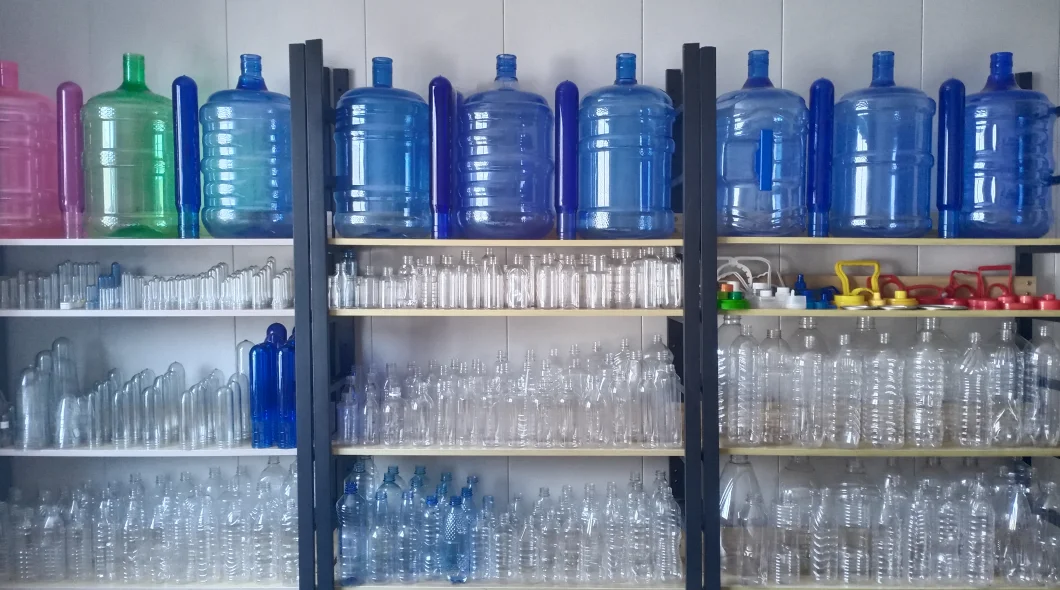

What We Can Blow
Taizhou Baoge can produce various shapes and sizes of plastic bottles and containers, including but not limited to:
- Round Bottles: Fully automatic blow molding machines can produce round bottles in various shapes and sizes, such as water bottles, juice bottles, soda bottles, etc.
- Square Bottles: Fully automatic blow molding machines can also produce square or rectangular bottles, which are commonly used for shipping liquid detergents, cleaning agents, soap solutions, etc.
- Oval Bottles: Fully automatic blow molding machines canproduce oval-shaped bottles, which are commonly used for personal care products such as cosmetics, body washes, shampoos, etc.
- Irregular-Shaped Bottles: In addition to the above shapes, fully automatic blow molding machines can also produce bottles withunique shapes, such as flat bottles, triangular bottles, hexagonal bottles, etc.
In reality, we can produce many different shapes and sizes of bottles, depending on its design and configuration.If you have any questions, please contact us.
- Round Bottles: Fully automatic blow molding machines can produce round bottles in various shapes and sizes, such as water bottles, juice bottles, soda bottles, etc.
- Square Bottles: Fully automatic blow molding machines can also produce square or rectangular bottles, which are commonly used for shipping liquid detergents, cleaning agents, soap solutions, etc.
- Oval Bottles: Fully automatic blow molding machines canproduce oval-shaped bottles, which are commonly used for personal care products such as cosmetics, body washes, shampoos, etc.
- Irregular-Shaped Bottles: In addition to the above shapes, fully automatic blow molding machines can also produce bottles withunique shapes, such as flat bottles, triangular bottles, hexagonal bottles, etc.
In reality, we can produce many different shapes and sizes of bottles, depending on its design and configuration.If you have any questions, please contact us.
Model | BG-2000A Hot Sale 350ML 600ML 750ML1000ML Semi Automatic One Cavity Blowing Machine Auto Blow Moulding Machine Mini Pet Blowing Machine | ||
Theoretical output | 1800-2200 pcs/h | ||
Max. bottle volume | 1.5 Liters | ||
Max. neck diameter | 38 mm | ||
Max. bottle diameter | 110 mm | ||
Max. bottle height | 350 mm | ||
Cavity | 4 cavity | ||
Mold thickness | 110mm-160mm | ||
Open stroke | 320 mm | ||
Power voltage | 380v/3Phase/50HZ | ||
Installation power | 28 kw | ||
Actual power consumption | 13 kw | ||
Air source | Recommend air compressor | 1.2m³/min 30Kg | |
Cooling water | Recommend water chiller | 3HP | |
Blower size | Length*width* height/weight | 1600*800* 1850(MM) / 1200 kg | |
Oven size | Length*width* height/weight | 2260*560* 1480mm(MM) / 300 kg | |
Details Images

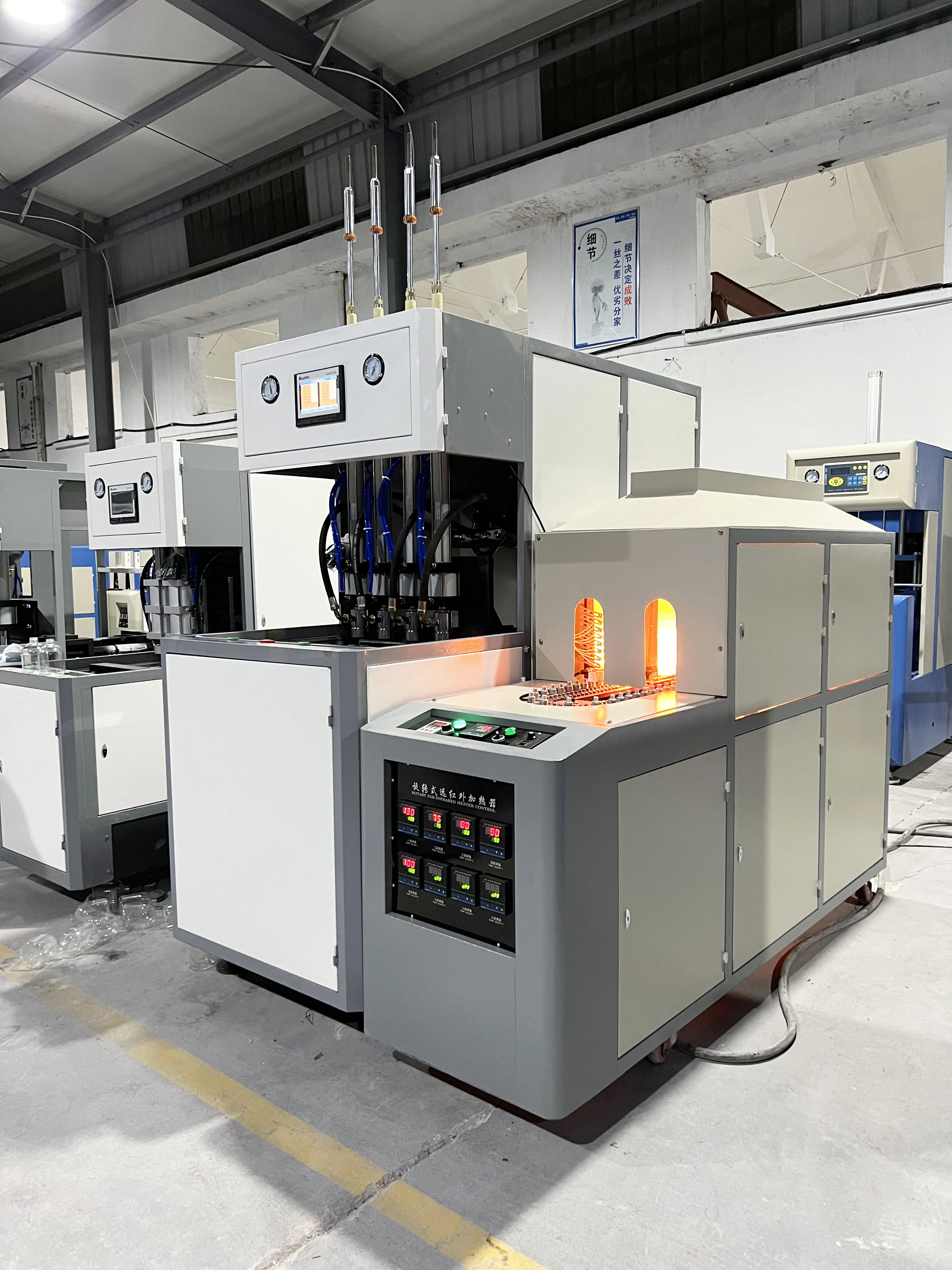

•Adopting double crank to adjust mould , heavy locking mould, stable and fast , Adopt infrared oven to heat the perforrm,the perform rotated and heated equally.
•The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
•The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the
machine.

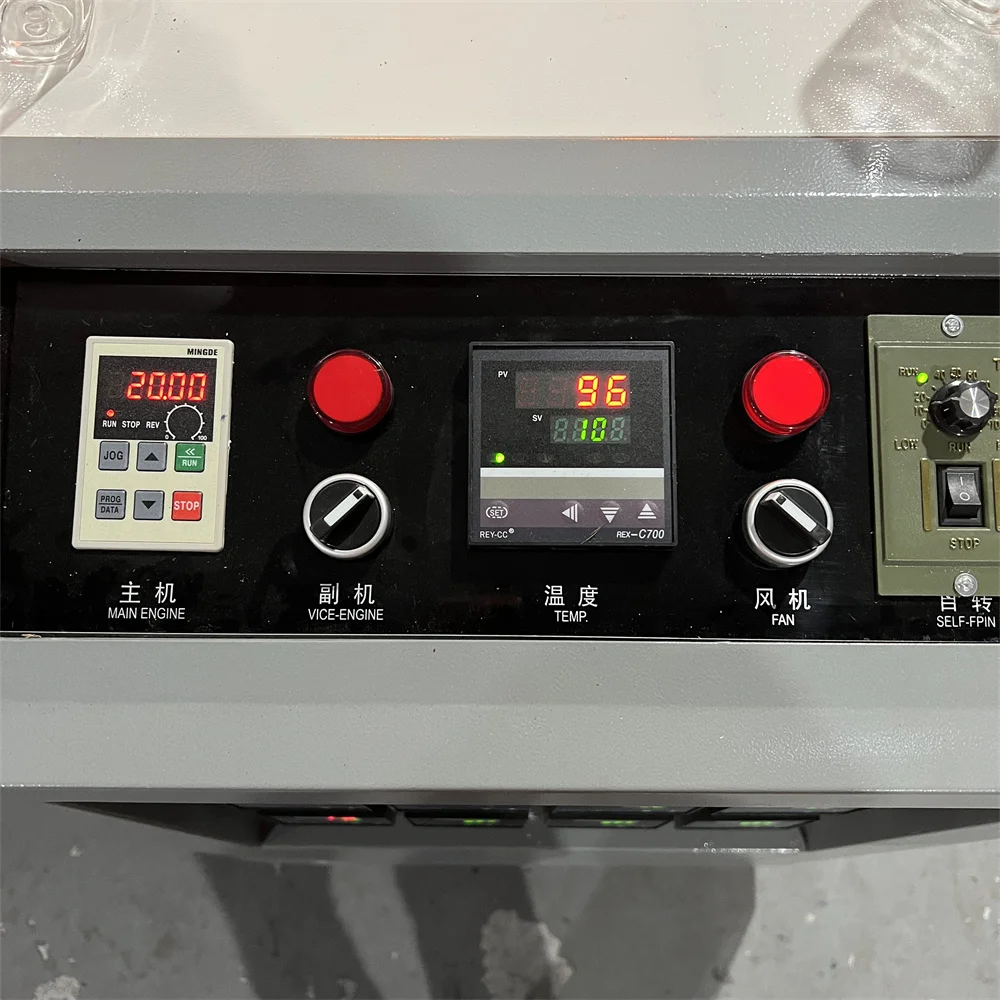

•The machine can be operated in the step-by-step mode and the semi-auto mode.
•The machine is small with low investment, easy and safe to operate.
•The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
•The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the
machine.
•The machine can be operated in the step-by-step mode and the semi-auto mode.
•The machine is small with low investment, easy and safe to operate.

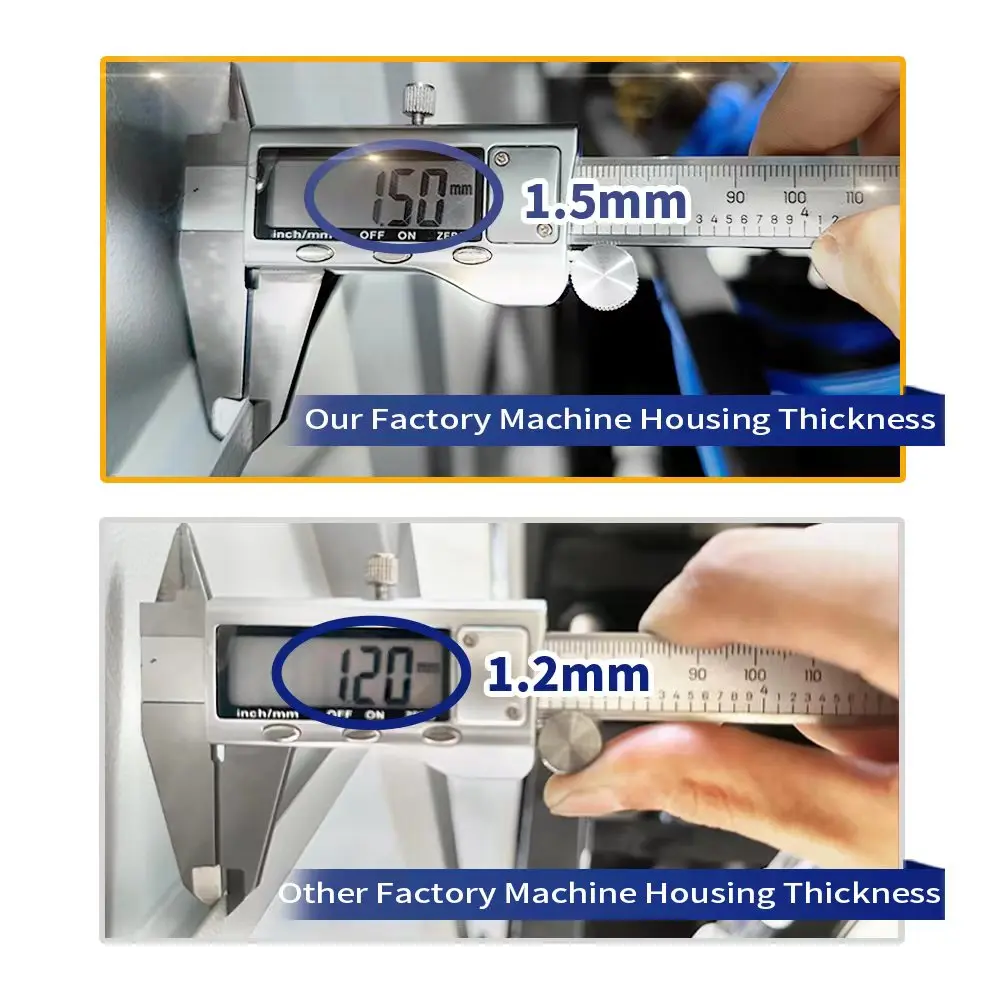

•The shell of our machine is made of 1.5mm thick stainless steel, which will not be damaged during transportation or long-term use by customers.

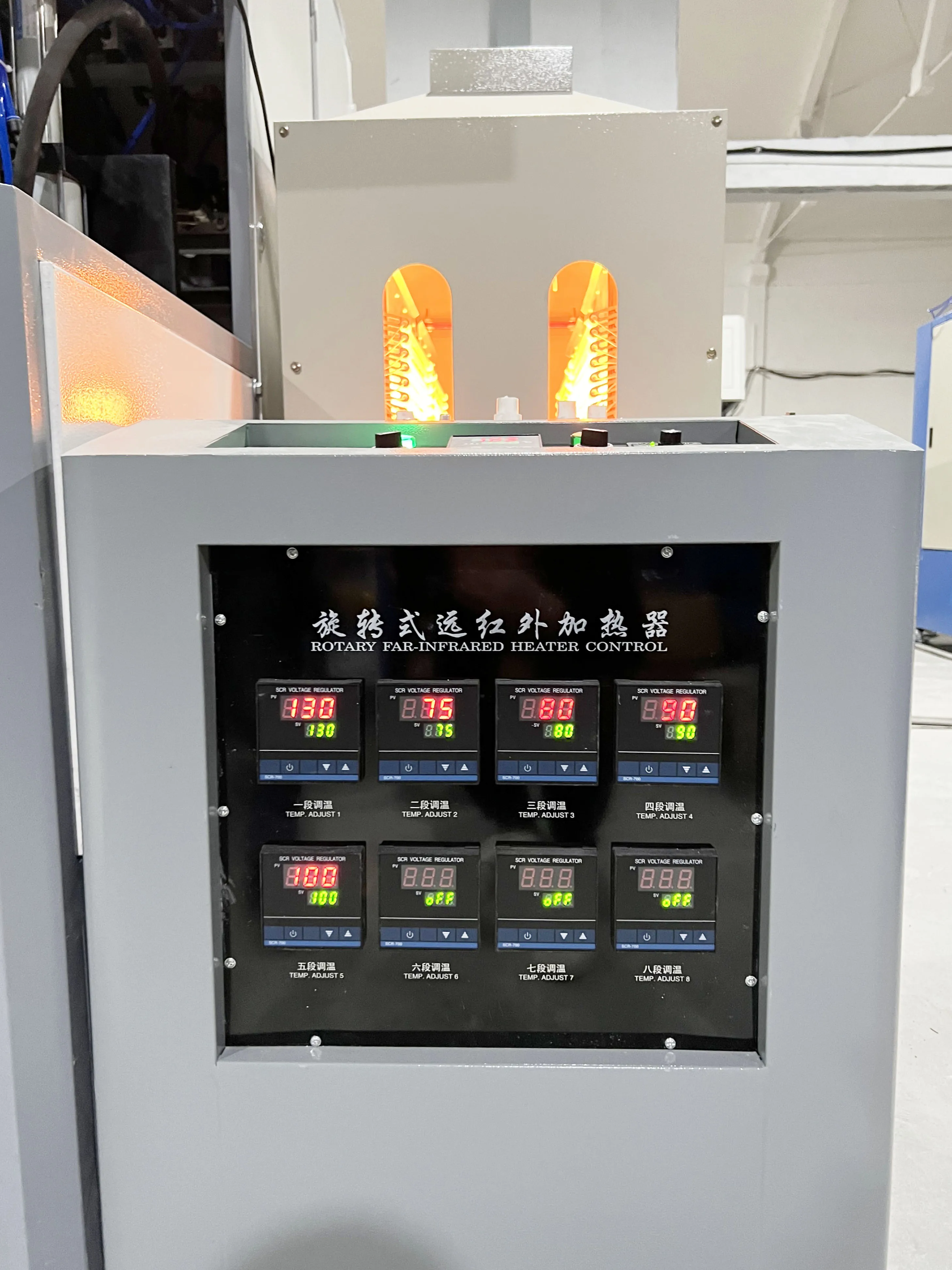

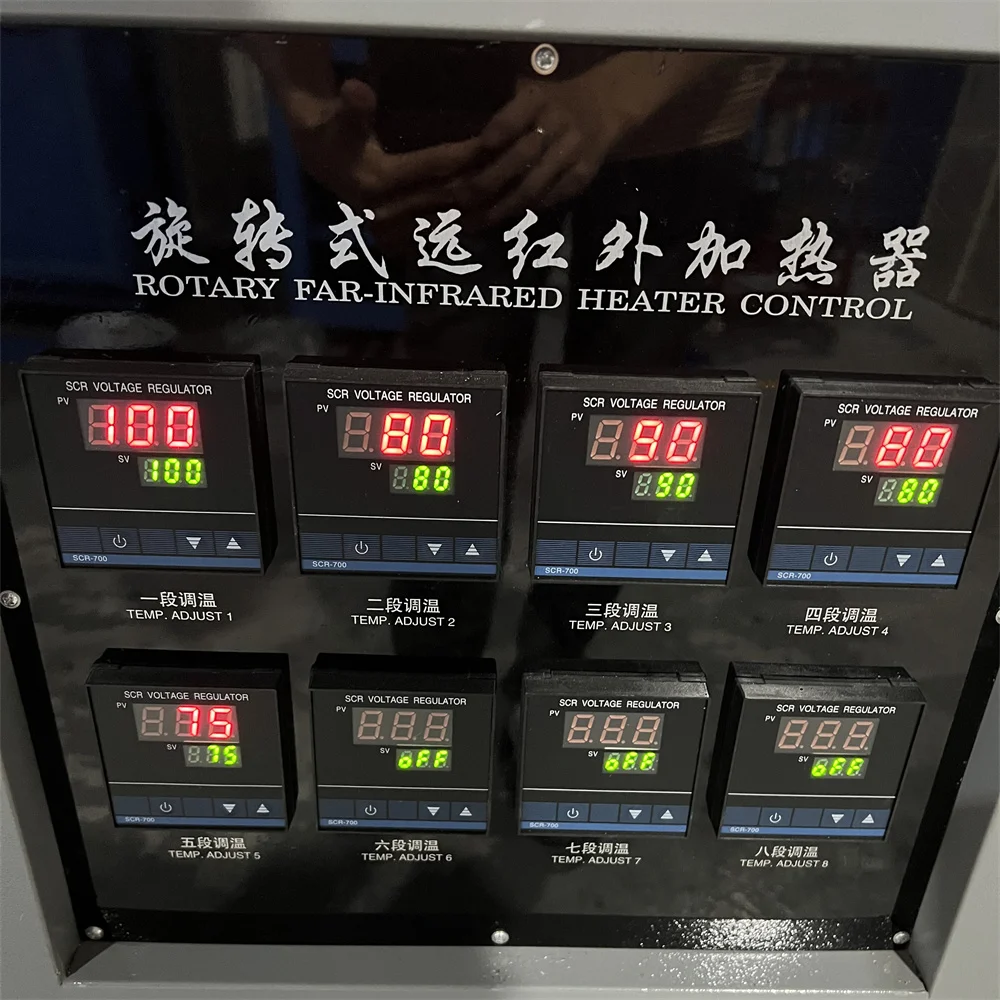

•We using high efficiency infrared lamps, evenly heating preform, to make sure every section of preform.
•The power saving lamp help you save up to 30% energy.
•The power saving lamp help you save up to 30% energy.
•Blowing Mold, good and durable material.

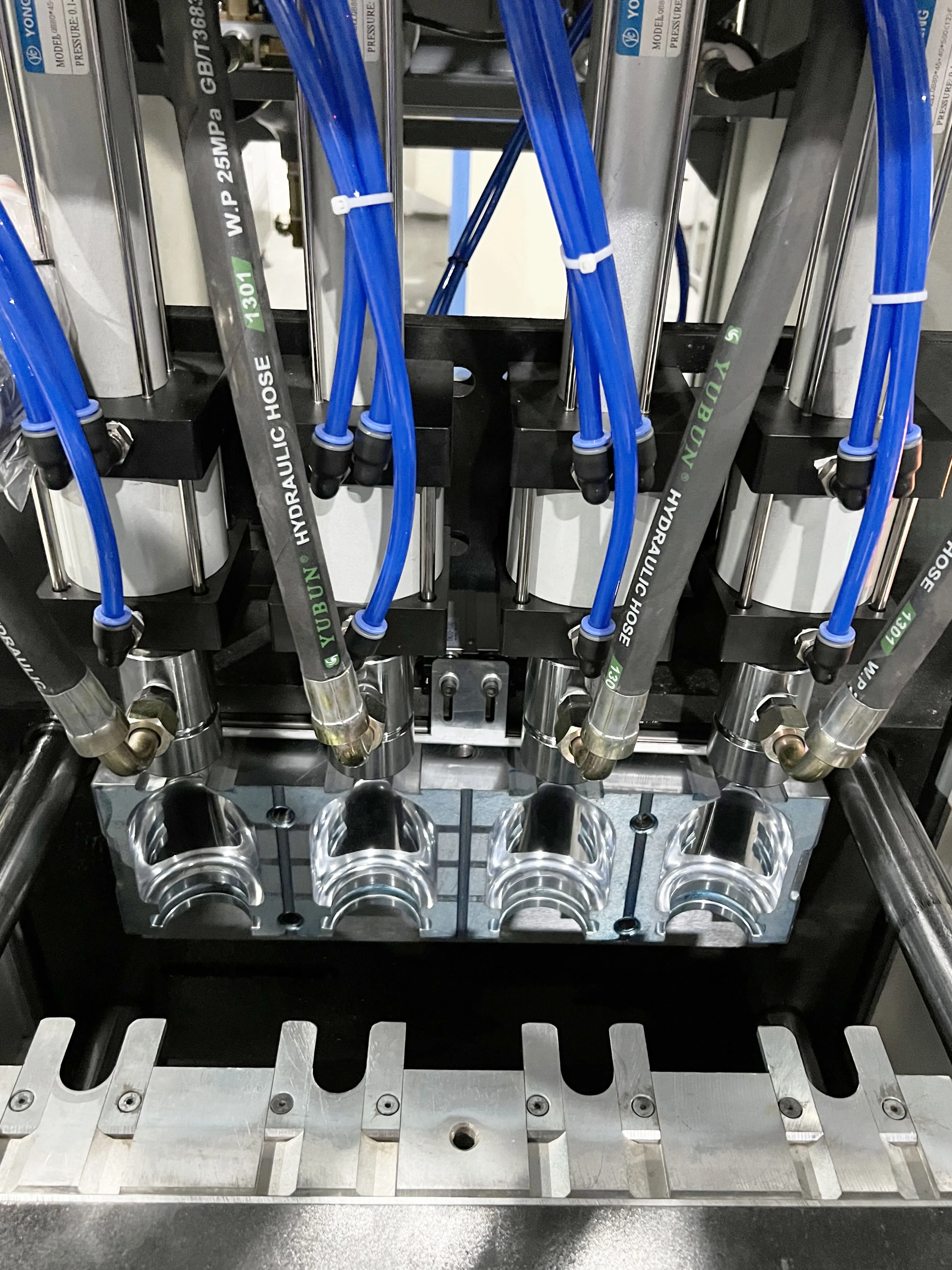

•The high pressure blowing cylinder, we choose high capacity cylinder, stable working for any size of customer botttle type durable use and more powerful.
•The high pressure blowing cylinder, we choose high capacity cylinder, stable working for any size of customer botttle type durable use and more powerful.
Taizhou Baoge Service
Bottle Design.
Our designers can design bottle styles according to your requirements.
Machine Layout.
We will confirm the machine layout according to your factory.
Sample Project.
We can provide a sample project for you to visit.

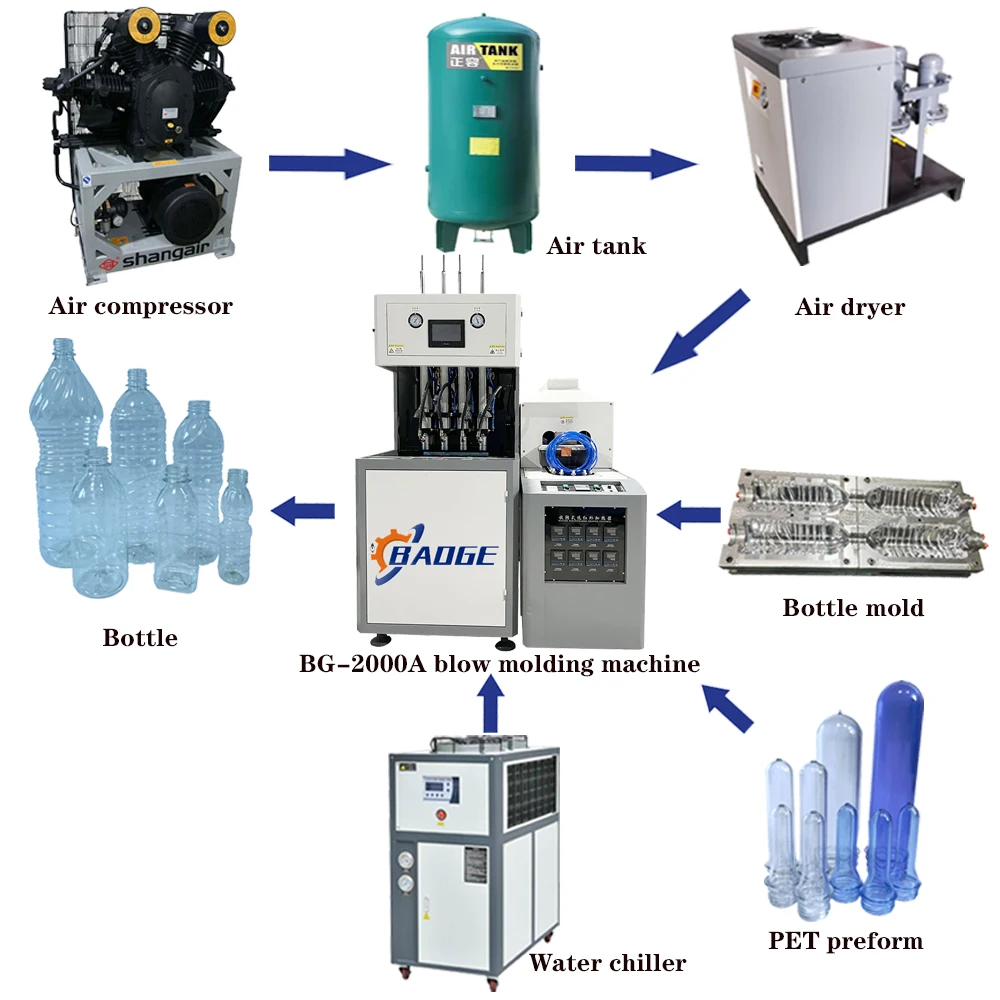

Complete device connection drawing
Auxiliary equipment description
*High Pressure Air Compressor Function: To provide air source for PET stretch blow moding machine,carrying out the process of compressing air from atmosphere to the required pressure.
*Air Cooling Dryer Function:To remove the moisture from the compressed air and lower temperature of the compressed air in the heat ex-changer.
*Air filter Function: To clear up the impurities out of the compressed air,like carbon hydrogen, tiny dust and solid particles.
*High Pressure Air Compressor Function: To provide air source for PET stretch blow moding machine,carrying out the process of compressing air from atmosphere to the required pressure.
*Air Cooling Dryer Function:To remove the moisture from the compressed air and lower temperature of the compressed air in the heat ex-changer.
*Air filter Function: To clear up the impurities out of the compressed air,like carbon hydrogen, tiny dust and solid particles.
Hot Products

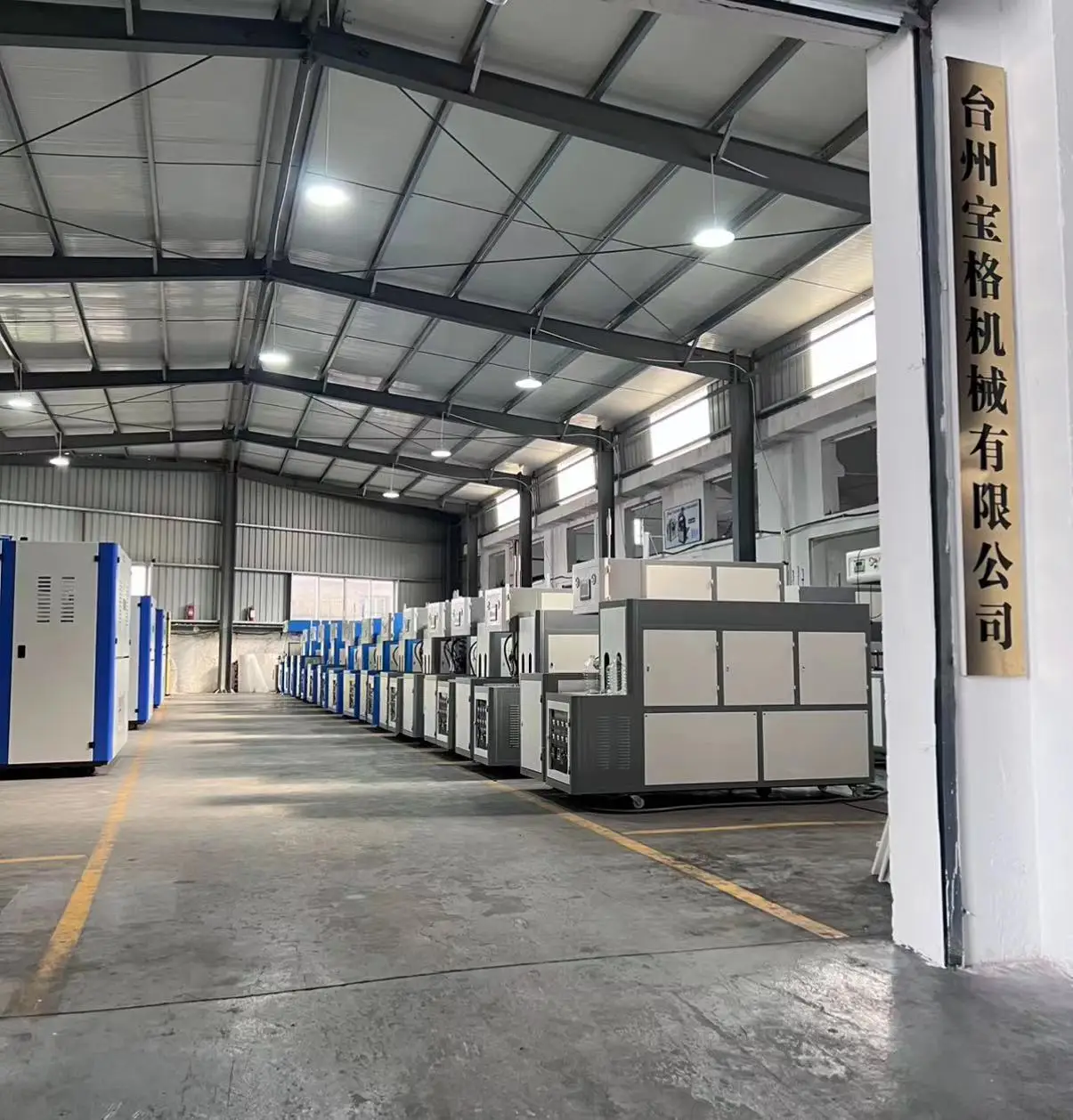

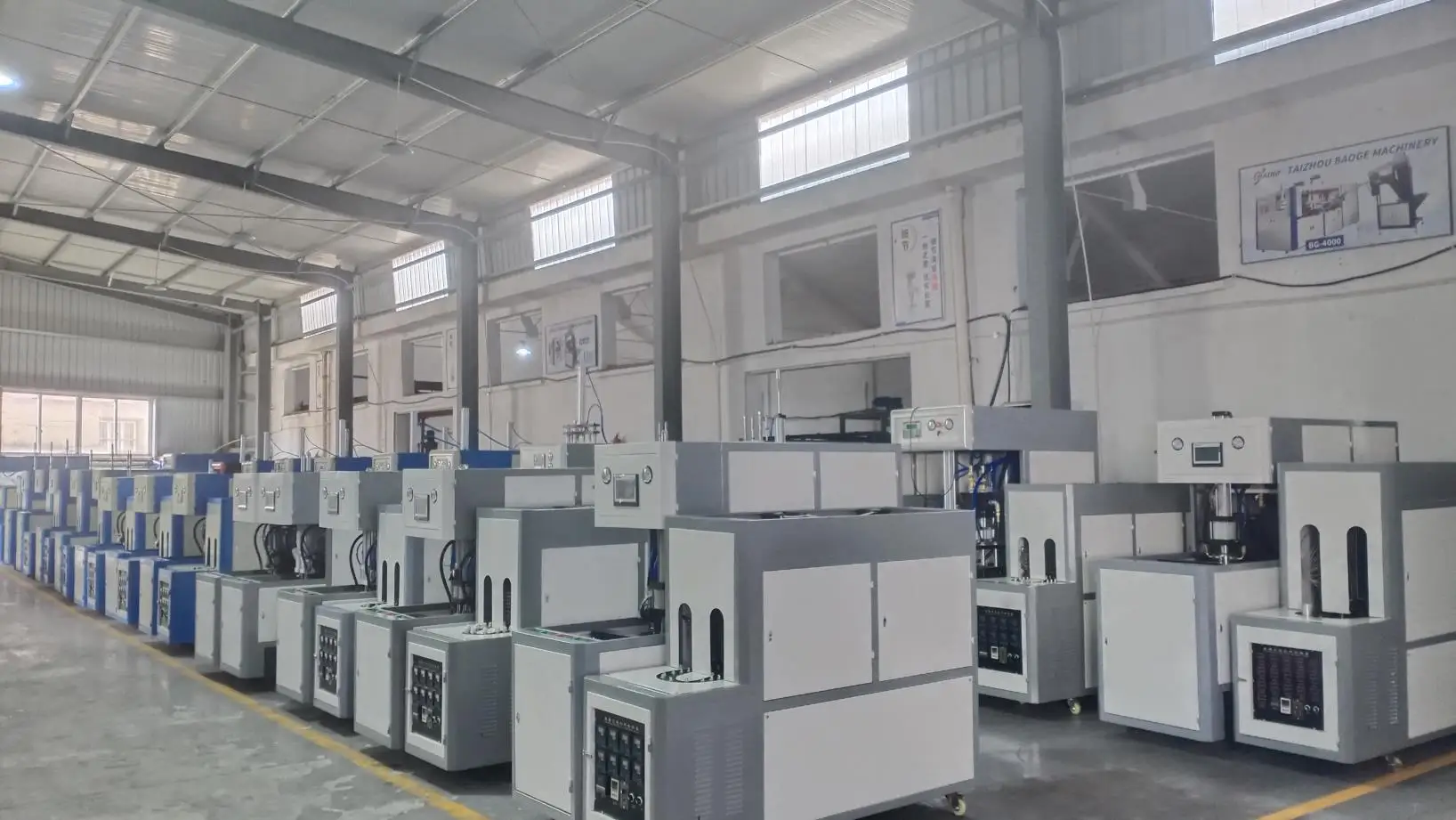

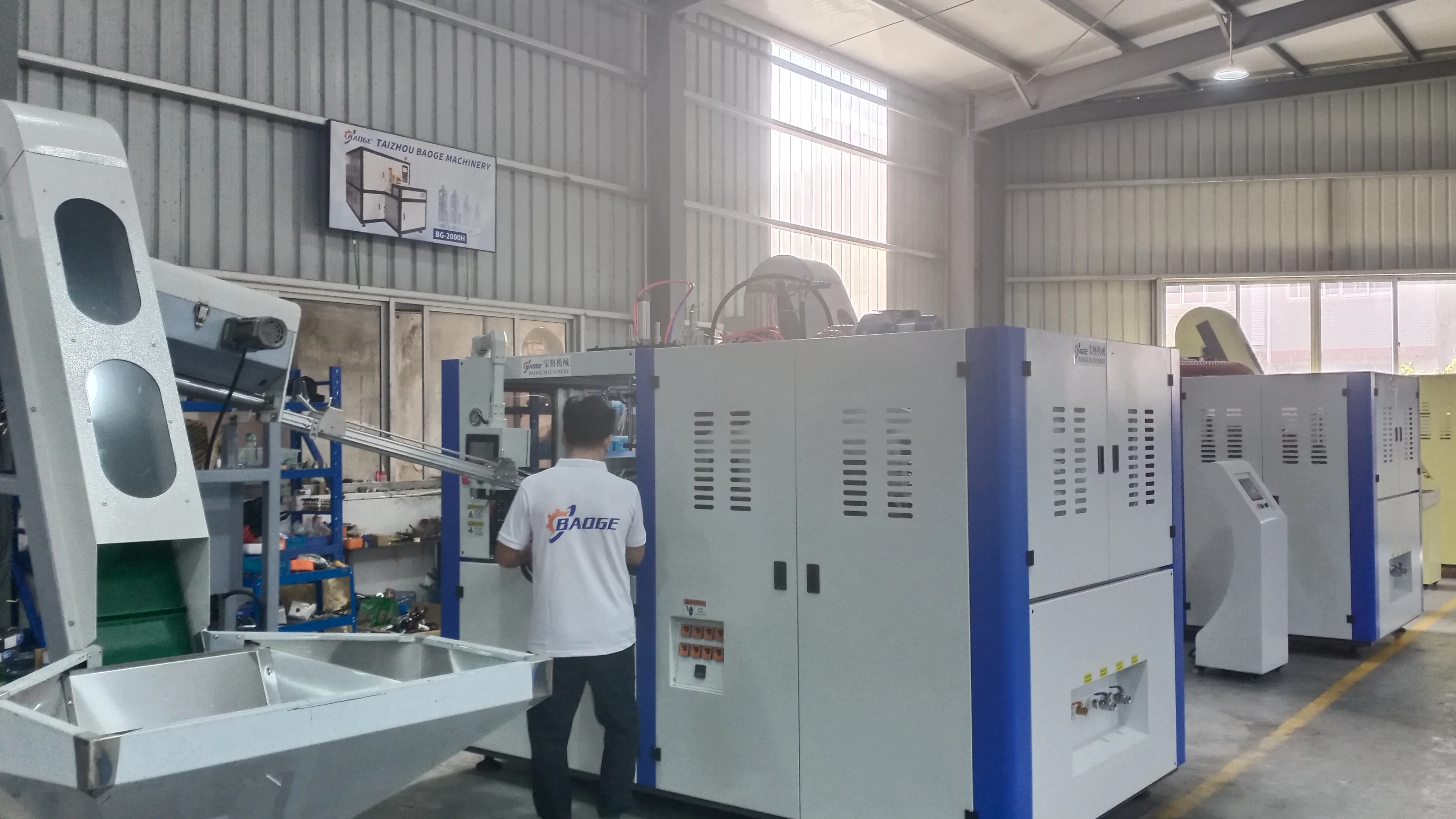

Company Profile

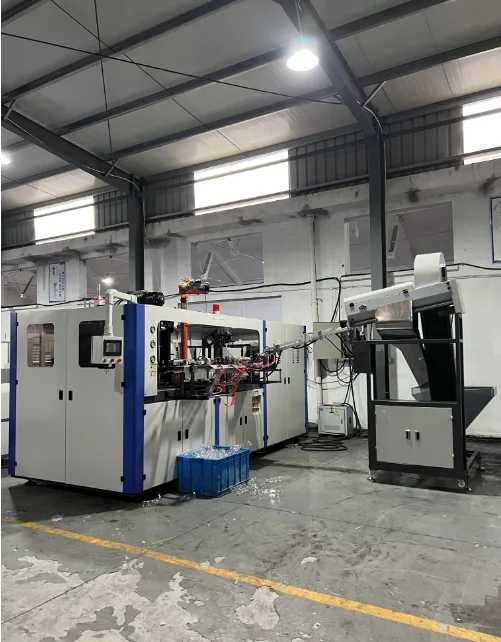

Taizhou Baoge Machinery Co.,Ltd is founded in 2017, located in Taizhou city, only120 KM away from Ningbo pot .We are a professional manufacturer of PET bottle blowing machines and plastic molds. etc..suitable for 50ml-20L plastic bottles,water bottles, carbonated beverage bottles, oil bottles,cosmetics bottles. We can equip machine from 1-10 cavity, output from hundreds bottles to 10000 bottles/hour. Welcome to inquire...

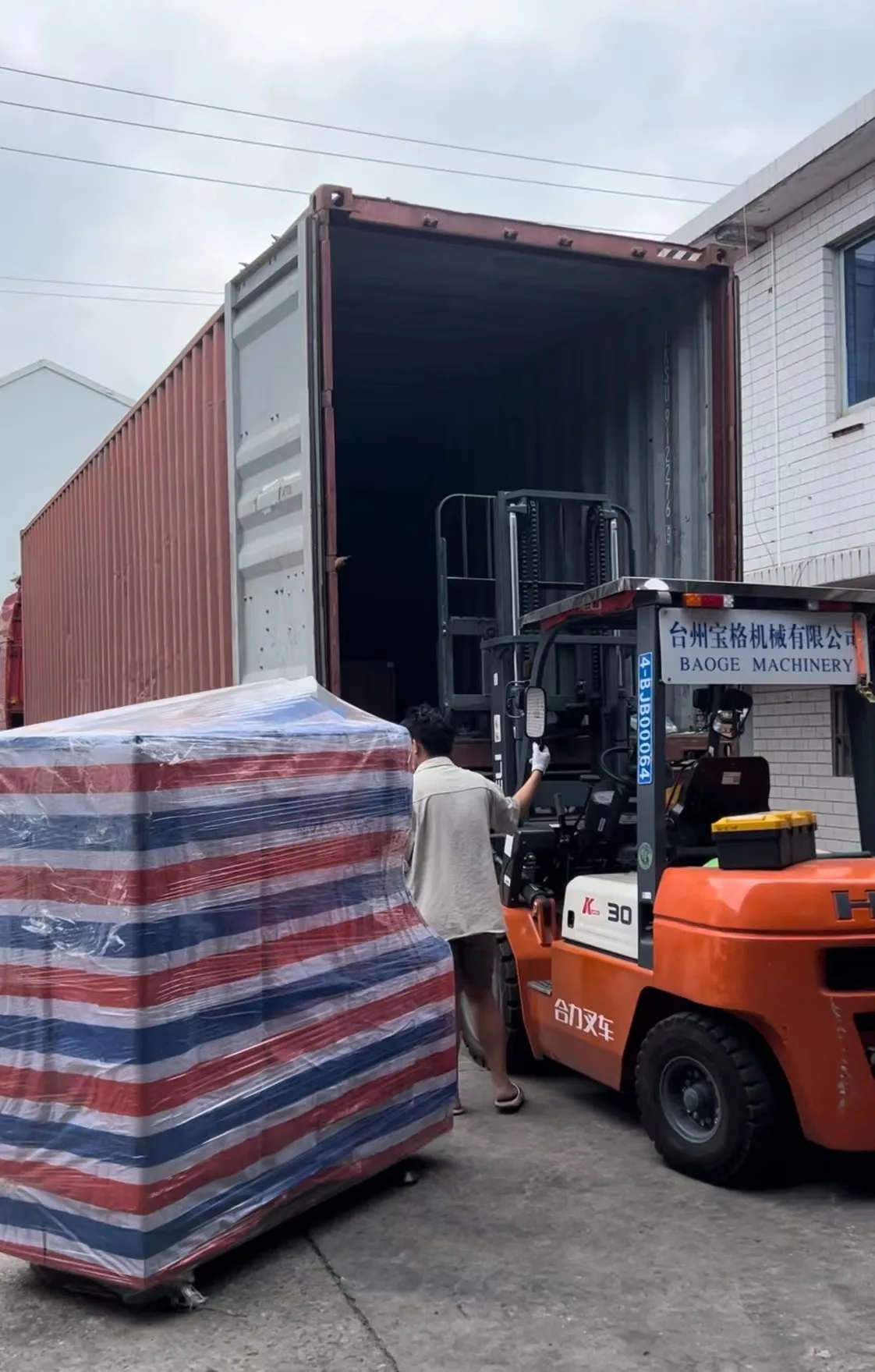

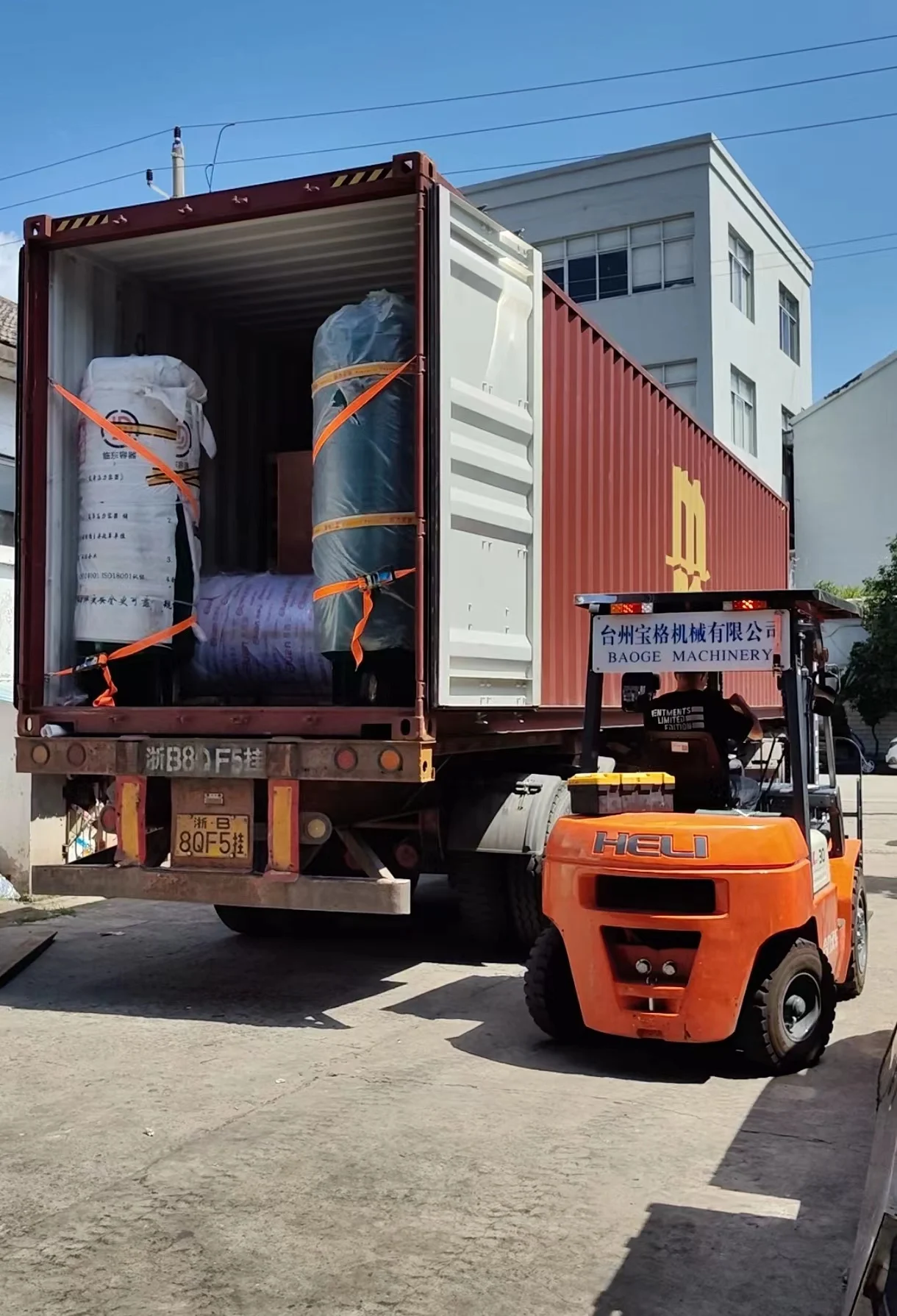

Packing and Delivery
ABOUT TRANSPORTATION.
●We are located in Taizhou Zhejiang Province, 1 hour by train from Ningbo to Taizhou train Station,2 hours by plane from Guangzhou to Taizhou airport, 3 hours by train from Shanghai to Taizhou train station.
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
● If we can fullfill your request and you interested in our products, you may pay a visit to Baoge Machine site.
● The meaning of visiting supplier, because seeing is believing, Baoge Machine with own manufacture and developed& research team,we can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
● By letter of credit, you can lock the delivery time easily.
● After the factory visit, You can ensure the facticity of our bank account.
SEE BAOGE MACHINE HOW TO ENSURE THE QUALITY!

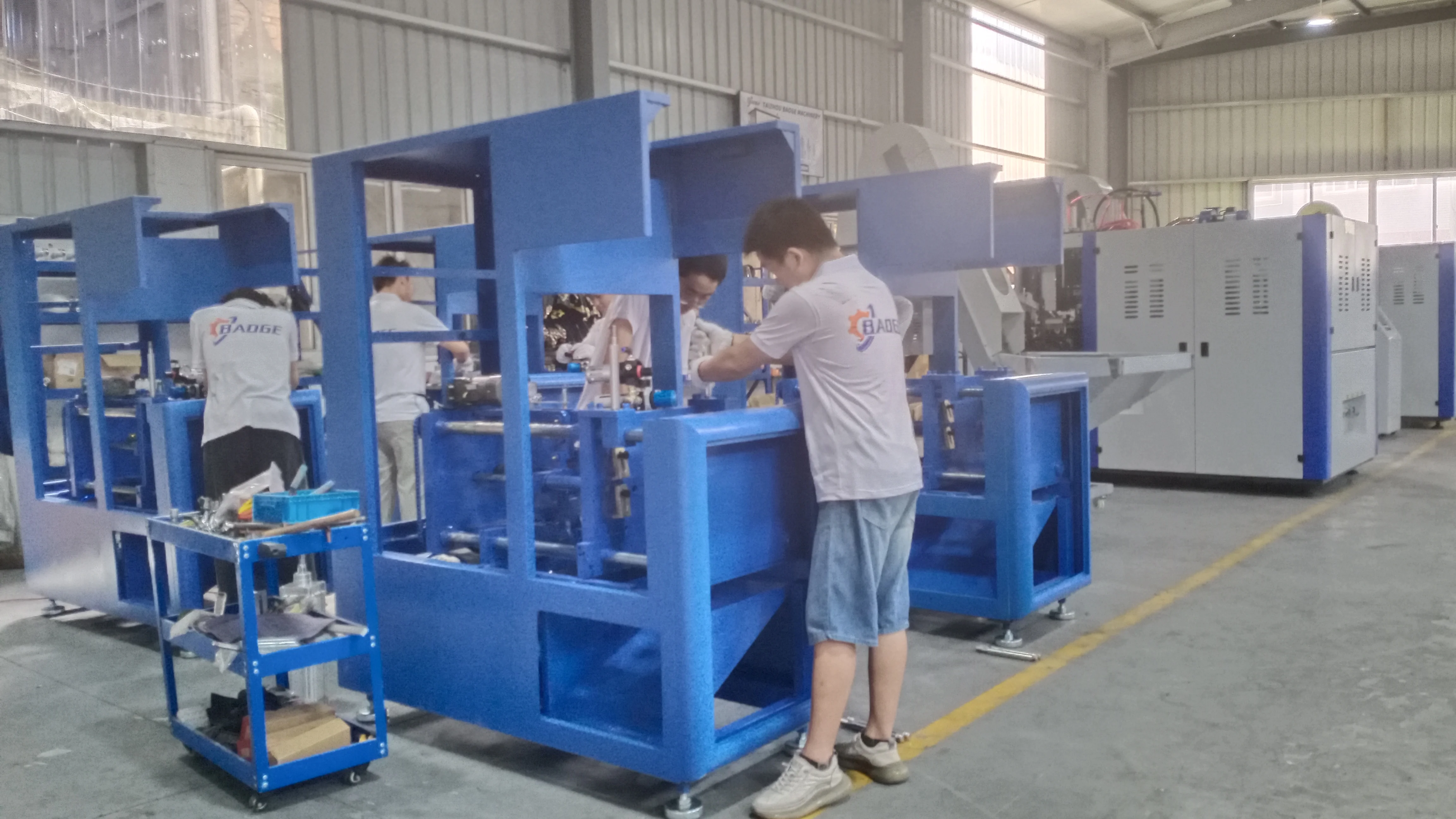

● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years.
●After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
THE AFTER-SALE SERVICE OF BAOGE MACHINE!
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail orinstant tools.

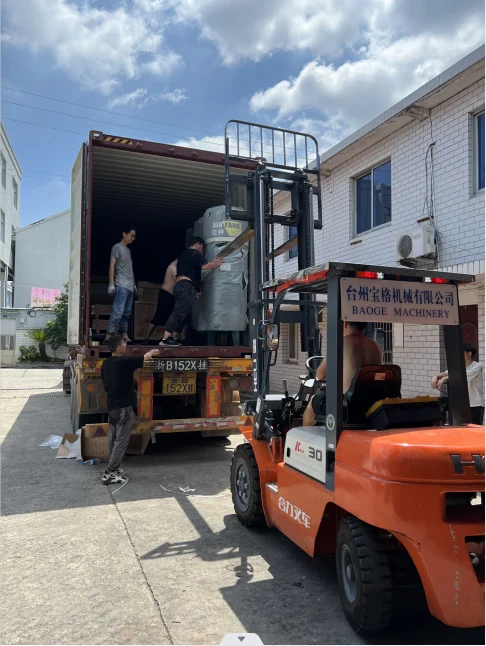

● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
●We are located in Taizhou Zhejiang Province, 1 hour by train from Ningbo to Taizhou train Station,2 hours by plane from Guangzhou to Taizhou airport, 3 hours by train from Shanghai to Taizhou train station.
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
● If we can fullfill your request and you interested in our products, you may pay a visit to Baoge Machine site.
● The meaning of visiting supplier, because seeing is believing, Baoge Machine with own manufacture and developed& research team,we can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
● By letter of credit, you can lock the delivery time easily.
● After the factory visit, You can ensure the facticity of our bank account.
SEE BAOGE MACHINE HOW TO ENSURE THE QUALITY!
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years.
●After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
THE AFTER-SALE SERVICE OF BAOGE MACHINE!
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail orinstant tools.
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
