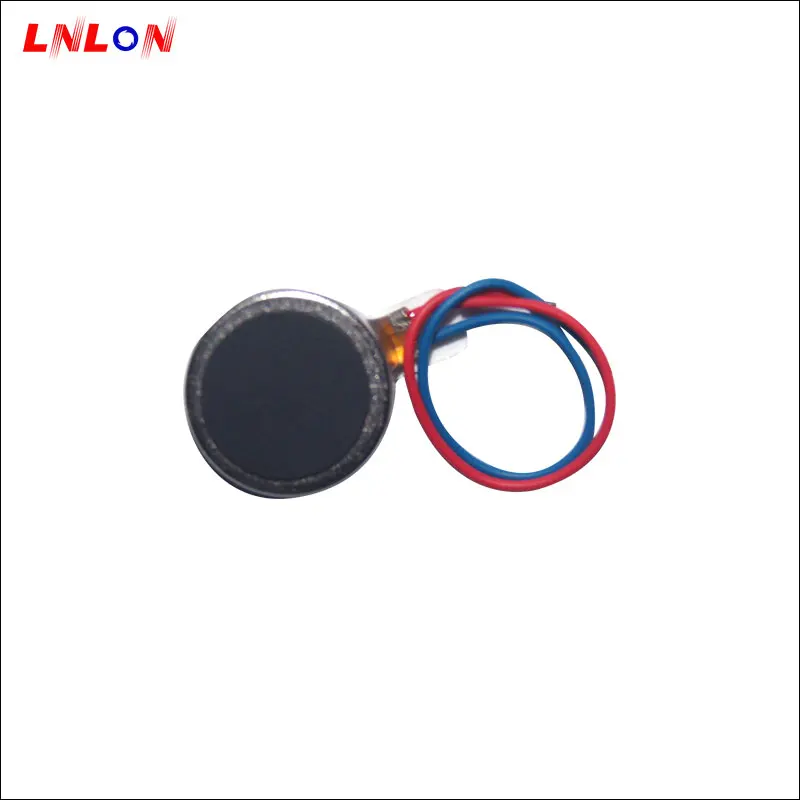

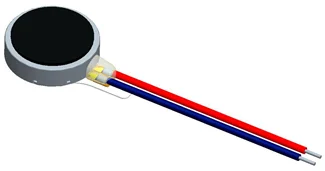

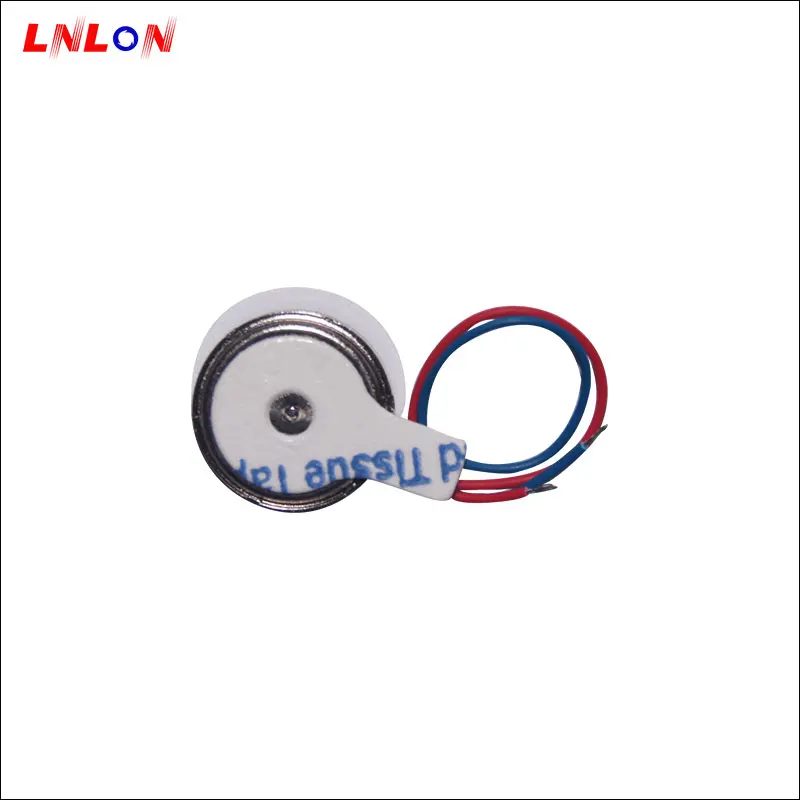

8mm 0820 3v dc brush mini vibration motor for smart watch and wearable device
Product Description:

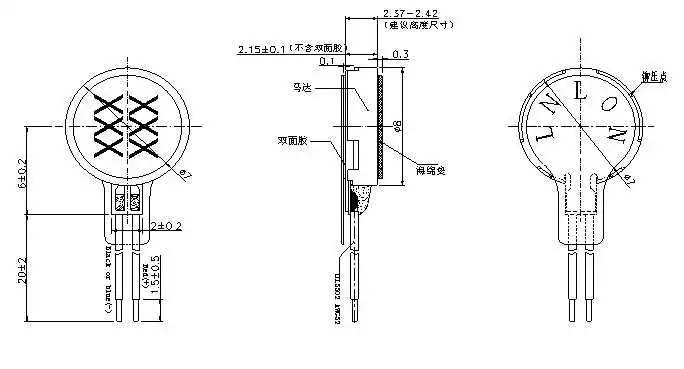

model | C0820L-066332017-2001 |
size | Φ8*2.15mm |
voltage | 3.0V |
speed | 10000 rpm Min |
current | 85 mA Max |
G force | 0.6G |
response time | about 80mS |
life | 3.0V,2S on,2S off,50,000 cycles |

Major Customers:
Huawei, OPPO, vivo, Lenovo, MOTO, Transsion...
Certification:
ISO9001, ISO14001, GBT 28001,QC080000, RoHS
Application:
phone, wearable device, watch, brachet, smart glasses, massager, cosmetic, electronic cigarette, eyelash device, etc
About Us:
Chongqing Linglong Electronic Co., Ltd. is engaged in the development, manufacturing and marketing of micro motors with more than 10 years’ experience. We specialize in manufacturing micro motors of φ3.0mm, 3.2mm, φ8mm, φ10mm in bar, coin, ,and SMT type, also new linear and gear motor, with an annual output of 0.15
billion units and above.
Linglong has its own independent team for R&D of motor and automation equipment, which enhance to
develop new product and lower cost. Also the mature and advanced production lines guarantee large capacityand good quality.
Our company has built a complete system for process, management and service. That have lain a foundation
for Linglong to develop from a uprising star to a leader within the industry.

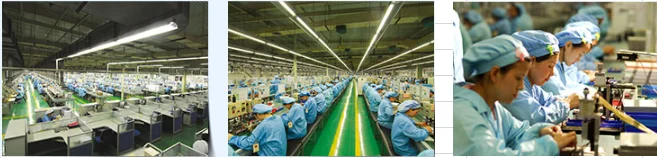

Workshop and Equipment:


For more mini vibration motors, please contact us.
