TiMOTION TGM2 24V DC Ergonomic Gear Motor
TiMOTION TGM2 24V DC Ergonomic Gear Motor

TiMOTION TGM2 24V DC Ergonomic Gear Motor

Share on (62024641109):


Price:

Quantity:


Product Overview

Description



The TGM2 series is TiMOTION’s most powerful gear motor. It was designed primarily for ergonomic applications like height adjustable workstations and tables, but can be used in many other applications. This economical product allows for fast, smooth and quiet adjustment of built-in spindles through the use of external limit switches. Shafting allows for the mechanical synchronization of dual spindles.


General Features




  • Voltage of motor: 24V DC, thermal protector




  • Maximum speed at full load: 51RPM (±5%) after gear reduction




  • Maximum rated torque: 18.3Nm




  • Operational temperature range at full performance: +5°C~+45°C




  • Option: Hall sensors




  • Hexagon hole for the shaft by 9mm diameter




  • Low noise

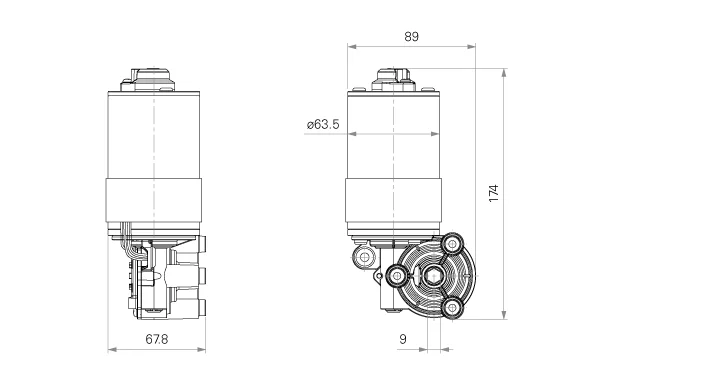

Standard Dimension (mm)

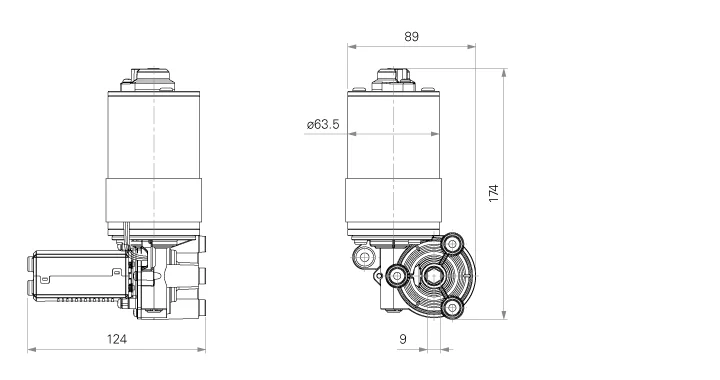

Without TES2



With TES2
