Small 3.4 inch 800*800 mipi dsi interface mini shape wearable small tft round ips lcd display
- Category: >>>
- Supplier: Shenzhen Aptus Technology Co. Ltd
Share on (62024678745):
Product Overview
Description
Product Description
super 3.4 inch 800*800 thin mipi dsi interface small tft round ips lcd display

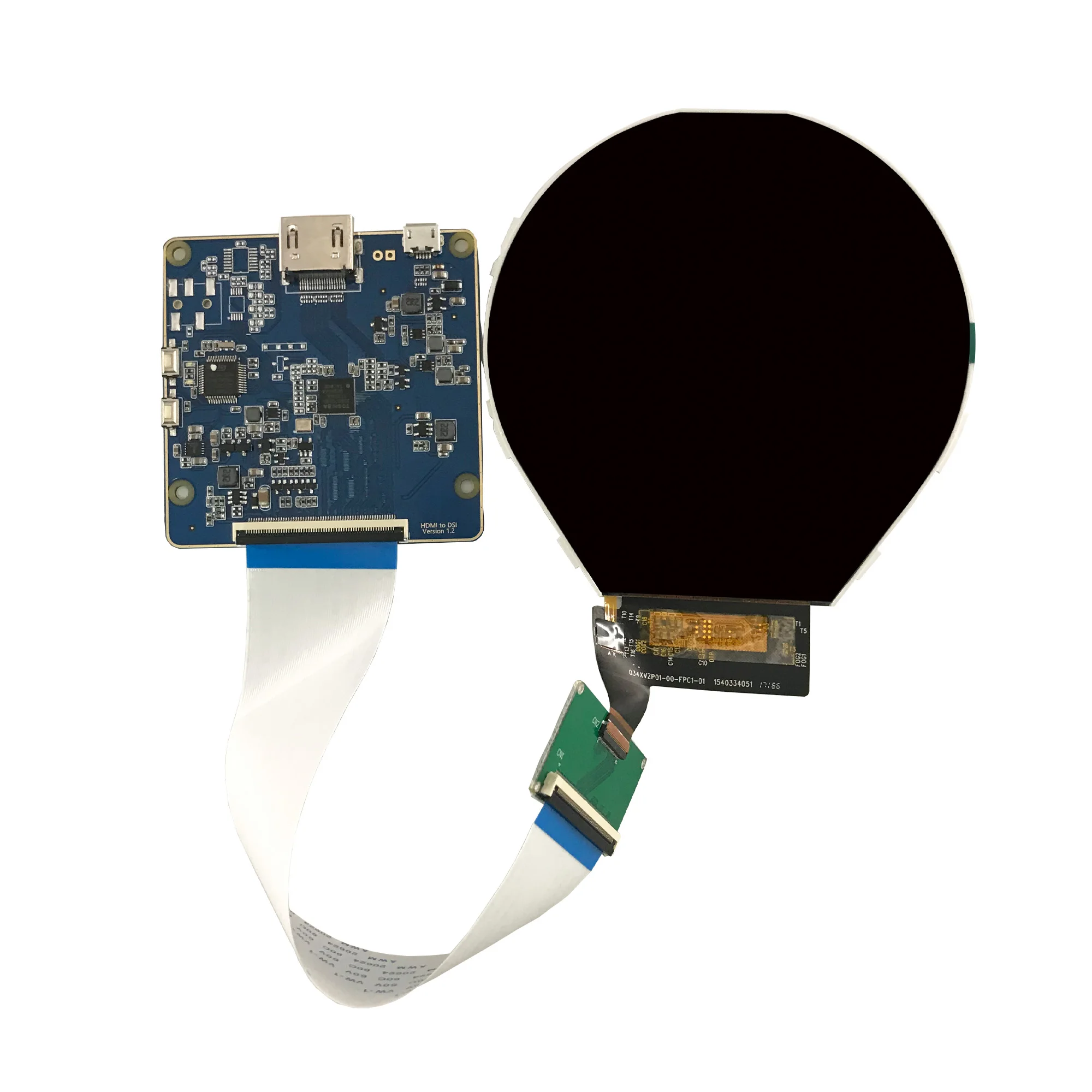

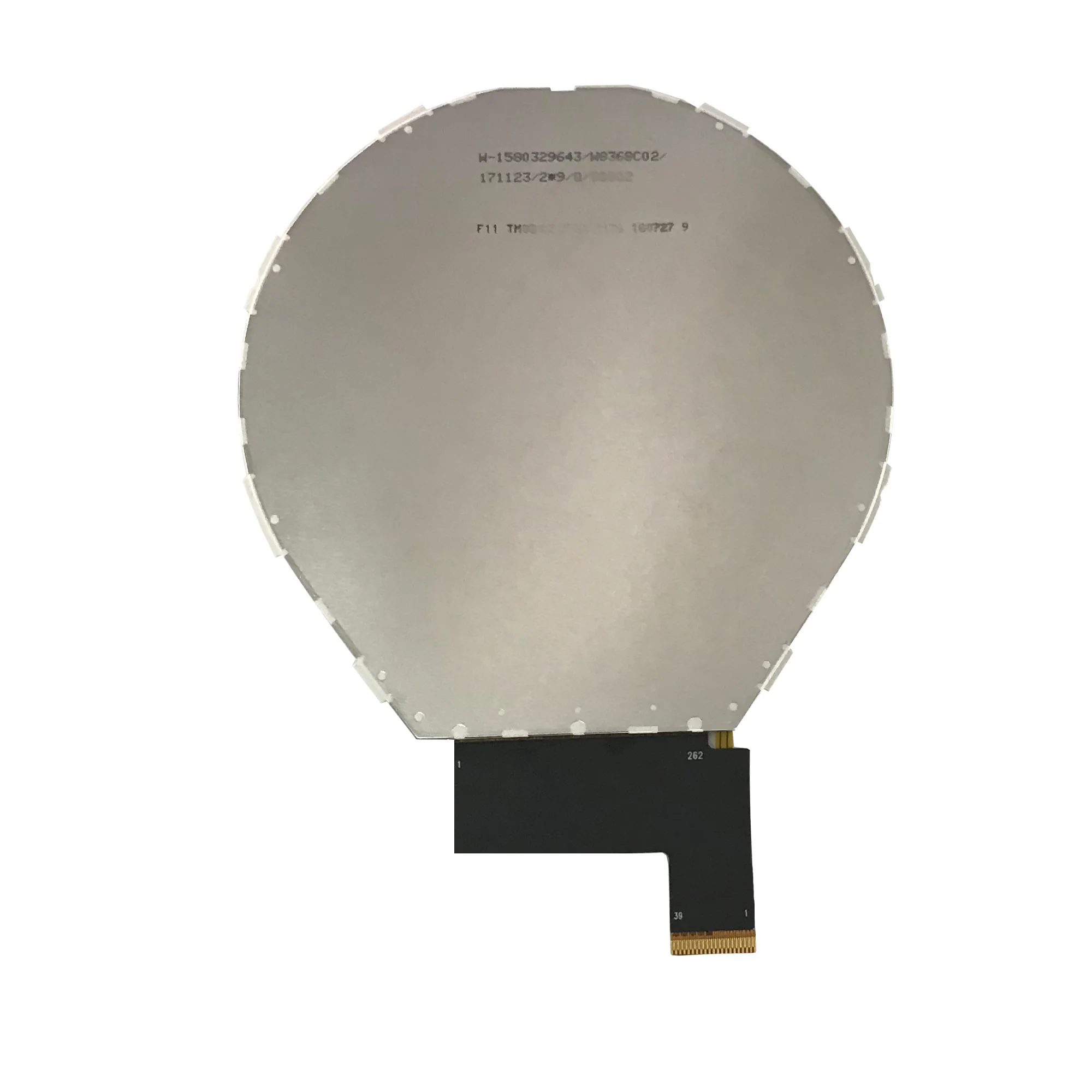

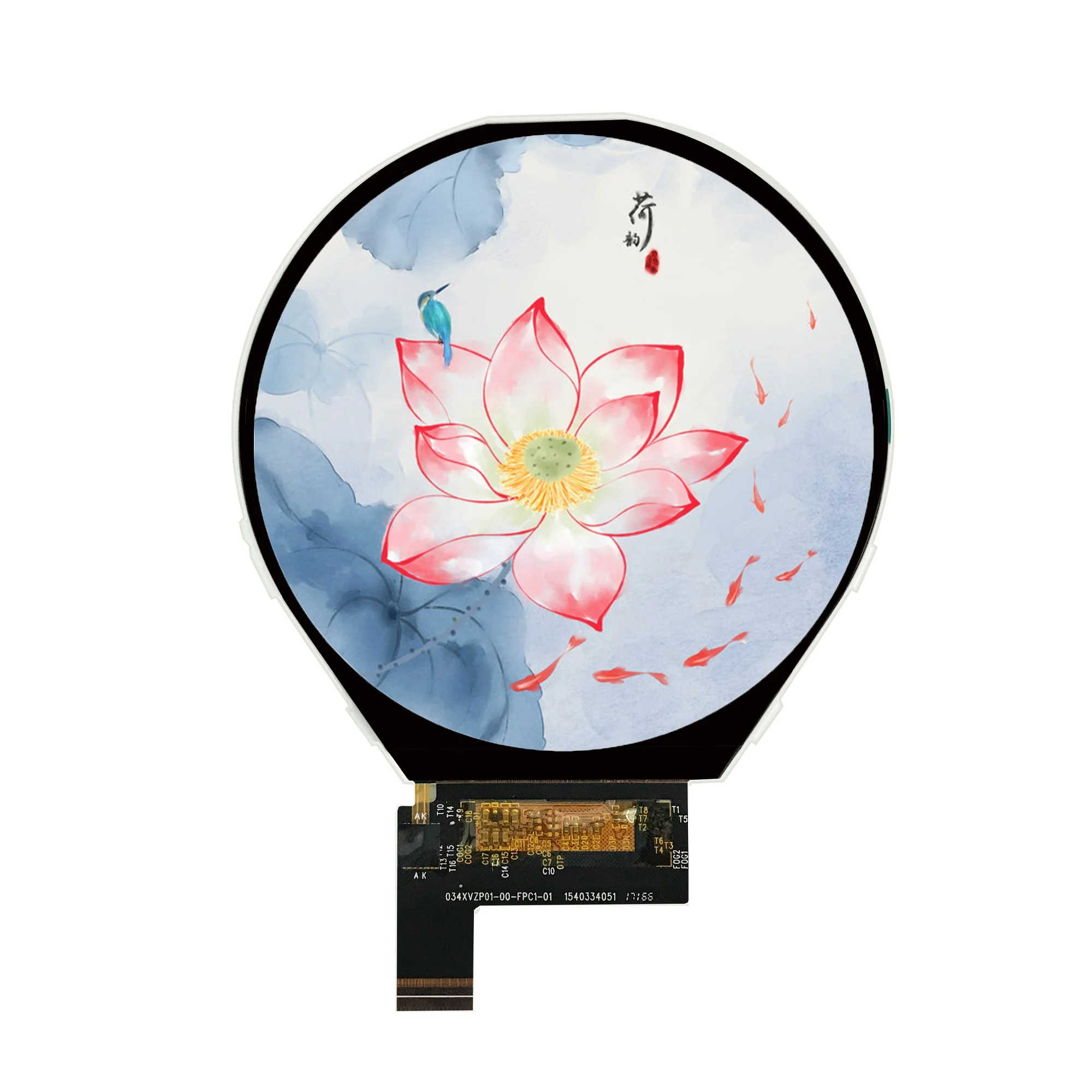

1. 3.4 inch 800*800 round LCD display(LCD with touch panel optional)

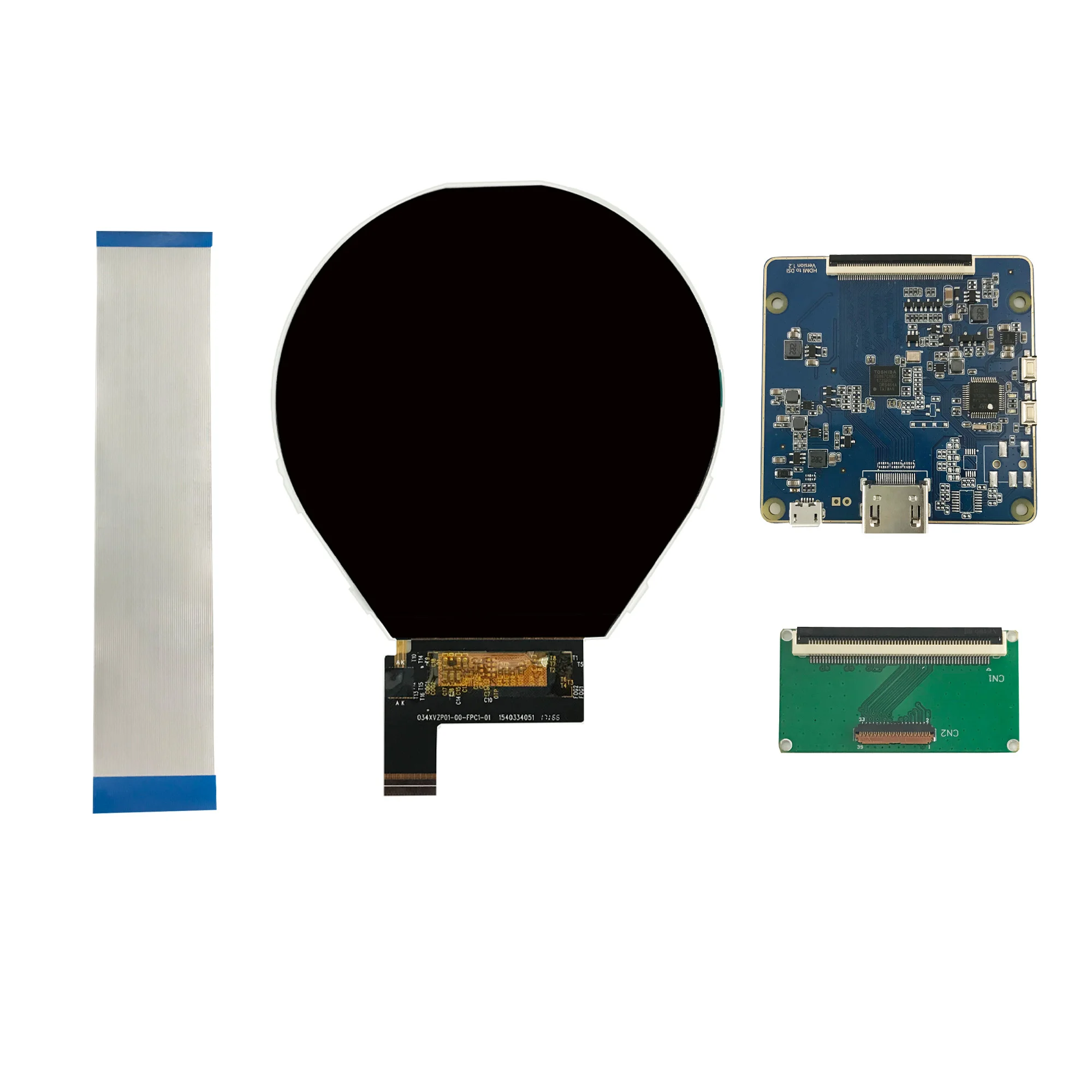

2. 2. HDMI driver board (If you need the HDMI board kit,please click below picture to purchase)

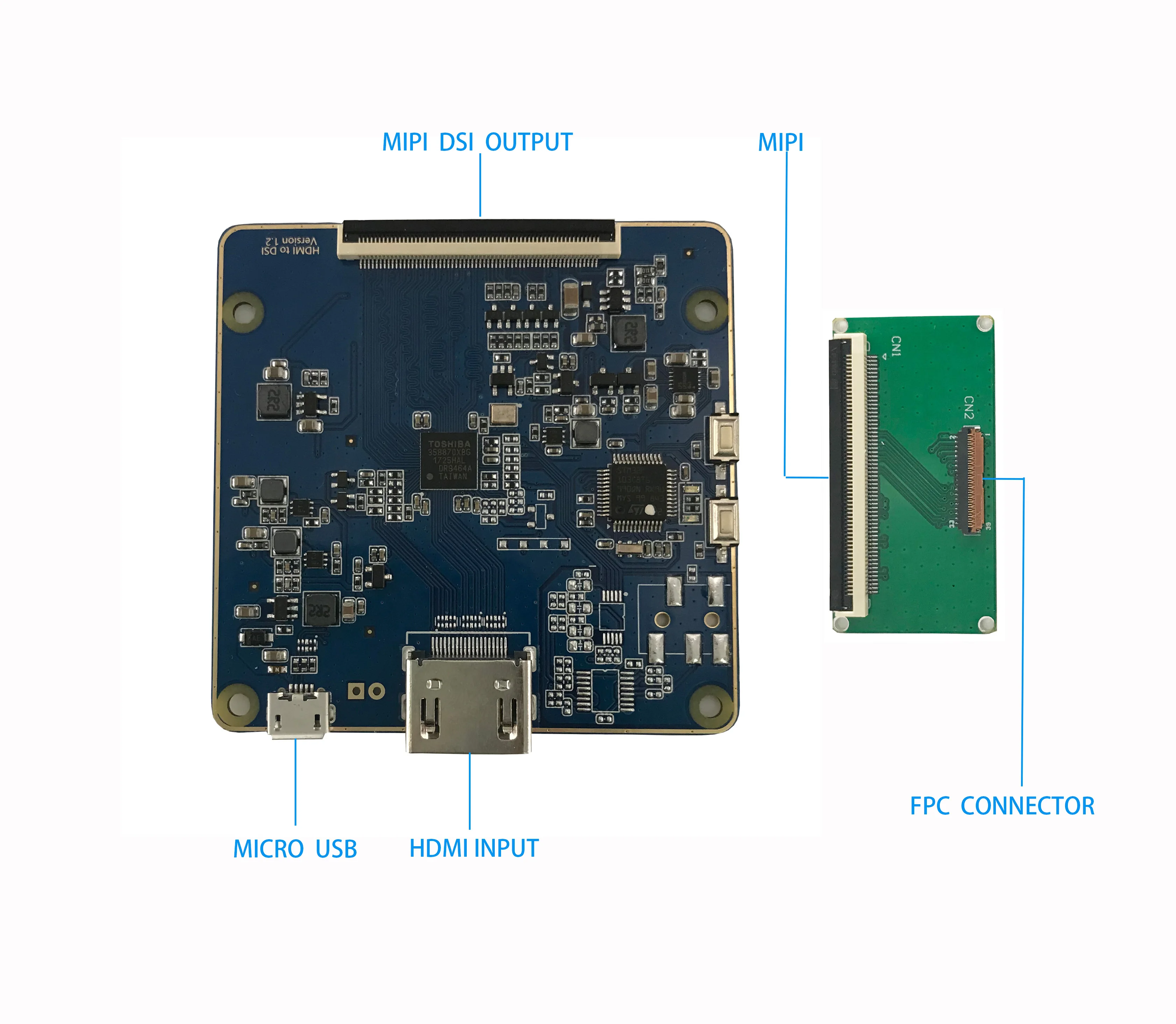

(It includes HDMI board, LCD cable and connector)HDMI to MIPI is a super board which convert the HDMI to MIPI DSI for LCD and OLED screens.
Application Range PC,Raspberry Pi(s),ARM: VR, 3D printer,Projector,FPV,Car Display,PLC Display,etc.
Features: Plug and play,resolution :2K/4K.single /Dual screens,normal/Touch display.
Application Range PC,Raspberry Pi(s),ARM: VR, 3D printer,Projector,FPV,Car Display,PLC Display,etc.
Features: Plug and play,resolution :2K/4K.single /Dual screens,normal/Touch display.
Product parameter
No. | Item | Specification |
1 | Panel Brand | Tian Ma |
2 | Panel Size | 3.4 inch |
3 | Resolution | 800*800 |

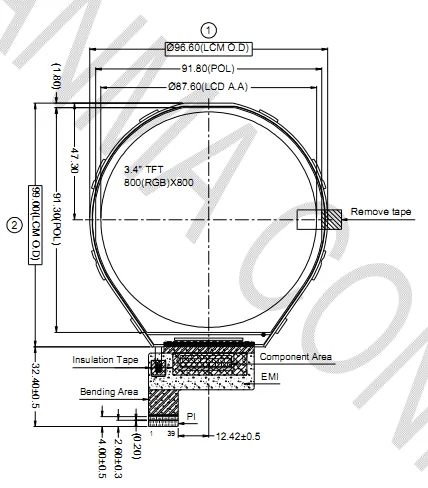

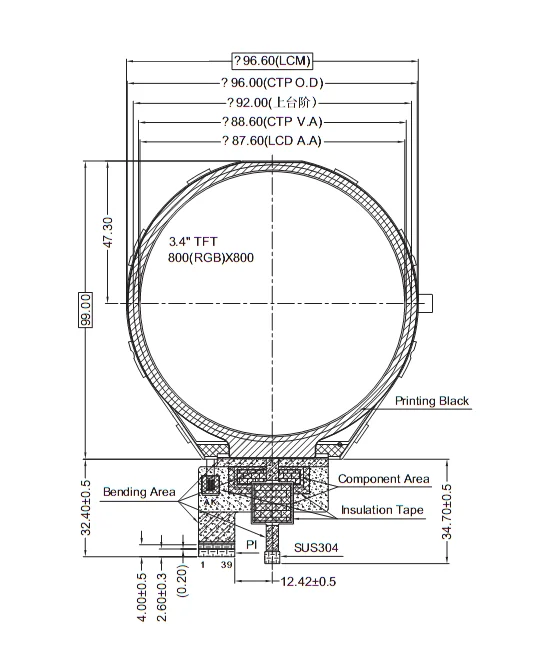

4 | Active Area | 87.6 × 87.6 (H×V) mm |
5 | Outline Size | 99 × 96.6 (H×V×D)mm |
6 | Brightness | 350 cd/m² (Typ.) |
7 | Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
8 | Best View on | Symmetry |
9 | Display Colors | 16.7M 70% (CIE1931) |
10 | Frequency | 60Hz |
11 | Panel Weight | TBD |
12 | Signal Interface | MIPI (3 data lanes) , 39 pins , FPC |
13 | Power Supply | 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN) |
14 | Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
15 | Panel Model | TM034XDZP02 |
16 | Panel Type | SFT |
17 | Pixel Format | RGB Vertical Stripe |
20 | Contrast Ratio | 800:1 (Typ.) (TM) |
21 | Display Mode | SFT, Normally Black, Transmissive |
22 | Response Time | 25 (Max.)(Tr+Td) |
23 | Lamp Type | 2S4P WLED , 30K hours , Without Driver |
24 | Touch Screen | Without or available |
25 | Application | smart watch |
General Clauses
1 | MOQ: | 1 pcs |
2 | Lead time: | Samples in stocks,3~6 weeks for mass production |
3 | Trade Terms : | EXW or FOB |
4 | Payment: | 100% Paypal or T/T or Western union in advanc for samples |
5 | Warranty: | 12 months |
6 | Package: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
All our products are standard packed, you can contact us sales for detailed information.
We can ship the products by DHL, UPS, FedEx,EMS Express.
FAQ
Q: What is the MOQ?
A: MOQ is 1 pcs
Q: What about the delivery time?
A:We have the 3.4 inch 800*800 round LCD display and HDMI to mipi board in stock.Can ship them within 3 working days after payment
Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.
Q: What's your payment method?
A: We usually accept the payment methods include T/T, Western Union and Trade Assurance. 50-100% deposit in advance and balance before shipping upon the payment amount. Buyer can choose which payment ways that you accept.
Q: What's your shipping method?
A: We provide comprehensive shipping methods.
For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT/EMS Express service, it is safe and fast.
For large quantity orders we ship by buyer's cargo agent in China, we can also ship by Air transportation or sea transportation.
Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click "Send" Now!
