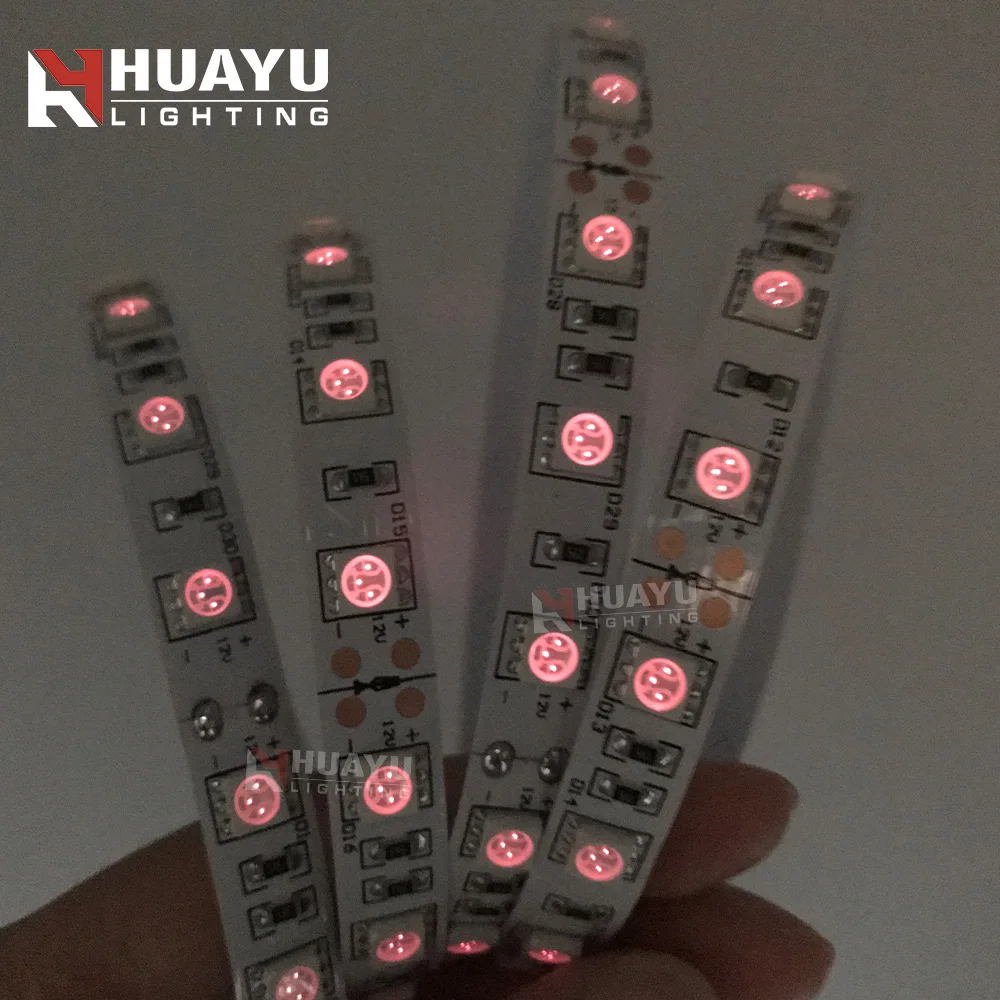

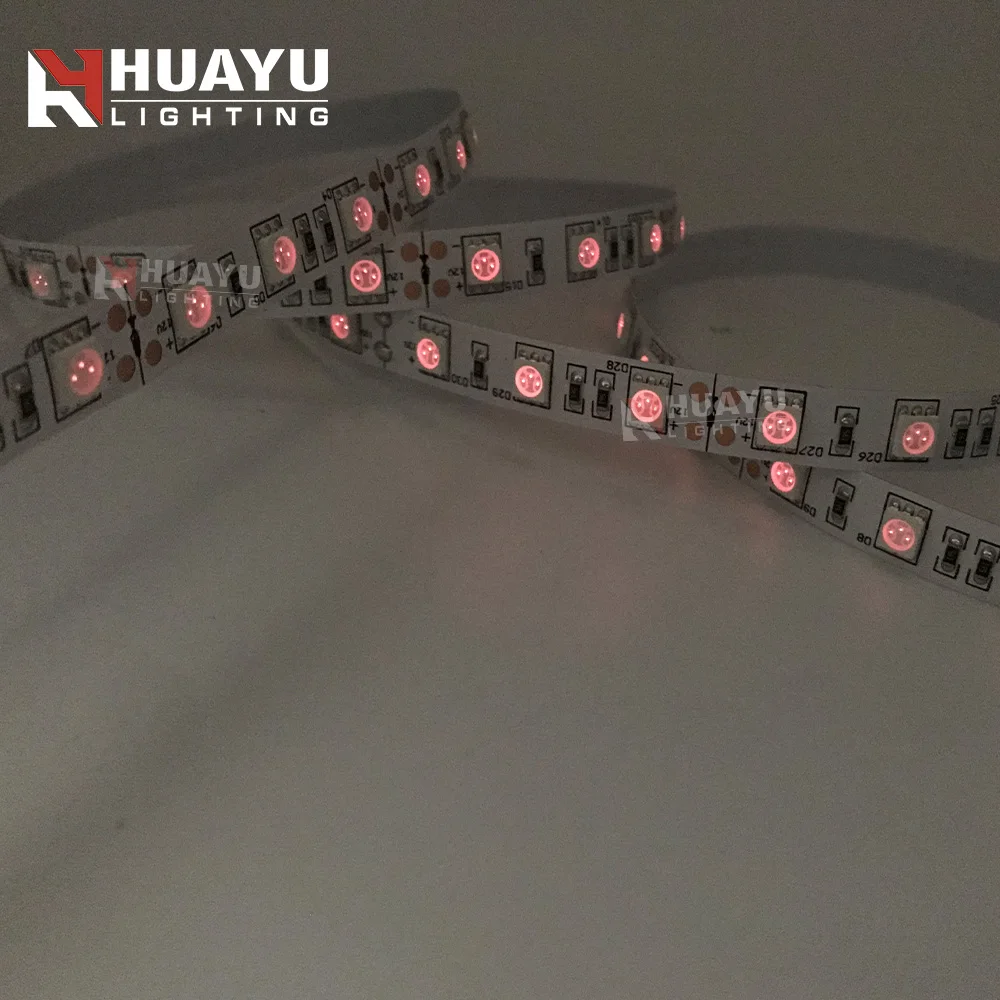

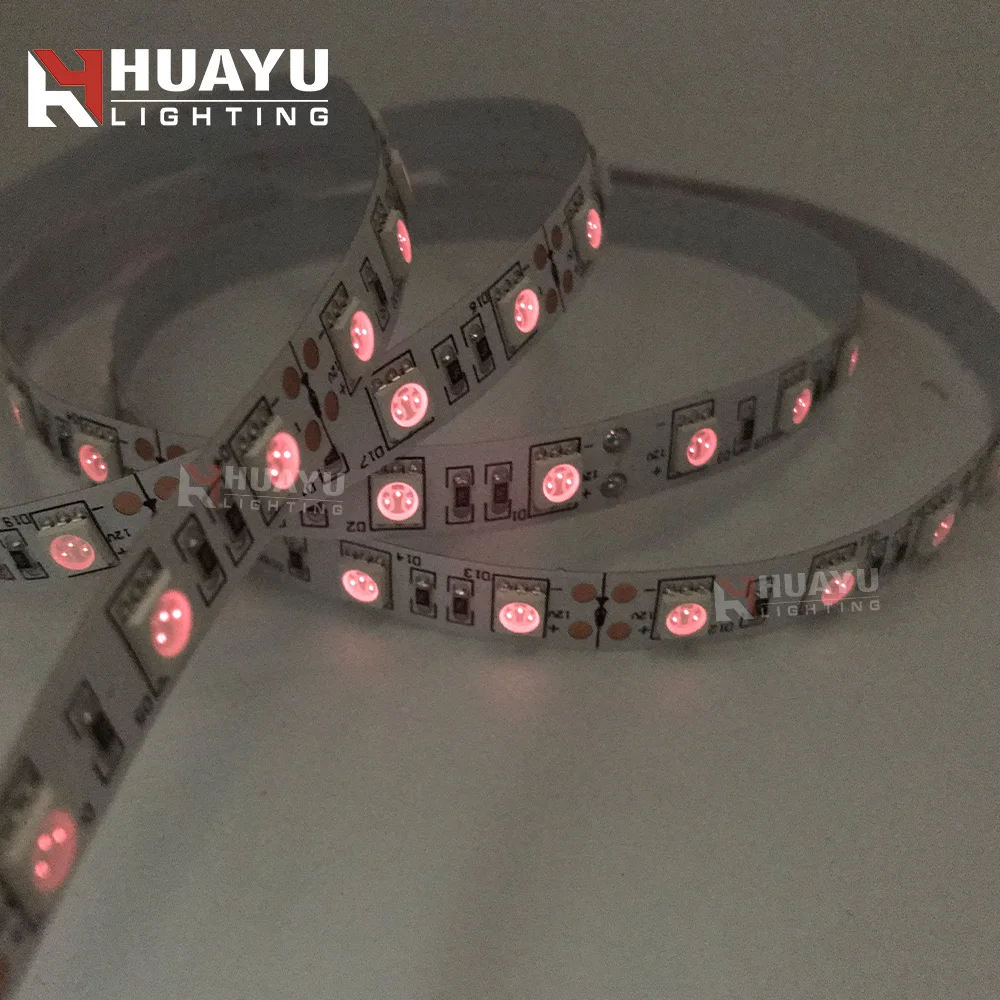

IR 850nm SMD5050 60leds/m infrared led strip light

Product Overview

Description

HUAYU Invisable light SMD5050-60leds/m 12V 24V DC 850nm IR Infrared LED Strip Light Flex White PCB Tape Light





• Flexible LED Strip Light with high quality SMD5050 LED diodes.
• With 850nm IR (Infrared) wavelength for special monitoring application..
• Wide size of 10mm with PCB.
• Accept both DC12V and DC24V saftey operate voltage.
• From 10 - 14.4W per meter available.
• High quality product with 3 years quality guarantee.



Product Description

HUAYU IR 850nm Flexible LED Strip Light produced by SMD2835 60leds/m, 120leds/m, 240leds/m and 264leds/m; SMD5050 30leds/m, 60leds/m, 120leds/m; SMD3528 60leds/m, 120leds/m, 240leds/m etc., DC12V/DC24V characteristics with high durability and long lifetime, even under difficult conditions. These flexible LED Strip Light can be achieved IP20, IP65, IP66, IP67 even IP68 IP Rating, which can be used in both indoor and outdoor applications.







IR (Infrared) 850nm Applications:



1. Monitoring

2. Hyperthermia

3. Night Vision

4. Thermal Efficiency Analysis

5. Environmental Monitoring

6. Industrial Facility Inspection

7. Growth detection





Technical Specification



Item	IR 850nm Infrared LED Strip
LEDs/meter	60LEDs/meter
LED Type	SMD5050
Input Voltage	DC12V / DC24V
Power	14.4W per meter
Segment	50mm / 100mm
CRI	/
PCB Width	10mm
IP Rating	IP20 / IP65 / IP66 / IP67 / IP68
Color	IR Infrared 850nm
Back Tape	3M-200MP/300LSE/VHB/Blue 3M etc.
Warranty	3  years
Certification	CE RoHS ETL SABER





Product Window









More Options

SMD	LEDs/m	CRI	Lumen	Color	White CCT	PCB Width	PCB Color	Input Voltage	IP Level
5050 2835 3528 5630 2216 2110 1919 3030 3535 4040 3014 335 COB TM1914A SK6812 WS2812 WS2813 DMX512 Others	24 30 48 60 72 96 112 120 128 144 168 176 180 224 240 264 300 308 Others	80 85 90 93 95 98 Full Spectrum Sun Series	7-8lm/LED 7-9lm/LED 12-14l/LED 20-22lm/LED 22-24lm/LED 24-26lm/LED 50-60lm/LED Others	Red Green Blue Yellow Golden Amber Pink Orange Ice Blue Tiffany Blue Pastel Violet Warm White Natural White White Cool White CCT RGB RGBW RGBWW RGB+CCT Addressable DMX512 275nm 365nm 395nm 415nm 430nm 660nm 710nm 780nm 850nm Others	1800-2000K 2000-2200K 2200-2400K 2400-2600K 2600-2800K 2800-3000K 3000-3200K 3200-3500K 4000-4500K 5000-5500K 6000-6500K 7000-8000K 8000-9000K 10000-13000K >20000K Others	4mm 5mm 6mm 8mm 10mm 12mm 14mm 15mm 22mm Others	White Black Yellow Others	DC5V DC6V DC9V DC12V DC24V DC36V DC48V Others	IP20 IP54 IP65 IP66 IP67 IP78
