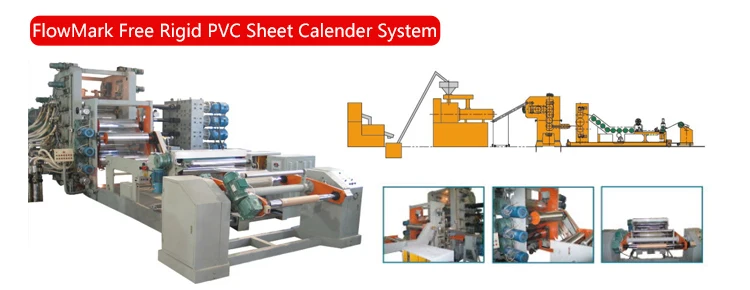

New PVC Film calendering machine product line
- Category: >>>
- Supplier: Shanghai Kunyuan New Material Co. Ltd. [Shanghai China]Shanghai
Share on (62024865606):
Product Overview
Description
Product Description
| No. | SYY-6Γ950 | SYY-6Γ1050 | SYY-5L1200 | SYY-6Γ1600 |
| Roll size(mm) | Φ320×950 | Φ400×1050 | Φ400×1200 | Φ500×1600 |
| Arrangement pattern | Γ types | Γ types | L types | Γ types |
| Calendering speed | 5-25m/min | 6-30m/min | 6-30m/min | 8-40m/min |
| Roll quantity | 6 | 6 | 5 | 6 |
| Thickness of Calender product(mm) | 0.08-1.2 | 0.08-1.2 | 0.1-1.0 | 0.08-1.2 |
| Largest width of Calender product(mm) | 450-750 | 450-850 | 610-950 | 800-1350 |
| Driving power | 75kw | 140kw | 120kw | 350kw |
| Heating power | 180kw | 255kw | 225kw | 435kw |
| Theoretic capacity | 300kg/h | 450kg/h | 450kg/h | 800kg/h |
