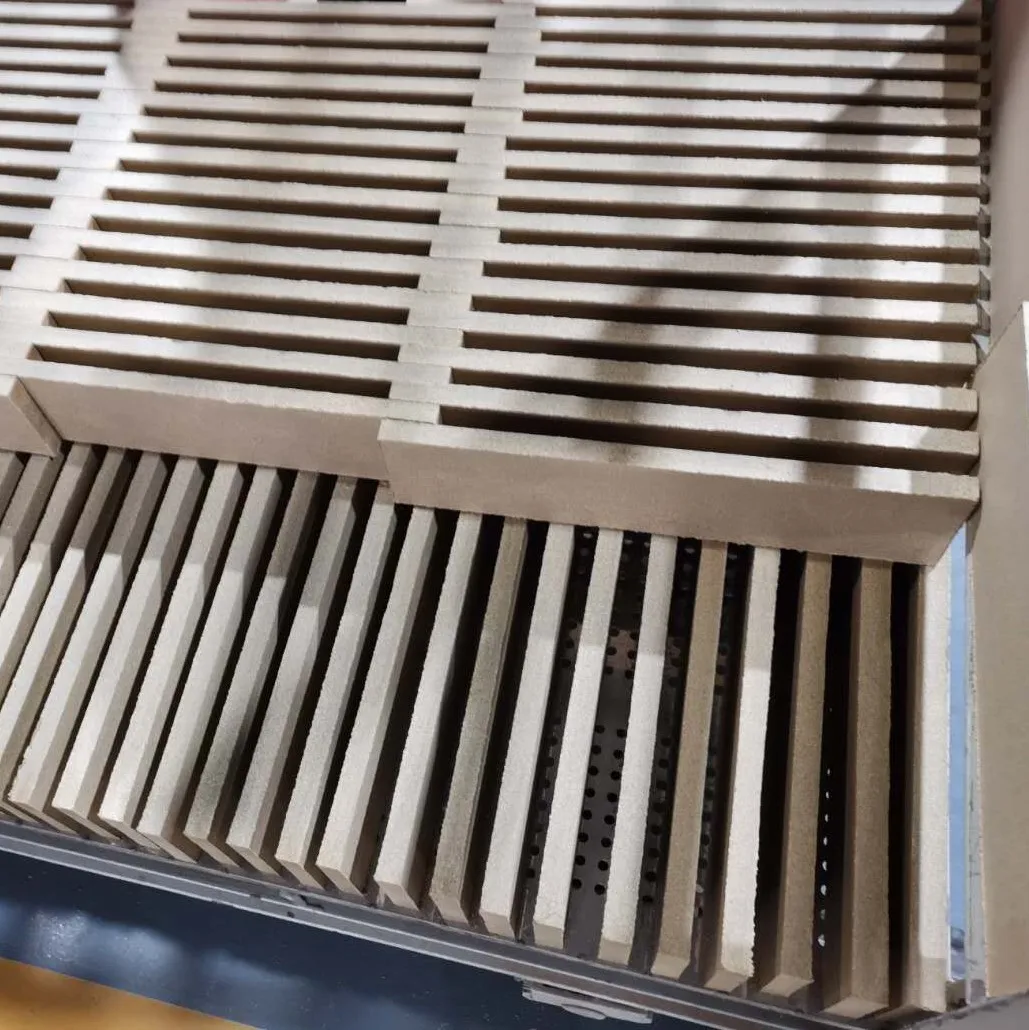

Magnesia Silicate Insulating Board for Aluminum Electrolytic Cell
- Category: >>>
- Supplier: Zhengzhou Sunrise Refractory Co. Ltd.
Share on (62024897740):
Product Overview
Description
Product Description
Advantages
1.Waterproof and good moisture proof effect;
2.Low thermal conductivity;
3.High structural strength and low deformation after sintering;
4.Good heat preservation, reducing heat losses and saving energy, ensuring a smooth continuous casting process due to the constant temperature and casting rate of the steel;
5.Good volume stability, good ladle lining integrity, realizing the constant temperature and constant speed during steel casting, improving production efficiency;
6.Long time efficiency and energy saving, high safety;
7.Diverse sizes and shapes, no need to do post processing, easily to be installed.
The shell temperature of test ladle that takes Magnesium Silicon Thermal Insulation Board as liner is much lower than that of common ladle, which averagely reduces 75℃, while the maximum temperature reduction will be about 120℃. Therefore, the board application will facilitate to eliminate the deformation of ladle shell materials, and greatly improve operation environment of ladle. The temperature drop rate of molten steel is smaller than that of common ladle, namely average 0.3~0.5℃/min. It indicates that the heat preservation of molten steel is quite great, which can not only save energy and heat losses, but also is beneficial for the constant temperature and rate during steel casting process to ensure the smooth continuous casting.
Regular size for steel ladle & tundish
416X101X13~20mm
416X101/91X13~20mm
397X99/97X13~20mm
Applications
This product is mainly used for hat protection for steel ladle, tundish, torpedo car and electrolytic aluminal cell.
Physical and chemical indexes
Items | Indexes | |||
MS-100 | MS-120 | MS-130 | MS-140 | |
Al2O3% | 20~25 | |||
SiO2% | 35~45 | |||
MgO % | ≥10 | |||
Fe2O3% | ≤4.0 | |||
Linear change rate on reheating 1000°C×8h,% | ≤4.0 | ≤3.0 | ≤2.5 | ≤2.0 |
Bulk density g/cm3 | ≤1.00 | ≤1.20 | ≤1.30 | ≤1.40 |
Cold Crushing Strength Mpa | ≥6 | ≥8 | ≥10 | ≥12 |
Thermal conductivity |
|
|
|
|
200°C | ≤0.13 | ≤0.15 | ≤0.16 | ≤0.19 |
400°C | ≤0.15 | ≤0.16 | ≤0.18 | ≤0.20 |
600°C | ≤0.16 | ≤0.18 | ≤0.10 | ≤0.22 |
800°C | ≤0.18 | ≤0.20 | ≤0.22 | ≤0.23 |
1000°C | ≤0.18 | ≤0.21 | ≤0.23 | ≤0.25 |
Max. operation temperature °C | 1000 | 1000 | 1000 | 1000 |
Packaging & Shipping

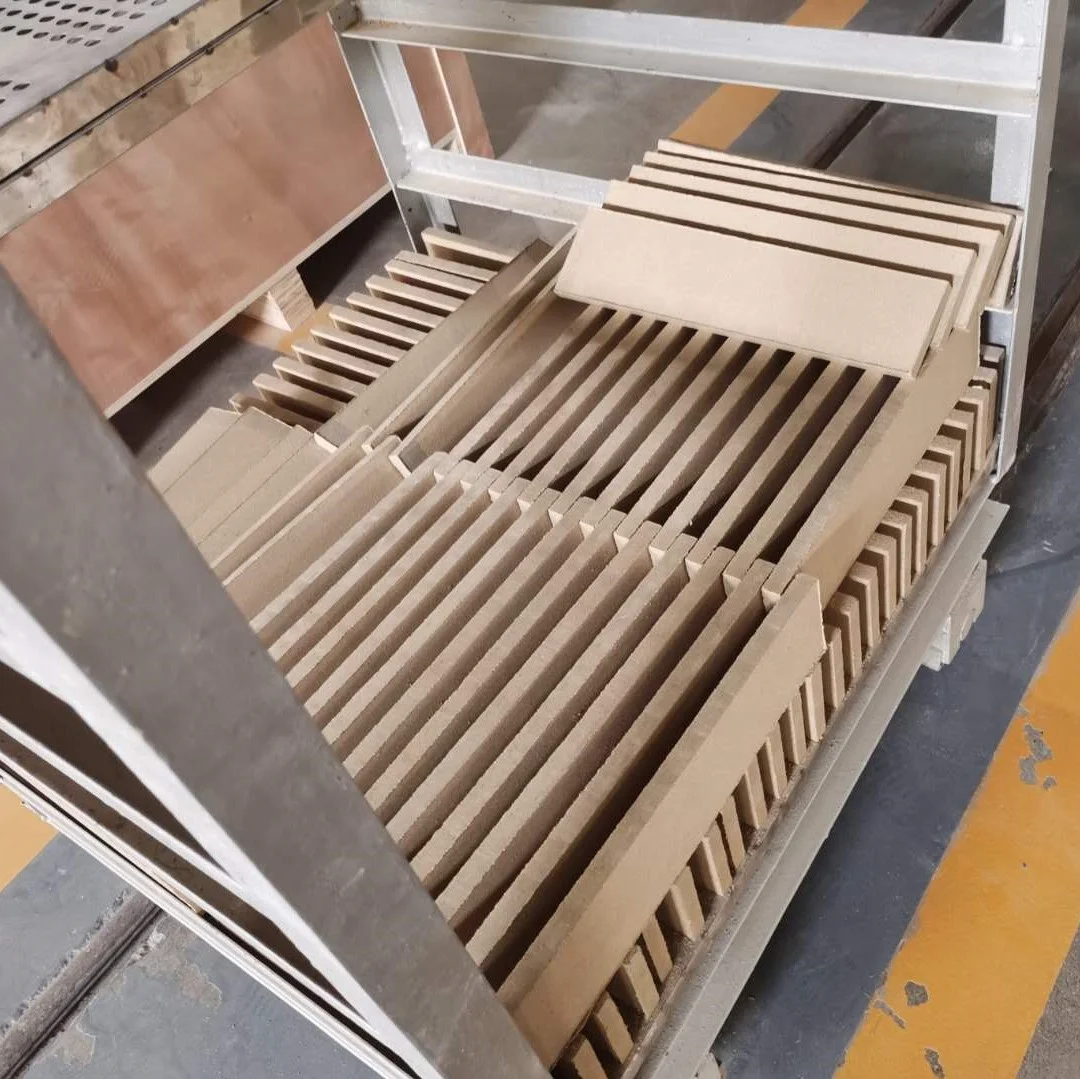

Bricks: Wooden pallet and then polyethylene film is placed over it, finally the package is tied up with strips.
Our Services
1.Offer free of charge samples.
2.Give suggestion to you according to your specific requirement.
3.Go to pick you up when you come to visit our factory.
Company Information
Zhengzhou Sunrise Refractory Co., Ltd. is an integrated company of production and technology development. We are mainly engaged in the research and development of refractory materials. Our business mainly involves
in production of fused cast AZS 33, 36 , 41, fused cast α-β alumina, fused cast high zirconia block, fused cast
skid rail block, glass mould brick, zircon brick, zircon mullite brick, mullite brick, cordierite mullite bricks,
sillimanite brick, fused corundum brick, chrome corundum brick, silicon carbide brick, silica brick, fireclay series
brick, high alumina series brick, insulation series brick, fiber products, magnesium silicon insulation board, etc.
Our products are widely used in industries of glass, ceramic, glaze, petrochemistry, metallurgy, etc. The products
of our company are sold in markets of Europe, America, Middle East, Korea and Southeast Asia.We have
established business and cooperation relationship with many customers in different countries and regions.
Our company has passed ISO9001:2000 Quality Management Systems Certification.
