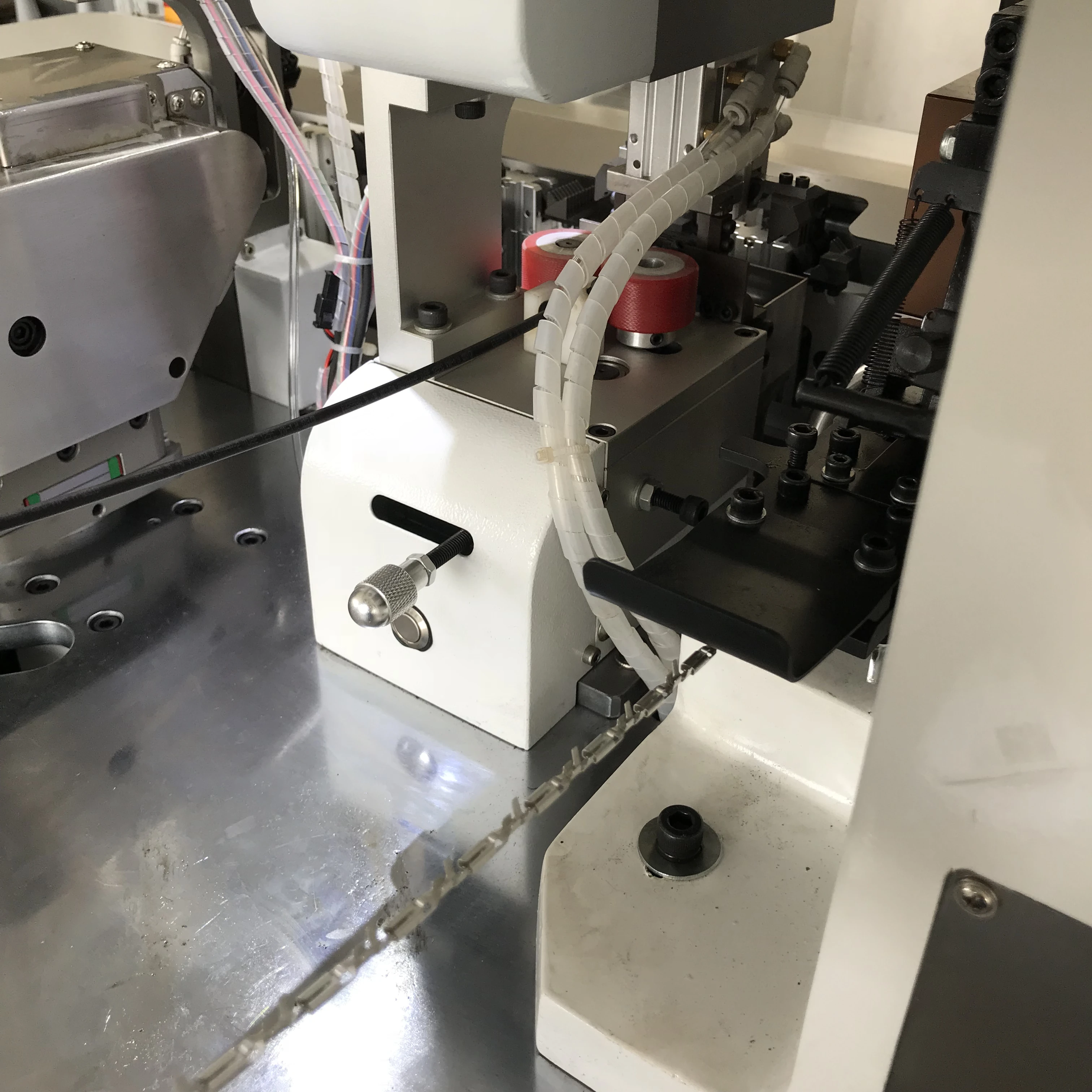

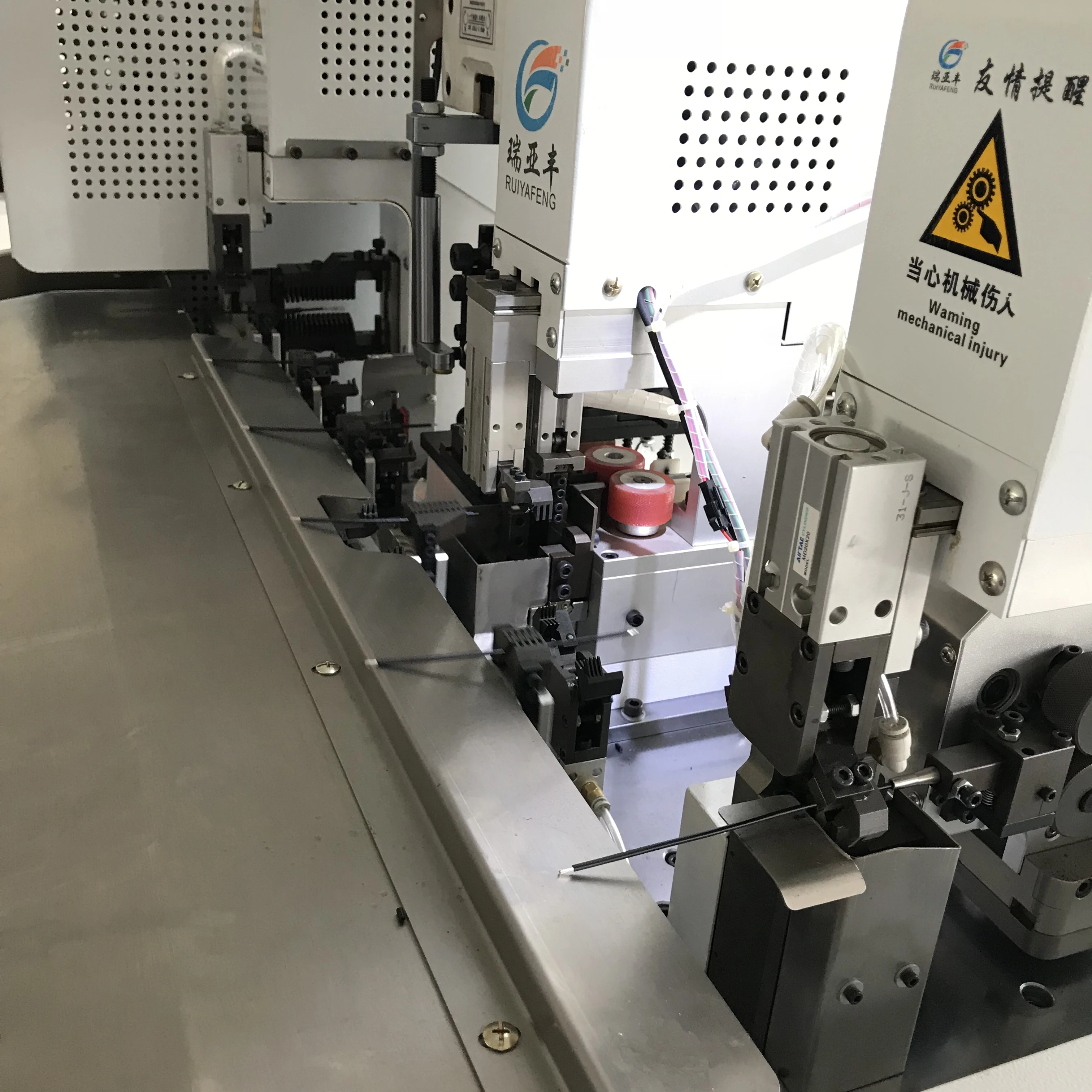

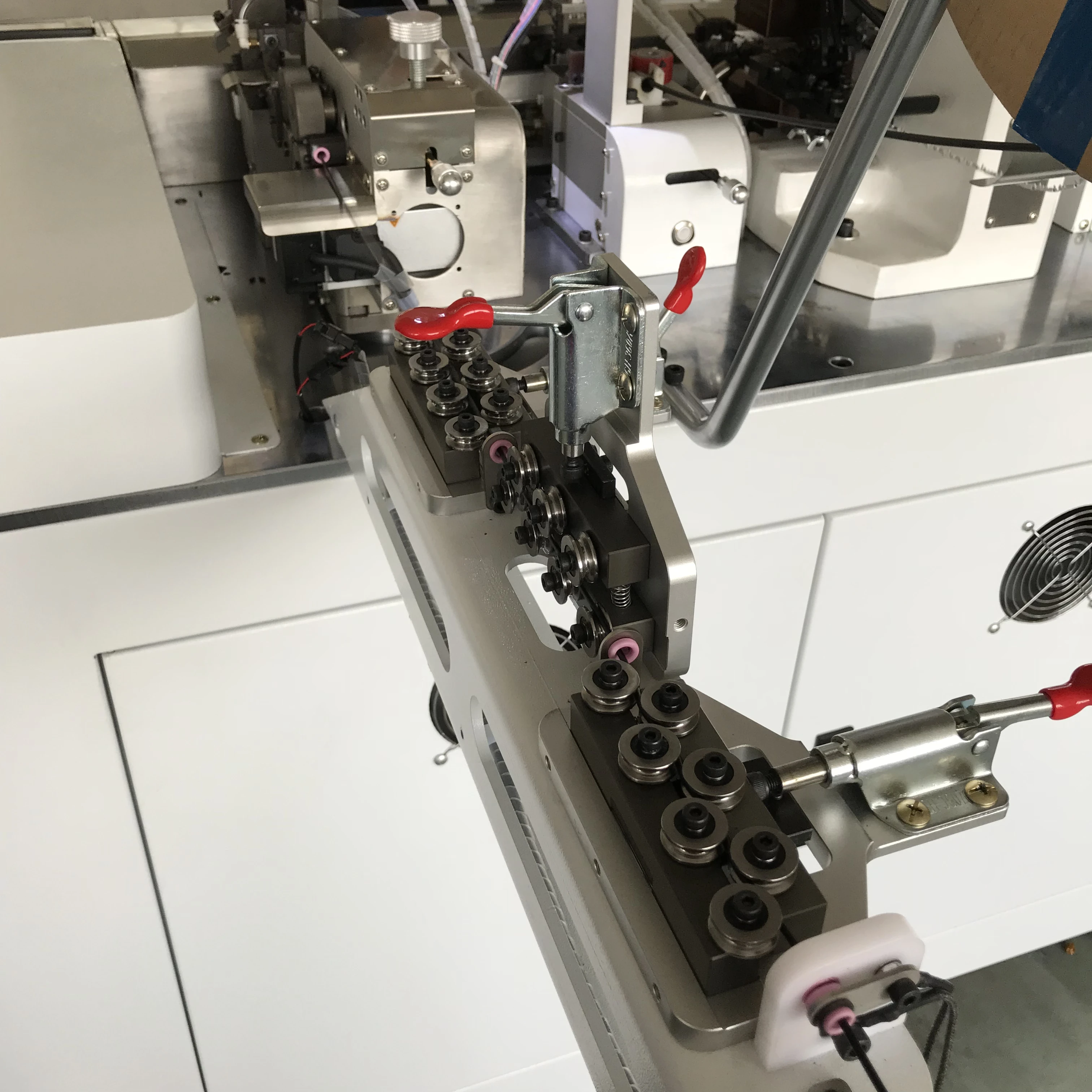

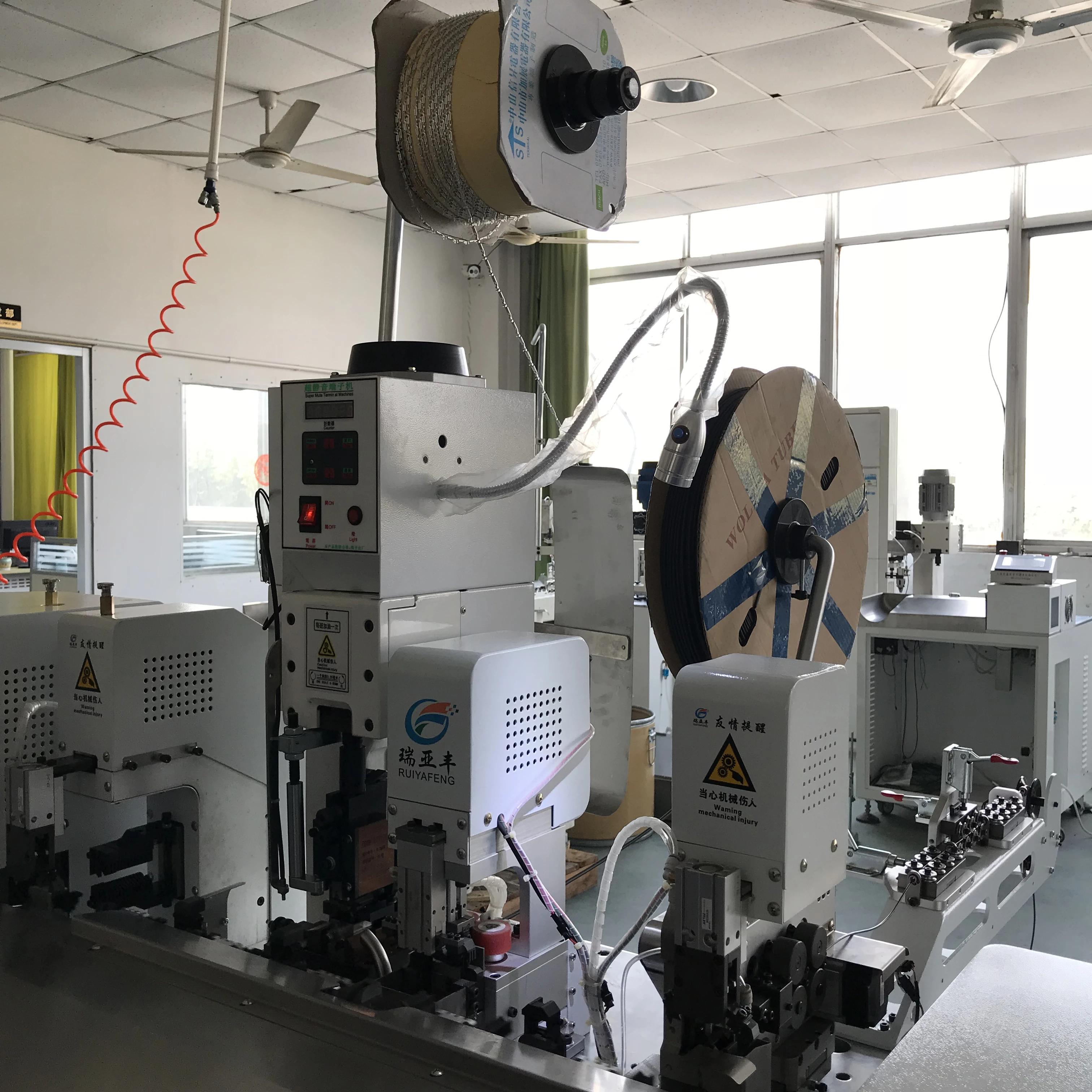

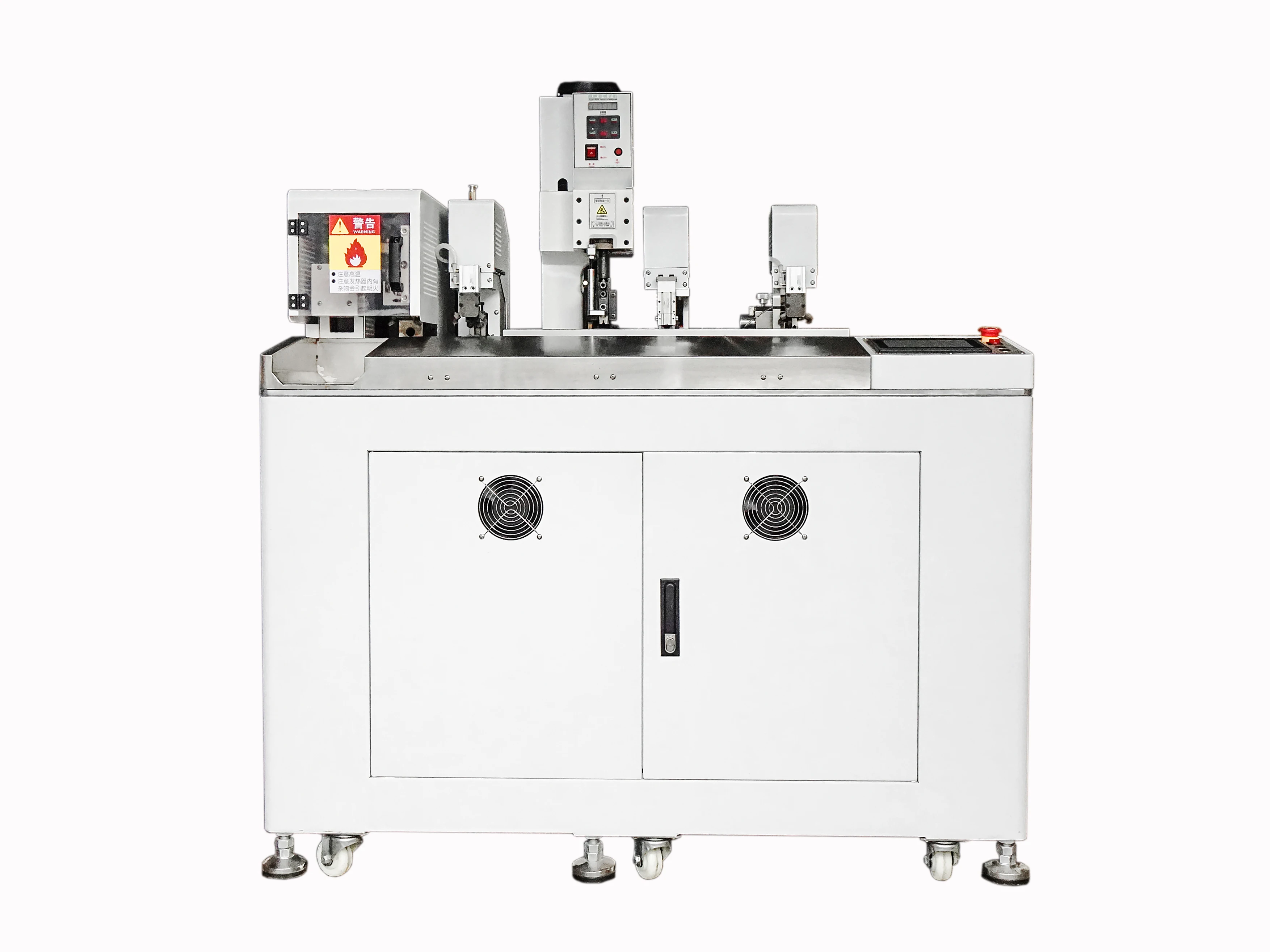

Fully automatic single-head heat-shrinkable tube inserting and terminal crimping machine
Name
Fully automatic single-head heat-shrinkable tube inserting and terminal crimping machine
(double head crimping and single head inserting)
Wires availabe
AWG10#-20#
Terminals availabe
Normal horizontal, straight continuous terminal
Wire cutting Length
65mm~9999mm
Wire stripping lenght
head:0~30mm, nail:0~10mm
Diamension of heat shrinkable Tube
D3.0mm~6.0mm L15mm~26mm
Wire processing length
65mm~9999mm
Capacity
1800~2000PCS/h
Cutting tolerance
<0.2/% of wire's total length
Diamension
L1800 * W800 * H1600mm
Weight
350Kg around
Operating Voltage
AC 220V~ 50Hz
Gas working pressure
0.4~0.6MPa
Power
2.8Kw

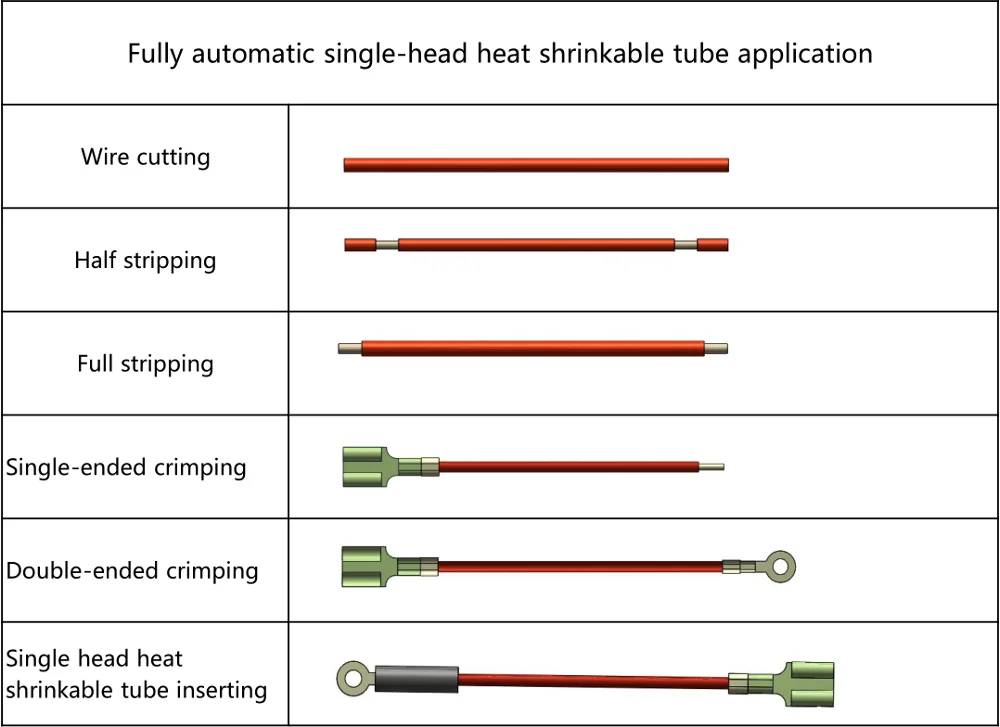

Product Description

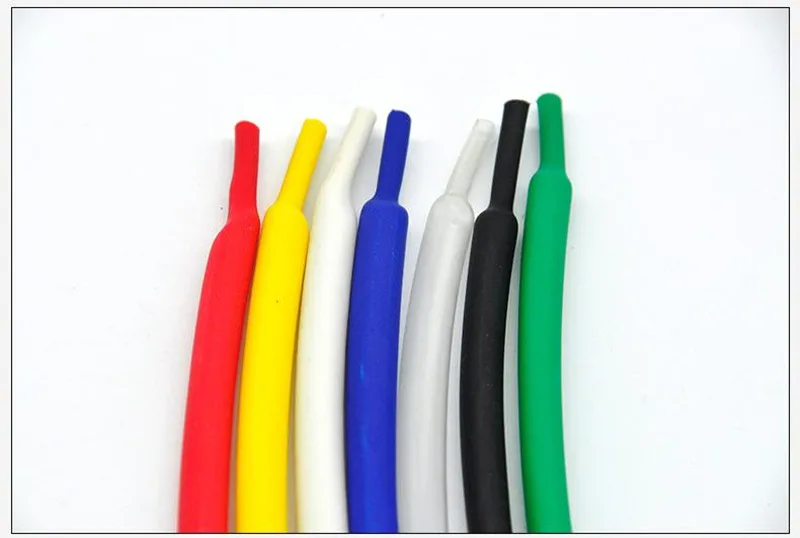

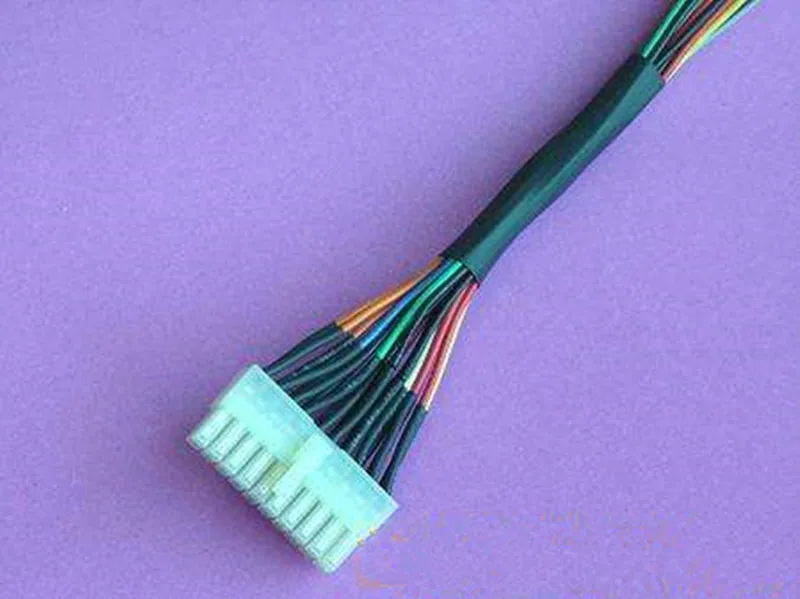

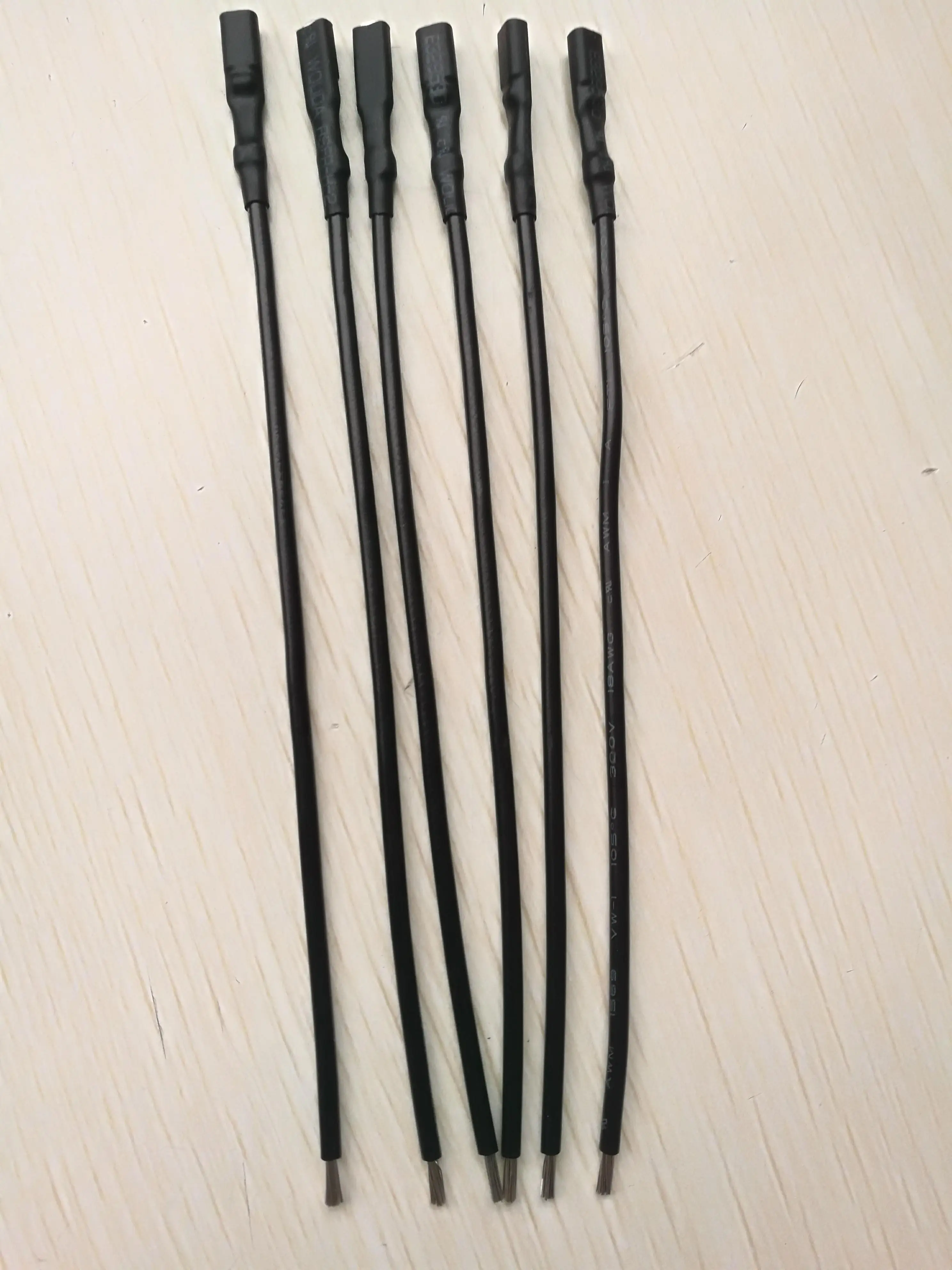

Finished Products
Our Services
1. On-time delivery and the shortest delivery time.
2.1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
3.OEM and customized service.
---Purchase guidanceIf you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.
---Technical SupportUser manuals will go with relative machines.If you have any problem with operation, please feel free to contact us. ---QC Check before shipmentAll products will be checked before delivery.
---After Sale Service. Don’t worry, we are here to help. CSRRF provides lifetime after sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us!
