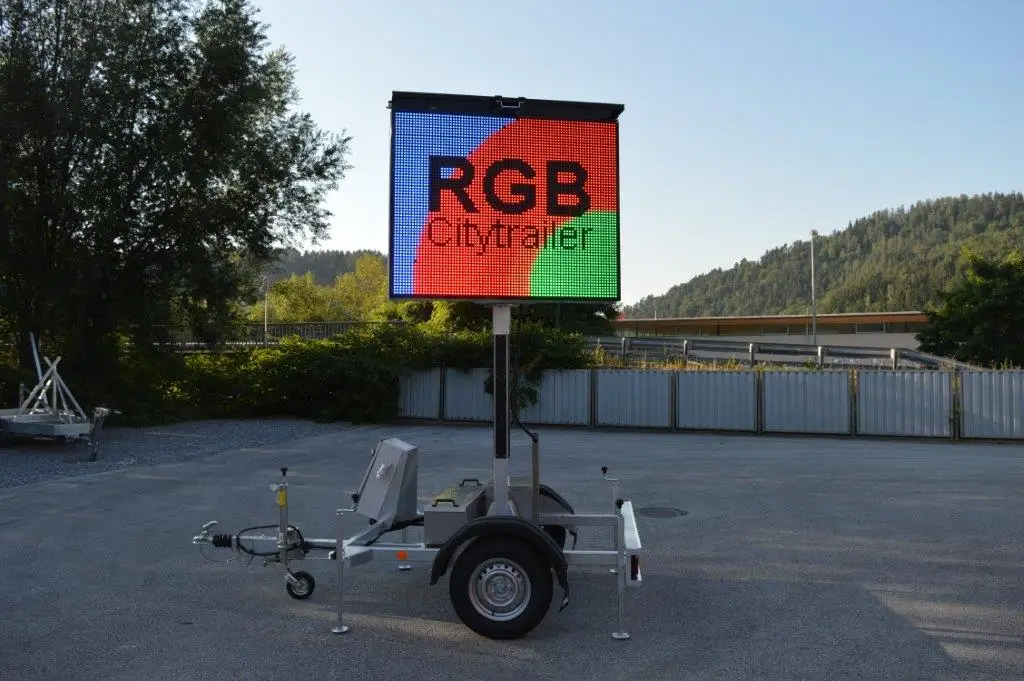

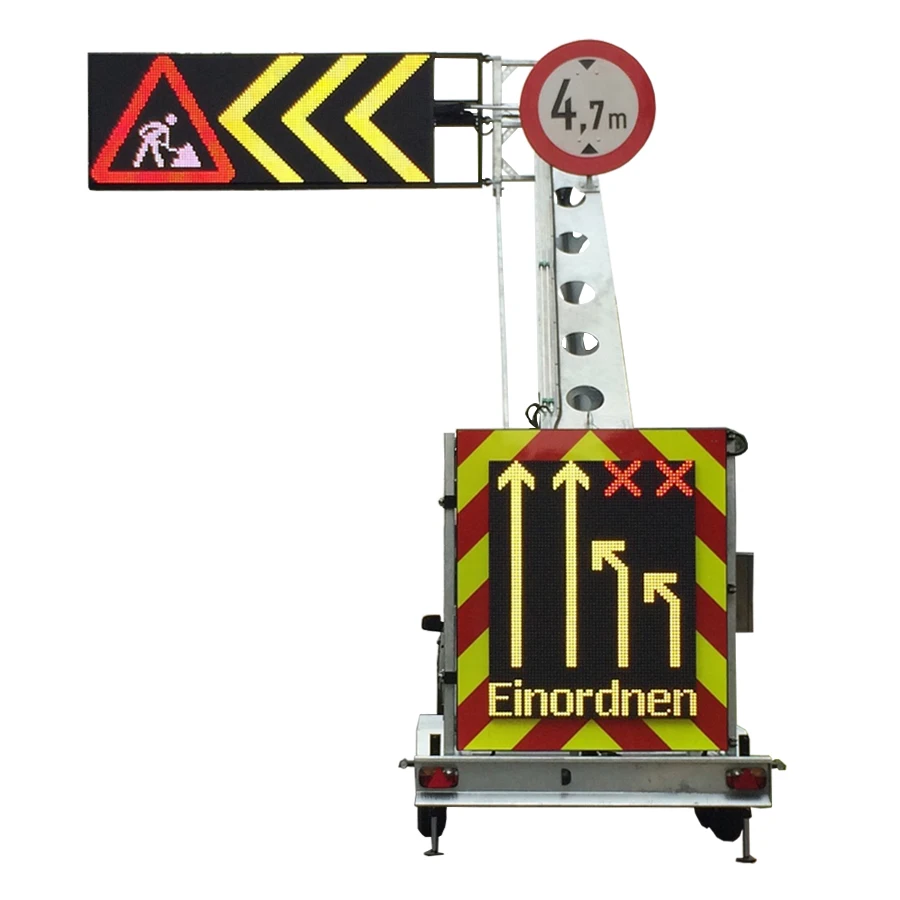

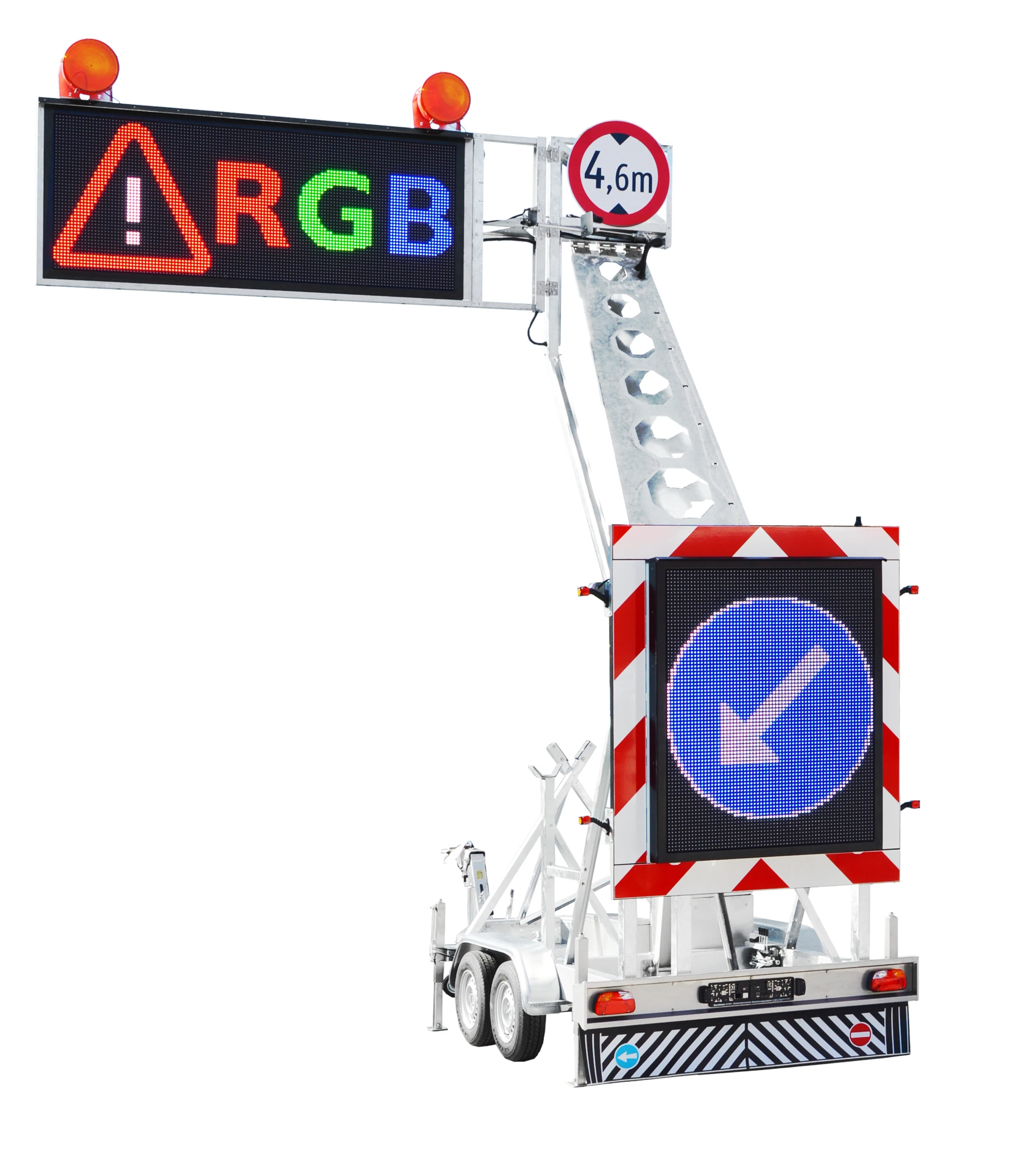

P20 solar powered Mobile Variable Message Sign VMS Trailer Portable led display full color screen remote control
- Category: >>>
- Supplier: YAHAM OPTOELECTRONICS CO. LTD
Share on (62024998450):
Product Overview
Description

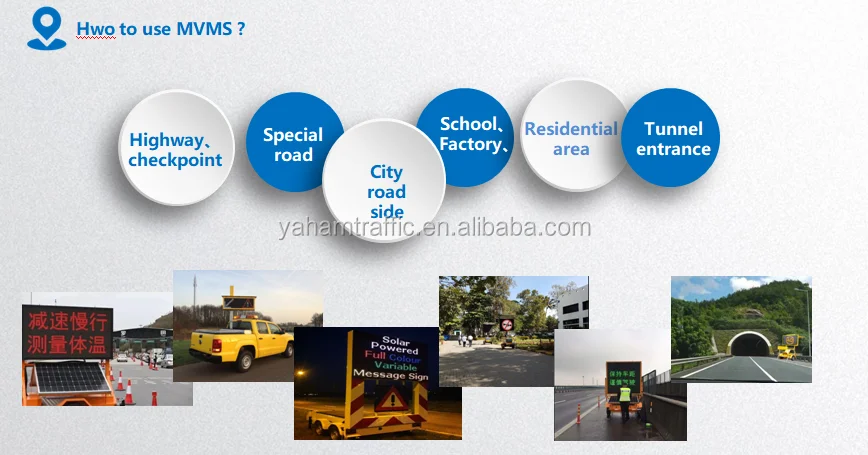

When to use the MVMS ?
2 Traffic Accident Guidance
3 Temporary Construction
4 Large Gathering Promotion
5 Activities
6 Festival
Features
* With design of optical lens, the VMS can have high brightness and low power consumption；
* Optional Full color VMS, Dual color VMS and Single color VMS；
* Optional pixelpitch：10mm,12mm, 16mm，20mm，25mm，31.25mm；
* Solar power supply system available；
* Auto dimming control system. It can adjust the brightness of the VMS according to the environment brightness,
automatically being energy saving；
* Support Global Positioning System(GPS)；
* Support 12v-24v or 220v power input；
* Our system has the inspection on the voltage of the batteries , also we have over-charge protect system.
*The precaution alarm will sent feedback. In this way, the batteries will work under well protection.
* Support local control and remote wireless control;
* Fans-free design can reduce the maintenance rate;
* Front service available;
* Optional Full color VMS, Dual color VMS and Single color VMS；
* Optional pixelpitch：10mm,12mm, 16mm，20mm，25mm，31.25mm；
* Solar power supply system available；
* Auto dimming control system. It can adjust the brightness of the VMS according to the environment brightness,
automatically being energy saving；
* Support Global Positioning System(GPS)；
* Support 12v-24v or 220v power input；
* Our system has the inspection on the voltage of the batteries , also we have over-charge protect system.
*The precaution alarm will sent feedback. In this way, the batteries will work under well protection.
* Support local control and remote wireless control;
* Fans-free design can reduce the maintenance rate;
* Front service available;
MVMS Types
Full Color MVMS
Optional pixel pitch:
10mm,
12mm,
16mm,
20mm,
25mm,
31.25mm,
40mm,
50mm
**Display area adjustable**
Dual Color MVMS
Optional pixel pitch:
10mm,
12mm,
16mm,
20mm,
25mm,
31.25mm,
40mm,
50mm
**Display area adjustable**
**Display color adjustable**
12mm,
16mm,
20mm,
25mm,
31.25mm,
40mm,
50mm
**Display area adjustable**
**Display color adjustable**
Monochrome Color MVMS
10mm,
12mm,
16mm,
20mm,
25mm,
31.25mm,
40mm,
50mm
**Display area adjustable**
**Display color adjustable**
12mm,
16mm,
20mm,
25mm,
31.25mm,
40mm,
50mm
**Display area adjustable**
**Display color adjustable**
Specificaton
LED brand | Nichia, Epistar, 10 years lifetime |
Display color | Full color, dual color, single color |
Control method | Asynchronous image and text |
Memory | Store up to 100 message |
Brightness | 12400cd/m2 in white |
Dimming level | 32 or 256 optional |
Communication | Local：RS485/RS232/RJ45 Remote wireless：WIFI/GPRS/3G/4G |
Remote control | By Pc / tablet /cell phone |
Electric protection | Overload and short circuit protection |
Maintenance | Optional front service or back service |
Working temperature | -25℃~+60℃ （T2：EN12966） |
Working humidity | 95% RH |
Cabinet material | Aluminum/ Steel |
Protection level | Front and rear IP65 |
Technical Advantages

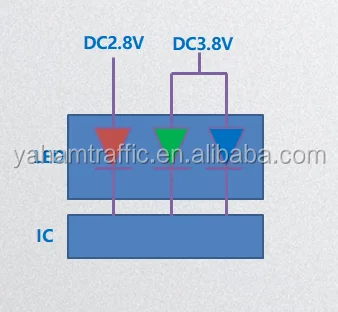

Dual voltage advances
Saving 30% power than DV5V
Saving 30% power than DV4.2V
Hearting of IC is less, more stable and long lifespan
Power unit on the module itself
Saving 30% power than DV4.2V
Hearting of IC is less, more stable and long lifespan
Power unit on the module itself

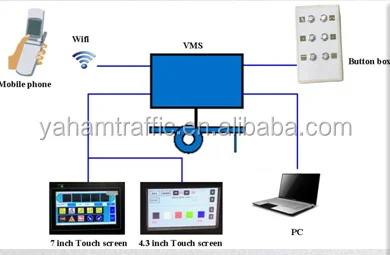

Multiple way of local control
Wire:
By PCBy cell phone（Android)
LCD touch panel（4.3inch or 7 inch optional）
lButton box (6 function）
lButton box (6 function）
Wireless:
By cell phone（Android）

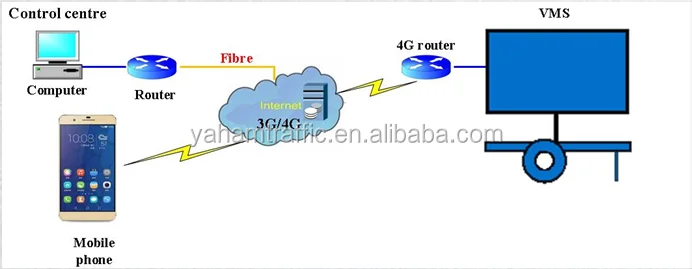

Remote control
By PC
By cell phone（Android）
By cell phone（Android）

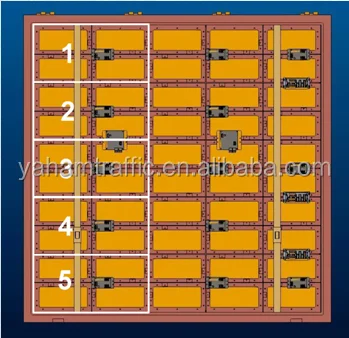

Distribution power when
the sign turn on
the sign turn on
*Power module on each led module can control the power on and off;
*Reduce the surge current when turn on the VMS;
*Extend the lifespan of the batteries;
*More stable on working voltage of the whole system;
*Reduce the surge current when turn on the VMS;
*Extend the lifespan of the batteries;
*More stable on working voltage of the whole system;

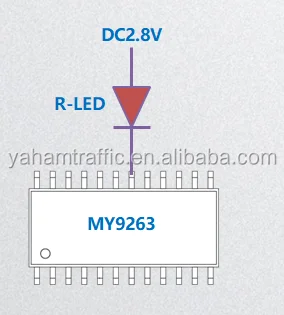

Sleep mode
*Driving IC MY9263 which has the sleep mode function;
*16 LEDs to be control by a IC;
*When IC detect no led working, it will turn into sleep mode;
*8mA static current to be used in a normal IC;
*8uA static current to be used in IC which has sleep more;
*16 LEDs to be control by a IC;
*When IC detect no led working, it will turn into sleep mode;
*8mA static current to be used in a normal IC;
*8uA static current to be used in IC which has sleep more;

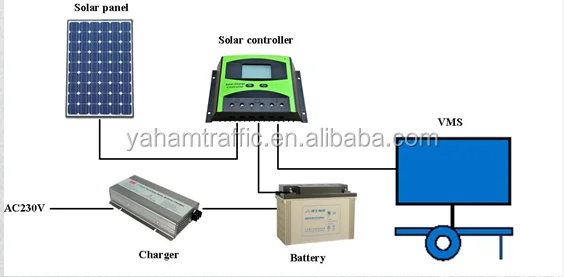

Working with multiple
power supply
power supply
*Battery to be power by solar panel
*Battery to be power by city power
*Battery to be power by city power

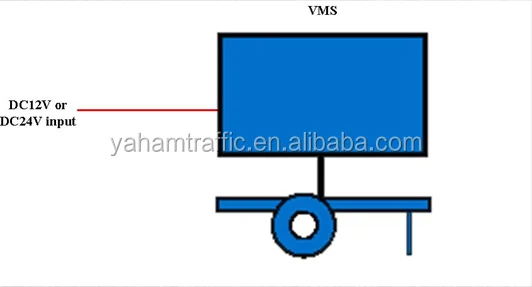

Wide range of power supply
*Input voltage range to MVMS is DC9V-36V
*MVMS working stable when power supply by DC12V or DC24V
*MVMS working stable when power supply by DC12V or DC24V

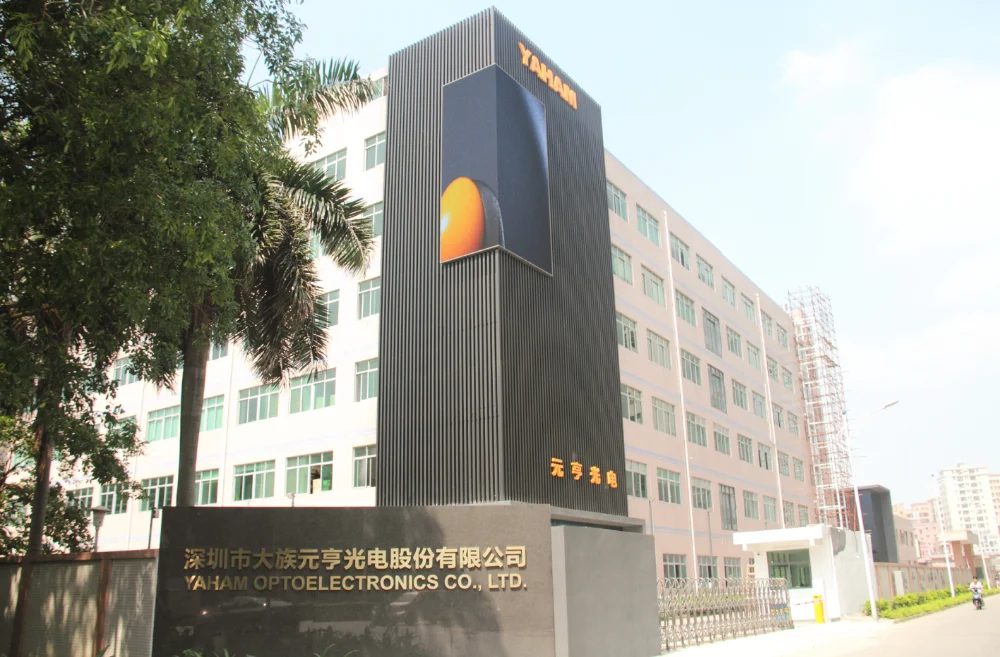

About YAHAM
Yaham Optoelectronics Co., Ltd
Yaham Optoelectronics Co., Ltd (Yaham) is a company creates led display, led traffic signage and led lighting, today, the Yaham Optoelectronic is based in Yongwei Industrial Park, Shenzhen, Guangdong, where the products are designed and manufactured for themarket all over the world.

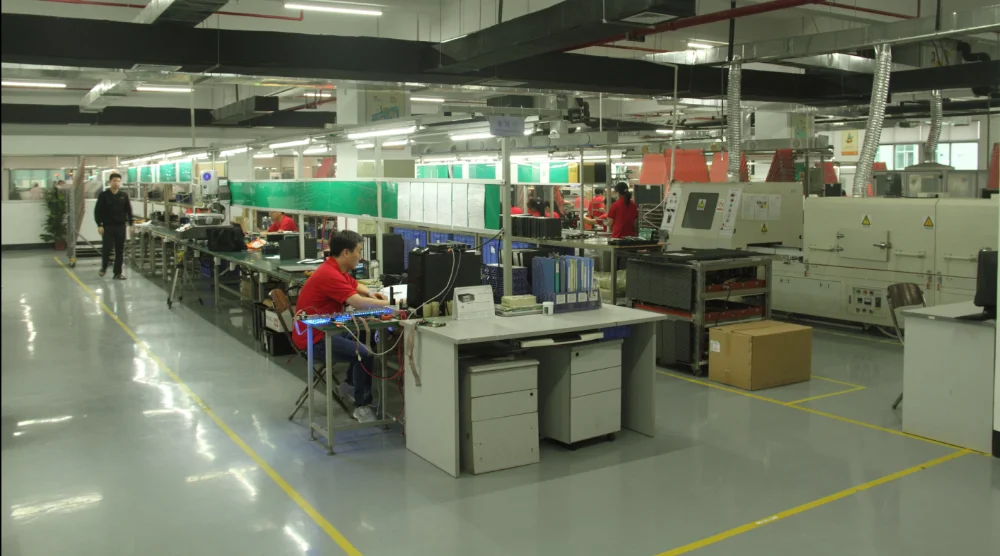

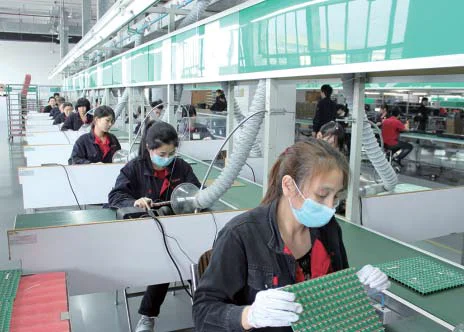

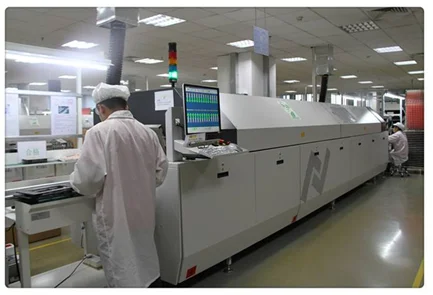

Workshop
