USA original Eagle signal percentage timer For Electrical Center Pivot Irrigation System

Product Overview

Description

USA original Eagle signal percentage timer For Electrical Center Pivot Irrigation System



The HQ4E series 48 percentage Timer is an accurate,econimical,enclosed percentage timer designed for use in application where a repetitive ON time for a fixed cycle needs to be variable.



The HQ4E series 48 percentage Timer is ideally suited for:

Irrigation controls

Chemical feeding

Programed temperature controls

Electric heaters,ovens

Motor controls

Lubrication systems



The HQ4E series percentage Timer is a panel mounted unit with exposed dial.The heavy duty front dial plate has 4 mounting studs for simple and secure mounting studs for simple and secure mounting to panels up to 1/4 inch thick.The load relays are enclosed for environmental protection.

Electric connections are made to captive screw terminals on the rear of the unit.



Operation:

Percentage settings are made with a knob and a dial on the front of the unit.Settings may be made or changed with the timer operating.At 100 percent setting,terminals 2 and 3 are closed continuously.At zero percent setting,terminals 2 and 3 are open continuously.



Votage/Frequency:

24VDC(+10,-20%)

120VAC(+10,-15%)50/60HZ

240VAC(+10,-15%)50/60HZ



Setability:

±1% of total time cycle



Operating temperature:

-10 to 140 Deg.F(-23 to 60 Deg.C)



Power Consumption:

1.2Watts



Laboratory Testing:

U.L.Recognition E-61735

C.U.L Recognition E-61735

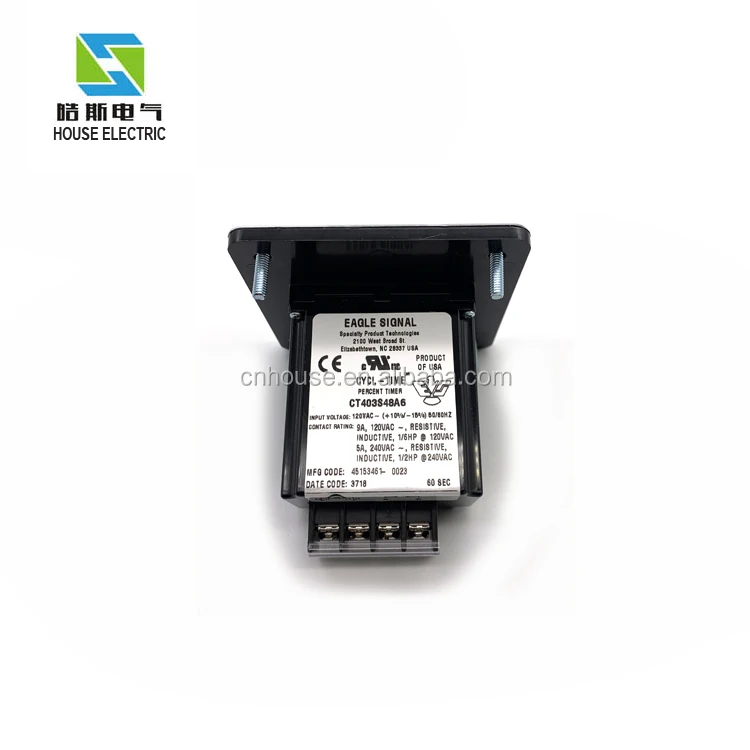

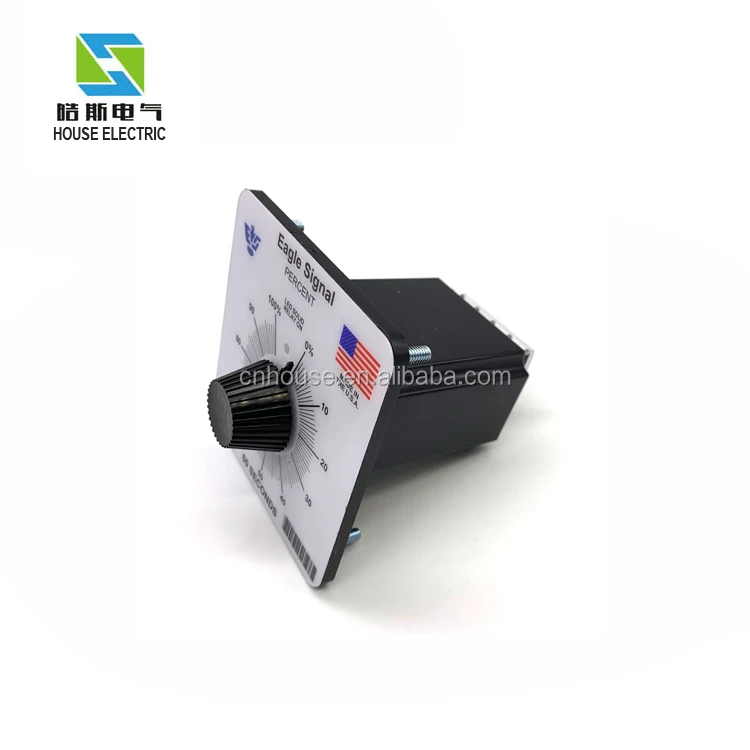

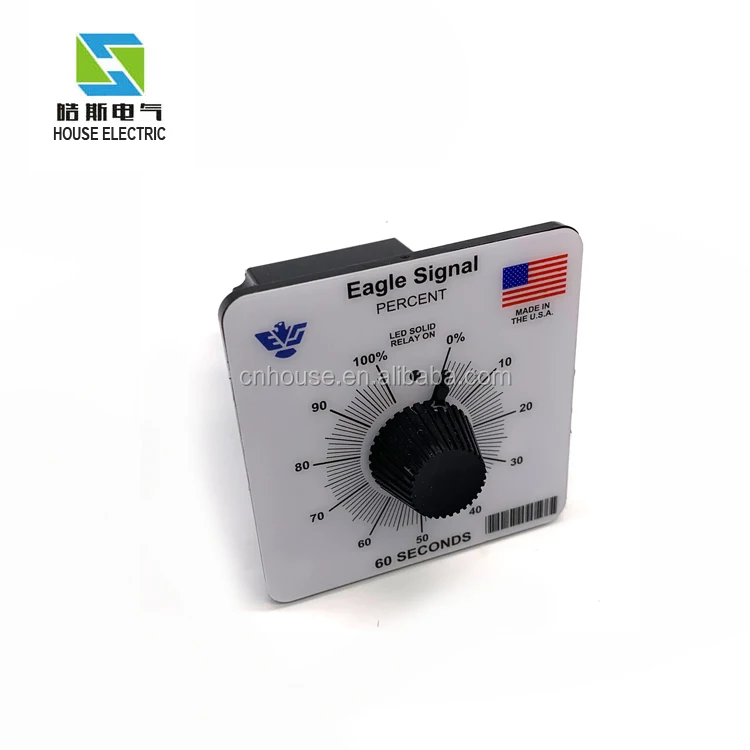

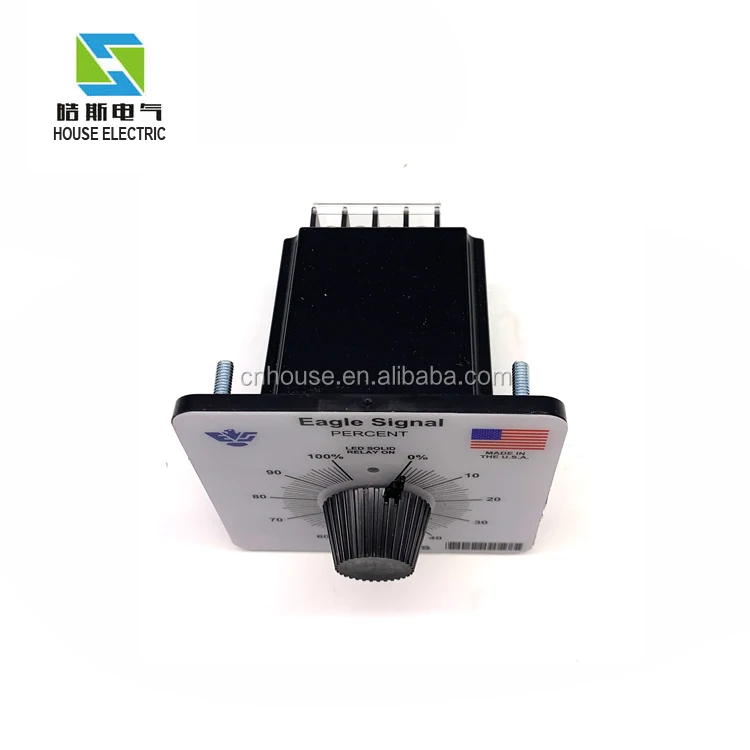

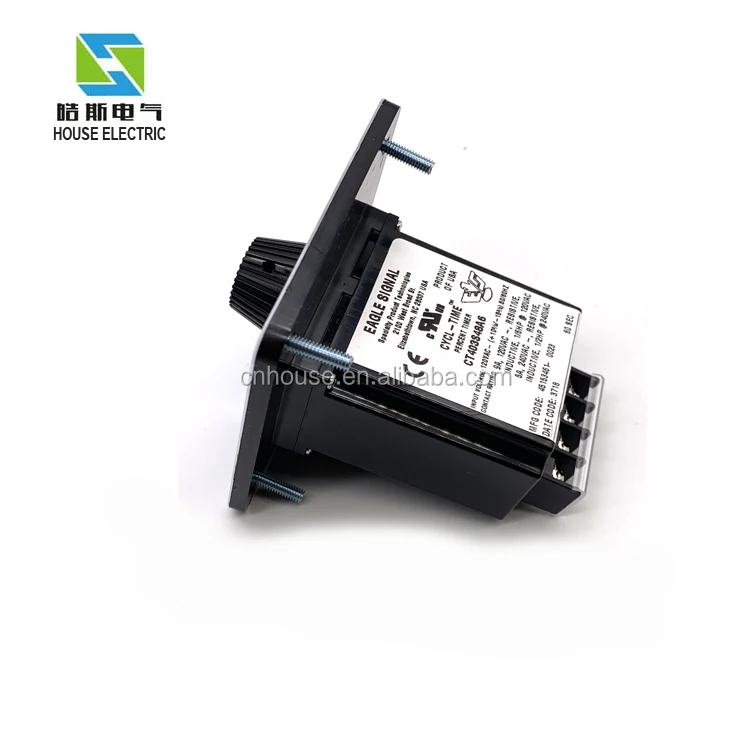

Product Images:



For more details,welcome to contact us!
