Product Overview

Description

Product Description

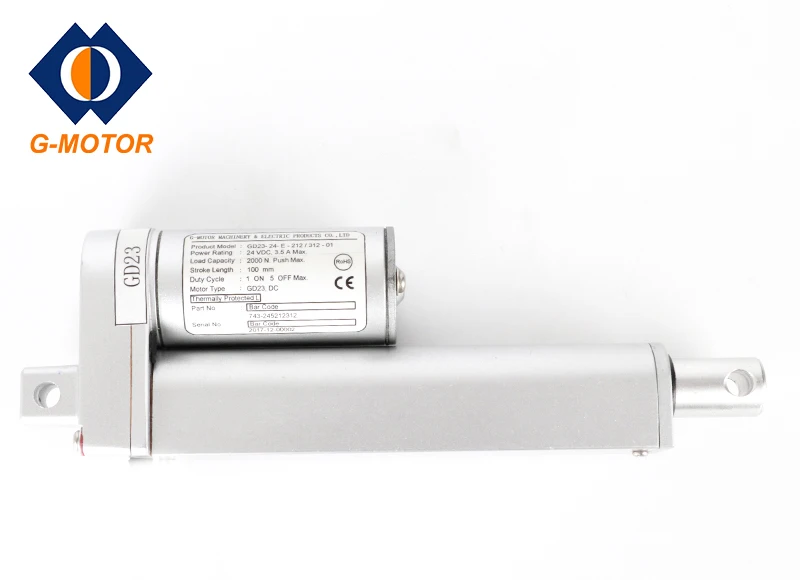

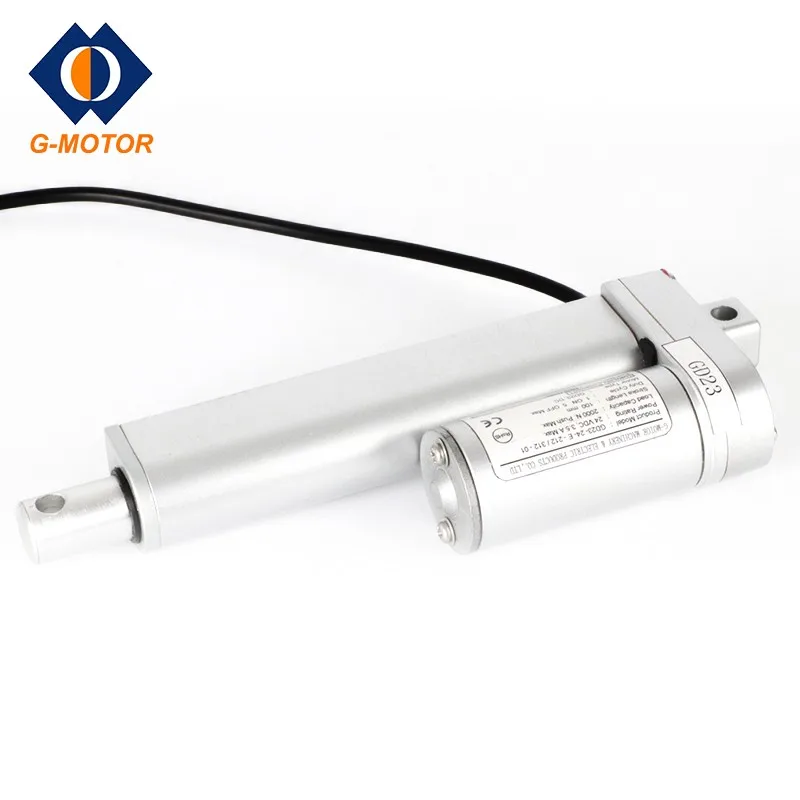

Linear actuator with hall sensor with wireless remote control


Product Application

This linear actuator with hall sensor is designed to be small size,low noise,waterproof and durable life.It can widely used for medical chair,massage chair,wheelchair,door opener,automatic machine and so on.

SPECIFICATIONS FOR LINEAR ACTUATOR MOTOR GD23
Name
linear actuator motor
Screw
High efficency ACME screw
Model
GD23
Inner and puter tube material
Aluminum
Stroke
customized as your requirement
Size
Compact size
Min installed size
110mm+stroke or just according to your requirements
Application
medical chair,wheelchair,fitness equipment
Voltage
12V/24VDC
IP degree
IP66
Reduction Ratio
 5:1 10:1 20:1 30:1 40:1
Limit Switches
Built-in(Factory Preset)
Duty Cycle
10%(1 ON 9 OFF)

Main Features

1)Linear actuator with hall sensor

2) Compact size;

3) Cheap price;

4)Sensor can be option;

5) Low noise and smooth operation;

6) Easy installation and maintenance free.

7)High efficiency ACME screw.

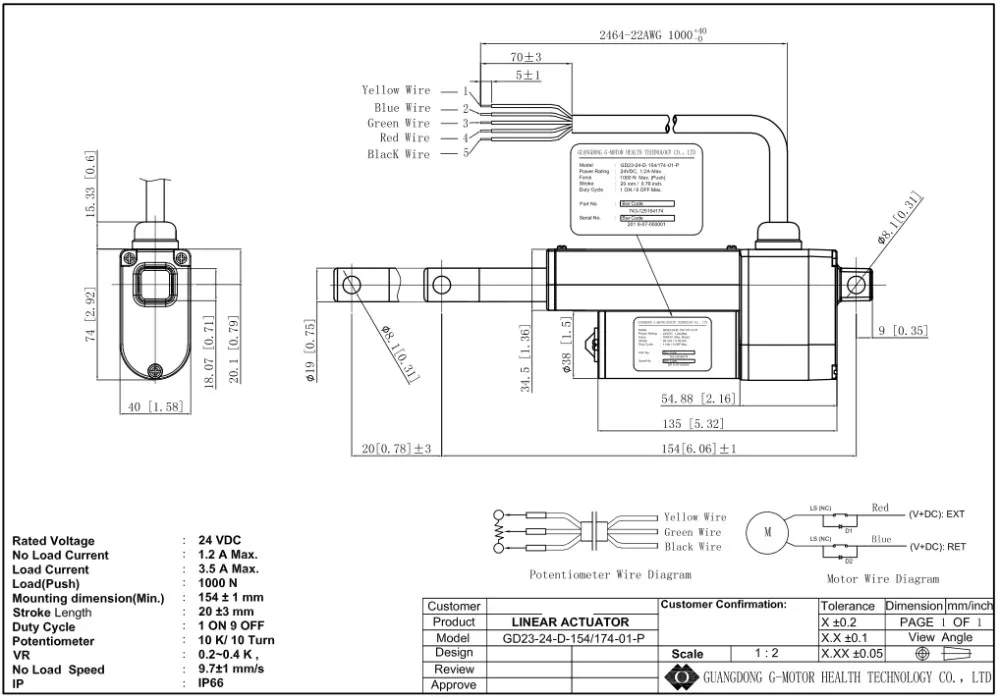

Dimension Size
Certifications

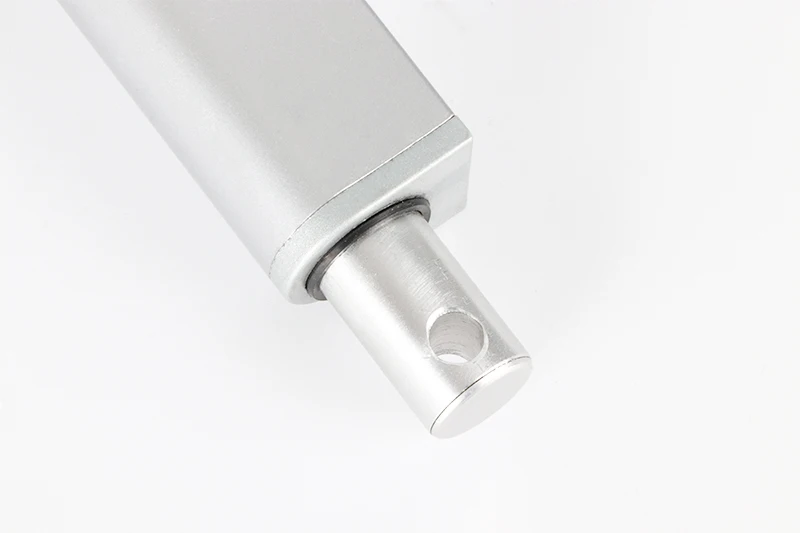

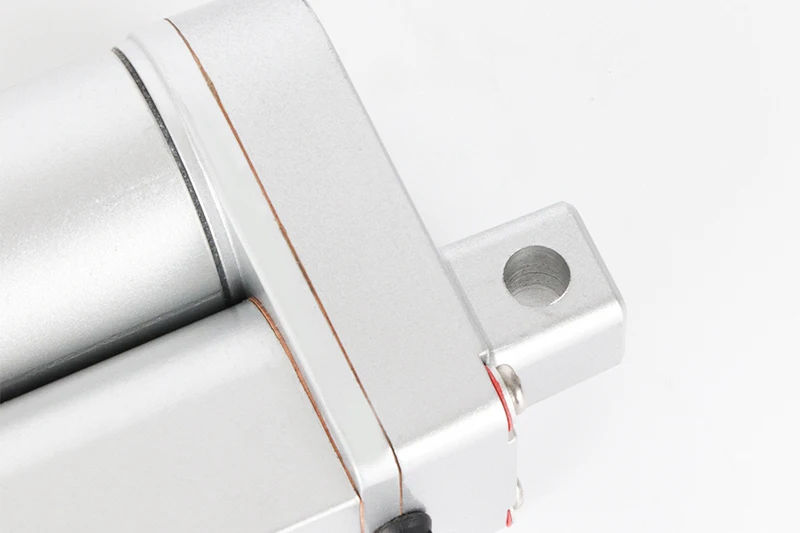

Detailed Images

Linear actuator components

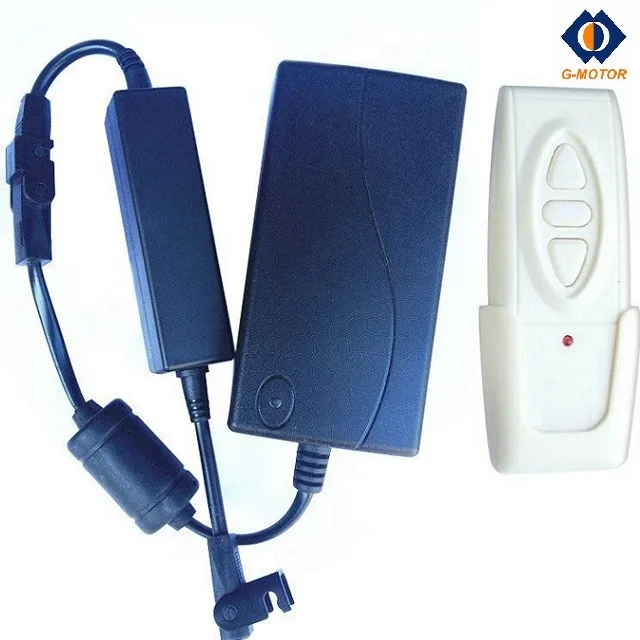

Name: remote controller and power supply
Brand: G-motor
Original: China
Different types of remote controller and power supply can be option.This remote controller is design with children lock.If you need reset function for the actuator,we can also provide the control system for you.

Controller for linear actuator

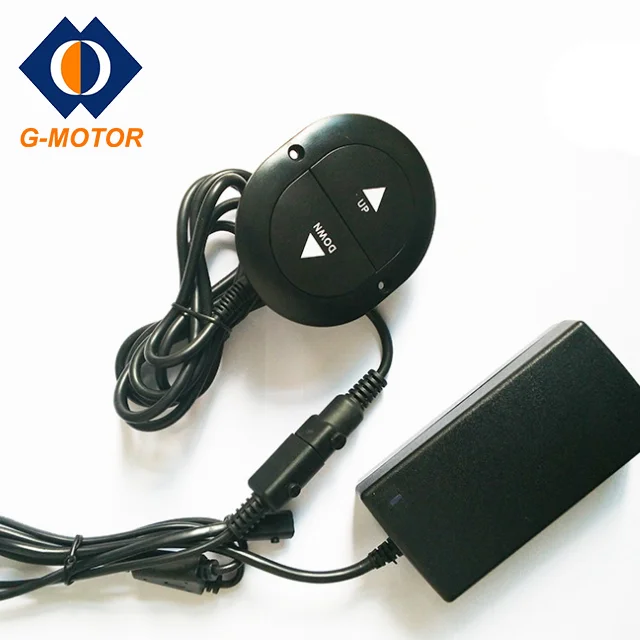

Name: wire handset and control boxes
Brand:G-motor
Original: China
Different type of wire handset and control boxes for actuator can be option.If you need one handset to control several actuators,we can also make it.

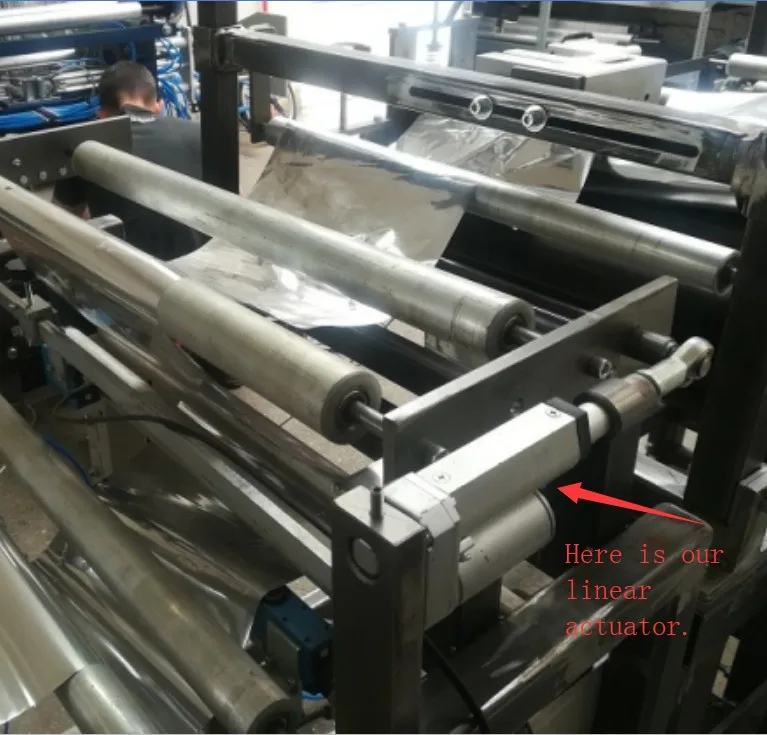

Application example

This mini linear actuator can be used for wheelchair.

This 12V linear actuator motor can be used for medical chair

This DC electric linear actuator can be used for fitness equipment.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Quality products and instruction for use;

*Quality test report;

* One year after-sale warranty.

Packing & Delivery
Packaging



Packaging Details
The normal package for sample is carton box(Size: L*W*H).Inside the carton box,there will fill with foam to protect the linear actuator from damage.
Packaging



Packaging Details
Batch order package is carton box and wooden pallet(Size: L*W*H),which is usually shipped by sea.The wooden pallet will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
