New Polygon Octagonal Light Pole Welding Machine Production Line

Product Overview

Description

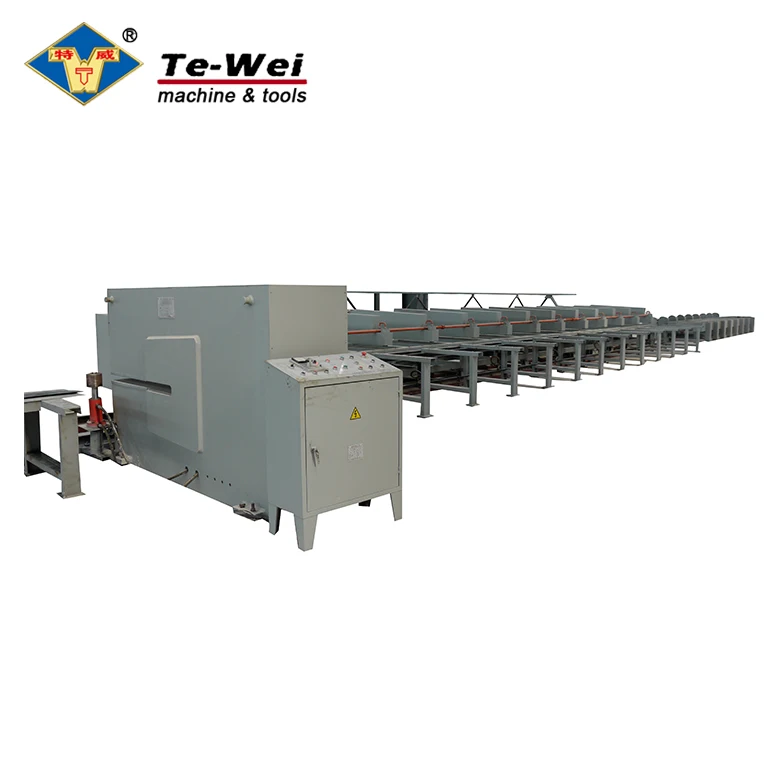

New Polygon Octagonal Light Pole Welding Machine Production Line



Automatic Solar Street Lighting Pole Welding Machine is manufactured by our company,The excellent performance of the machine is widely praised by customers in domestic and abroad.

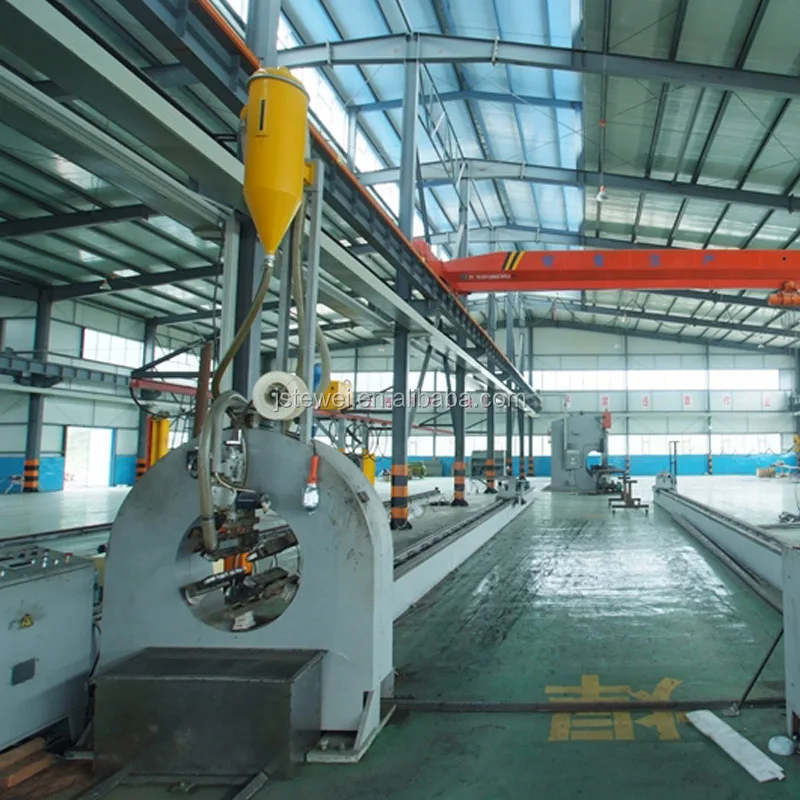

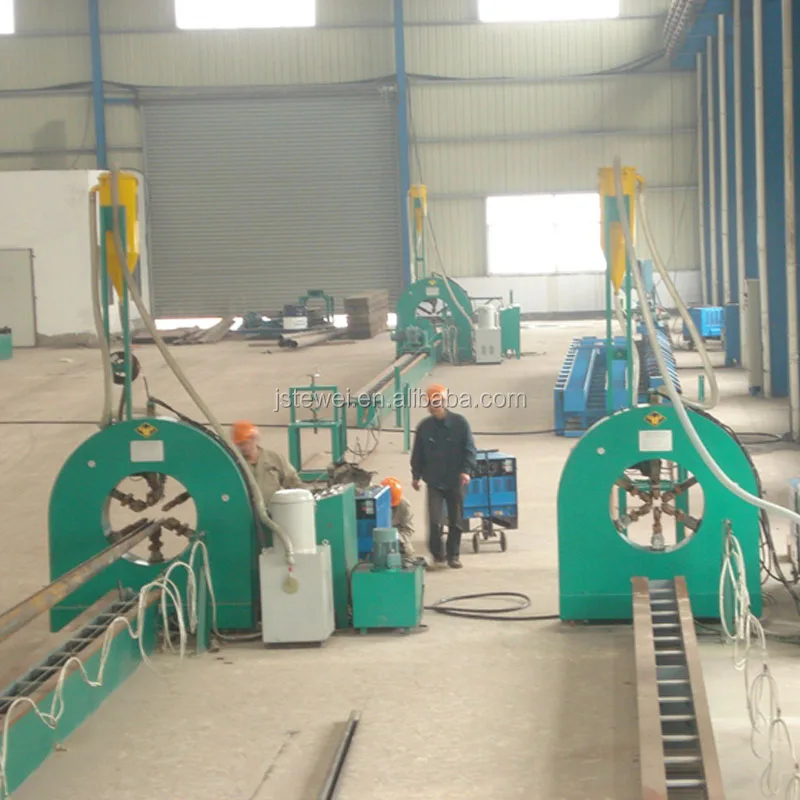

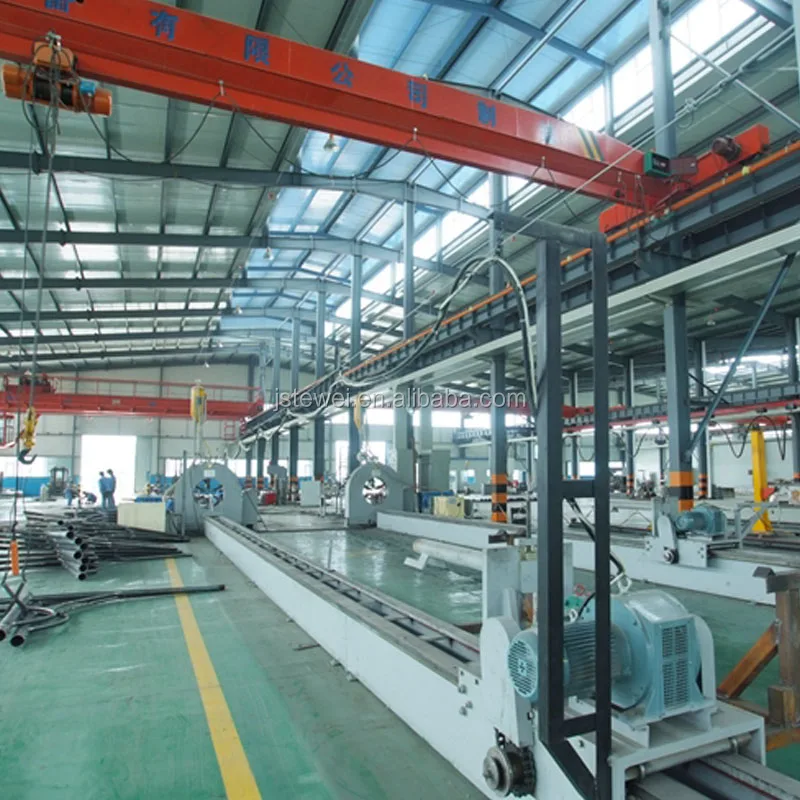

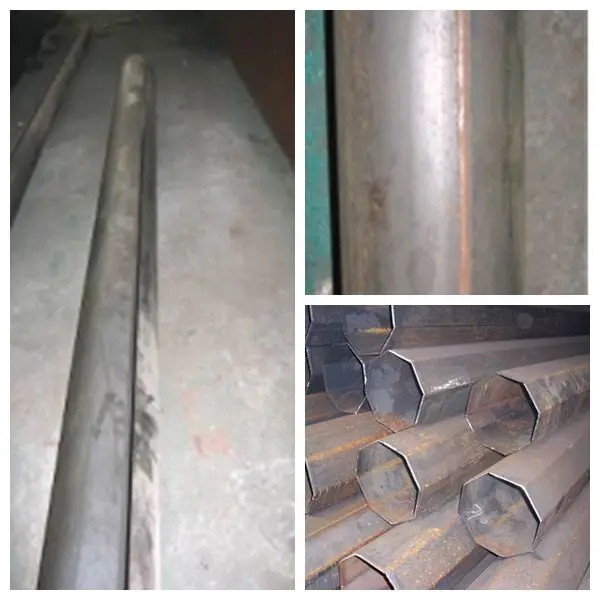

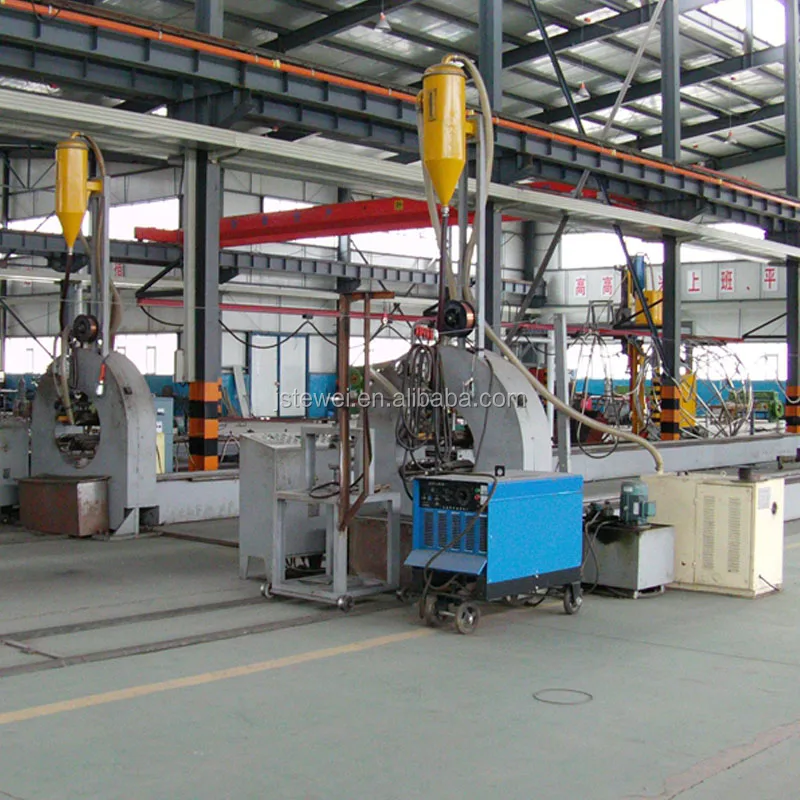

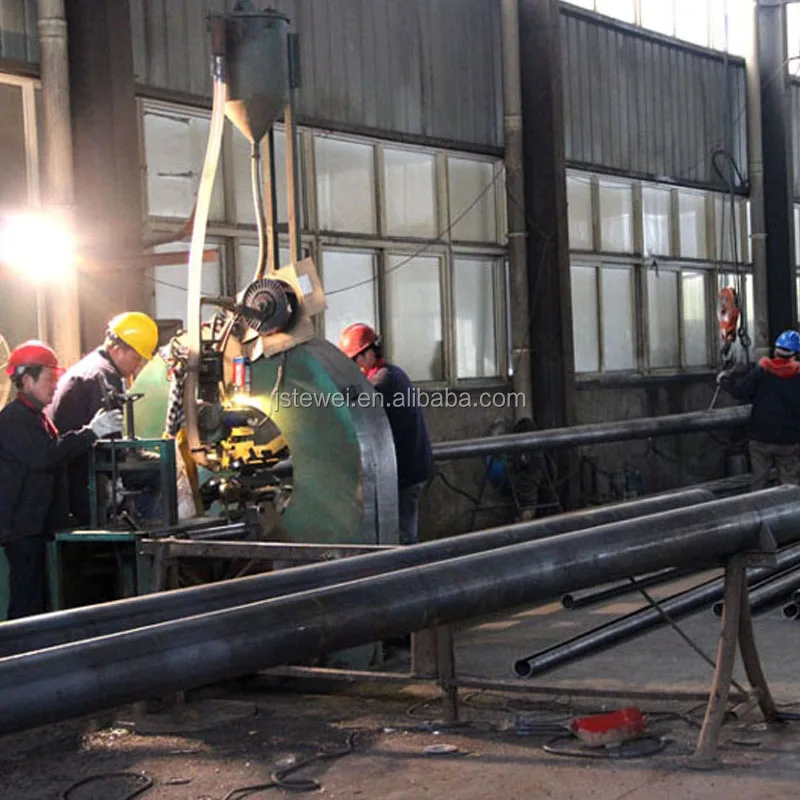

Automatic Solar Street Lighting Pole Welding Machine is composed by main machine head , tractive body and feeding shelf. tractive body was moved by collet in small vehicle nipping the steel pole’s collet. when the small vehicle moved, driven steel pole, from small collet to big collet, regularity moved. the big side of the steel pole was hold by feeding vehicle, force automatic sewing from head of machine to steerable wheel. at one time, the welding machine starts welding. this machine adopt multiple wire submerged arc welding, solder was reclaimed automatic. welding line was symmetrical and slinky. it has strong filter, forming one time, and be with high welding efficiency. the speed of welding achieve 2 to 3 meters per minutes, is about 3 times of the gas welding .the cost of the welding is lower than gas welding. it is with speedy welding, high efficiency, and lowest price in china light poles industry now.



welding length(mm)	pole thickness(mm)	pole diameter (mm)	welding speed(m/min)	welding current(A)	power(kw)	net weight(kg)
12	2.5-5	φ58-320	1-3	630	47	5100
14	2.5-5	φ58-320	1-3	630	47	5500
16	2.5-5	φ58-320	1-3	630	47	5900
14	3-8	φ200-500	1-3	630-1000A	47	8000
14	3-8	φ200-500	1-3	630-1000A	47	9000









ZQ11 Trapezoidal Shearing Machine	ZDMJ Pole Polishing Machine

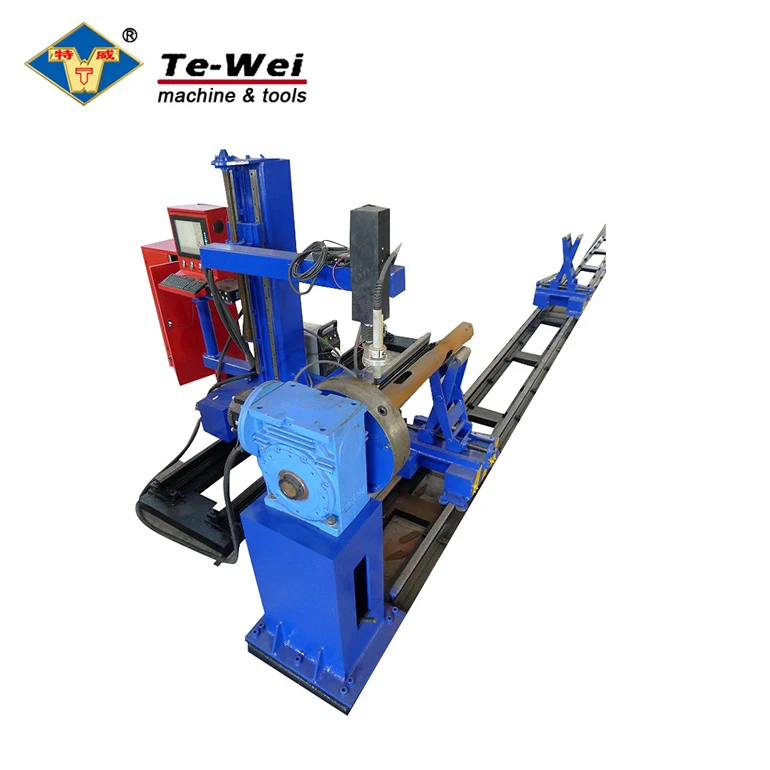

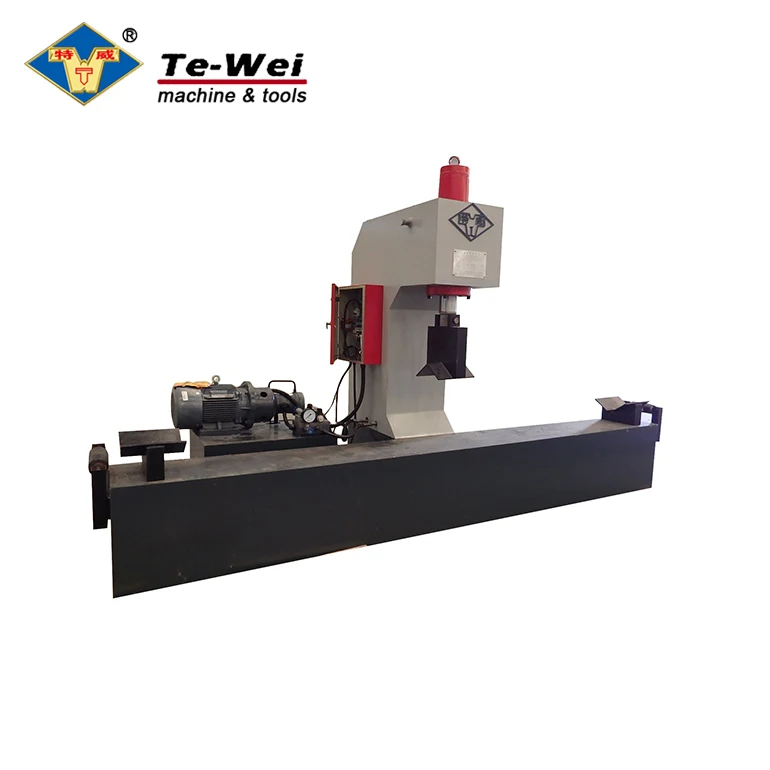

W31Y Pole Straightening Machine	CNC Door Cutting Machine









Q: Are you a factory or trading company ?

A: We are a factory with export licence.



Q: Where is your factory located ? How can I visit your company ?

A: In Yangzhou City, Jiangsu Province, China. There is airport in our city, about half an hour's drive. And our factory is near Nanjing and Shanghai.  Transportation is very convenient.



Q: If I want to start a light pole factory, can I get a whole machine line from you ?

A: Yes, we can make the whole light pole production line.



Q: What is your machine price level ?

A: Price is reasonable with good quality.



Q: What is your machine warranty ?

A: One year.



Q: Is engineer available to provide service abroad ?

A: Yes, we will provide free installation and commissioning, also free training.
